Surface Modification of NiCo₂O₄ Nanowires using Organic Ligands for Overall Water Splitting

• Ke Sun ,
• Yongqing Zhao ,
• Jie Yin ,
• Jing Jin ,
• Hanwen Liu ,
• Pinxian Xi ^,

• State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, 730000, China

Corresponding author: Pinxian Xi, xipx@lzu.edu.cn

• Received Date: 02 July 2021
  Accepted Date: 13 August 2021
  Revised Date: 08 August 2021
  Available Online: 15 June 2022
• Fund Project:

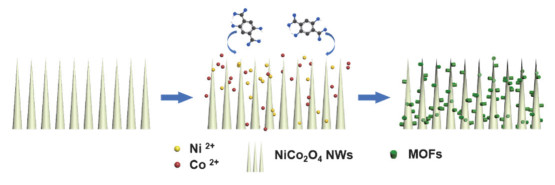

Abstract: Bifunctional electrocatalysts in alkaline media play an important role in the hydrogen evolution reaction (HER) and oxygen evolution reaction (OER), owing to the considerable influence of water splitting in the green energy sector. Herein, we present surface-modified NiCo₂O₄ nanowires (NWs) with rich defects as a highly efficient overall water splitting electrocatalyst in alkaline media, where the surface modification is accomplished using organic ligands. X-ray photoelectron spectroscopy reveals that the increase in the Co²⁺/Co³⁺ ratio is responsible for the excellent bifunctional electrocatalytic performance of the surface-modified NiCo₂O₄ NWs. As expected, benefiting from the organic ligand-dominated surface modification, the optimized NiCo₂O₄ NWs can display an overpotential of only 83 mV for the HER and 280 mV for the OER, with a current density of 10 mA·cm^-2 in 1.0 mol·L^-1 KOH solution. More importantly, the NiCo₂O₄ NWs surface-modified using organic ligands exhibit outstanding performance for overall water splitting, with a voltage of 2.1 V and current density of 100 mA·cm^-2, and also maintain their activity for at least 15 h. The present work highlights the importance of increasing the content of Co²⁺ in the spinel structure of NiCo₂O₄ NWs for enhancing their performance in overall water splitting.

Key words:
• Bifunctional electrocatalyst
•  /  Organic ligand
•  /  Interface
•  /  Surface modified nanowire
•  /  Water splitting

• 1. [1]

     She, Z.; Kibsgaard, J.; Dickens, C.; Chorkendorff, I.; Norskov, J.; Jaramillo, T. Science 2017, 355, 146. doi: 10.1126/science.aam8332

  2. [2]

     Lu, X.; Zhao C. Nat. Commun. 2015, 6, 6616. doi: 10.1038/ncomms7616

  3. [3]

     王灏珉, 何茂帅, 张莹莹. 物理化学学报, 2019, 35, 1207. doi: 10.3866/PKU.WHXB201811011Wang, H.; He, M.; Zhang, Y. Acta. Phys. -Chim. Sin. 2019, 35, 1207. doi: 10.3866/PKU.WHXB201811011

  4. [4]

     Yu, L.; Zhou, H.; Sun, J.; Qin, F.; Yu, F.; Bao, J.; Yu, Y.; Chen, S.; Ren, Z. Energy Environ. Sci. 2017, 10, 1820. doi: 10.1039/C7EE01571B

  5. [5]

     Jia, Y.; Zhang, L.; Gao, G.; Chen, H.; Wang, B.; Zhou, J.; Soo, M.; Hong, M.; Yan, X.; Qian, G.; et al. Adv. Mater. 2017, 29, 1700017. doi: 10.1002/adma.201700017

  6. [6]

     Jin, J.; Yin, J.; Liu, H.; Huang, B.; Hu, Y.; Zhang, H.; Sun, M.; Peng, Y.; Xi, P.; Yan, C. H. Angew. Chem. 2021, 60, 14117. doi: 10.1002/anie.202104055

  7. [7]

     Yin, J.; Jin, J.; Liu, H.; Huang, B.; Lu, M.; Li, J.; Liu, H.; Zhang, H.; Peng, Y.; Xi, P., Adv. Mater. 2020, 32 (39), 2001651. doi: 10.1002/adma.202001651

  8. [8]

     罗盼, 孙芳, 邓菊, 许海涛, 张慧娟, 王煜. 物理化学学报, 2018, 34 (12), 1397. doi: 10.3866/PKU.WHXB201804022Luo, P.; Sun, F.; Deng, J.; Xu, H.; Zhang, H.; Wang, Y. Acta. Phys. -Chim. Sin. 2018, 34 (12), 1397. doi: 10.3866/PKU.WHXB201804022

  9. [9]

     Cai, P.; Huang, J.; Chen, J.; Wen, Z. Angew. Chem. Int. Ed. 2017, 56, 4858. doi: 10.1002/anie.201701280

  10. [10]

      Indra, A.; Paik, U.; Song, T. Angew. Chem. Int. Ed. 2018, 57, 1241. doi: 10.1002/anie.201710809

  11. [11]

      Zhang, J.; Xiao, W.; Xi, P.; Xi, S.; Du, Y.; Gao, D.; Ding, J. ACS Energy Lett. 2017, 2, 1022. doi: 10.1021/acsenergylett.7b00270

  12. [12]

      Yun, Q.; Lu, Q.; Zhang, X.; Tan, C.; Zhang, H. Angew. Chem. Int. Ed. 2018, 57, 626. doi: 10.1002/anie.201706426

  13. [13]

      Tang, C.; Gan, L.; Zhang, R.; Lu, W.; Jiang, X.; Asiri, A.; Sun, X.; Wang, J.; Chen, L. Nano Lett. 2016, 16, 6617. doi: 10.1021/acs.nanolett.6b03332

  14. [14]

      Ke, J.; Xiao, J.; Zhu, W.; Liu, H.; Si, R.; Zhang, Y.; Yan, C. J. Am. Chem. Soc. 2013, 135, 15191. doi: 10.1021/ja407616p

  15. [15]

      Huang, L.; Chen, D.; Ding, Y.; Feng, S.; Wang, Z.; Liu, M. Nano Lett. 2013, 13, 3135. doi: 10.1021/nl401086t

  16. [16]

      Sun, S.; Sun, Y.; Zhou, Y.; Xi, S.; Ren, X.; Huang, B.; Liao, H.; Wang, L.; Du, Y.; Xu, Z. Angew. Chem. Int. Ed. 2019, 58, 6042. doi: 10.1002/anie.201902114

  17. [17]

      Di, J.; Li, L.; Wang, Q.; Yu, J. CCS Chem. 2020, 2, 2280. doi: 10.31635/ccschem.020.202000457

  18. [18]

      Feng, B.; Sugiyama, I.; Hojo, H.; Ohta, H.; Shibata, N.; Ikuhara, Y. Sci. Rep. 2016, 6, 20288. doi: 10.1038/srep20288

  19. [19]

      Yu, J.; Li, Q.; Li, Y.; Xu, C.; Zhen, L.; Dravid, V.; Wu, J. Adv. Funct. Mater. 2016, 26, 7644. doi: 10.1002/adfm.201603727

  20. [20]

      Jin, Y.; Wang, H.; Li, J.; Yue, X.; Han, Y.; Shen, P.; Cui, Y. Adv. Mater. 2016, 28, 3785. doi: 10.1002/adma.201506314

  21. [21]

      Zheng, Y.; Qiao, S. Chem 2017, 2, 751. doi: 10.1016/j.chempr.2017.05.014

  22. [22]

      Nielander, A.; Shaner, M.; Papadantonakis, K.; Francis, S.; Lewis, N. Energy Environ. Sci. 2015, 8, 16. doi: 10.1039/C4EE02251C

  23. [23]

      Burke, M.; Enman, L.; Batchellor, A.; Zou, S.; Boettcher, S. Chem. Mater. 2015, 27, 7549. doi: 10.1021/acs.chemmater.5b03148

  24. [24]

      Stevens, M.; Enman, L.; Batchellor, A.; Cosby, M.; Vise, A.; Trang, C.; Boettcher, S. Chem. Mater. 2016, 29, 120. doi: 10.1021/acs.chemmater.6b02796

  25. [25]

      Ye, S.; Shi, Z.; Feng, J, Tong, Y.; Li, G. Angew. Chem. Int. Ed. 2018, 57, 2672. doi: 10.1002/anie.201712549

  26. [26]

      王恒伟, 路军岭. 物理化学学报, 2018, 34, 1334. doi: 10.3866/PKU.WHXB201804201Wang, H.; Lu. J. Acta. Phys. -Chim. Sin. 2018, 34, 1334. doi: 10.3866/PKU.WHXB201804201

  27. [27]

      McCrory, C.; Jung, S.; Peters, J.; Jaramillo, T. J. Am. Chem. Soc. 2013, 135, 16977. doi: 10.1021/ja407115p

  28. [28]

      Li, Y.; Yin, J.; An, L.; Lu, M.; Sun, K.; Zhao, Y.; Gao, D.; Cheng, F.; Xi, P. Small 2018, 14, 1801070. doi: 10.1002/smll.201801070

  29. [29]

      An, L.; Huang, L.; Zhou, P.; Yin, J.; Liu, H.; Xi, P. Adv. Funct. Mater. 2015, 25, 6814. doi: 10.1002/adfm.201503784

  30. [30]

      Ludwig, J.; An, L.; Pattengale, B.; Kong, Q; Zhang, X.; Xi, P.; Huang, J. J. Phys. Chem. Lett. 2015, 6, 2671. doi: 10.1021/acs.jpclett.5b01078

  31. [31]

      Li, Y.; Wang, Y.; Pattengale, B.; Yin, J.; An, L.; Cheng, F.; Li, Y.; Huang, J.; Xi, P. Nanoscale 2017, 9, 9230. doi: 10.1039/C7NR03182C

  32. [32]

      Li, Y.; Yin, J.; An, L.; Lu, M.; Sun, K.; Zhao, Y.; Cheng, F.; Xi, P. Nanoscale 2018, 10, 6581. doi: 10.1039/C8NR01381K

  33. [33]

      Yin, J.; Zhou, P.; An, L.; Huang, L.; Shao, C.; Wang, J.; Liu, H.; Xi, P. Nanoscale 2016, 8, 1390. doi: 10.1039/C5NR06197K

•
