• Nonlinear optical (NLO) materials are technically importance in producing coherent light sources [1-8]. On the one hand, the NLO materials must meet the crystallographically non-centrosymmtric (NCS). On the other hand, the crystal must satisfy several fundamental requirements such as a wide transparent region, relatively large SHG response, and sufficient birefringence from the viewpoint of optics [9]. Over the past decades, a series of notable NLO crystals have been discovered and used, including β-BaB₂O₄ [10], LiB₃O₅ [11], CsLiB₆O₁₀ [12, 13], KBe₂B₂O₆F₂ [14] and KTiOPO₄ (KTP) [15]. With the rapid development of scientific and technical applications, the search for new NLO materials is still of current academic and commercial interests.

  In recent years, several chemical systems of NLO materials have been reported. In terms of borates, notable examples include NaSr₃Be₃B₃O₉F₄ [16], Na₂CsBe₆B₅O₁₅ [17], Cd₄BiO(BO₃)₃ [18], Pb₂Ba₃(BO₃)₃Cl [19], as well as Li₄Sr(BO₃)₂ [20], Rb₃Al₃B₃O₁₀F [21], and K₃Ba₃Li₂Al₄B₆O₂₀F [22] recently reported by our group. Moreover, there are many carbonates (e.g., ABCO₃F (A = K, Rb, Cs; B = Ca, Sr, Ba) [23], KMgCO₃F [24], CsPbCO₃F [25]), nitrates (e.g., Bi₃TeO₆OH(NO₃)₂ [26], Pb₂(BO₃)(NO₃) [27], Sr₂(OH)₃NO₃ [28]), phosphates (e.g., Ba₃P₃O₁₀X (X = Cl, Br) [29], RbBa₂(PO₃)₅ [30], RbNaMgP₂O₇ [31]) have been obtained. However, there are fewer reports on sulfate-based NLO materials. One of the main reasons is that sulfates tend to decomposing and releasing SO₃ gas at high temperature, making it difficult to grow bulk crystals by the popular high-temperature molten techniques. Recently, two deep-UV NLO sulfates NH₄NaLi₂(SO₄)₂ and (NH₄)₂Na₃Li₉(SO₄)₇ were reported by our group [32], more importantly, they are facile for the crystal growth by a water solution method. Both sulfates are phase-matchable and revealed evident second-harmonic generation (SHG) (1.1 × KH₂PO₄ (KDP) and 0.5 × KDP), respectively. Furthermore, due to the unsatisfactory arrangement of the two sulfates, there is much room for improving the SHG responses. In addition, Zou and his colleague recently reported a new sulfate CsSbF₂SO₄, which exhibits a strong SHG response. CsSbF₂SO₄ was designed by simultaneously substituting [SbO₄F₂]^7- and [SO₄]^2- units for [TiO₆]^8- and [PO₄]^3- functional groups in KTP, respectively [33]. In this work, two NCS fluoride sulfates, K₂Mn₃(SO₄)₃F₂·4H₂O (I) and Rb₂Mn₃(SO₄)₃F₂·2H₂O (Π) were successfully synthesized by a facile water solution method. The two compounds feature pseudo-KTP structures and are NLO-active.

  Single crystals of I and Π were obtained via water solution. I and Π were prepared through the three steps, which are as follows: (ⅰ) The KF or RbF and MnSO₄·H₂O of stoichiometric ratio were dissolved in deionized water, respectively, and finally the completely dissolved solution were obtained, (ⅱ) heating the mixture at about 343 K under stirring for 1-2 h, (ⅲ) evaporating the mixture at 333 K. Light pink single crystals were obtained. Their crystal structures were determined by single-crystal X-ray diffraction (XRD) (detailed descriptions are listed in Tables S1–S4 in Supporting information). Their powder XRD patterns were consistent with the simulated ones determined from the single-crystal XRD analysis (Fig. S1 in Supporting information). The Energy Disperse Spectroscopy results (Fig. S2 in Supporting information) confirmed the existence of F element in the two compounds.

  I and Π crystallize in the same NCS space group Cmc2₁ with similar crystal structures. Hence, the structure of I will be illuminated in detail as a representative. There are two crystallographically unique manganese atoms, i.e., Mn1 and Mn2 and two crystallographically unique sulfur atoms, i.e., S1 and S2 in the structure of I. The Mn1 atom is attached to two fluorine atoms and four oxygen atoms to form Mn1F₂O₄ octahedron with Mn1-F distances of 2.103Å and 2.143Å and Mn1-O distances ranging from 2.137(3)Å to 2.266 (4)Å. The Mn2 atom is attached to two fluorine atoms, three oxygen atoms and one water molecule to form Mn2F₂O₃(H₂O) octahedron with the Mn2-F distances of 2.125(2)Å and 2.199(2)Å and Mn2-O distances ranging from 2.127(3)Å to 2.185(3)Å. The sulfur atoms coordinate with four oxygen atoms to form a SO₄ tetrahedron with the S1–O distances ranging from 1. 456(4)Å to 1.503(4)Å and S2–O distances ranging from 1.456(3)Å to 1.482(3)Å. Mn1O₄F₂ and Mn2O₃F₂(H₂O) octahedra connected with each other via sharing edge and sharing corner to form infinite chains along c axis (Fig. 1a), which are further connected with SO₄ tetrahedra to form [Mn₃(SO₄)₃F₂(H₂O)₂]_∞ layers in the bc plane (Fig. 1b and Fig. S3 in Supporting information for Π). The charge balancing K⁺ cations and the rest water molecules reside between the layers.

  Figure 1

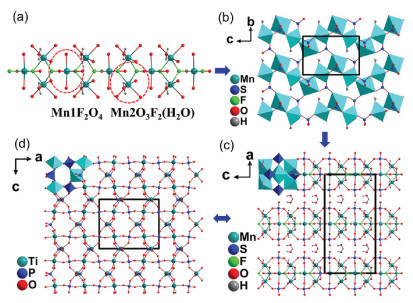

  Figure 1.  (a) [Mn₃O₁₀F₂(H₂O)₂] chain. (b) [Mn₃(SO₄)₃F₂(H₂O)₂]_∞ layer. Structural comparison of (c) I and (d) KTiOPO₄. Dark blue tetrahedra represent SO₄ and light blue octahedra represent Mn1O₄F₂ and Mn2O₃F₂(H₂O).

  DownLoad: Full-Size Img PowerPoint

  From the viewpoint of structural evolution, I can be regarded as a derivative of KTP, in which the TiO₆ octahedra and PO₄ tetrahedra are substituted by Mn1O₄F₂ and Mn2F₂O₃(H₂O) octahedra and SO₄ tetrahedra, respectively (Figs. 1c and d). Different from the three-dimensional framework composed of PO₄ and TiO₆ in KTP, I exhibits a layered structure with [Mn₃(SO₄)₃F₂(H₂O)₂]_∞ layers. Meanwhile, the connection of octahedra is different. In the structure of KTP, the distorted TiO₆ octahedra share their corners through axial oxygen atoms to form infinite chains. In comparison, each Mn1O₄F₂ octahedron is linked to four Mn2O₃F₂(H₂O) octahedra via corner-sharing and two neighboring Mn2O₃F₂(H₂O) octahedra are connected via edge-sharing in the infinite chains of [Mn₃O₁₀F₂(H₂O)₂] (Fig. S4 in Supporting information).

  Despite I and Π have different molecular formula, they crystallize in the same space group and have similar layered structures composed of Mn1O₄F₂ and Mn2F₂O₃(H₂O) octahedra and SO₄ tetrahedra. As shown in Fig. 2a, H₂O molecular and K⁺ cations occupy the interlayer spacing of I, whereas only Rb⁺ cations reside in the interlayer spacing of Π. This structural difference is responsible to the different formula. As shown in Fig. 2b, each K atom is coordinated to six oxygen atoms and two water molecular; each Rb atom is coordinated to eight oxygen atoms and only one water molecular. Clearly, the additional water molecular coordinated to the K atoms can provide a larger steric hindrance than oxygen atom, thereby stopping the crystal structure of I from collapse, since the K-O distances are evidently shorter than that of Rb-O (Fig. 2b).

  Figure 2

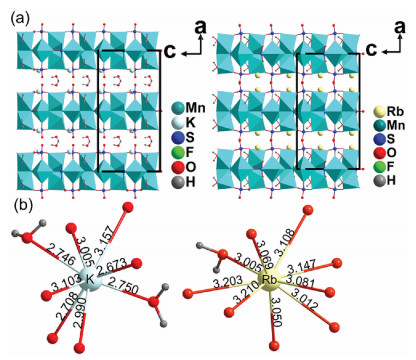

  Figure 2.  (a) Structural comparison of I and Π. (b) The coordination environment of the alkali atoms.

  DownLoad: Full-Size Img PowerPoint

  The infrared spectra of I and Π are presented in Fig. S5 (Supporting information). The moderate absorption peaks of the two compounds observed at 3280/1653 cm^-1 and 3462/1642 cm^-1 are attributable to O—H stretching and bending vibrations. Due to the interconnection of the distorted Mn1O₄F₂ and Mn2O₃F₂(H₂O) octahedral units, The SO₄^2- tetrahedra are very slightly asymmetric, these differential bond lengths in SO₄^2- tetrahedra trigger the degeneration of all stretching and bending vibrational peaks [34]. The signature peaks at lower wavenumbers corresponds to the SO₄^2- building blocks. The peaks at 1143/1081 cm^-1 and 1199/1106 cm^-1 correspond to SO₄^2- asymmetric stretching vibrations. The peaks at 979 cm^-1 and 1000 cm^-1 correspond to SO₄^2- symmetric stretching vibrations and the peaks at 653/612 cm^-1 and 697/616 cm^-1 correspond to SO₄^2- asymmetric bending vibrations [35].

  Fig. 3 shows the thermogravimetric analysis curve of I and Π. The result of the test indicated that I and Π gradually lost weight starting from about 377 K and 473 K, the weight losses of 11.2% for I and 5.4% for Π, respectively. Obviously, more crystal water in I is the reason for the obvious difference in weight loss between the two compounds. After heating to 873 K in the programmable furnace, the residues of I and Π were K₂Mn₂(SO₄)₃ and Rb₂Mn₂(SO₄)₃, respectively. They were confirmed by the powder XRD analysis (Fig. S6 in Supporting information). The powder SHG measurements (Fig. 4a) reveal that I and Π exhibit SHG intensities of about 0.2 and 0.25 × KDP respectively. The SHG tests further confirm the NCS structures of the titled compounds. Based on the anionic group theory, the traditional studies on NLO materials mainly focus on the π-conjugated system, such as [BO₃]^3-, [CO₃]^3- and [NO₃]^3-, which feature triangular planar geometry. In comparison, sulfates are analogous to phosphates, the microscopic second-order nonlinear susceptibility of the SO₄ and PO₄ units are one order of magnitude smaller than that of the planar B—O groups, BO₃ and B₃O₆. As such, the SHG coefficients of sulfates and phosphates are relatively small [36]. Theoretical calculations on the relationships between the crystal structures and SHG responses will be carried out in the future. The UV–vis near-infrared diffuse reflectance spectrum of I and Π are shown in Fig. 4b. The powders measurements indicate that I and Π display the optical band gap of 5.54 eV and 5.55 eV, respectively. It suggesting that I and Π are broad-band gap materials. (Fig. 4b).

  Figure 3

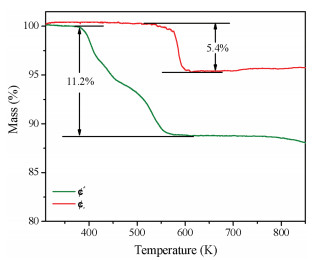

  Figure 3.  Thermogravimetric analysis of I and Π.

  DownLoad: Full-Size Img PowerPoint

  Figure 4

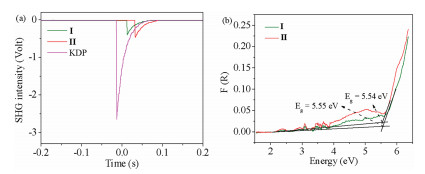

  Figure 4.  (a) Comparison on SHG signals for I, Π and KDP. (b) Diffuse reflectance absorption cure of I and Π.

  DownLoad: Full-Size Img PowerPoint

  In summary, we have successfully synthesized two new NCS fluoride sulfates by the water solution method, I and Π. Despite the two sulfates have different molecular formula, they crystallize in the same space group and have similar pseudo-KTP layered structures. It can be speculated that the steric hindrance of the additional water molecular in comparison with oxygen atom coordinated to the K atoms can prevent the crystal structure of I from collapse. In addition, they exhibit relatively weak SHG responses of about 0.2 and 0.25 × KDP, respectively, which further confirmed that they are NCS. This work enriches the structure chemistry of sulfates.

  Declaration of competing interest

  The authors report no declarations of interest.

  Acknowledgments

  This work is financially supported by the National Natural Science Foundation of China (Nos. 21833010, 21525104, 21971238, 61975207, 21921001), the Key Research Program of Frontier Sciences of the Chinese Academy of Sciences (No. ZDBS-LY-SLH024), Key Laboratory of Functional Crystals and Laser Tech-nology, TIPC, CAS (No. FCLT 202003), as well as Key Laboratory of New Processing Technology for Nonferrous Metal & Materials, Ministry of Education/Guangxi Key Laboratory of Optical and Electronic Materials and Devices (No. 20KF-11).

  Appendix A. Supplementary data

  Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.11.014.


  ^* Corresponding authors at: State Key Laboratory of Structural Chemistry, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China.
  E-mail addresses: zhaosangen@fjirsm.ac.cn (S. Zhao), jhluo@fjirsm.ac.cn (J. Luo).
