Catalytic hydrogenolysis of diphenyl ether over Ru supported on amorphous silicon-aluminum-TiO2

Bo CHEN Lei LI Zhi-ju DIAO Rui-dong CAO Li-fei SONG Liang-qiu HUANG Xue WANG

Citation:  Bo CHEN, Lei LI, Zhi-ju DIAO, Rui-dong CAO, Li-fei SONG, Liang-qiu HUANG, Xue WANG. Catalytic hydrogenolysis of diphenyl ether over Ru supported on amorphous silicon-aluminum-TiO2[J]. Journal of Fuel Chemistry and Technology, 2022, 50(5): 621-627. doi: 10.1016/S1872-5813(21)60191-3 shu

无定形硅铝改性TiO2负载Ru催化加氢解聚二苯醚的研究

    通讯作者: 陈博, bochen@nwu.edu.cn
    刁智俊, zjdiao@nwu.edu.cn

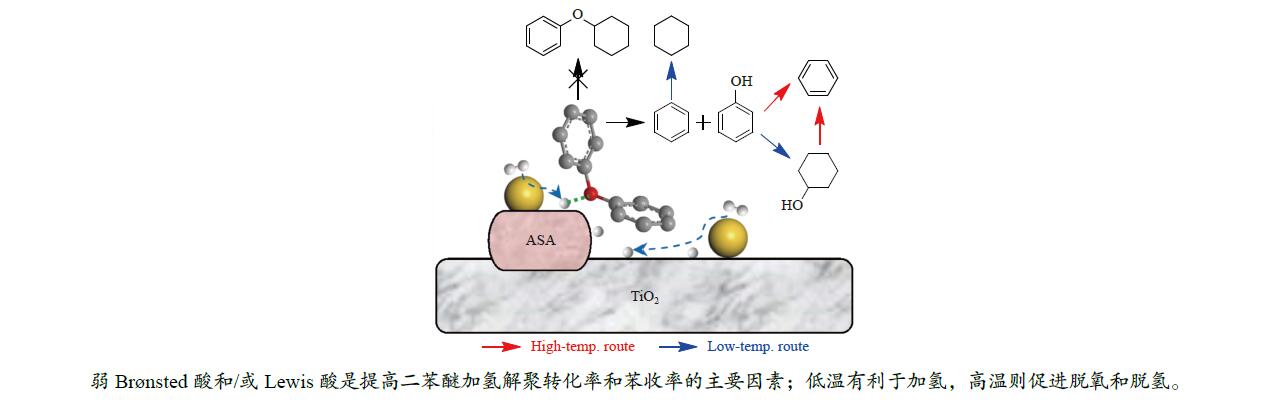

摘要: 采用蒸汽辅助法合成了无定形硅铝(ASA)-TiO2复合载体,并在此基础上制备了双功能催化剂Ru5/ASA-TiO2。利用X-射线衍射(XRD)、吡啶吸附红外(Py-FTIR)、氨-程序升温脱附(NH3-TPD)、扫描电子显微镜(SEM)、透射电子显微镜(TEM)和X射线光电子能谱(XPS)等手段对所制备催化剂的结构和酸性进行了详细表征。以二苯醚为褐煤模型化合物,在温和条件下考察了催化剂Ru5/ASA-TiO2加氢解聚4–O–5类型醚键的反应活性,二苯醚的转化率高于98%,苯收率为67.1%。弱Brønsted酸和/或Lewis酸而非强Brønsted酸是提高二苯醚的加氢解聚转化率和苯收率的主要因素,并且反应温度能够影响各类型酸的相对含量从而显著影响二苯醚加氢解聚产物的选择性。

English

  • The lignite reserve is estimated to be more than one trillion tons all over the world [1]. However, the low calorific value and the high content of ash and water of lignite limit its industrial use [2]. Therefore, it is necessary to develop efficient conversion processes to minimize these disadvantages.

    The cleave of oxygen-bridge bonds, which is abundant in the organic matter of lignite, is a critical step for converting lignite to clean fuels and value-added chemicals [3-5]. Hydrogenolysis is one of the methods that can effectively cleave the oxygen-containing bridge bonds in the organic macromolecules of coal.

    The oxygen-containing bridge bond in the organic macromolecules of coal is mainly connected in four ways: αO–4, βO–4, αOγ and 4–O–5, among which the 4– O–5 type of ether bond has relatively weak reaction activity. Even for a reaction in 15% formic acid at 315 °C or 10% phosphoric acid at 250 °C for 3 d, it cannot be depolymerized [6]. Therefore, as the simplest compound containing 4–O–5 type ether bonds, diphenyl ether is widely used as a model compound of coal.

    Metal Ru is the most promising active metal that can be used in hydrogenolysis reactions. It can not only effectively activate H2 but also selectively depolymerize the C–C and C–O bonds [7,8]. TiO2 with strong Lewis acidity [9,10] and high hydrodeoxygenation reactivity [11,12] is one of the most widely used catalyst supports. In addition, the surface of TiO2 also has the spillover hydrogen effect [13]. According to the reverse Mars-van Krevelen mechanism [14], spillover hydrogen can create oxygen vacancies on the surface of TiO2 as active sites for the hydrodeoxygenation reaction.

    At the same time, it is well known that the acidity of the support is another important factor affecting the selectivity of the hydrogenolysis reaction. Some researchers [15] found that the strong Brønsted acidity of the molecular sieve can easily cause excessive cracking of the raw materials, resulting in a decrease in the product yield. However, silicon-aluminum (ASA) can effectively inhibit the secondary reaction of products due to its controllability of Brønsted and Lewis acids.

    Herein, with the aim to produce arenes from lignite, we synthesized a highly efficient Ru-based catalyst supported by ASA-TiO2 for the selective hydrogenolysis of aryl ether bonds under hydrogen atmosphere in aqueous media. The catalyst was characterized and used for the hydrogenolysis of diphenyl ether, which is the simplest compound containing 4–O–5 type ether bond with weak reaction activity and is widely selected as a model compound for lignite.

    Solvents and reagents were purchased from Macklin and were used as received without any further purification. Commercial HZSM-5 molecular sieve, denoted as HZSM-5c, was purchased from Nankai University Catalyst Co., Ltd.

    About 0.10 g aluminum isopropoxide and 2.45 g tetrapropylammonium hydroxide were mixed under magnetic stirring for 1 h at room temperature, after which about 2.04 g tetraethyl orthosilicate was dropwise added to the clear solution to form a mixture, which was further stirred for 24 h at 40 °C. Then, a certain amount of deionized water and anatase TiO2 were added to the mixture to form the final sample, which was kept at 110 °C for 6 h before being transferred into a Teflon-lined stainless steel autoclave to be crystallized by a steam-assisted method at 180 °C for 24 h. Finally, the generated solid precipitate was calcined at 550 °C to obtain the composite of ASA-TiO2, which was used as the support for the catalyst. For comparison, HZSM-5 was prepared through the same procedure but without TiO2.

    Catalysts were prepared by impregnating the support with 5% of Ru using an aqueous solution of RuCl3·xH2O as the precursor. After impregnation, the catalyst precursor was dried at 110 °C overnight, followed by being reduced at 300 °C for 2 h with a ramp of 5 °C/min under a H2 atmosphere (20 mL/min) before finally being passivated under a flow of 2% O2/N2 for 0.5 h at room temperature. The black sample using ASA-TiO2 as the support is denoted as Ru5/ASA-TiO2. X-ray diffraction (XRD), pyridine adsorption infrared (Py-FTIR), ammonia-temperature-programmed desorption (NH3-TPD), scanning electron microscopy (SEM), transmission electron microscopy (TEM) and X-ray photoelectron spectroscopy (XPS) are used to systematically investigate the effect of the structural characteristics and the changes of the acidity on the performance of the catalyst in the catalytic hydrogenolysis of diphenyl ether.

    For a typical test, the reactant (0.2 mmol), H2O (5 mL) and the fresh catalyst (0.02 g) were added into a 24 mL stainless steel autoclave reactor, which was sequentially charged with 0.2 MPa H2 and 0.6 MPa N2 after being purged with hydrogen several times to remove the air. The test was performed at the desired temperature for 1 h with a stirring speed of 1000 r/min. After the test, the reactor was quenched to ambient temperature using cooling water. Then the obtained sample was extracted using ethyl acetate (10 mL) with the addition of 20 μL n-dodecane as the internal standard. The organic liquid products were analyzed with a gas chromatograph (GC) equipped with a flame ionization detector (FID) and a gas chromatograph-mass spectrometer (GC-MS). The conversion of diphenyl ether and the yield of the liquid product were calculated according to the following equations on the basis of mole balance.

    $ \begin{split} &{\rm{Conversion\;of\;diphenyl\;ether(\%) =}}\\ &\quad \dfrac{{{\rm{moles\;of\;diphenyl\;ether\;reacted}}}}{{{\rm{moles\;of\;diphenyl\;ether\;supplied}}}} \times 100\% \end{split}$

    (1)

    $ \begin{split} &{\rm{Yield\;of\;liquid\;product}}\;( {i} ){\rm{\% = }}\\ &\quad \dfrac{{{\rm{moles\;of\;C\;atoms\;in\;product}}\;( {i} )}}{{{\rm{moles\;of\;C\;atoms\;in\;supplied\;diphenyl\;ether}}}} \times 100\% \end{split}$

    (2)

    As shown in Figure 1, the ASA-TiO2 composite as the support presents obvious diffraction peaks of TiO2. In this case, both silicon and aluminum may be distributed on the surface of TiO2 in an amorphous form [16]. The existence of anatase-type TiO2 does not conducive to the formation of the HZSM-5 molecular sieve while the mechanism needs to be further studied [17].

    A series of characterization results of the catalyst of Ru5/ASA-TiO2 is shown in Figure 2. The porous surface (Figure 2(a)) of the catalyst provides a larger specific surface area facilitating the dispersion of Ru species. As shown in Figure 2(b), Ru species with an average particle size of (2.1 ± 0.8) nm are uniformly distributed on the surface of the support. In the high-resolution TEM image (Figure 2(c)), the interplanar spacing corresponding to Ru (111) and Ru (110) can be observed, indicating that there are a large number of metallic Ru nanoparticles on the Ru5/ASA-TiO2. The lower-left corner of Figure 2(d) presents the interplanar spacing corresponding to TiO2 (101). The fast Fourier transform mode of the selected area in the upper-right corner shows obvious amorphous diffraction patterns, in agreement with the XRD results that silicon-aluminum oxide is dispersed on the surface of TiO2 in an amorphous form.

    Figure 2(e) presents the 3p3/2 orbital information of the Ru on the surface of the catalyst of Ru5/ASA-TiO2, which was corrected with the binding energy of C 1s of 284.80 eV to eliminate the effect of charging as suggested by Neimark et al. [18]. The peak at 460.9 eV is attributed to Ru0 while another peak at 462.5 is related to RuO2, as shown in Figures 2(e) and 2(f). The oxidized form of Ru may be produced from the partial oxidation of Ru in the air, as indicated by Liu et al. [8].

    Figure 1

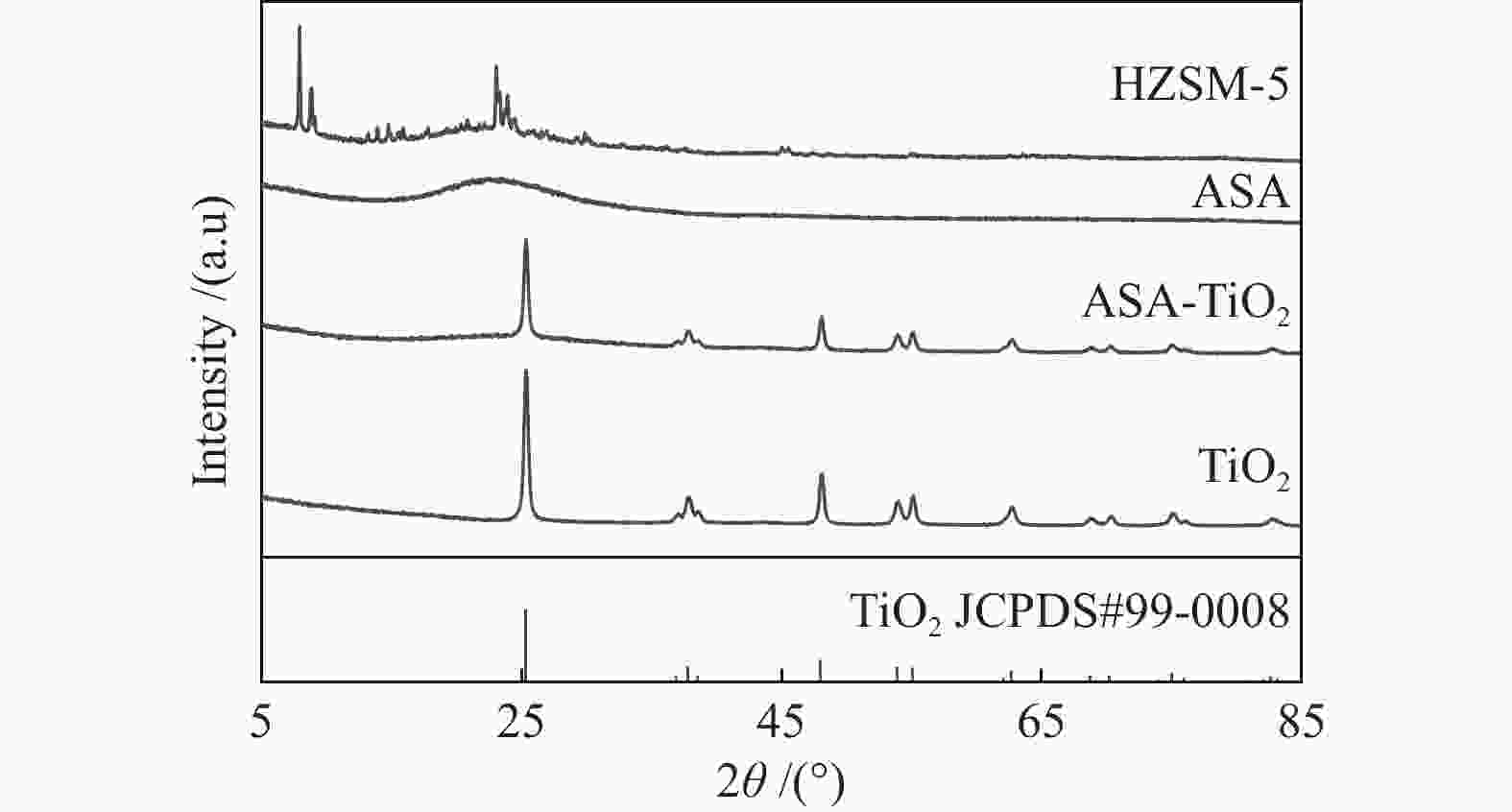

    Figure 1.  XRD patterns of different supports

    Figure 2

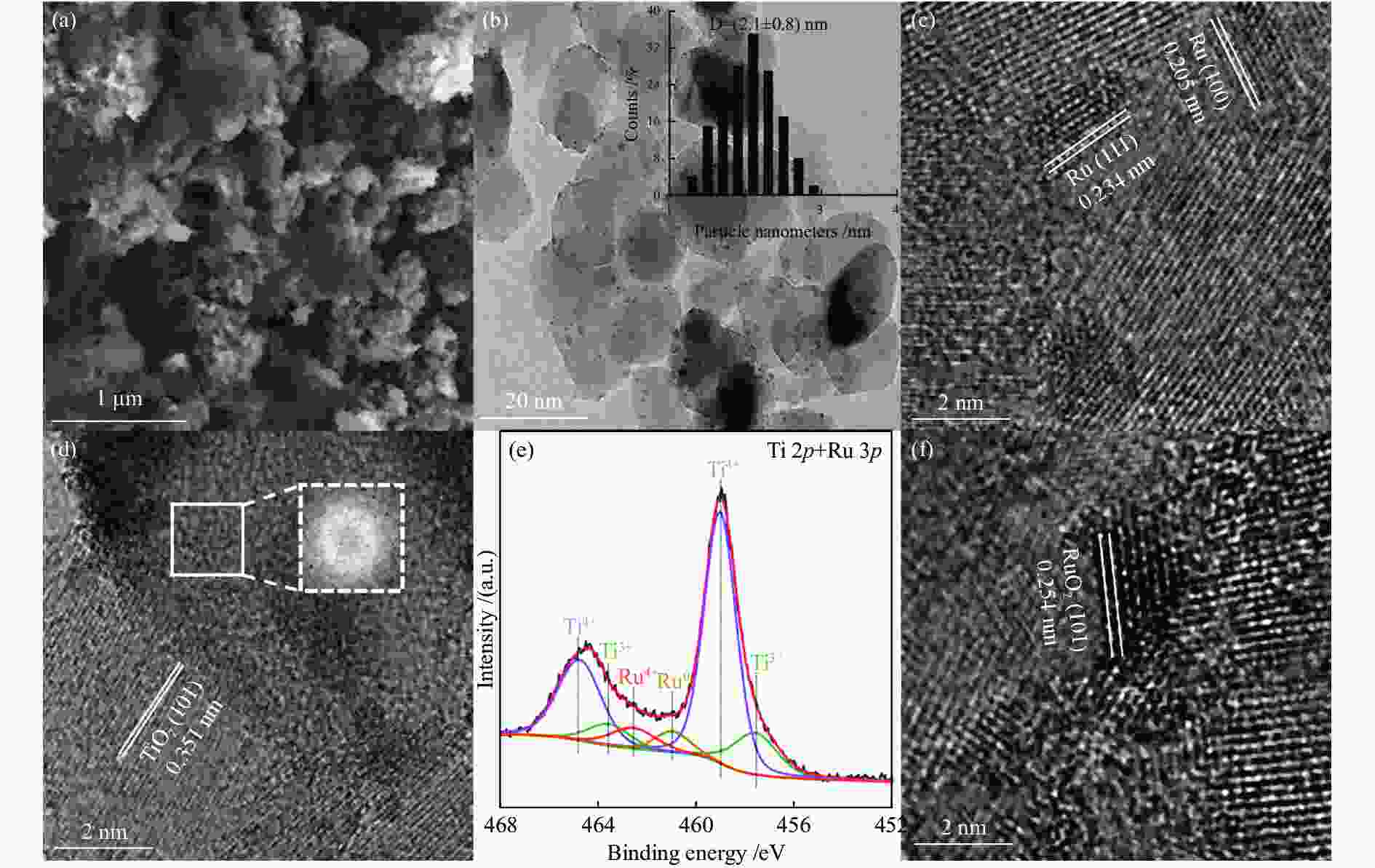

    Figure 2.  Characterizations of the catalyst of Ru5/ASA-TiO2 with (a) SEM, (b)−(d), (f) TEM and (e) XPS Inset in (d) is the fast Fourier transformation of the selected area

    As shown in Figure 3, the ASA-TiO2 composite as the support has a Brønsted acid site (BA) and two Lewis acid sites (LA1 and LA2) with different strengths and properties. The three absorption peaks are located at 1445, 1454 and 1545 cm–1, respectively, consistent with the work of Shamzhy et al. [19]. Table 1 presents the content of the Lewis and Brønsted sites, which can be calculated according to the areas of the absorption peaks and their corresponding extinction coefficients. The value of the ratio of both BA/LA and LA1/LA2 as shown in Table 1 indicates that the Lewis acidity of the support of the ASA-TiO2 composite is mainly derived from the LA1 acid sites of TiO2. On the other hand, when the desorption temperature of pyridine is increased from 150 to 250 °C, the value of BA/LA and LA1/LA2 of ASA-TiO2 changes from 0.30 and 1.46 to 0.72 and 0.91, respectively, indicating that an increase in the temperature can significantly reduce the acidity of LA1.

    Figure 3

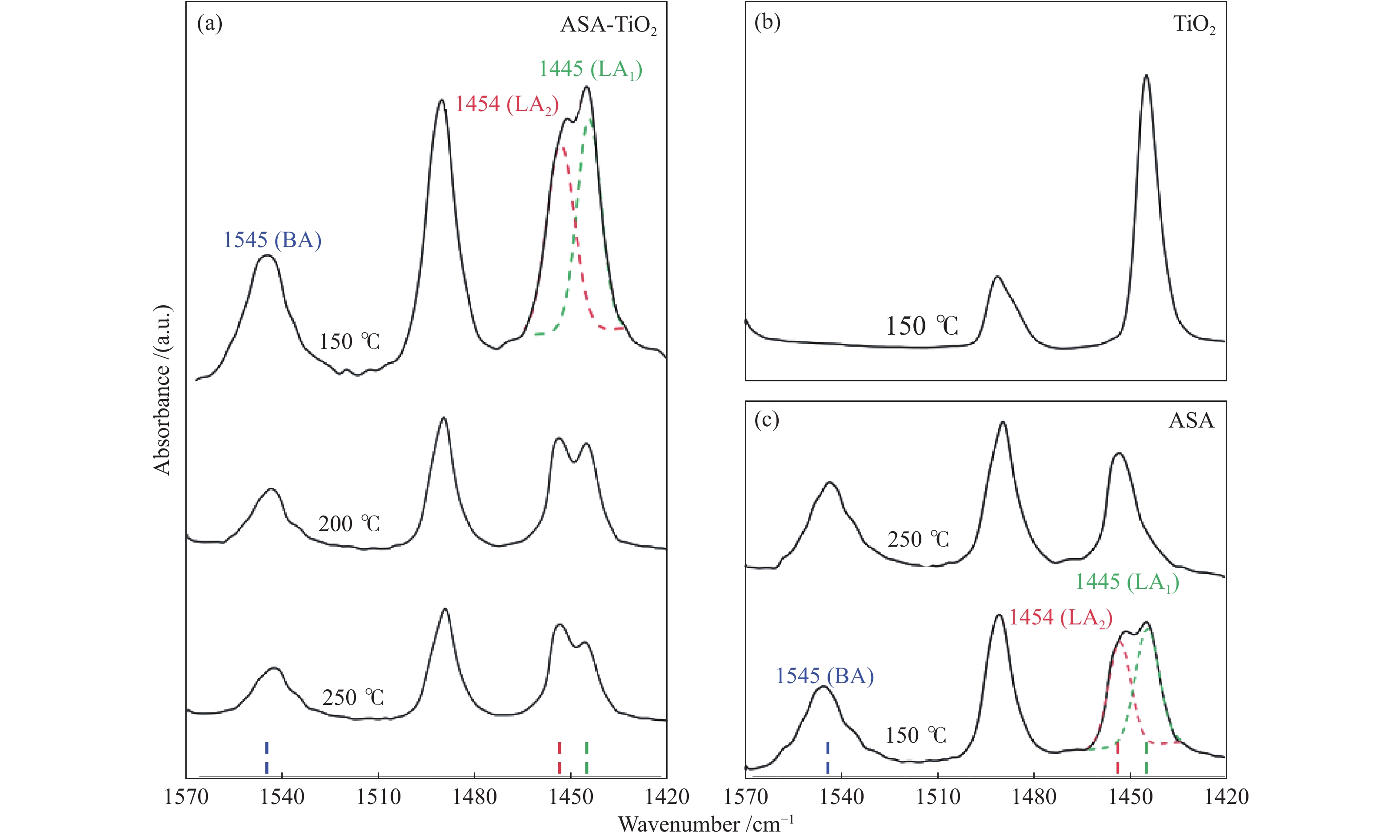

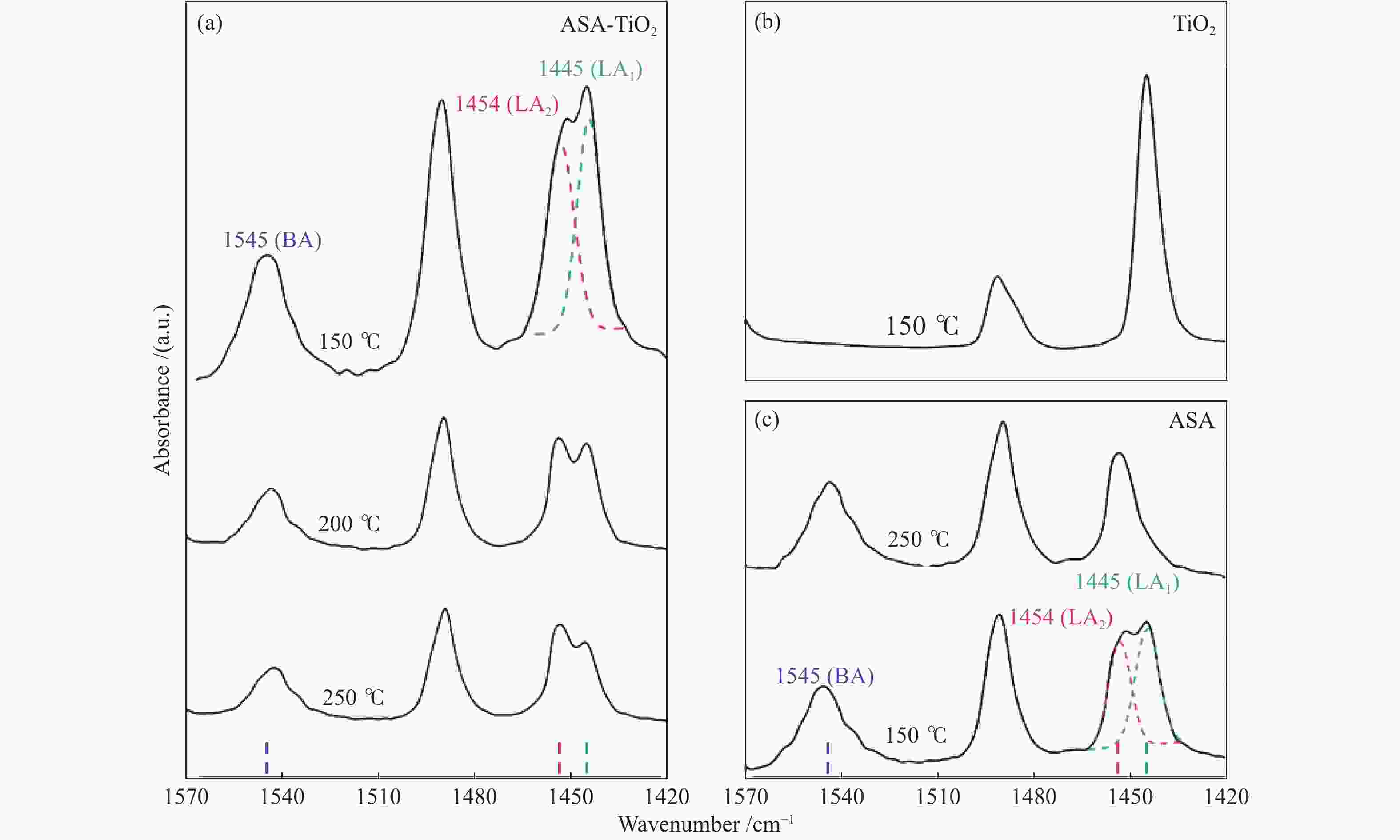

    Figure 3.  Py-FTIR spectra of the support after desorption at different temperatures

    Table 1

    Table 1.  Number of BA and LA sites in different supports a
    下载: 导出CSV
    SampleRelative amount /%cacid /(mmol·g−1)bLA1/LA2dBA/LAd
    LA1LA2
    ASA-TiO2 59.39 40.61 0.42 1.46 0.30
    HZSM-5 0 100 0.50 0 1.22
    HZSM-5c 0 100 1.58 0 4.89
    TiO2 100 0 0.25 0
    Ru5/ASA-TiO2 69.11 30.89 0.49 2.24 0.26
    a Py-FTIR characterization was performed at 150 °C; b NH3-TPD profiles were obtained in the temperature range of 50−550 °C; c commercial molecular sieve; d relative content of Lewis and Brønsted sites were calculated according to the areas of the absorption peaks and their corresponding extinction coefficients

    As shown in Table 1, the total acid content of the commercial HZSM-5c reaches to 1.58 mmol/g. However, the conversion rate of the catalytic hydrogenolysis of diphenyl ether while the benzene yield of Ru5/HZSM-5c are the lowest, as shown in Figure 4. Although the total acid content of other supports is significantly lower than that of the commercial HZSM-5c, their content of the Lewis acid, their conversion rate of diphenyl ether and their yield of benzene are all significantly higher than those of the commercial HZSM-5c. This indicates that the Lewis acid of the support can significantly affect the activity of hydrogenolysis reactions, which is consistent with other studies [20, 21].

    Notably, the relative content of LA1 of Ru5/ASA-TiO2 is nearly 10% higher than that of ASA-TiO2 (see Table 1) because Ru can promote the formation of more defects (oxygen vacancy and Ti3+ as shown in Figure 2(e)) on the surface of anatase TiO2 during the reduction process, as indicated by Deng et al. [22]. In addition, Boonyasuwat et al. [12] revealed that these defects are closely related to the acid site of LA1. As mentioned above, although an increase in the temperature can significantly reduce the acidity of LA1 in the ASA-TiO2 composite as the support under non-reduction conditions, Ru can promote the continuous generation of surface defects on TiO2 under the reaction condition in the presence of hydrogen while the concentration of the defects on the surface of TiO2 increases with the increase in the reduction temperature, as suggested by Hery et al. [23]. This is significantly positively correlated with the phenomenon that the yield of benzene increases with the increase in the temperature while the content of cyclohexanol and cyclohexanone decreases gradually, as shown in Figure 5. On the other hand, as shown in Figure 6, for a reaction time of 60 min, the maximum benzene yield is 67.1% while the yield of phenol decreases from 10.7% to 0.5%. Further extension of the reaction time can lead to the hydrogenation of a small amount of benzene to cyclohexane.

    Figure 4

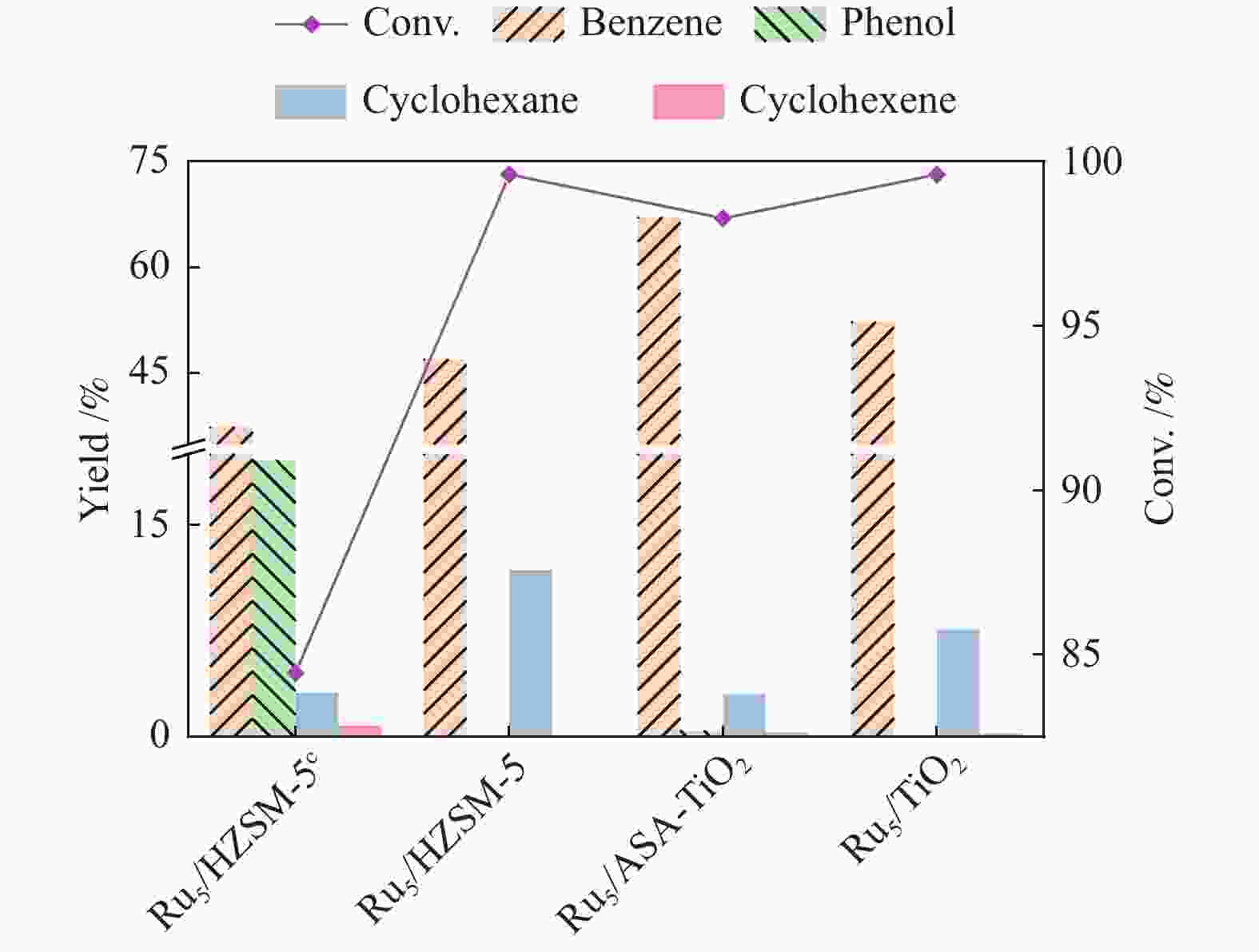

    Figure 4.  Hydrogenolysis of diphenyl ether with different catalystsGeneral conditions: diphenyl ether (0.2 mmol), catalyst (0.02 g), water (5 mL), 250 °C, 1 h, 0.2 MPa H2 + 0.6 MPa N2

    As shown in Figure 7, the mechanism of the catalytic hydrogenolysis of diphenyl ether over Ru5/ASA-TiO2 is proposed as following: First, the aromatic ether bonds of diphenyl ethers are depolymerized directly to generate benzene and phenol, rather than through the depolymerization path via a partially hydrogenated product of (cyclohexyloxy) benzene which cannot be detected during all the reactions. Subsequently, the reaction path of phenol mainly depends on the reaction temperature. A temperature lower than 190 °C is conducive to the hydrogenation reaction while a temperature higher than 190 °C benefits the deoxidation and dehydrogenation to generate benzene as shown in Table 2 and Figures 56, which is consistent with the results previously reported [24]. The above reaction process involves two types of Lewis acid centers and Brønsted acid centers. In addition, Nelson et al. [25] revealed that the Lewis acid centers provided by TiO2 can be converted to the Brønsted acid centers. These acid centers dynamically change with the reaction conditions and present different reactivities. These characteristics of the catalyst is challenging to understand the hydrogenolysis mechanism of diphenyl ether.

    Figure 5

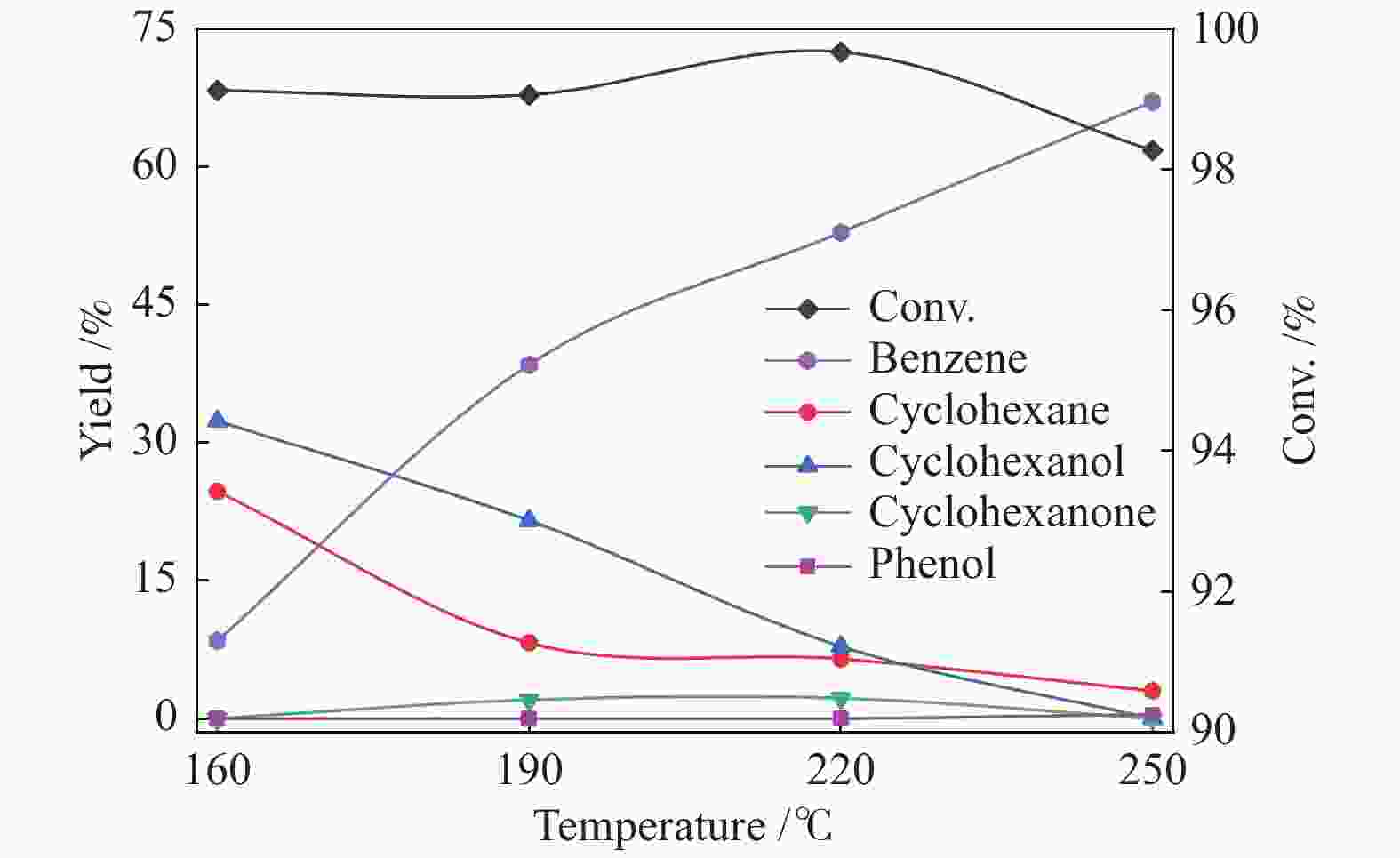

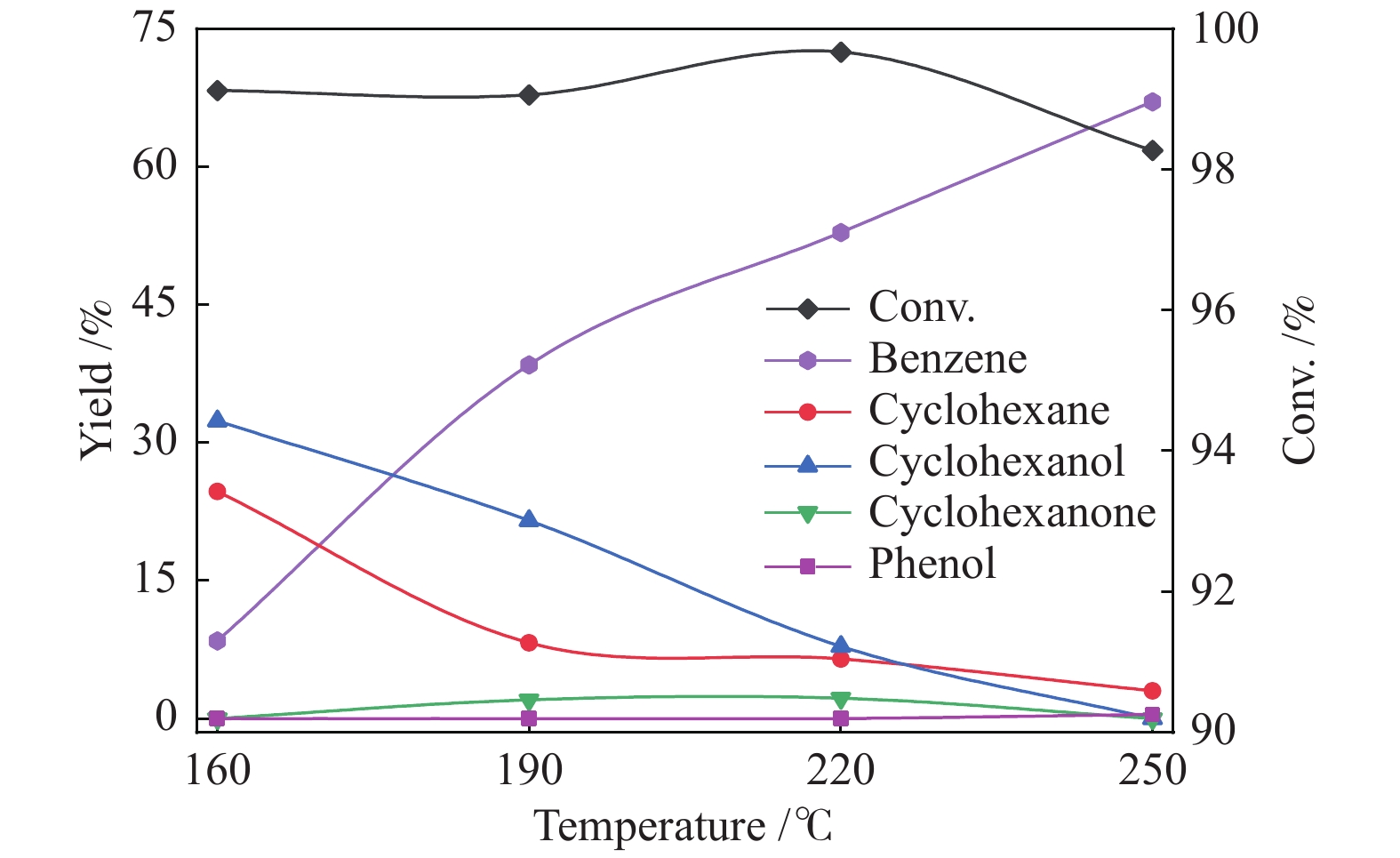

    Figure 5.  Effect of temperature on the distribution of primary products General conditions: diphenyl ether (0.2 mmol), catalyst (0.02 g), water (5 mL), 1 h, 0.2 MPa H2+0.6 MPa N2

    Figure 6

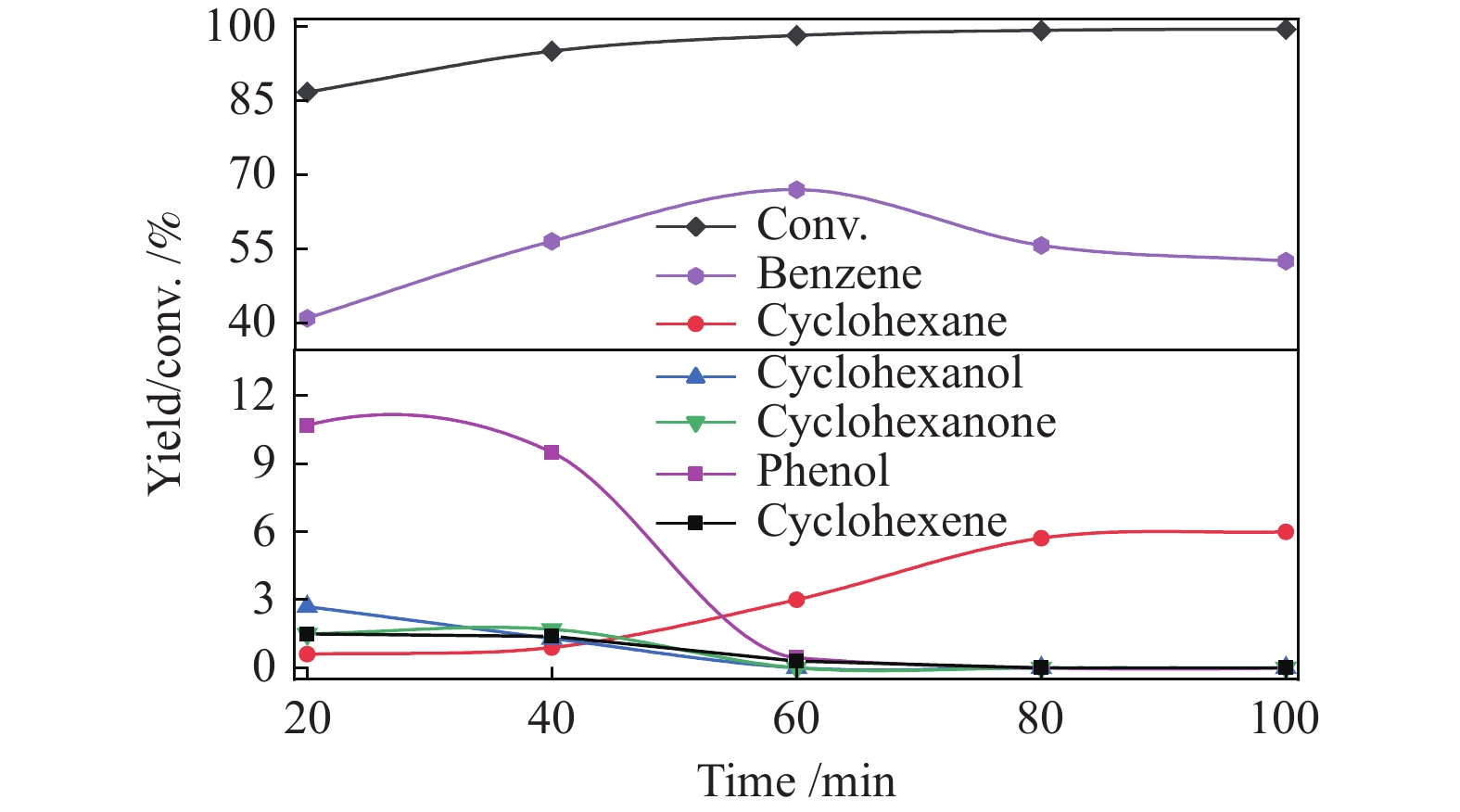

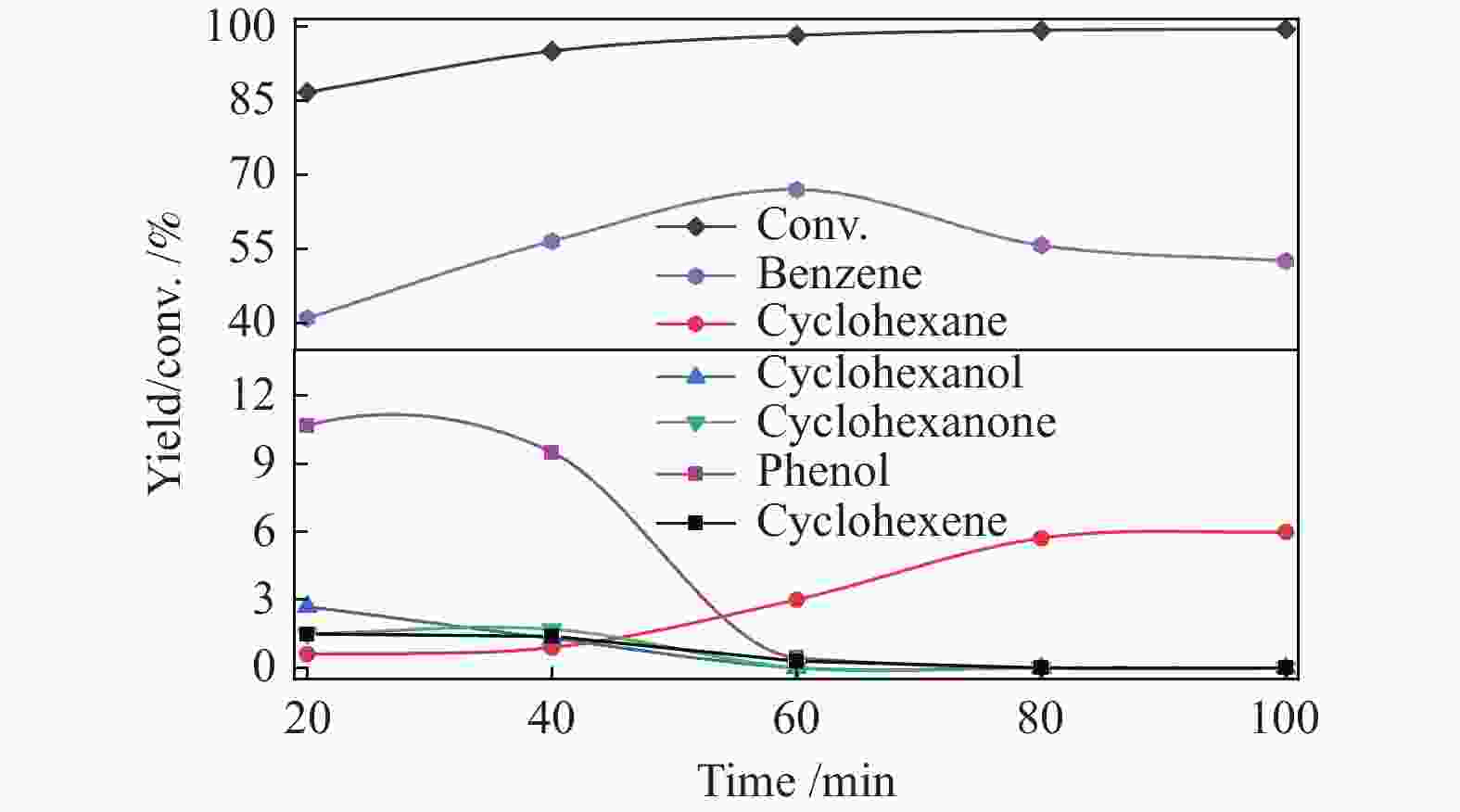

    Figure 6.  Effect of reaction time on the distribution of primary products General conditions: diphenyl ether (0.2 mmol), catalyst (0.02 g), water (5 mL), 250 °C, 0.2 MPa H2 + 0.6 MPa N2

    Figure 7

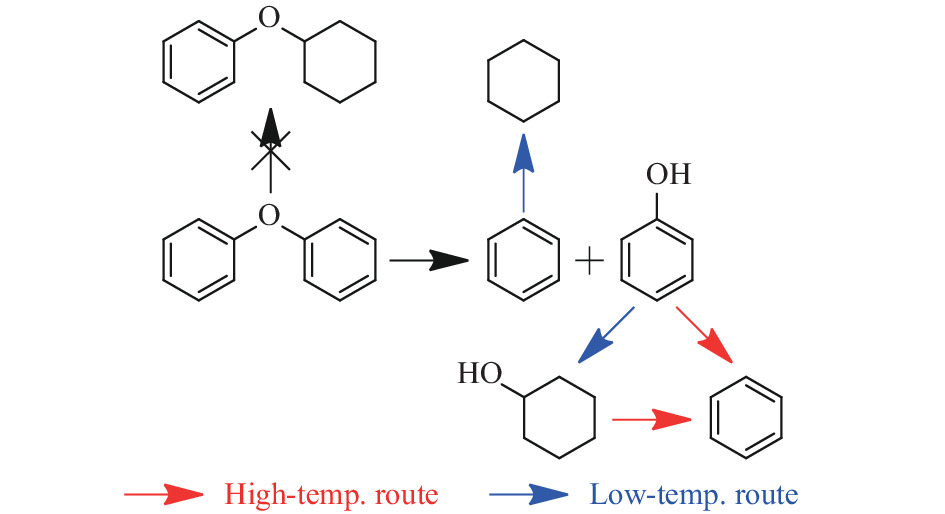

    Figure 7.  Possible pathways for the hydrogenolysis of diphenyl ether over Ru5/ASA-TiO2

    Table 2

    Table 2.  Validation tests for the production of benzene over Ru5/ASA-TiO2
    下载: 导出CSV
    ReactantConv. /%Yield /%
    97.042.87.04.53.9
    88.330.07.04.89.7
    92.052.12.82.90.54.1
    > 99%1.86.21.467.4
    Reaction conditions: reactant (0.2 mmol), catalyst (0.02 g), water (5 mL), 250 °C, 0.2 MPa H2+0.6 MPa N2; a reaction was performed at 160 °C

    A bifunctional catalyst Ru5/ASA-TiO2 was prepared and used in the hydrogenolysis of diphenyl ether, a lignite-related model compound. The prepared catalyst of Ru5/ASA-TiO2 presents relatively high reactivity of the depolymerization of diphenyl ether depolymerization and relatively high selectivity of benzene. At 250 °C with a hydrogen pressure of 0.2 MPa, the conversion rate of diphenyl ether is higher than 98% while the yield of benzene is 67.1%. The results reveal that the weak acid and/or the Lewis acid, rather than the stronger Brønsted acid, can improve the conversion rate and the yield of benzene for the hydrogenolysis of diphenyl ether. More importantly, the reaction temperature significantly affects the relative content of various types of acids, thus affecting the selectivity of the product of the hydrogenolysis of diphenyl ether. A lower temperature (< 190 °C) is conducive to the hydrogenation reaction while a higher temperature (>190 °C) promotes both the deoxygenation and dehydrogenation reaction, thus improving the yield of benzene.


    1. [1]

      THIELEMANN T, SCHMIDT S, GERLING J P. Lignite and hard coal: Energy suppliers for world needs until the year 2100 – an outlook[J]. Int J Coal Geol,2007,72(1):1−14. doi: 10.1016/j.coal.2007.04.003

    2. [2]

      NOLAN P, SHIPMAN A, RUI H. Coal liquefaction, Shenhua group, and China’s energy security[J]. Eur Manag J,2004,22(2):150−164. doi: 10.1016/j.emj.2004.01.014

    3. [3]

      DONG L, YUAN Q, YUAN H. Changes of chemical properties of humic acids from crude and fungal transformed lignite[J]. Fuel,2006,85(17/18):2402−2407. doi: 10.1016/j.fuel.2006.05.027

    4. [4]

      XIE J X, CAO J P, ZHAO X Y, JIANG W, ZHAO L, ZHAO M, BAI H C. Selective cleavage of the diphenyl ether C–O bond over a Ni catalyst supported on AC with different pore structures and hydrophilicities[J]. Energy Fuels,2021,35(11):9599−9608. doi: 10.1021/acs.energyfuels.1c00809

    5. [5]

      CAO J P, XIE T, ZHAO X Y, ZHU C, JIANG W, ZHAO M, ZHAO Y P, WEI X Y. Selective cleavage of ether C–O bond in lignin-derived compounds over Ru system under different H-sources[J]. Fuel,2021,284:119027. doi: 10.1016/j.fuel.2020.119027

    6. [6]

      ZHAO C, LERCHER J A. Upgrading pyrolysis oil over Ni/HZSM-5 by cascade reactions[J]. Angew Chem Int Ed,2012,51(24):5935−5940. doi: 10.1002/anie.201108306

    7. [7]

      TAN Q, WANG G, NIE L, DINSE A, BUDA C, SHABAKER J, RESASCO D E. Different product distributions and mechanistic aspects of the hydrodeoxygenation of m-cresol over platinum and ruthenium catalysts[J]. ACS Catal,2015,5(11):6271−6283. doi: 10.1021/acscatal.5b00765

    8. [8]

      LUO Z, WANG Y M, HE M Y, ZHAO C. Precise oxygen scission of lignin derived aryl ethers to quantitatively produce aromatic hydrocarbons in water[J]. Green Chem,2015,18(2):433−441.

    9. [9]

      ZAKI M I, HASAN M A, PASUPULETY L. Surface reactions of acetone on Al2O3, TiO2, ZrO2, and CeO2: IR spectroscopic assessment of impacts of the surface acid-base properties[J]. Langmuir,2001,17(3):768−774. doi: 10.1021/la000976p

    10. [10]

      ZAKI M I, HASAN M A, AL-SAGHEE F A, PASUPULETY L. In situ FTIR spectra of pyridine adsorbed on SiO2-Al2O3, TiO2, ZrO2 and CeO2: General considerations for the identification of acid sites on surfaces of finely divided metal oxides[J]. Colloids Surf A Physicochem Eng Asp,2001,190(3):261−274. doi: 10.1016/S0927-7757(01)00690-2

    11. [11]

      GRIFFIN M B, FERGUSON G A, RUDDY D A, BIDDY M J, SCHAIDLE J A. Role of the support and reaction conditions on the vapor-phase deoxygenation of m-cresol over Pt/C and Pt/TiO2 catalysts[J]. ACS Catal,2016,6(4):2715−2727. doi: 10.1021/acscatal.5b02868

    12. [12]

      BOONYASUWAT S, OMOTOSO T, RESASCO D E, CROSSLEY S P. Conversion of guaiacol over supported Ru catalysts[J]. Catal Lett,2013,143(8):783−791. doi: 10.1007/s10562-013-1033-3

    13. [13]

      KARIM W, SPREAFICO C, KLEIBERT A, GOBRECHT J, VANDEVONDELE J, EKINCI Y, VAN BOKHOVEN J A. Catalyst support effects on hydrogen spillover[J]. Nature,2017,541(7635):68−71. doi: 10.1038/nature20782

    14. [14]

      ALMEIDA A R, MOULIJN J A, MUL G. Photocatalytic oxidation of cyclohexane over TiO2: Evidence for a Mars-van Krevelen mechanism[J]. J Phys Chem C,2011,115(4):1330−1338. doi: 10.1021/jp107290r

    15. [15]

      VOLCKMAR C E, BRON M, BENTRUP U, MARTIN A, CLAUS P. Influence of the support composition on the hydrogenation of acrolein over Ag/SiO2-Al2O3 catalysts[J]. J Catal,2009,261(1):1−8. doi: 10.1016/j.jcat.2008.10.012

    16. [16]

      NAITO N, KATADA N, NIWA M. Tungsten oxide monolayer loaded on zirconia: Determination of acidity generated on the monolayer[J]. J Phys Chem B,1999,103(34):7206−7213. doi: 10.1021/jp9906381

    17. [17]

      LI L, LIU G N, QI S P, LIU X D, GU L Y, LOU Y B, CHEN J X, ZHAO Y X. Highly efficient colloidal MnxCd1−xS nanorod solid solution for photocatalytic hydrogen generation[J]. J Mater Chem A,2018,6(46):23683−23689. doi: 10.1039/C8TA08458K

    18. [18]

      NEIMARK A V, RAVIKOVITCH P I, GRÜN M, SCHÜTH F, UNGER K K. Pore size analysis of MCM-41 type adsorbents by means of nitrogen and argon adsorption[J]. J Colloid Interface Sci,1998,207(1):159−169. doi: 10.1006/jcis.1998.5748

    19. [19]

      SHAMZHY M, PŘECH J, ZHANG J, RUAUX V, EL-SIBLANI H, MINTOVA S. Quantification of Lewis acid sites in 3D and 2D TS-1 zeolites: FTIR spectroscopic study[J]. Catal Today,2020,345:80−87. doi: 10.1016/j.cattod.2019.10.011

    20. [20]

      VALDÉS-MARTÍNEZ O U, SUÁREZ-TORIELLO V A, REYES J A, PAWELEC B, FIERRO J. Support effect and metals interactions for NiRu/Al2O3, TiO2 and ZrO2 catalysts in the hydrodeoxygenation of phenol[J]. Catal Today,2017,296:219−227. doi: 10.1016/j.cattod.2017.04.007

    21. [21]

      KANG Y, WEI X Y, LI J, JIN H, LI T, LU C Y, MA X R, ZONG Z. Green and effective catalytic hydroconversion of an extractable portion from an oil sludge to clean jet and diesel fuels over a mesoporous Y zeolite-supported nickel catalyst[J]. Fuel,2021,287:119396. doi: 10.1016/j.fuel.2020.119396

    22. [22]

      DENG X, WEI Z, CUI C, LIU Q, WANG C, MA J. Oxygen-deficient anatase TiO2@C nanospindles with pseudocapacitive contribution for enhancing lithium storage[J]. J Mater Chem A,2018,6(9):4013−4022. doi: 10.1039/C7TA11301C

    23. [23]

      HERY, HAERUDIN, STEPHAN, BERTEL, REINHARD, KRAMER. Surface stoichiometry of 'titanium suboxide' Part I volumetric and FTIR study[J]. J Chem Soc, Faraday Trans,1998,94(10):1481−1487. doi: 10.1039/a707714i

    24. [24]

      HUANG Y, YAN L, CHEN M, GUO Q, FU Y. Selective hydrogenolysis of phenols and phenyl ethers to arenes through direct C–O cleavage over ruthenium-tungsten bifunctional catalysts[J]. Green Chem,2015,17(5):3010−3017. doi: 10.1039/C5GC00326A

    25. [25]

      NELSON R C, BAEK B, RUIZ P, GOUNDIE B, BROOKS A, WHEELER M C, AUSTIN R N. Experimental and theoretical insights into the hydrogen-efficient direct hydrodeoxygenation mechanism of phenol over Ru/TiO2[J]. ACS Catal,2015,5(11):6509−6523. doi: 10.1021/acscatal.5b01554

  • Figure FIG. 1530.

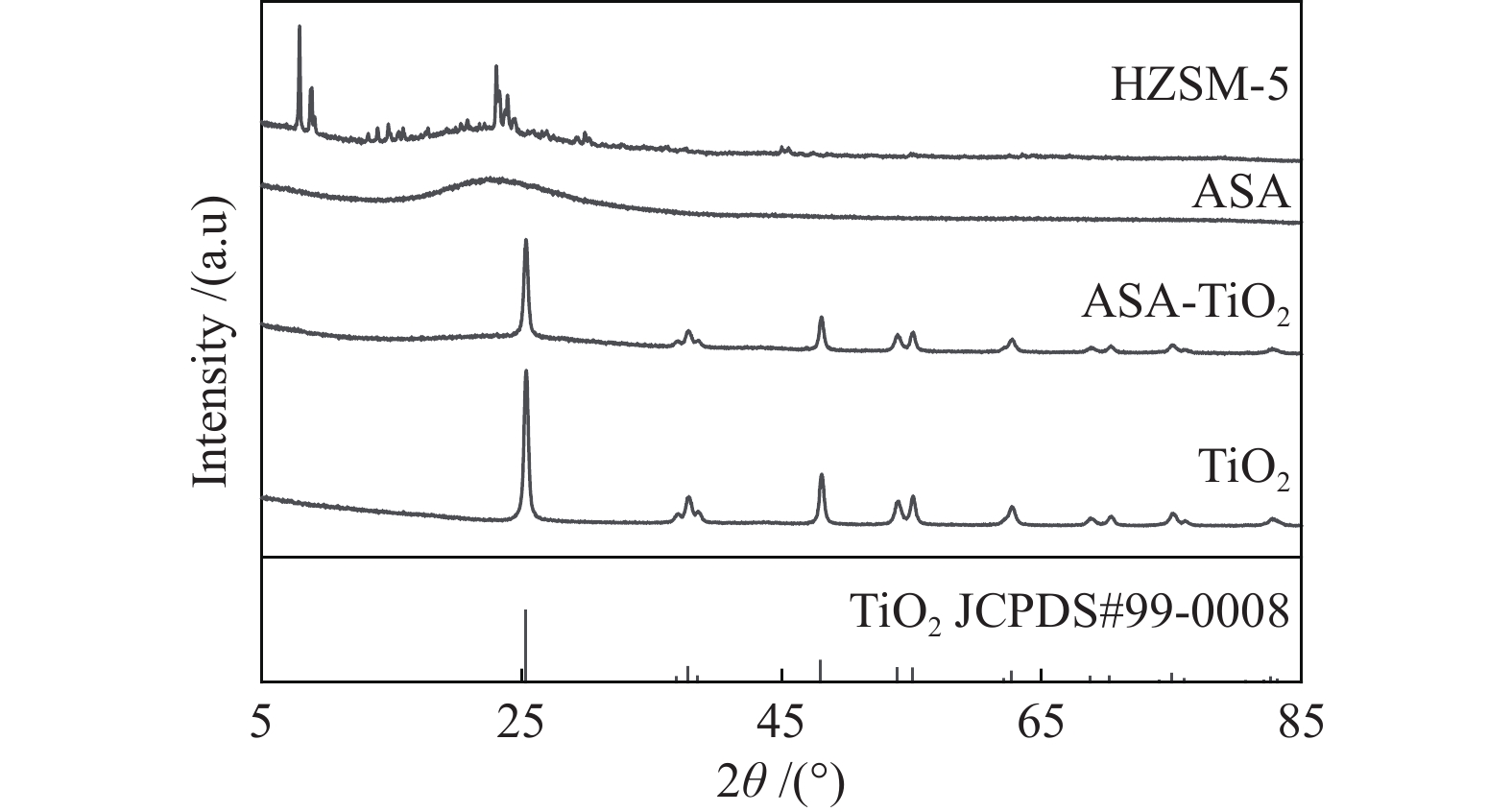

    Figure 1  XRD patterns of different supports
