• Small and medium-size coal-fired boilers are major anthropogenic emissions sources of NO_x, which still hold a large market share and are widely distributed in China ^{[1, 2]}. Nitrogen oxides (NO_x) leads to air pollution, acid rain and photochemical smog^[3–5]. Ammonia slip from the traditional deNO_x system has been widely concerned in the past two decades, which is considered to be the main factor that causes frequent smog in a large area even after sulfur dioxide (SO₂) and NO_x are effectively controlled^[6–8]. Therefore, the development of ammonia-free denitration technology is particularly urgent.

  Selective catalytic reduction (SCR) ^[9] and selective non-catalytic reduction (SNCR)^[10] are usually used for the NOx reduction when NH₃ is used as the reducing agent. However, there are some major problems with the SCR-NH₃, such as high cost of construction and regeneration of the deactivated catalysts as well as NH₃ slip^[11]. The problem of NH₃ slip also exists in the SNCR system^{[12, 13]}. Since 1970s and 1980s, the researches on NO_x reduction at high temperatures by carbonaceous solids have been reported^[14–19]. Carbon is considered as one of the promising materials for the removal of NO without ammonia. Over the past few years, activated carbon has attracted considerable attention due to its excellent advantages including excellent absorbability, low-temperature stability and high-temperature reduction^{[20, 21]}. The critical point is how to reduce the reaction temperature and improve the carbon utilization. In general, the different metal modification plays a huge influence on the selectivity and reducibility of carbon. Accordingly, some mono-metal oxides catalysts, such as alkali metals Ca, K, Cs, transition metals Cu, Fe, Ni Co, and noble metal Pt, etc, have been studied as catalysts loaded on activated carbon for removal of NO^[22–26]. Alkali metals Cs, K can strongly enhance the C-NO_x reaction without substantial carbon consumption by O₂^[27–29]. Ca as the active component can reduce the generation of CO₂^[30]. In the NO reduction by C-based catalysts, transition metals can notably increase the N₂ selectivity ^[31–36]. Different transition metals also have different performance in the catalytic reduction process. Less CO is released over Cu/Carbon in the process of deNO_x. Cu/Carbon has higher selectivity to N₂ than Fe/Carbon ^[37] Ni/Carbon exhibits the highest N₂ selectivity for NO_x reduction^[38]. In addition, the transition metals differ in C-NO_x reactions due to their different redox cycle capacity ^{[27, 39]}. Feng et al. ^[40] studied the synergistic catalytic effect of alkali metal K and transition metal Cu on carbon reduction denitrification. A systematic investigation on the influence mechanism as well as a connection between bimetallic catalysis and NO conversion has rarely been reported so far.

  In this study, the catalytic carbon reduction of NO_x (CharR-NO_x) was used to reduce the NO_x in the flue gas. Carbon was used as a reducing agent and catalyst carrier modified by catalytic active components. The reaction mechanism was analyzed using temperature-programmed surface reactions (TPSRs). The catalytic effect of Cu-K bimetals on the reaction, along with the effect of oxygen in flue gas, was investigated to provide valuable research reference for the promotion of ammonia-free denitration technologies in industry.

  1.   Experimental

  1.1   Material preparation

  Shanghai Qiyue coconut-shell activated carbon (CSAC) was selected, ground, and screened to get 20–40 mesh particles. It was pretreated by boiling with deionized water to remove any water-soluble and volatile substances (such as ash and impurities) on the surface and the internal pores of the activated carbon. In addition, elemental analysis of the unmodified coconut-shell activated carbon was carried out using the Vario El Cube elemental analyzer. The result is shown in Table 1.

  Table 1



  Table 1.  Elemental analysis of coconut-shell activated carbon

  下载: 导出CSV

  Element	A	N	C	H	S	O
  Content wmass/%	1.83	0.19	94.06	0.76	0	3.16

  The specific surface area and pore size of the activated carbon were calculated by the multi-point BET method and BJH method using the Quantachrome NOVA2200E automatic physical adsorption instrument. The result is shown in Table 2.

  Table 2



  Table 2.  Surface area and pore volume of CSAC obtained by BET (N₂, 77 K)

  下载: 导出CSV

  Char	SBET /(m2·g−1)	vMes /(cm3·g−1)	vtotal /(cm3·g−1)
  CSAC	841.195	0.029	0.457

  The pretreated coconut-shell activated carbon (CSAC) was loaded with different types of metal oxide catalysts containing 10% M_xO (metal oxide: CuO or K₂O) using the equal-volume impregnation method with metal nitrate as the precursor. Using CuO as a preparation process sample, an appropriate amount of copper nitrate (Cu(NO₃)₂) was dissolved in water to prepare a salt solution, and the pH value was adjusted to 1–3 using nitric acid (HNO₃). Then, the pretreated CSAC was added to the salt solution and sealed with plastic wrap. The mixture was subjected to ultrasonic treatment at 28 kHz for 30 min, soaked at room temperature for 12 h, and then placed in a blast-drying oven to dry at 90 °C for 12 h. Finally, Cu-CSAC was prepared by calcination at 400 °C for 2 h under the protection of N₂ atmosphere. In this study, copper and potassium bimetallic catalytic reducing agents with a total load of 10% were prepared and denoted as nCu-mK-CSAC, and n∶m was the ratio of copper to potassium.

  1.2   Characterization

  The FT-IR spectra of catalysts were obtained by using ALPHA Fourier transform infrared spectrometer (Bruker Technologies, China) in the wavelength range of 400–4000 cm^–1. Raman spectra of catalysts with different bimetallic components were obtained by using INVIA laser microscopy confocal Raman spectrometer (Renishaw, Britain) in the wavelength range of 50–3200 cm^–1. An automatic D/MAX-2500/PC X-ray polycrystalline powder diffractometer (Rigaku, Japan) was used to obtain the XRD spectra of catalysts before and after the reaction by scanning with the Cu-Kα radiation source in the scanning range of 2θ=5°–90°. Zeiss Sigma 300 scanning electron microscope (Zeiss, Germany) was used to obtain the surface morphology images of catalysts before and after loading and reaction. Peak fitting and elemental analysis of catalysts before and after reaction were carried out by Thermo Scientific K-Alpha X-ray photoelectron spectroscopy (Thermo, America). The H₂-TPR experiments were performed on AutoChem 2920 equipment (Micromeritics, America) to study the reduction behavior of active phases and metal species under different conditions.

  1.3   Material activity measurements

  The programmed temperature surface reductions (TPSRs) experiment of the materials for removal of NO was measured in a fixed bed quartz reactor (i.d. 12 mm) at atmospheric pressure, as shown in Figure 1. The temperature range of the TPSRs experiment was 300–540 °C, and the heating rate was 3 °C/min. The simulated flue gas (SFG) components included 0.05% NO, 0−6% O₂, and N₂ as the balanced gas. Subsequently, the SFG with different oxygen concentrations was mixed in the premixer to acquire the desired concentration. A gas hourly space velocity (GHSV) was 8000 h⁻¹ (the material mass was 2.0 g), which corresponded to a total flow rate of 600 mL/min during the experiments. The gas, including NO, O₂, CO and CO₂, was analyzed continuously with a C-600 multi-component flue gas analyzer (Seitron, France).

  Figure 1

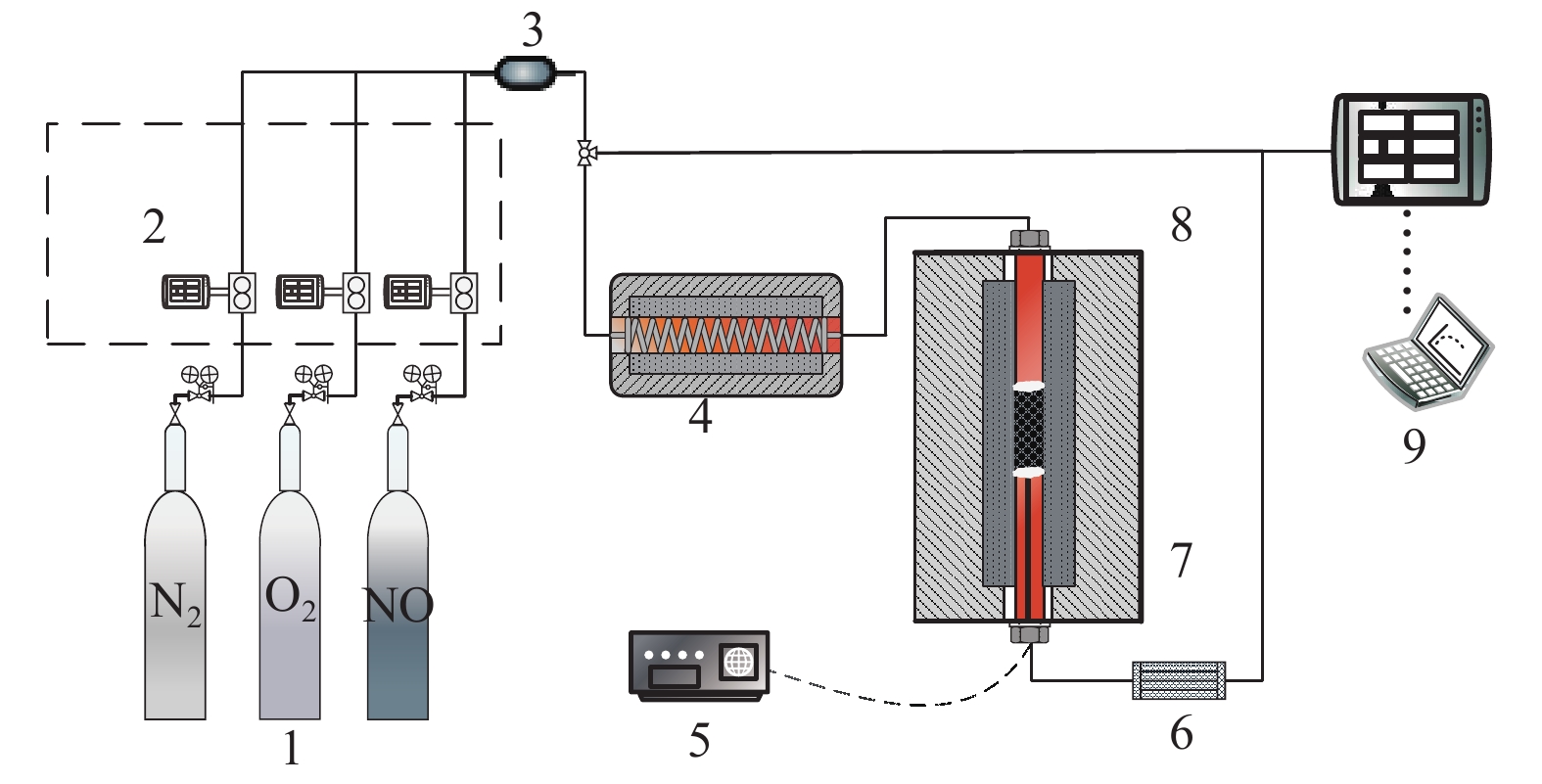

  Figure 1.  Schematic diagram of the CharR-NO_x reaction unit

  1: gas tank; 2: mass flowmeter; 3: premixer; 4: preheater; 5: thermocouple; 6: filter; 7: furnace; 8: reactor; 9: flue gas analyzer

  下载: 全尺寸图片 幻灯片

  The reduction rate of NO was calculated as follows:

  $ \eta =\dfrac{{{\rm{NO}}}_{{\rm{in}}}-{{\rm{NO}}}_{{\rm{out}}}}{{{\rm{NO}}}_{{\rm{in}}}}\times 100\% $

  (1)

  Carbon material consumption was defined as the mass of carbon material consumed in the process of programmed temperature surface reduction reaction. The carbon material generated the main oxidation product CO₂ and by-product CO after the CharR-NO_x reaction. Therefore, the consumption of carbon material could be obtained by integrating the curves of products to calculate as the following formula.

  $ {\int }_{0}^{t}\left({C}_{{{\rm{CO}}}_{2}\text{，}{\rm{Out}}}+{C}_{{\rm{CO}}\text{，}{\rm{Out}}}\right){\rm{d}}t\times \frac{{{10}^{-6}M}_{{\rm{C}}}Q}{{V}_{m}} $

  (2)

  where, $ {V}_{m} $: the molar volume of the standard gas, 22.4 L/mol; $ {M}_{{\rm{C}}} $: the molar mass of the carbon, 12; $ Q $: the simulated smoke flow, 600 mL/min; $ t $: the programmed heating time, 72 min.

  2.   Results and discussion

  2.1   Reaction activity

  2.1.1   Effect of inlet oxygen concentration

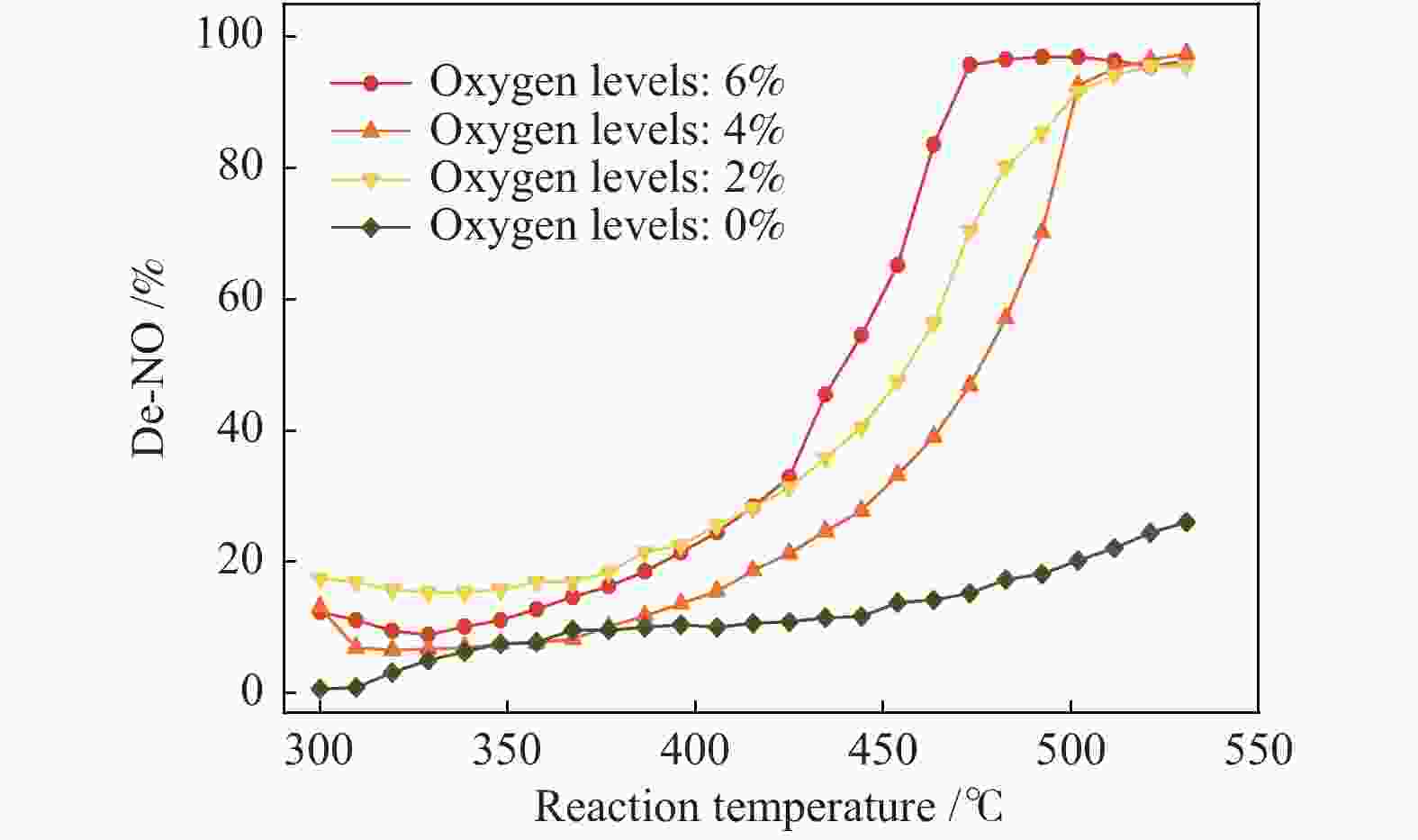

  Figure 2 shows the denitration rate of the coconut-shell activated carbon without metal loaded at different reaction temperatures and oxygen levels.

  Figure 2

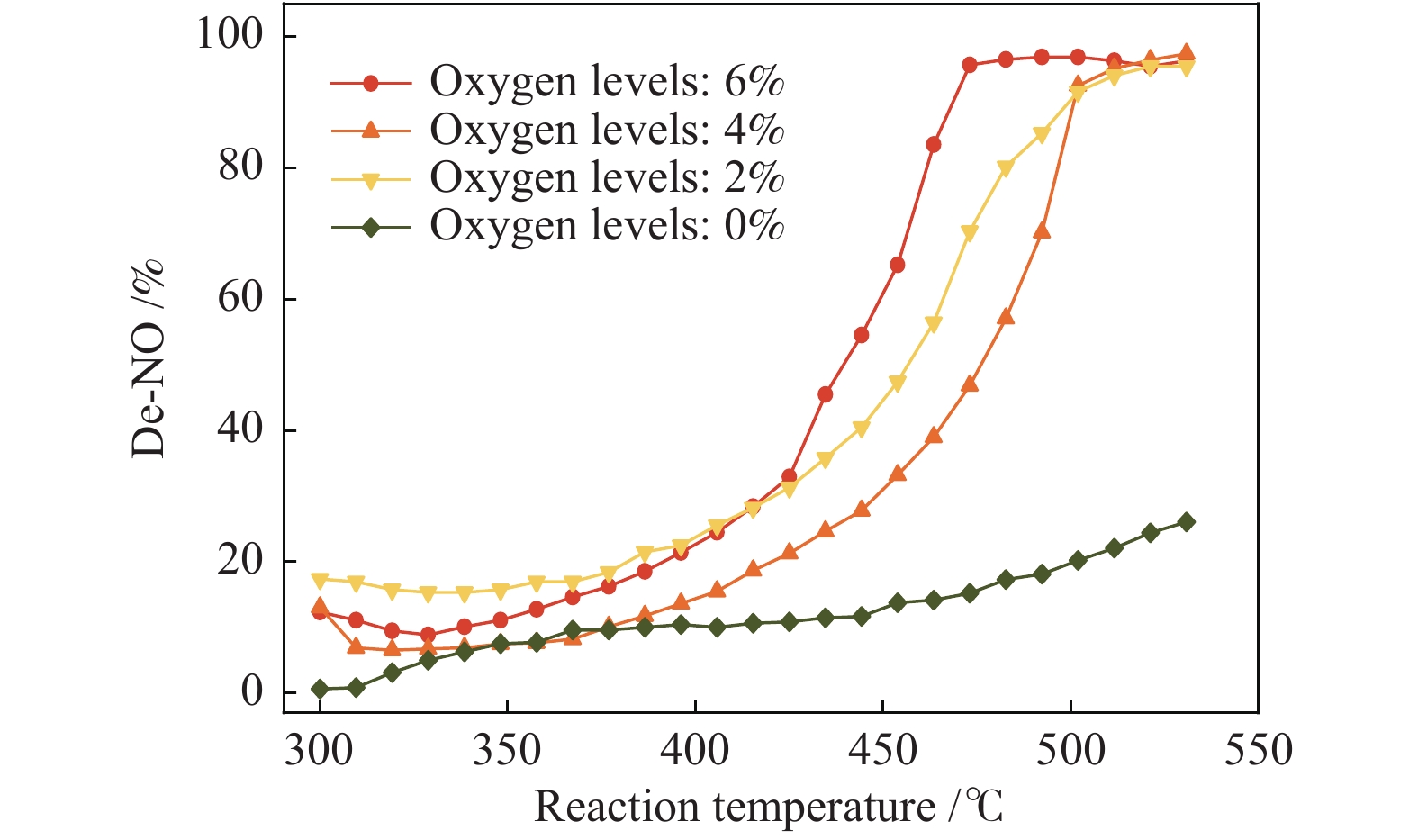

  Figure 2.  Effect of the inlet oxygen concentration on the CharR-NO_x reaction

  Reaction conditions: GHSV 8000 h^–1; 300–540 °C; 0.05% NO; 0–6% O₂; 2.0 g samples; gas flow 600 mL/min

  下载: 全尺寸图片 幻灯片

  From Figure 2, it can be seen that the reduction rate of NO is higher when the reaction temperature is higher, and the denitration growth rate in an aerobic environment is significantly higher than that in an anaerobic environment. The overall denitration rate is less than 20% at low temperatures (300 –400 °C). Starting from 400 °C, the denitration rate by CSAC increases significantly in an aerobic environment. At 6% oxygen content, the denitration rate reaches 100% at 470 °C, and it is over 90% at 500 °C at 2% and 4% oxygen levels. In an anaerobic environment, the denitration rate is only about 20%, indicating that oxygen has an obvious promotion effect on CharR-NO_x especially at high temperatures. At the oxygen levels of 2% and 4%, the minimum temperature of 90% denitration (t₉₀) exhibits no obvious deviation. However, the minimum temperature of 100% denitration (t₁₀₀) at the 6% inlet oxygen content is significantly lower than those at 2% and 4% oxygen levels, indicating that an oxygen-rich environment is conducive to the downward shift of the CharR-NO_x reaction temperature window.

  2.1.2   Effect of bimetallic catalysis

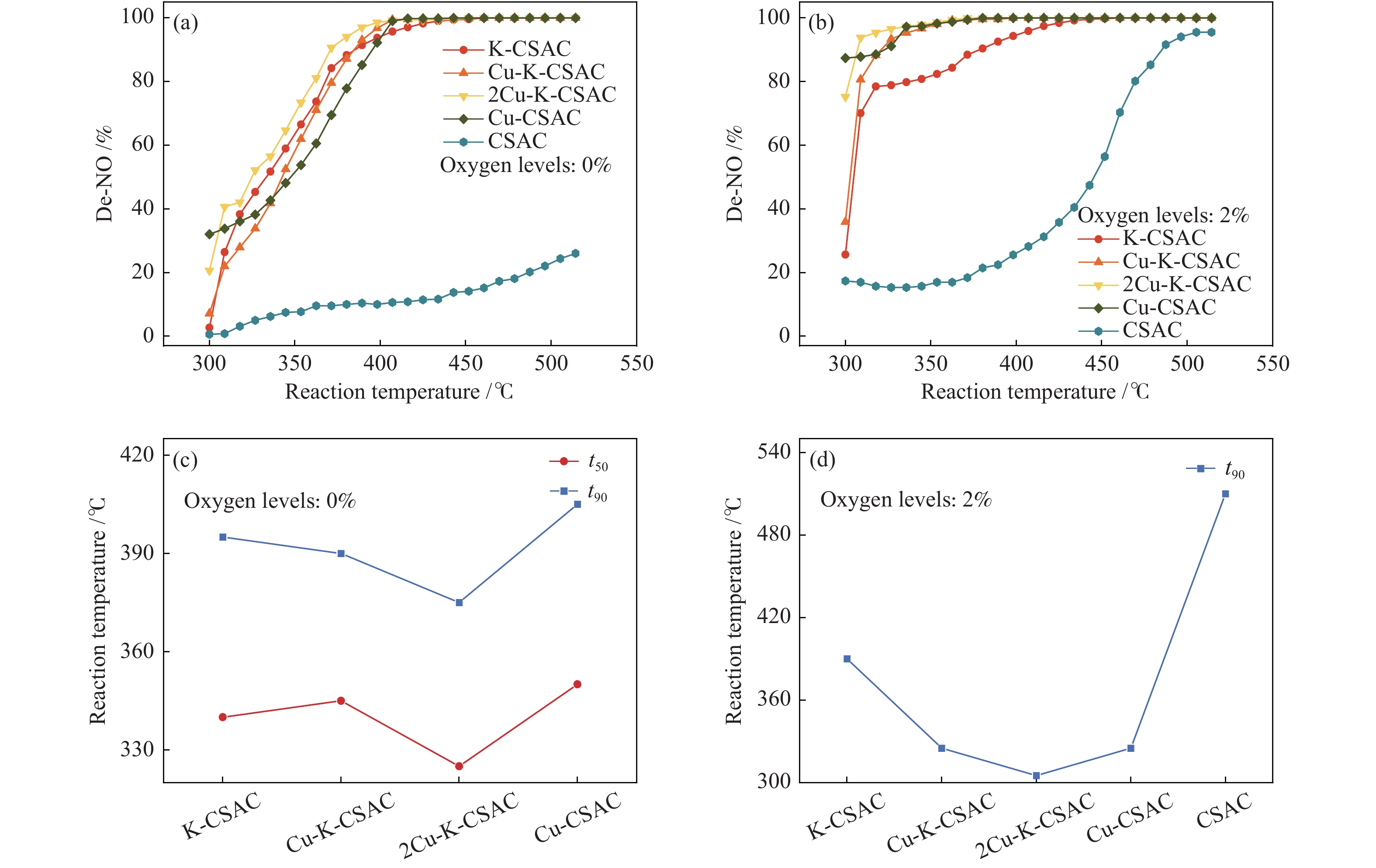

  Figure 3 shows the denitration effect of coconut-shell activated carbon materials modified by 10% bimetallic copper and potassium with different loading proportions in aerobic and anaerobic environments. It also shows a comparison of t₅₀ (the minimum temperature at 50% denitration efficiency) and t₉₀ (the minimum temperature at 90% denitration efficiency) under different oxygen levels.

  Figure 3



  Figure 3.  Effects of bimetallic catalysis on the reduction rate of the CharR-NO_x reactions without oxygen ((a), (c)) and aerobic ((b), (d)) environments

  Reaction conditions: GHSV 8000 h^–1; 300–540 °C; 0.05% NO; 0–2% O₂; 2.0 g samples; gas flow 600 mL/min

  下载: 全尺寸图片 幻灯片

  As can be seen in Figure 3(a), in the absence of oxygen, irrespective of the transition metal copper, alkali metal potassium, or bimetallic synergy, the CharR-NO_x reactivity of the modified carbon material is greatly improved. However, at about 300 °C, the synergistic effect of bimetals is not obvious, and the catalytic reduction effect of a single metal on NO is more obvious. Nevertheless, by comparing the t₅₀ and t₉₀ in Figure 3(c), especially the contrast line of t₉₀, it can be seen that bimetallic synergy significantly reduces the temperature window of efficient denitration. The t₉₀ values of 2Cu-K-CSAC, Cu-K-CSAC, K-CSAC, and Cu-CSAC are 370, 390 , 395 and 405 °C, respectively. The best condition is copper∶potassium= 2∶1. In other words, 2Cu-K-CSAC can achieve a 90% NO reduction rate at the lowest temperature (370 °C).

  It can also be seen from Figure 3(b) and 3(d) that the catalytic reduction of metals is quite obvious in an aerobic environment. Similar to the oxygen-free environment, by comparing the t₉₀ with that of unmodified coconut-shell activated carbon, it can be seen that the synergistic catalytic reduction of bimetals has a significant effect on reducing the reaction temperature window. The t₉₀ values of 2Cu-K-CSAC, Cu-K-CSAC, K-CSAC, Cu-CSAC, and CSAC are 300, 325, 390, 325, and 510 °C, respectively. As copper∶potassium= 2∶1, 2Cu-K-CSAC can achieve a 90% NO reduction rate at 300 °C.

  2.1.3   Carbon consumption

  Figure 4 shows a comparison of the total carbon consumption of different metals modified carbon materials in the process of the TPSRs. As can be seen from Figure 4(a), in the absence of oxygen, the total carbon consumption is closely and positively correlated with the NO reduction efficiency of each material. In an anaerobic, the total carbon consumption is low (<18 mg). It can be inferred that under this reaction condition the carbon consumption is mainly by the oxidation-reduction of carbon and NO. As can be seen in Figure 4(b), the total carbon consumption increases significantly, and the main carbon loss comes from the highly active oxidation reaction between oxygen and carbon materials, which is the main side reaction in the CharR-NO_x reaction process. In particular, the total carbon consumption increases significantly with the increase of the alkali metal potassium loading. This is probably because alkali metals have a more significant promotion effect on the carbon-oxygen reaction and a more obvious effect on CO₂ production.

  Figure 4

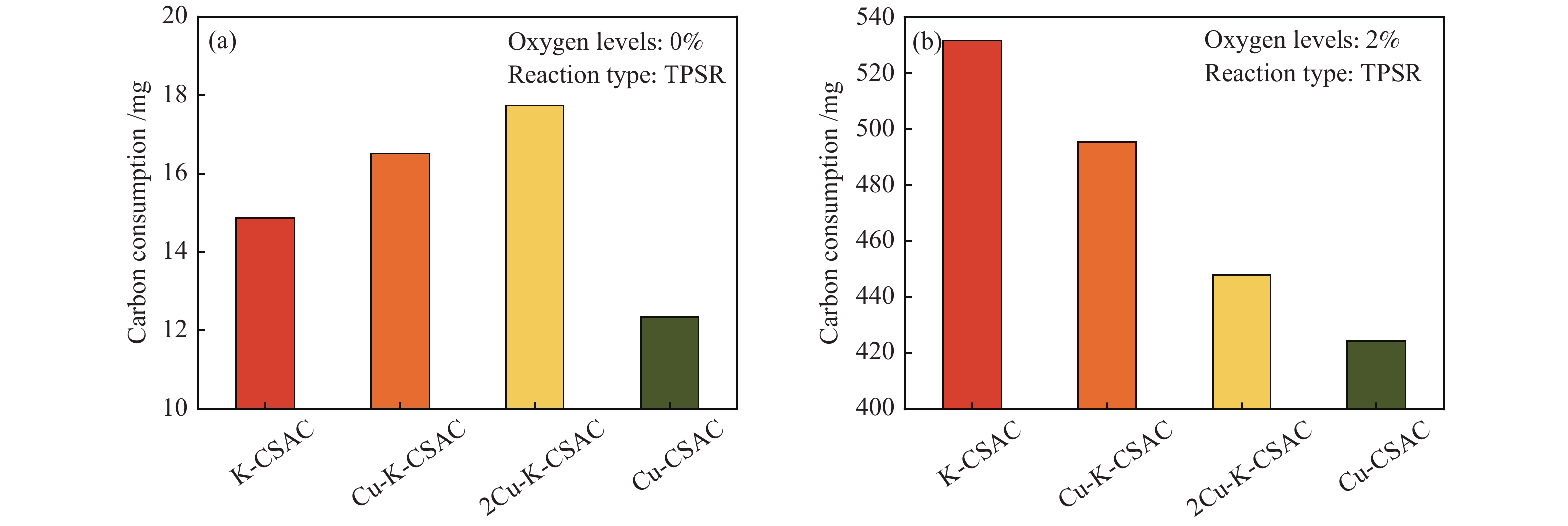

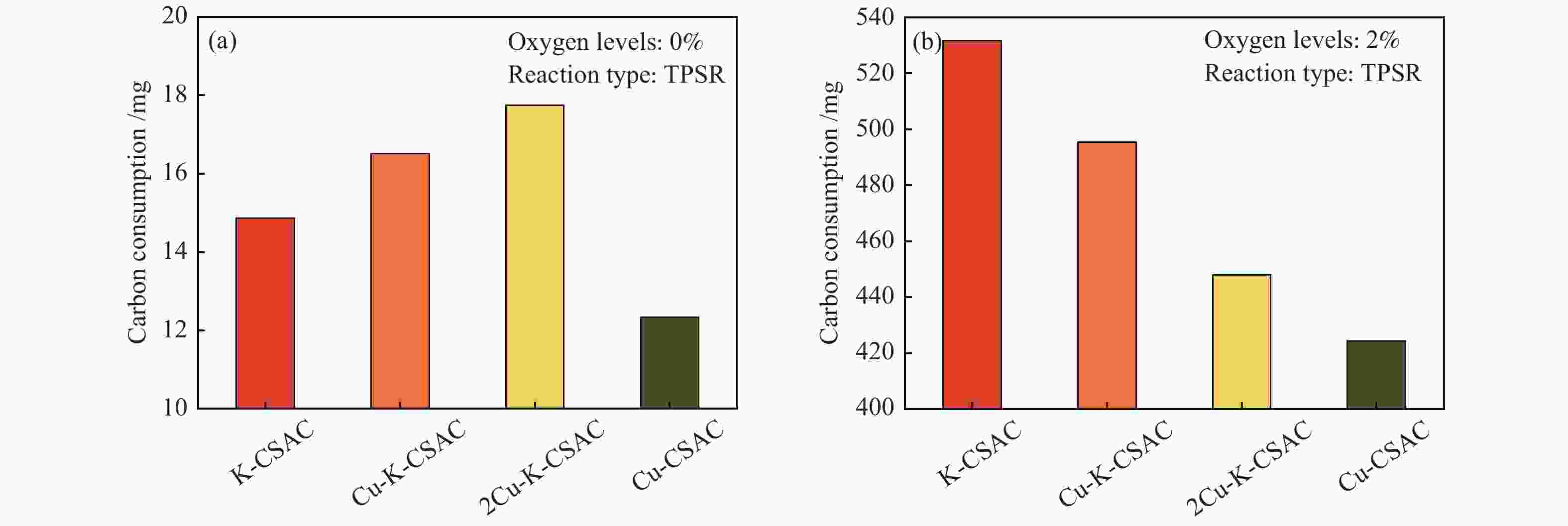

  Figure 4.  Total carbon consumption of bimetallic catalytic carbon materials in the absence of oxygen (a) and oxygen (b)

  Reaction conditions: GHSV 8000 h^–1; 300–540 °C; 0.05% NO; 0–2% O₂; 2.0 g samples; gas flow 600 mL/min

  下载: 全尺寸图片 幻灯片

  It is difficult to meet the requirements of an oxygen-free environment during actual applications, so the materials that can still maintain low carbon consumptions in a low-oxygen environment become the object of further research.

  2.2   Structural properties

  2.2.1   FT-IR spectroscopy

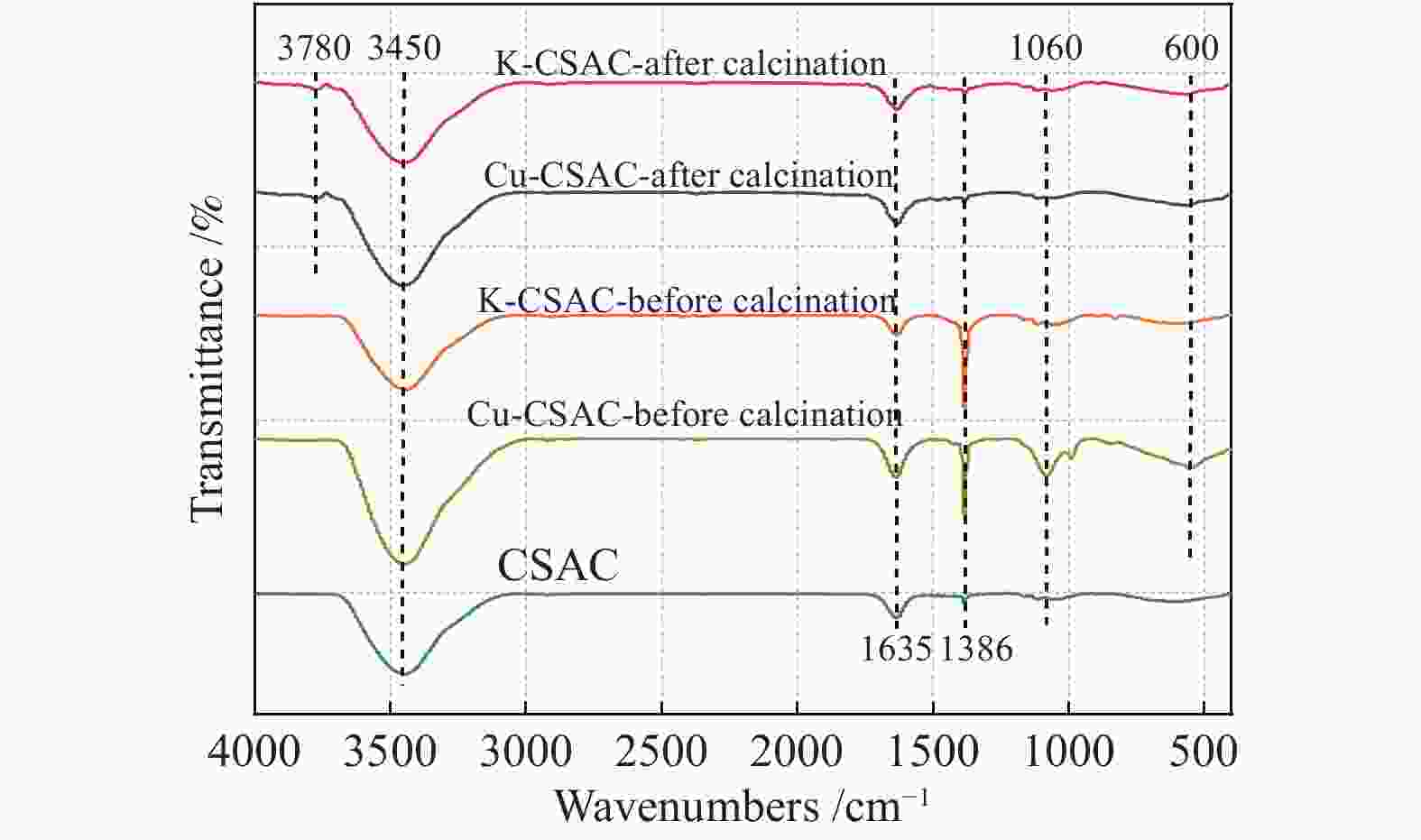

  Figure 5 shows the infrared spectrum of coconut-shell activated carbon during each stage of the modification process. A characteristic peak is observed at 3450 cm^–1, which is assigned to the stretching vibration absorption peak of hydroxyls (–OH) on the original carbon skeleton. The peaks at 1635 cm^–1 and 1060 cm^–1 correspond to the stretching vibration absorption peaks of ethylene linkages (C=C) and carbon–oxygen single bonds (C–O), respectively. They are all chemical bond structures on the original carbon skeleton, and it can be seen from the figures that the modification process has no specific effect on the types of C, H, and O functional groups, or the saturation of the carbon chain. In addition, after impregnation and before calcination, there is a sharp aliphatic nitro group (–NO₂) characteristic absorption peak at 1386 cm^–1 for K-CSAC and Cu-CSAC, which disappears after calcination. It can be seen that the nitrate on the precursor can be completely decomposed after calcination at 400 °C, forming metal oxides on the surface of the carbon. The peak around 600 cm^–1 in the non-characteristic region can be attributed to the characteristic peak of the metal–oxygen bond (M–O). It is found that the C–O bond and the metal–oxygen bond (Cu–O) increase significantly after the impregnation of Cu-CSAC, indicating that the impregnation effect of copper nitrate is significantly higher than that of potassium nitrate. At 3780 cm^–1, the double-frequency peak of hydroxys (–OH) appears in the calcinated coconut-shell activated carbon material, which indicates that the surface scattering of the calcinated carbon is enhanced and the surface flaws are increased.

  Figure 5

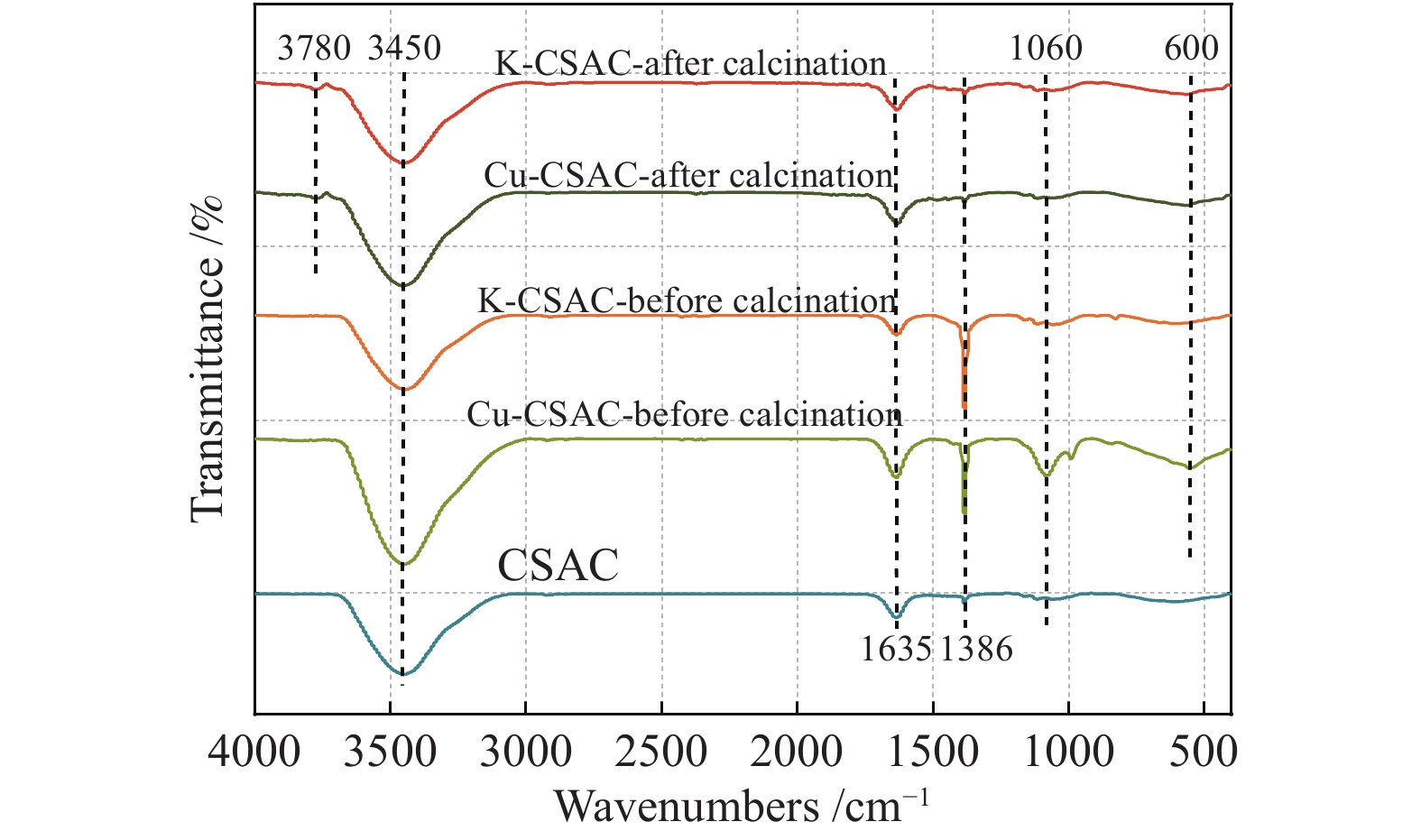

  Figure 5.  FT-IR spectra of the CSAC modification process

  下载: 全尺寸图片 幻灯片

  2.2.2   Raman spectroscopy

  In Figure 6, the Raman spectra of bimetallic supported coconut-shell activated carbon materials are shown. The symmetric stretching vibration caused by the sp² hybridization of the carbon atom leads to the scattered D-peak near 1350 cm^–1, which represents the occurrence of defects in the internal lattice of the carbon material and the degree of disorder of the material. The tensile vibration caused by the sp² hybridization of the carbon atom leads to the scattered G-peak near 1350 cm^–1, which is the characteristic peak of the carbon material itself. It can be seen from the Raman spectra that the coconut-shell activated carbon has two peaks of the carbon material before and after modification. The load modification of Cu with a high atomic weight makes the D-peak shift of CSAC move to the lower band. With metal modification, the half-peak width and peak area of CSAC increase, and the increase in the bimetallic supporting materials are more obvious, which is consistent with the phenomenon that the types of doping components increase.

  Figure 6

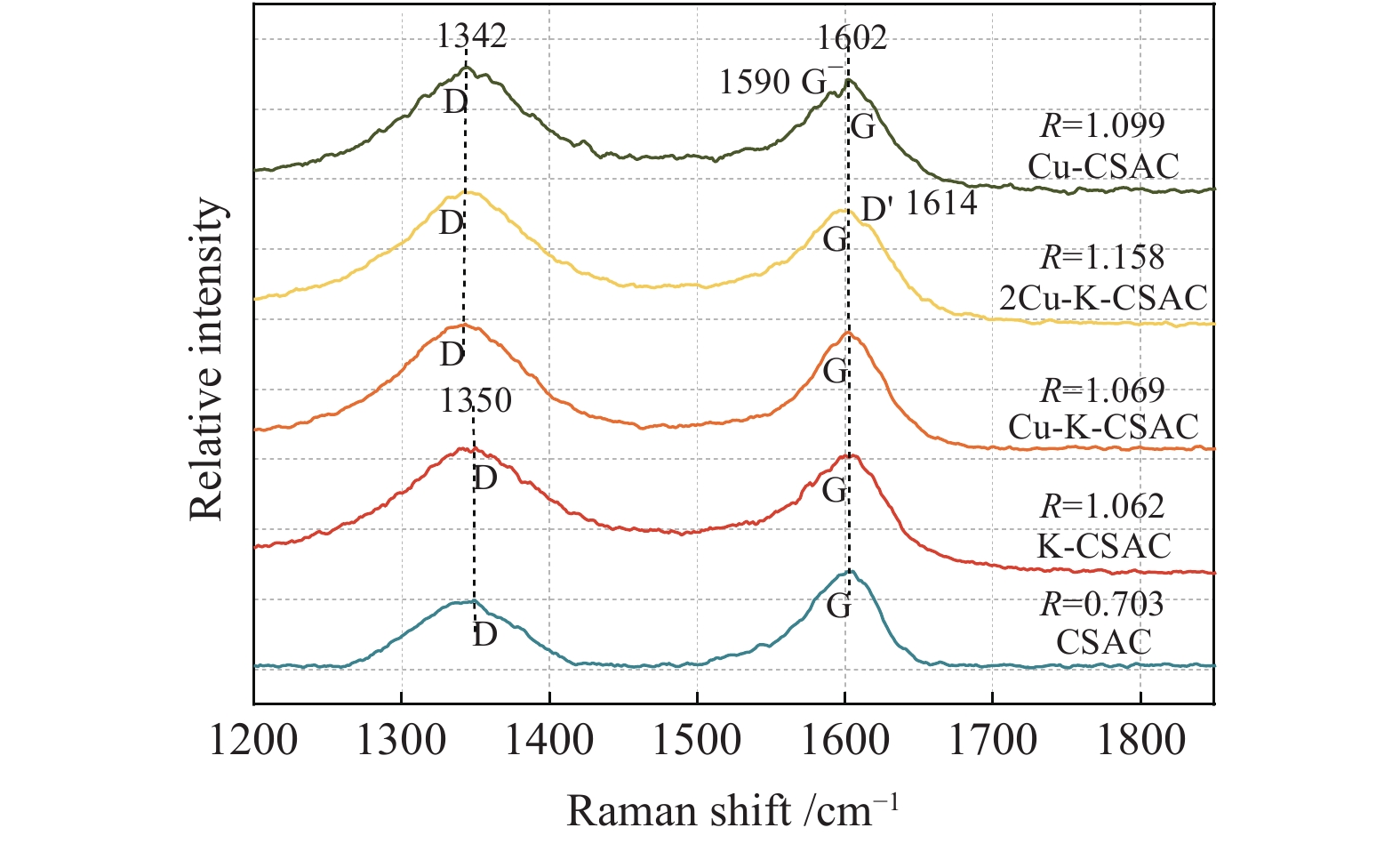

  Figure 6.  Raman spectrogram of Cu-K bimetal supported CSAC

  下载: 全尺寸图片 幻灯片

  The intensity ratio of the D-peak to G-peak (R= I_D/I_G) is used to reflect the degree of disorder of the activated carbon materials. It is found that, the higher the number of active sites of the CharR-NO_x reaction, the stronger the intensity of the D-peak, the higher the R-value, and the higher the degree of disorder of the materials. The R-value of the unmodified CSAC is 0.703. With the loading of metal elements, the R-values of the different metals modified CSAC increase, which is consistent with the phenomenon of the frequency-doubling peak in the FT-IR spectrum shown in Figure 5. The R-values of Cu-CSAC, 2Cu-K-CSAC, Cu-K-CSAC, and K-CSAC are 1.099, 1.158, 1.069, and 1.062, respectively. Among them, the R-value of 2Cu-K-CSAC exhibits the most obvious increase, which is consistent with the experimental phenomenon in Figure 3 whereby the 2Cu-K-CSAC exhibits optimal reactivity. At the 1614 cm⁻¹ Raman shift, 2Cu-K-CSAC exhibits a disorder-induced peak (D'-peak) with a weak signal, which also belongs to the characteristic band generated by the disorder between carbon atoms^[41]. Finally, it is worth mentioning that the G-peak of Cu-CSAC is split, forming a weak G^–-peak, which is related to the copper element loading capacity and its better performance in terms of carbon consumption.

  2.2.3   SEM

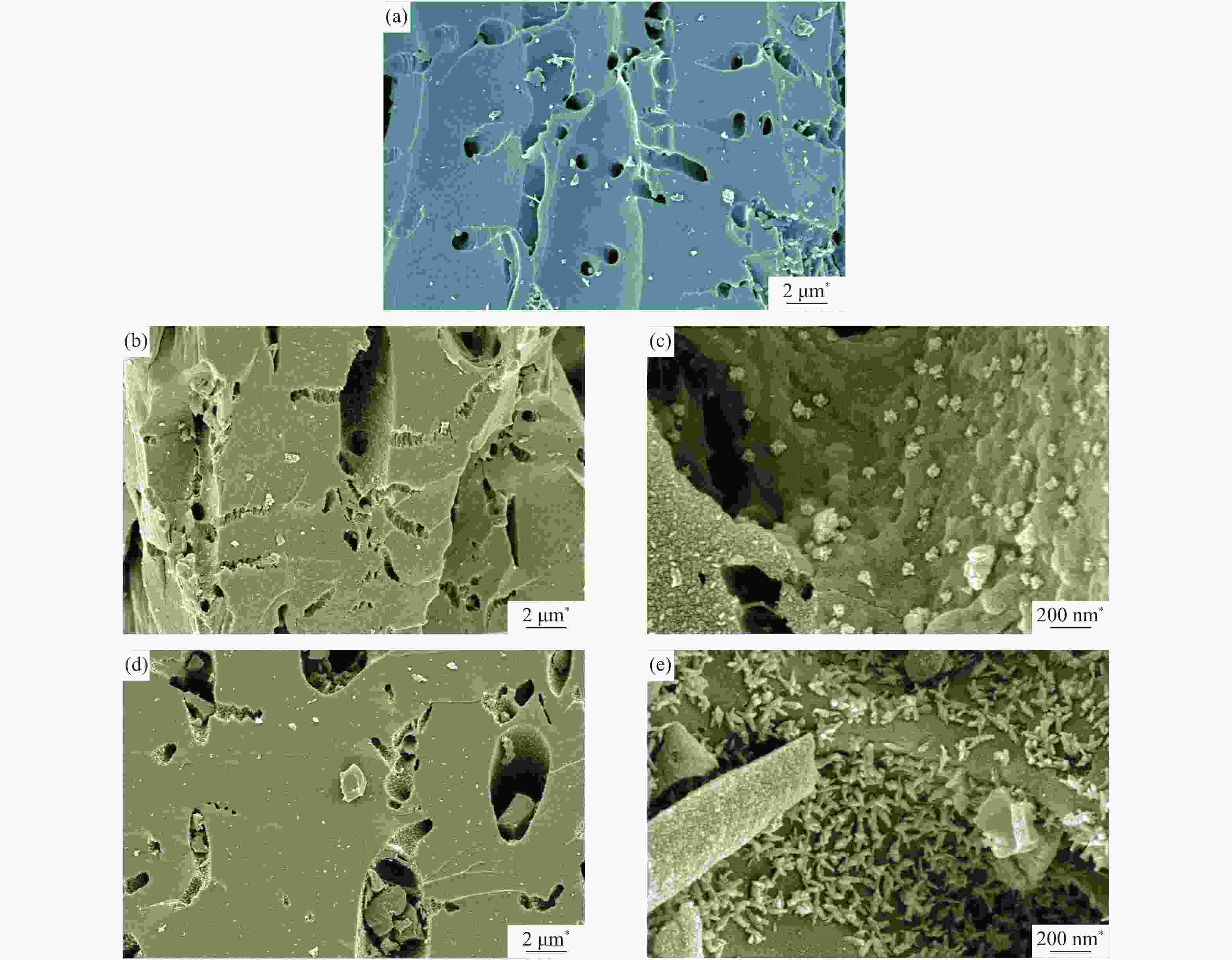

  The SEM micrographs of CSAC, 2Cu-K-CSAC, and Cu-CSAC before the CharR-NO_x reaction are shown in Figure 7. It can be seen that the pore structure of the coconut-shell activated carbon is obvious and its surface is smooth. Significant macropores (around 500 nm) can be observed with a uniform pore size distribution, which promotes the loading of metal oxides on the surface. From Figures 7(a), 7(b) and 7(c), it can be seen that some holes on the surfaces of 2Cu-K-CSAC and Cu-CSAC collapse, and their surfaces become rough. With the pore size increase, the differences in the pore size distribution become larger.

  High-magnification SEM micrographs (×50000) of 2Cu-K-CSAC and Cu-CSAC are shown in Figures 7(c) and 7(e). After the loading of CuO or CuO/K₂O, the metal oxides (<100 nm) are mainly dispersed in the inner wall and in the vicinity of the macropores. CuO/Cu₂O/K₂O is mainly loaded with irregular spherical particles on the 2Cu-K-CSAC, and is relatively dispersed. The CuO/Cu₂O on the Cu-CSAC is mainly loaded with irregular star-shaped particles, and its distribution is relatively dense. These indicate that the distribution of metal oxides on 2Cu-K-CSAC is more uniform, which further confirms the conclusion that the alkali metal potassium inhibits the aggregation of copper on the surface of the coconut-shell activated carbon to a certain extent, as shown in the XRD analysis.

  The SEM micrographs of 2Cu-K-CSAC and Cu-CSAC after the CharR-NO_x reaction are shown in Figure 8. The structures of the 2Cu-K-CSAC and Cu-CSAC coconut-shell activated carbon are unstable and crushed at high temperatures after participating in the CharR-NO_x reaction. The crushing phenomenon of 2Cu-K-CSAC is more obvious, and the coconut-shell activated carbon matrix fracture and pore collapse are more severe, so the carbon loss of the material is more serious. This is consistent with the results of CharR-NO_x reactivity and the material carbon balance in Figure 3 and Figure 4.

  Figure 7



  Figure 7.  SEM images of CSAC (a), 2Cu-K-CSAC ((b), (c)), and Cu-CSAC ((d), (e))

  下载: 全尺寸图片 幻灯片

  Figure 8

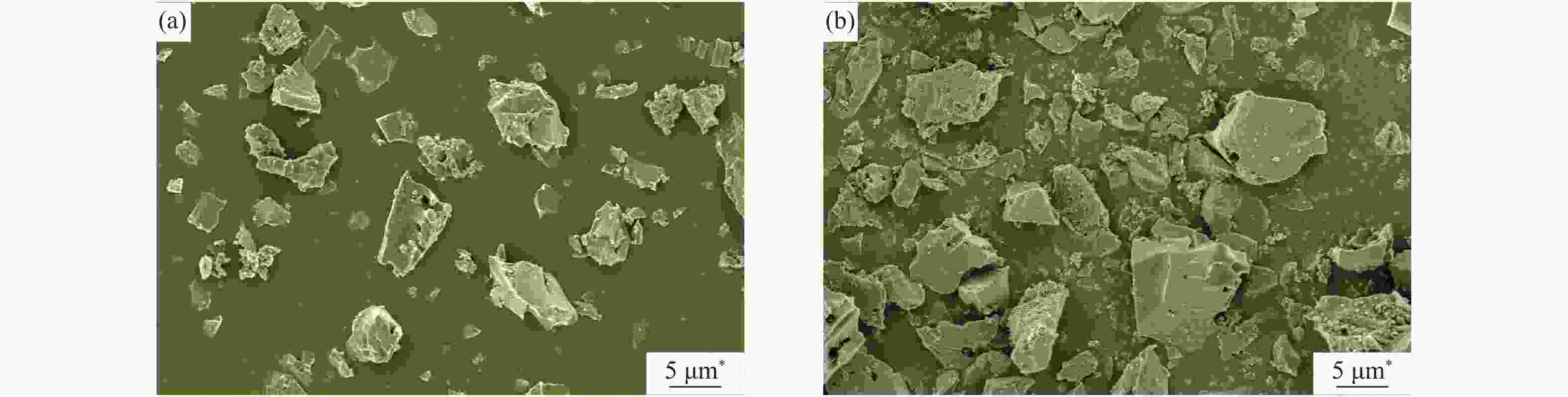

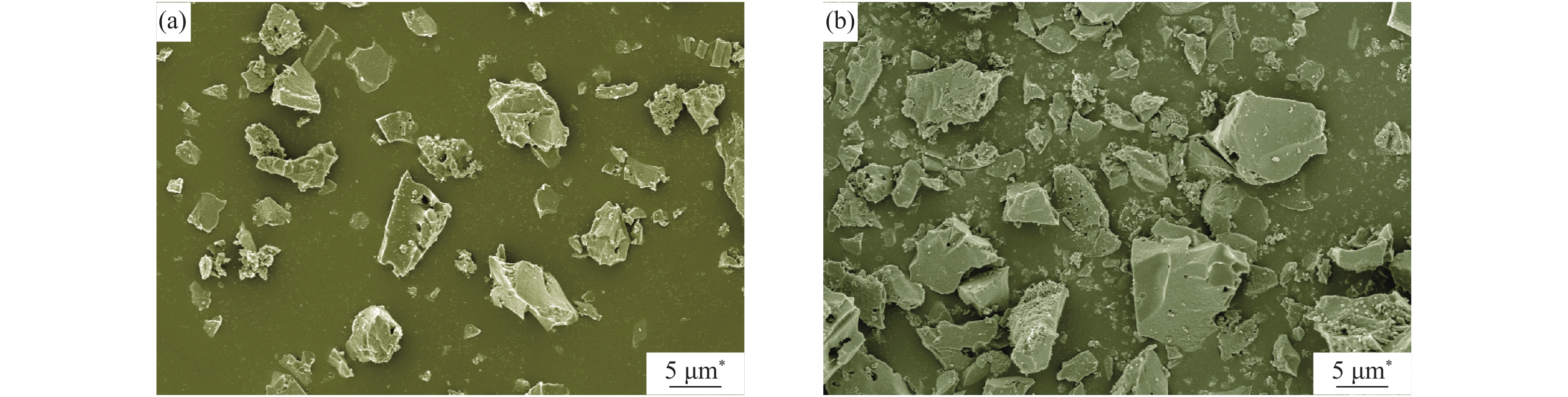

  Figure 8.  SEM images of 2Cu-K-CSAC (a) and Cu-CSAC (b) after participation in reactions

  下载: 全尺寸图片 幻灯片

  2.3   Redox properties

  2.3.1   XRD

  Figure 9 shows the XRD patterns of CSAC loaded with different metals. It can be seen from the figure that the broadened diffraction peaks of the graphitized structure exist at 2θ=24.6° for all the samples before and after the CharR-NO_x reaction, and the diffraction peaks of carbon materials also exist at 2θ=43.9° and 51.2° for all the samples. Thus, the basic structure of the carbon material remains unchanged throughout the reaction process, and the broadened diffraction peaks indicate that it is an amorphous carbon structure, which is consistent with the results of Raman spectrum analysis in Figure 6.

  Furthermore, Figure 9 shows that CuO and Cu₂O are the main crystalline phases in the Cu-CSAC (a) and 2Cu-K-CSAC (b) samples. Unreacted modified coconut-shell activated carbons (Cu-CSAC-Before, 2Cu-K-CSAC-Before) only have a few characteristic diffraction peaks of CuO/Cu₂O with weak signals, indicating that the CuO/Cu₂O exist on the surface of the coconut-shell activated carbon as an amorphous crystal with uniform loading and good dispersion. Further, the XRD signal of K-CSAC is weak, but also has very obvious characteristic diffraction peaks of K₂O at diffraction angles of 29.7°, 31.5°, and 39.2°.

  Figure 9

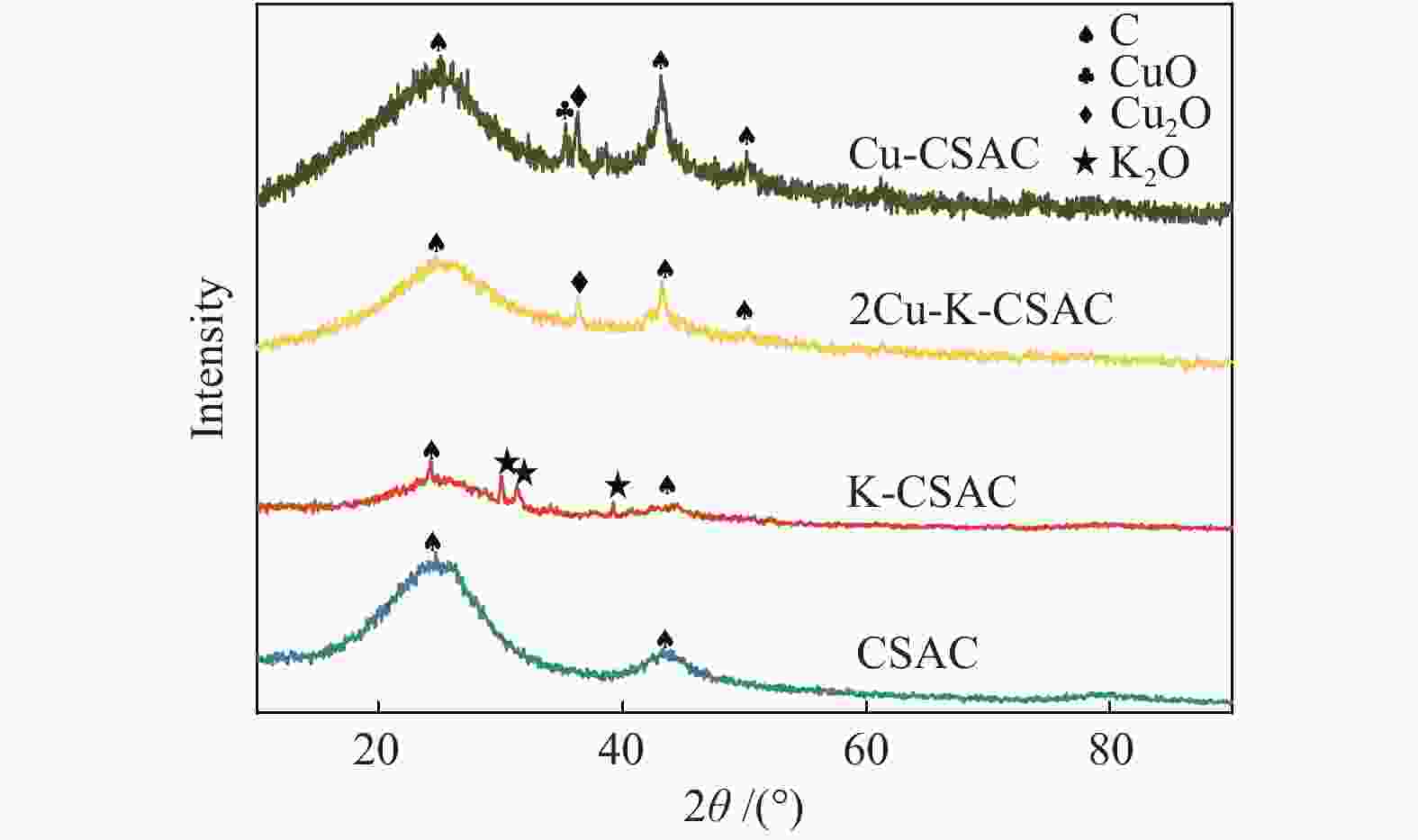

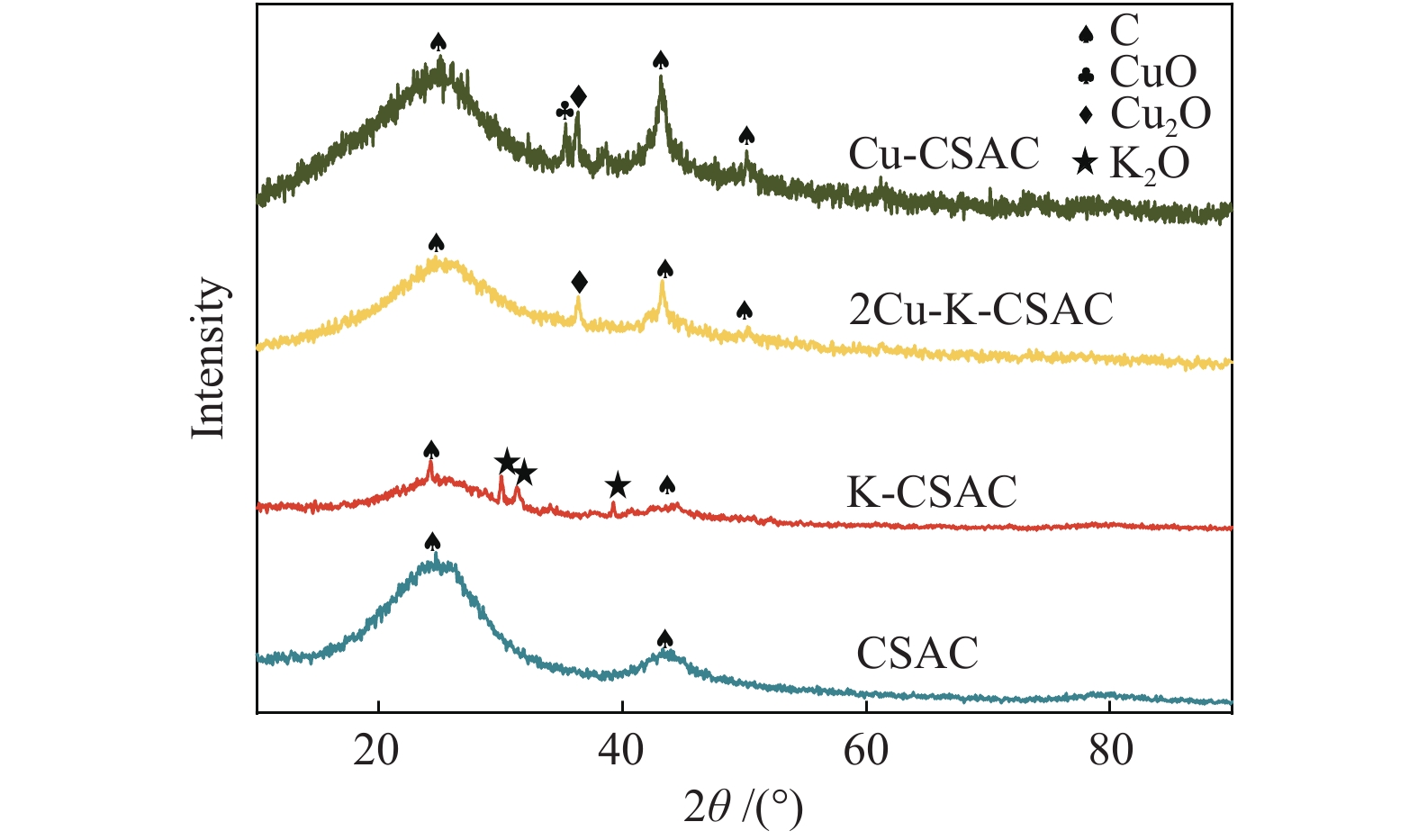

  Figure 9.  XRD patterns of CSAC loaded with different metals

  下载: 全尺寸图片 幻灯片

  Figure 10 shows the XRD patterns of Cu-CSAC (a) and 2Cu-K-CSAC (b). Interestingly, the CuO characteristic diffraction peaks detected in the bimetallic catalytic materials with the addition of metal potassium are much fewer than those detected in the copper mono-metal supported materials before and after the reaction. These results indicate that the participation of alkali metal potassium inhibits the aggregation of copper and improves the stability of catalytic active substances on the surface of coconut-shell activated carbon to a certain extent, which is consistent with the results of SEM and the better reactivity of the bimetallic materials shown in Figure 3.

  Figure 10

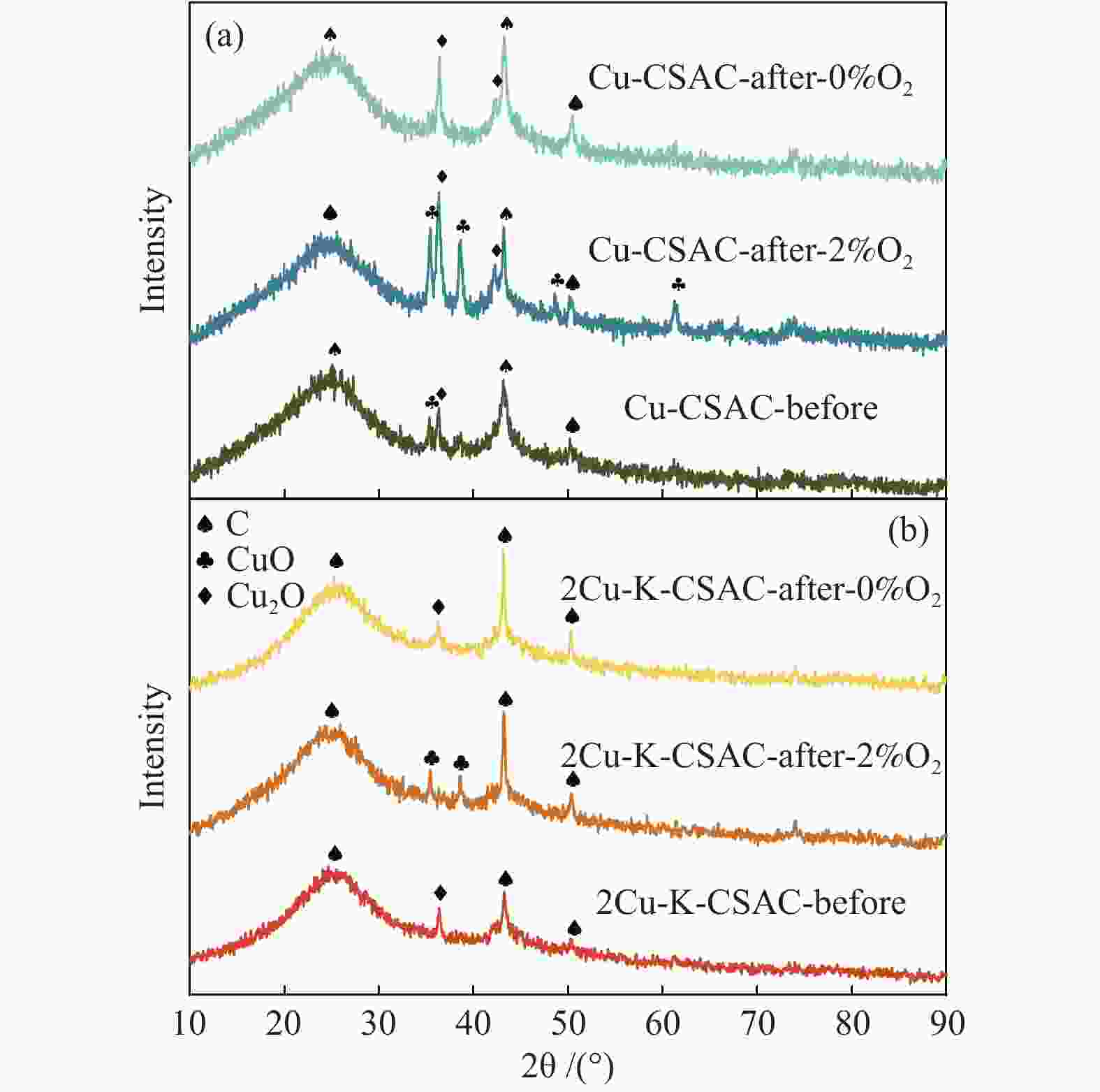

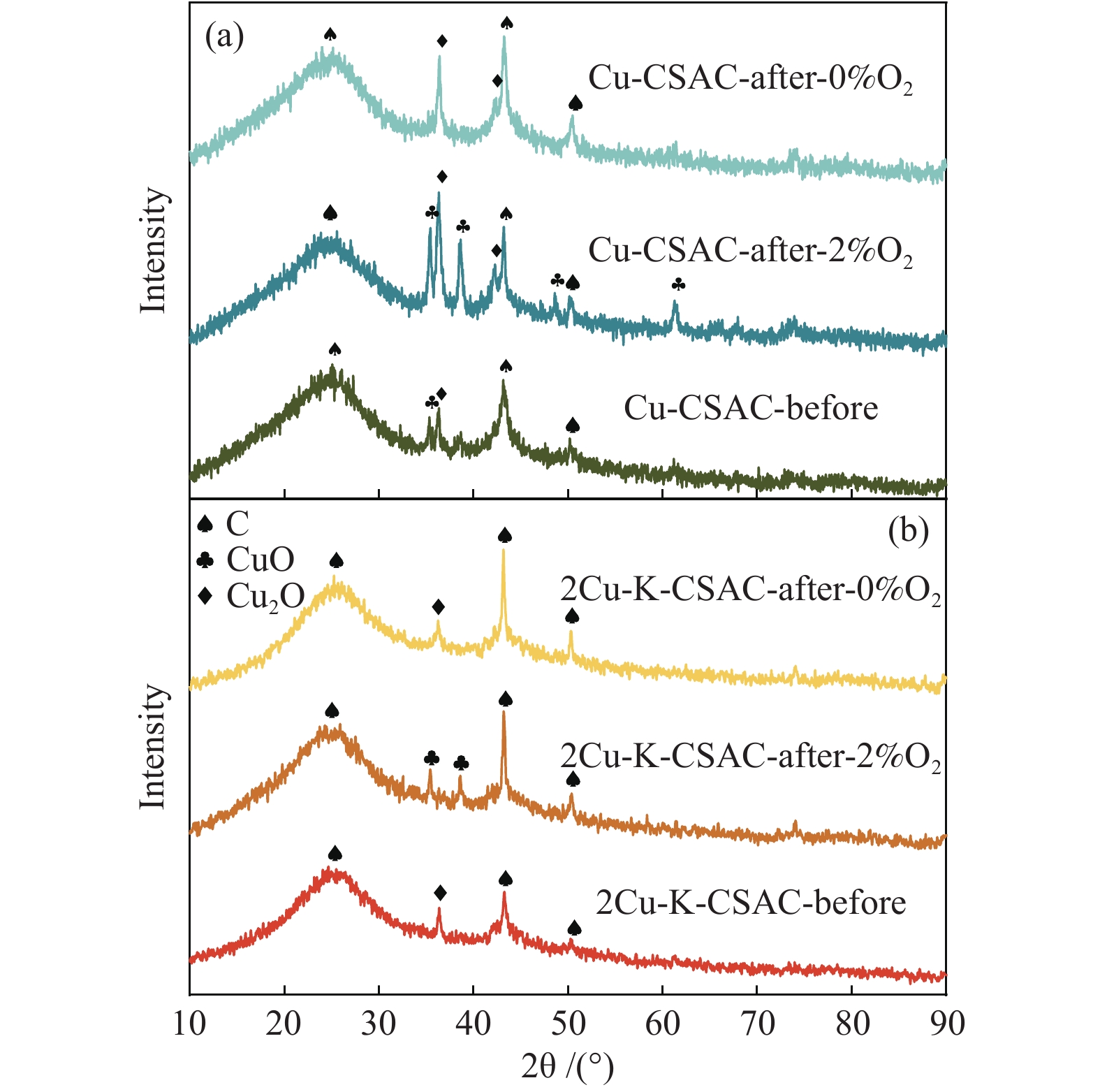

  Figure 10.  XRD patterns of Cu-CSAC (a) and 2Cu-K-CSAC (b) before and after the CharR-NO_x reaction

  下载: 全尺寸图片 幻灯片

  2.3.2   H₂-TPR

  XRD analysis shows that the copper species in catalyst materials contain different valence states. H₂-TPR experiments on the unloaded CSAC and the optimal active 2Cu-K-CSAC are performed to further explore the reducibility of copper-containing species as shown in Figure 11. It can be seen that the reduction activities of 2Cu-K-CSAC are significantly improved. There are two obvious low-temperature reduction peaks at 163 and 190 °C for 2Cu-K-CSAC, and its high-temperature reduction peak is lower than that of CSAC. A previous study^[42] has shown that highly dispersed species with sufficient exposure to reducing gases can reduce the reduction temperature. Combined with XRD analysis results, the reduction peak at 163 °C can be determined as highly dispersed bulk CuO reduction, and the reduction peak at 190 °C can be attributed to Cu₂O reduction to Cu. In addition, the H₂-TPR results of K-CSAC show that K species can also effectively reduce the reduction temperature of carbon materials to 470 °C.

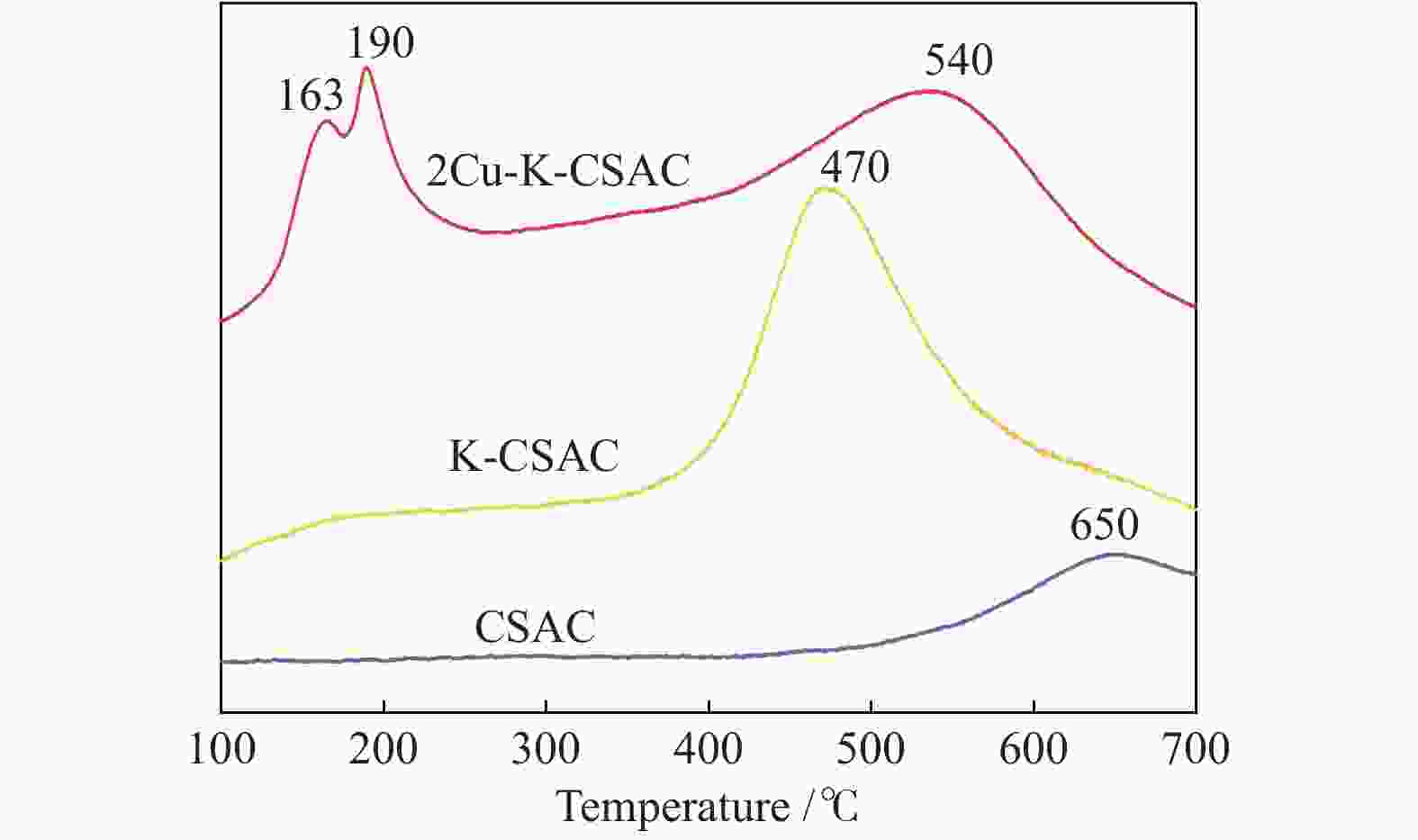

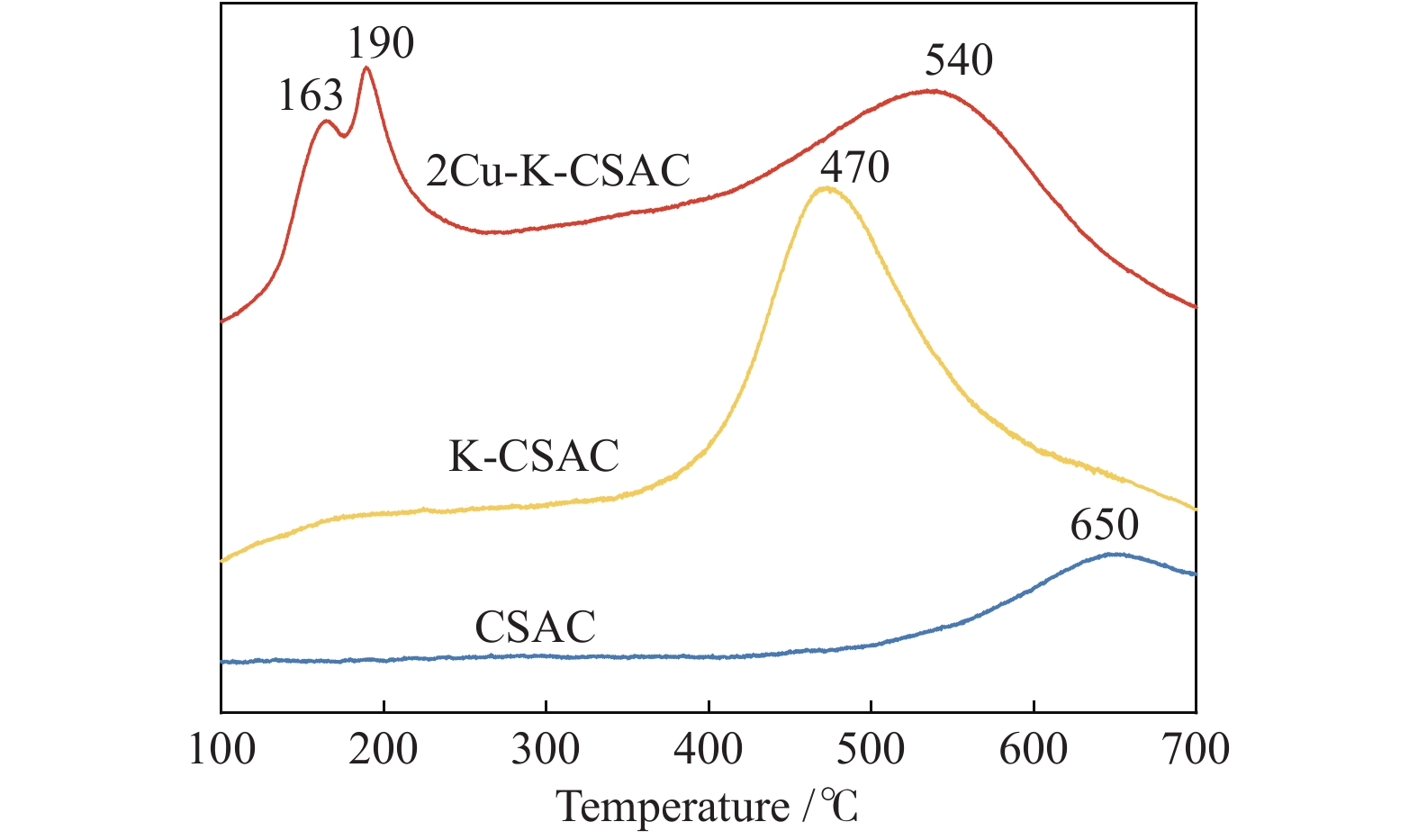

  Figure 11



  Figure 11.  H₂-TPR profiles of CSAC, K-CSAC and 2Cu-K-CSAC before the CharR-NO_x reaction

  下载: 全尺寸图片 幻灯片

  2.3.3   XPS

  Figure 12 and Figure 13 show the XPS spectra of CSAC and 2Cu-K-CSAC before the CharR-NO_x reaction. From the O 1s diagram of the materials, it can be seen that the oxygen content increases and metal-oxygen species appear after modification, which corresponds to the results of the XRD analysis. The higher the ratio of C–O to C=O, the stronger the reaction activity of the surface-adsorbed oxygen species, because the C –O bond energy is lower, allowing it to participate in the reaction more quickly, which is consistent with the results of an active reaction.

  The surface composition and distribution of 2Cu-K-CSAC before and after the CharR-NO_x reaction and the chemical states of each element are analyzed in Figure 13 and Figure 14. C is the primary original component of the activated carbon, and K is mainly distributed on the surface of the carbon in the form of K₂O.

  Figure 12

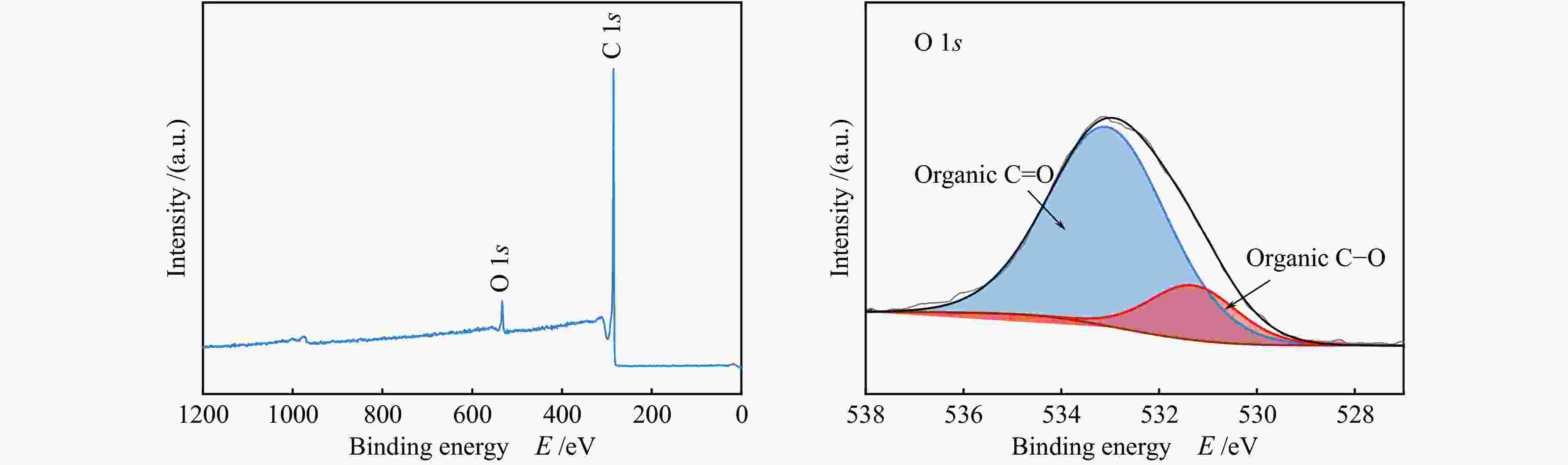

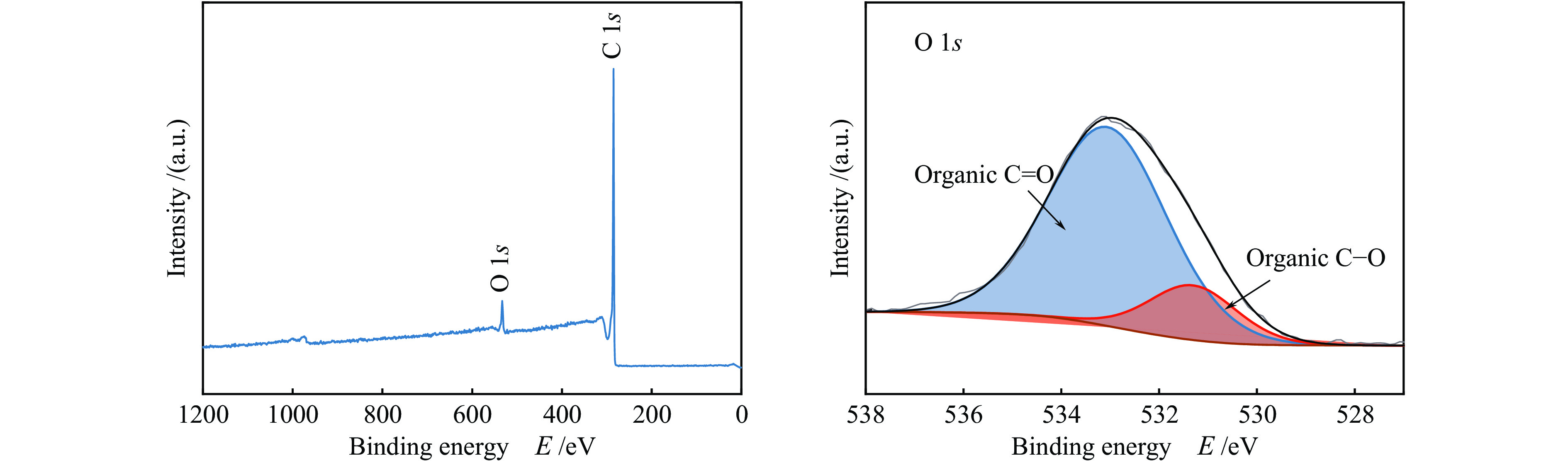

  Figure 12.  XPS of CSAC

  下载: 全尺寸图片 幻灯片

  Figure 13

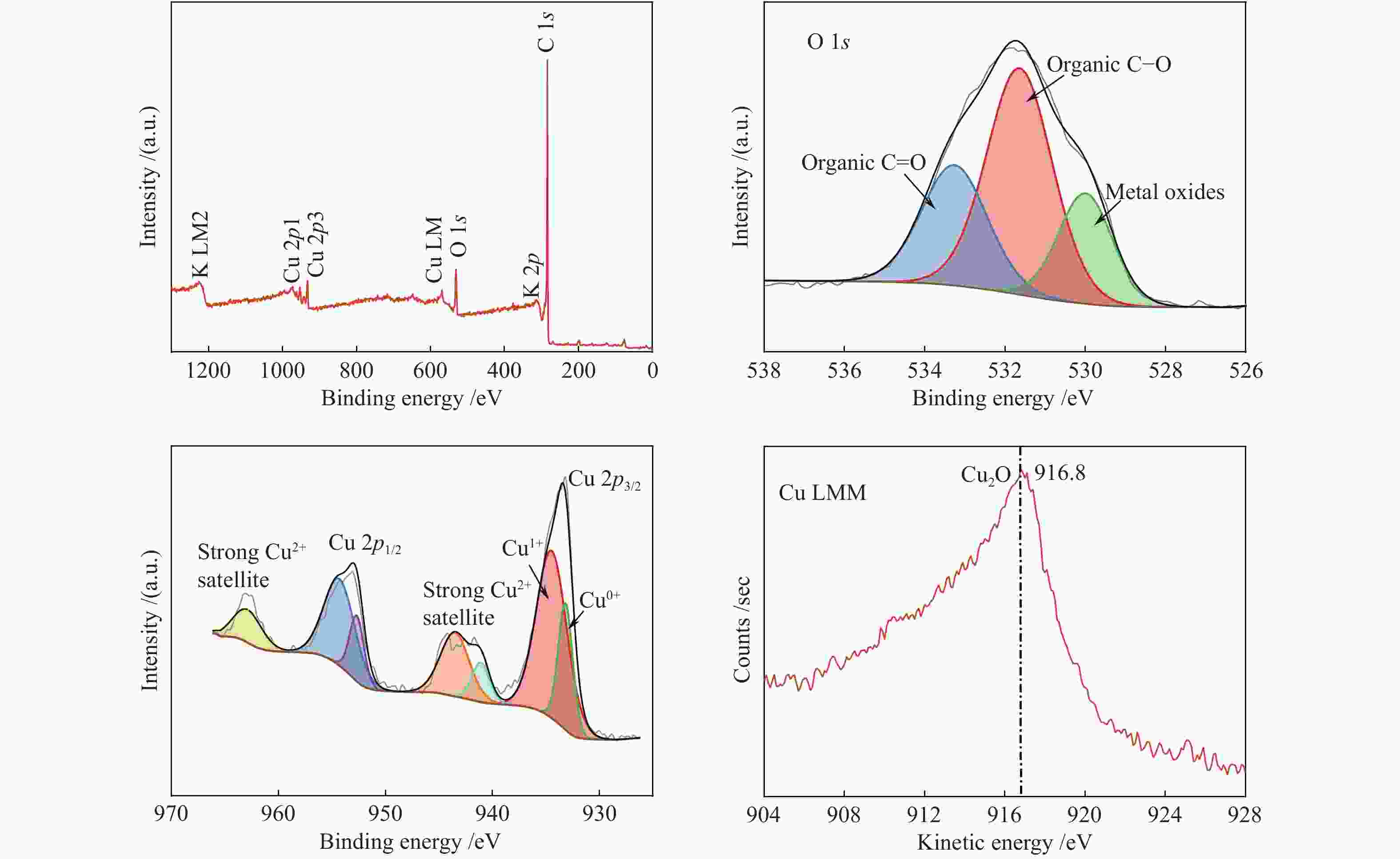

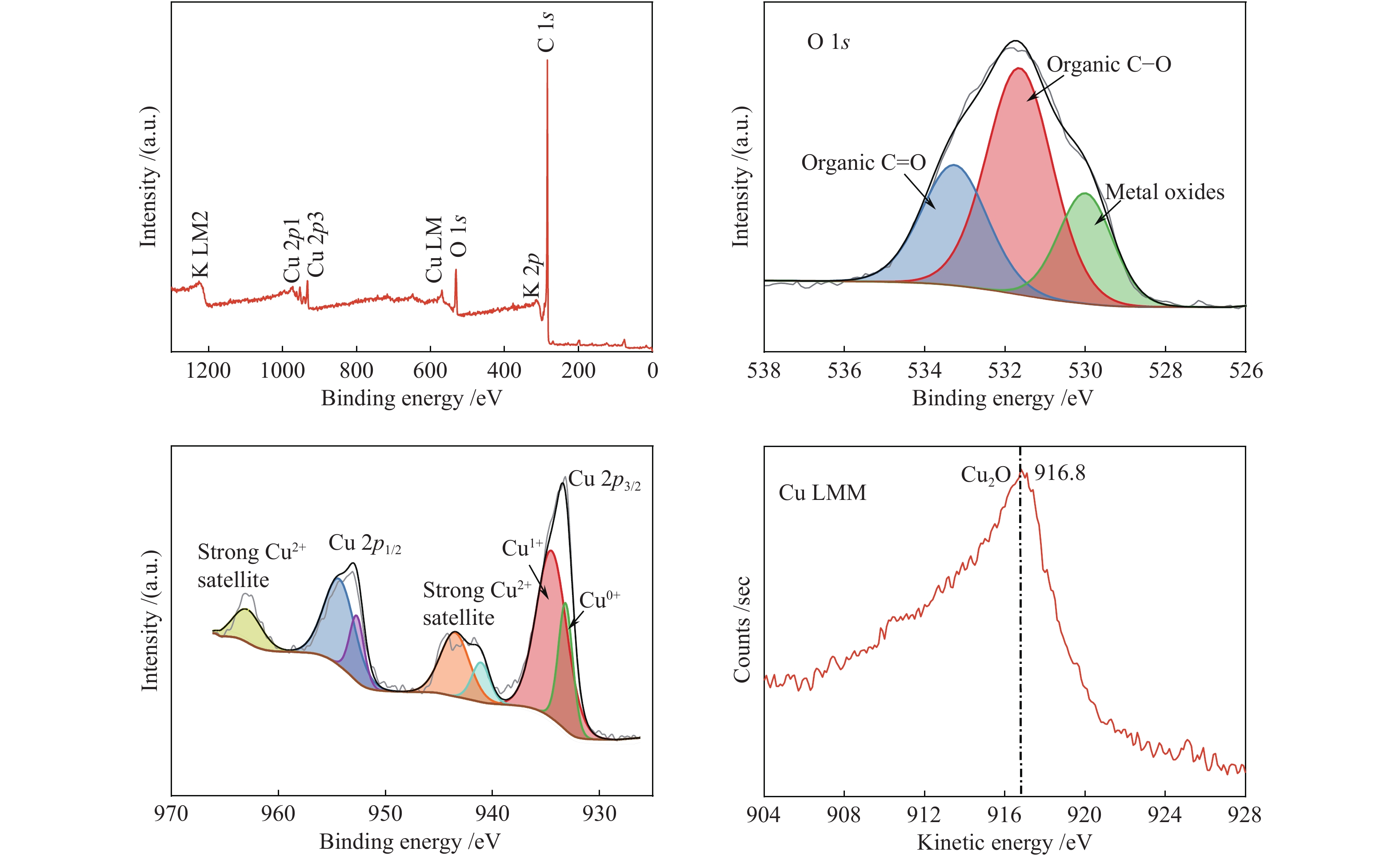

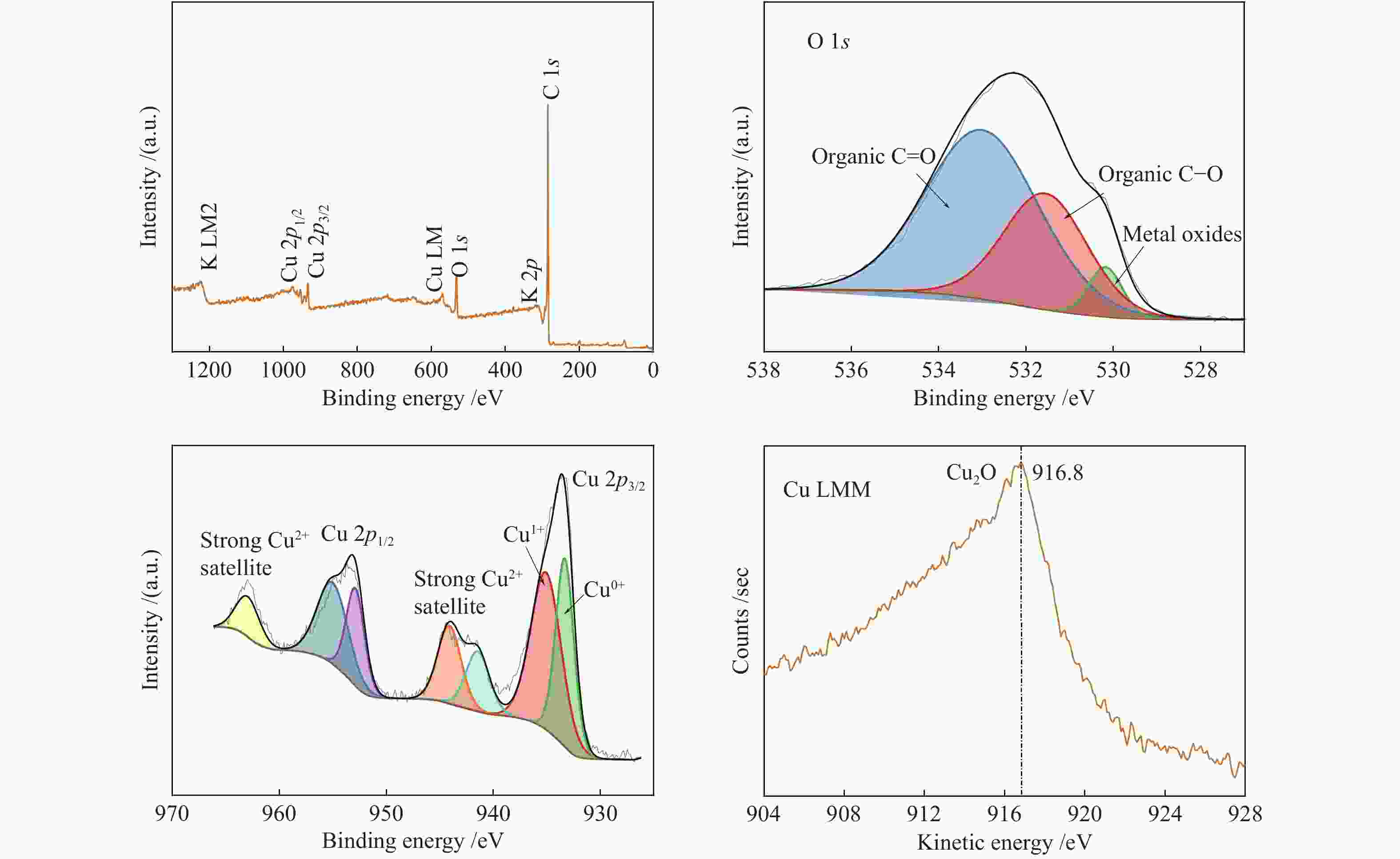

  Figure 13.  XPS of 2Cu-K-CSAC before the CharR-NO_x reaction

  下载: 全尺寸图片 幻灯片

  From the Cu peaks, it can be seen that the binding energies of Cu 2p_3/2 are 933.18 and 934.48 eV, and the binding energies of Cu 2p_1/2 are 952.78 eV and 954.48 eV. Through the principal Cu LMM peak, the kinetic energy of Cu LMM is 916.8 eV. It can infer that the Cu₂O crystal mainly exists on the surface. After the reduction reaction, the content of Cu(0) increases obviously, which indicates that both Cu²⁺ and Cu⁺ are reduced to Cu(0), which is consistent with the conclusions of XRD and TPR analysis. Cu²⁺ has an observable collection of satellite features 943 eV. Therefore, it can also be inferred that a CuO crystal existed. The results above mentioned are consistent with the XRD results. The addition of Cu²⁺ increases the concentration of free electrons and increases the electrical conductivity, enhancing the catalytic effect.

  From the O peak spectra, the binding energies of O 1s are 530.00, 531.64, and 533.26 eV. These corresponds to O^2– (metal-oxygen) at 530.00 eV, and the surface-adsorbed oxygen species C–O and C=O at 531.64 and 533.26 eV respectively. The results of the Raman spectra show that the material has structural defects. These defects increase the concentration of free electrons which is conducive to the generation of adsorbed oxygen. The adsorbed oxygen exists on the surface of carbon materials in the form of the C(O) functional group, which is an important intermediate product of the CharR-NO_x reaction. It also actively participates in the redox cycle of CuO/Cu₂O and catalyzes the reaction process. The change in the oxygen species before and after the reaction is not obvious, indicating that the service life of the material is considerably long.

  Figure 14

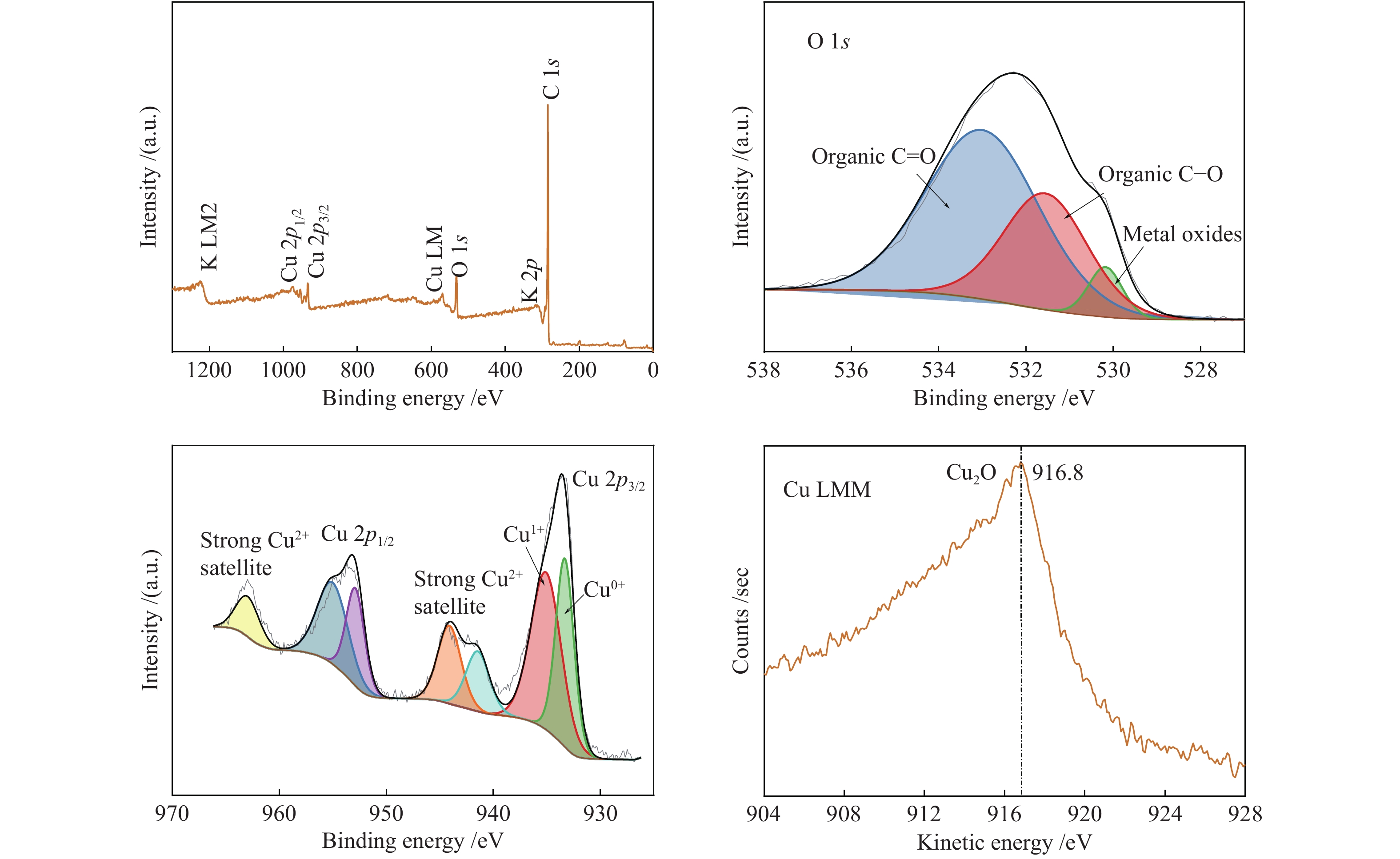

  Figure 14.  XPS of 2Cu-K-CSAC after the CharR-NO_x reaction

  下载: 全尺寸图片 幻灯片

  According to the analysis in Table 3, the contents of Cu(II) and Cu(0) in 2Cu-K-CSAC increase before and after the reaction, while the content of Cu(I) decreases, proving that the oxidation and reduction of Cu species are carried out in the reaction process. The valence state moves slowly from the intermediate valence state to both ends, indicating that the redox cycle of the Cu species is stable. The change in Cu species on the surface of the carbon materials is analyzed using XPS curve fitting. The ratio of Cu(II) to Cu(I/0) increases as the reaction progress, which is consistent with the XRD results. Further, the reduction activity of carbon material is lower than that of oxygen and NO_x oxidation, which can explain the relatively low loss of the 2Cu-K-CSAC carbon material, as shown in Figure 4.

  Table 3



  Table 3.  Cu 2p XPS curve-fitting analysis for 2Cu-K-CSAC

  下载: 导出CSV

  Material	Cu 2p XPS curve-fitting /%			Cu(Ⅱ)/ Cu(Ⅰ/0)
  	Cu(Ⅱ)	Cu(Ⅰ)	Cu(0)
  2Cu-K-CSAC before reaction	23.07	56.77	20.16	1∶3.33
  2Cu-K-CSAC after reaction	27.39	42.40	30.21	1∶2.65

  2.4   Mechanism discussion

  From above results, the existence of an important intermediate product, the C(O) functional group, is found in the process of the CharR-NO_x reaction^{[43, 44]}. The oxidation capacity of O₂ on carbon materials is better than that of NO, and the reaction activation energy between oxygen and carbon is low. Based on the FT-IR results, along with the elemental analysis results, there are certain C(O) functional groups on the surface of the activated carbon material itself. In combination with the reaction mechanism diagram of NO and O₂ on the surface of the carbon materials (Figure 15), it can be seen that the C(O) functional group greatly promotes the reaction, and the presence of oxygen significantly increases the formation of C(O). In the process of carbon oxidation, an increased number of active sites C^* are formed on the carbon surface, which promotes the reaction to continue. Moreover, the material’s structural defects lead to the formation of adsorbed oxygen on the surface. Therefore, in an aerobic environment, the reduction efficiency increases rapidly, and the temperature window of the CharR-NO_x reaction moves down.

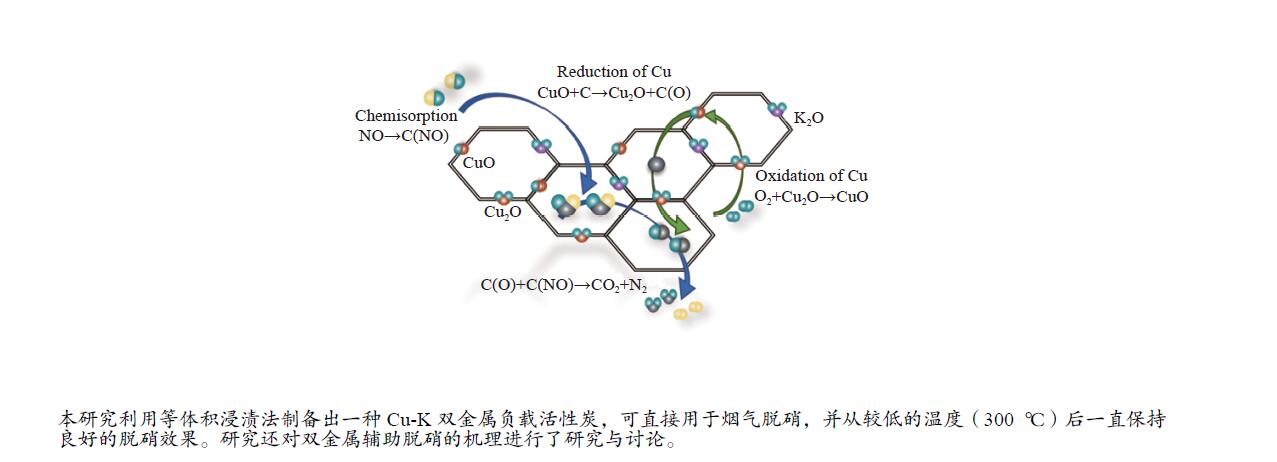

  Figure 15

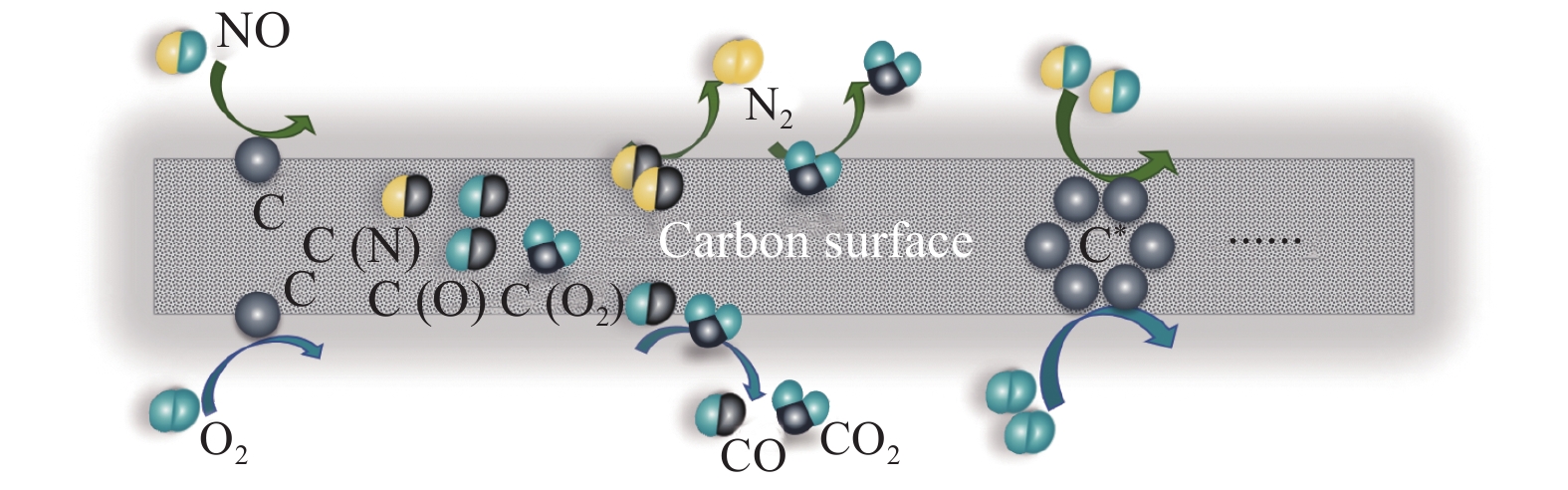

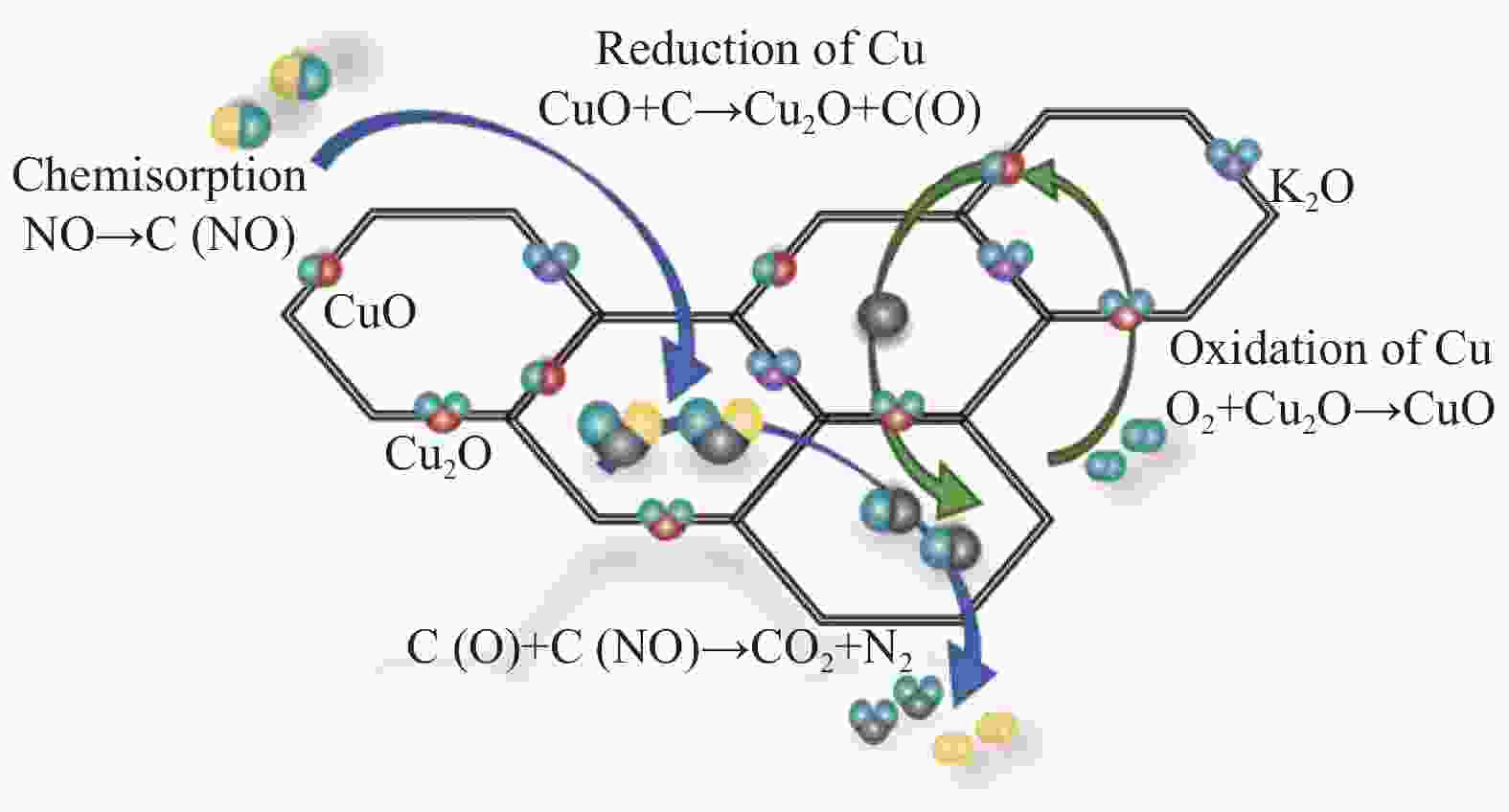

  Figure 15.  Proposed CharR-NO_x reaction mechanism of NO and O₂ on the carbon surface

  下载: 全尺寸图片 幻灯片

  Based on the XRD and XPS spectroscopic results, along with the earlier reports^{[27, 39]}, the possible mechanism of bimetallic catalytic denitration by carbon is shown in Figure 16. The main function of K species is to make Cu species more evenly be loaded on the surface of the material. Similarly, from the XRD results, it can be seen that, after the reaction in an aerobic environment, the characteristic diffraction peaks of CuO increase and the signals become stronger, primarily owing to the presence of a CuO/Cu₂O redox cycle, as shown in Figure 16. The redox cycle of CuO/Cu₂O is considered to be the key mechanism of catalyst action in the CharR-NO_x reaction^[45]. In the presence of oxygen, the cycle moves towards CuO, such that more characteristic diffraction peaks of CuO appear on the surface of the product. In the absence of oxygen, only the characteristic diffraction peak of Cu₂O can be detected. This catalytic mechanism can well explain the phenomenon that the CharR-NO_x reaction activity of the material is better in an aerobic environment because the oxygen greatly promotes the redox cycle of the catalytic active component. O₂ and C simultaneously promote the redox cycle of CuO/Cu₂O. The redox cycle of surface Cu species promotes the renewal of the surface functional groups of carbon materials, catalyzing the reaction between C and NO_x.

  Figure 16



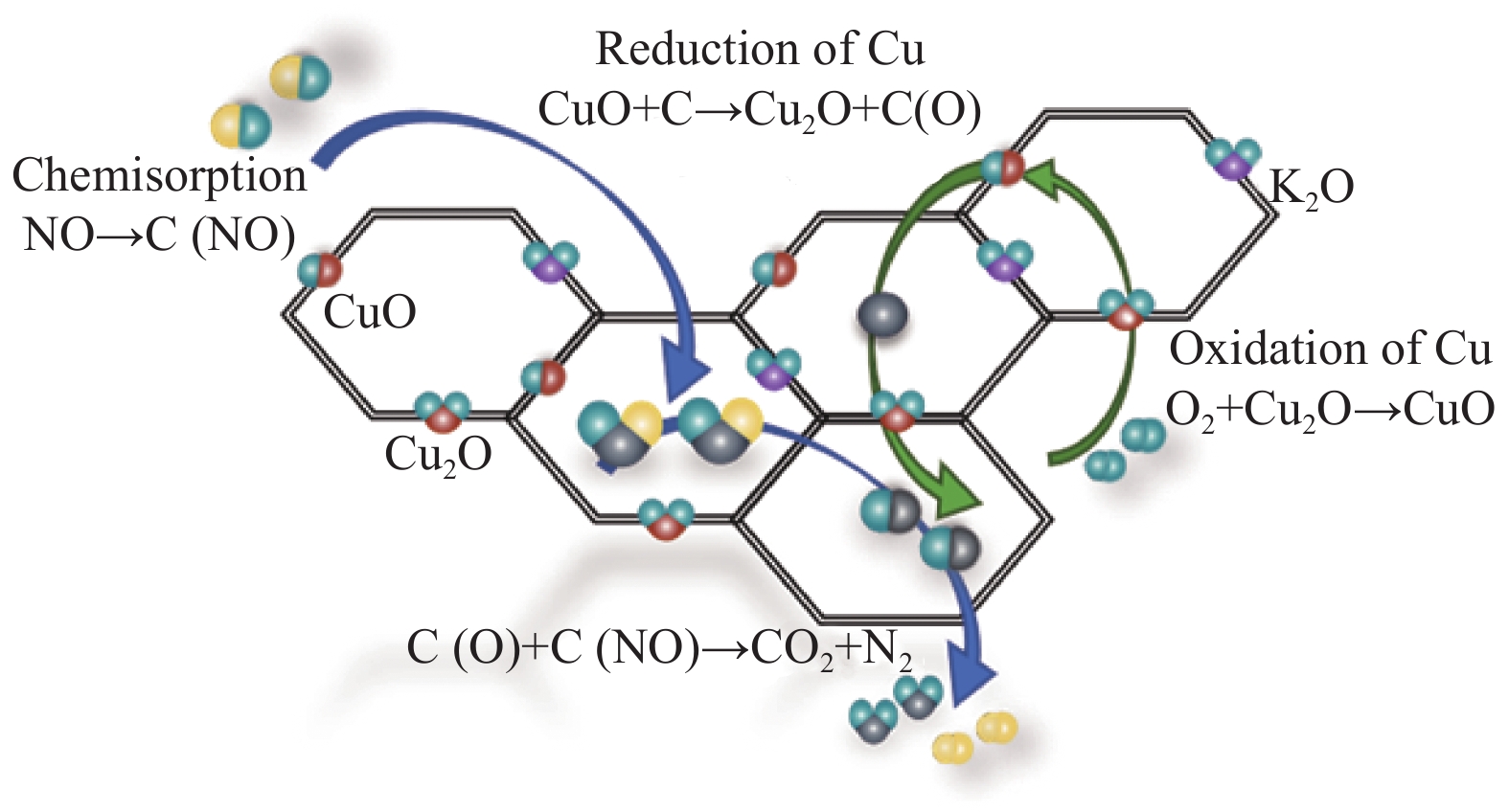

  Figure 16.  REDOX cycle of CuO/Cu₂O

  下载: 全尺寸图片 幻灯片

  3.   Conclusions

  A denitration agent without the addition of ammonia was prepared through incipient-wetness impregnation. The agent uses the reduction properties of the carbon material itself and the auxiliary catalytic effect of metals to achieve the efficient reduction of NO.

  Oxygen has a good effect in terms of promoting the CharR-NO_x reaction. At a lower oxygen content (2%), the reduction efficiency reaches a relatively high level. Therefore, the oxygen concentration should not be too high; otherwise, excessive amounts of carbon materials would be lost. The bimetallic catalytic reducing agent can significantly improve the reaction efficiency of CharR-NO_x. The temperature window of the reaction is reduced, and the reduction rate of NO reaches 90% at 300 °C. On the one hand, the degree of disorder of the original carbon material structure is improved and the reactive oxygen species C –O increases during the loading process. On the other hand, the main catalytic group is the transition metal copper, CuO/Cu₂O redox cycle is the key mechanism affecting the catalytic process, and alkali metal potassium can significantly inhibit the surface agglomeration of copper.
