Citation: Gao Simeng, Xia Kun, Kang Zhihong, Nai Yongning, Yuan Ruixia, Niu Ruixia. Molecular Dynamics Simulation of "Quasi-Gemini" Anionic Surfactant at the Decane/Water Interface[J]. Acta Chimica Sinica, ;2020, 78(2): 155-160. doi: 10.6023/A19100364 shu

Molecular Dynamics Simulation of "Quasi-Gemini" Anionic Surfactant at the Decane/Water Interface

  • Corresponding author: Gao Simeng, gaosimeng2006@126.com Niu Ruixia, niuruixia999@sina.com
  • Received Date: 12 October 2019
    Available Online: 10 February 2020

    Fund Project: Northeast Petroleum University Talent Engineering Research Start Fund RC201724the National Natural Science Foundation of China 21606042Project supported by the National Natural Science Foundation of China (No. 21606042), Northeast Petroleum University Cultivation Fund (No. 2017PYQZL-08) and Northeast Petroleum University Talent Engineering Research Start Fund (No. RC201724)Northeast Petroleum University Cultivation Fund 2017PYQZL-08

Figures(7)

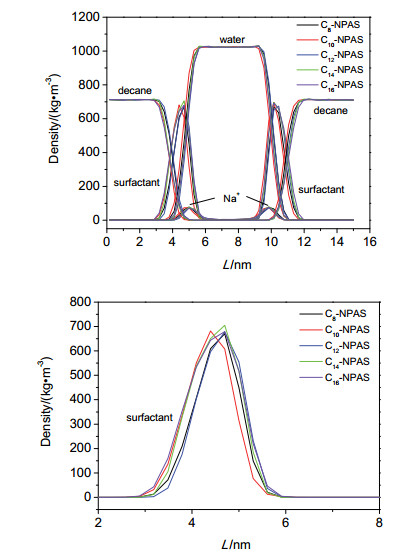

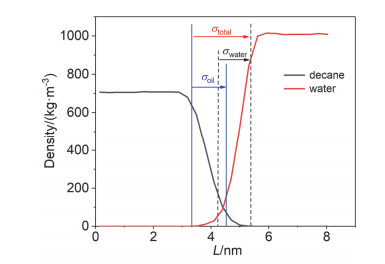

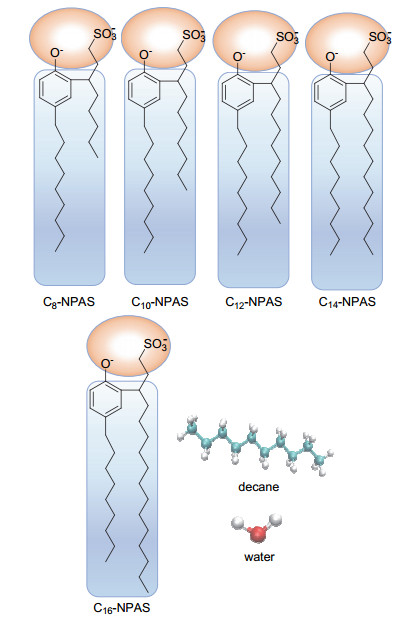

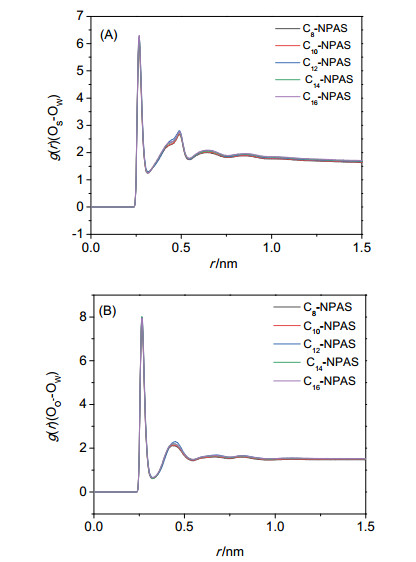

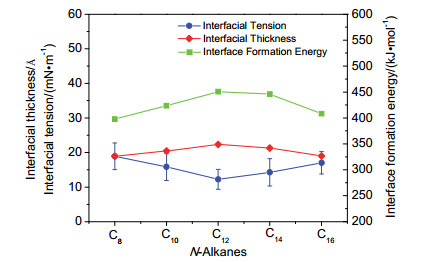

  • Anionic surfactants play a key role in many industrial fields such as drug delivery, detergent, oil displacement and food processing because of their unique amphiphilic properties. The structure of surfactant in oil-water system has a great influence on the interfacial behavior. It is of great significance to study the structure and interfacial properties of surfactants. In this paper, the all-atomic molecular dynamics method was used to study the aggregation behavior of nonylphenol-substituted series of alkyl sulfonate surfactants (Cn-NPAS) at the decane/water interface. The effects of different sulfoalkyl chain lengths on the interfacial properties of nonylphenol-substituted alkyl sulfonate surfactants were investigated by analyzing the interface thickness, interface formation energy, interfacial tension, the radial distribution function and coordination number. Simulation results have shown that the interfacial thickness increases at first and then decreases as the length of sulfoalkyl chain increases. The same trend was found in the results of the interface formation energy (IFE). The absolute value of IFE follows the order of C12-NPAS > C14-NPAS > C10-NPAS > C16-NPAS > C8-NPAS, indicating that the C12-NPAS is the most stable system in terms of energy which should be attribute to the stronger aggregation ability. Moreover, it is observed that the trend of interfacial tension is in agreement with that of interface formation energy and the interface thickness. Surfactant C12-NPAS induces the minimum interfacial tension. The calculation results are consistent with the experimental data. Furthermore, the radial distribution function and the coordination number of water around the surfactant headgroup were obtained for evaluating the interaction strength between the hydrophilic headgroup and water molecules. The results are well in accordance with the trend of the interface formation energy and interfacial tension. This indicates that the length of alkyl tail affect the interaction between hydrophilic headgroup and water indirectly. Simulation results suggest that the length of alkyl tail plays a dominant role in the interfacial behaviors. We expect that the results of this study could be valuable for the understanding of mechanism and the design of high performance surfactants.
  • 加载中
    1. [1]

      He, X. B.; Guvench, O.; Mackerell Jr., A. D.; Klein, M. L. J. Phys. Chem. B 2010, 114, 9787.  doi: 10.1021/jp101860v

    2. [2]

      Yu, Y. X.; Zhao, J.; Guvench, O.; Bayly, A. E. Chin. J. Chem. Eng. 2008, 16, 517.  doi: 10.1016/S1004-9541(08)60115-9

    3. [3]

      Zhao, W. W.; Wang, Y. L. Acta Chim. Sinica 2019, 77, 717(in Chinese).


    4. [4]

      Yan, H.; Guo, X. L.; Liu, C. B.; Yuan, S. L. Langmuir 2011, 27, 5762.  doi: 10.1021/la1049869

    5. [5]

      Lin, C.; Pan, R. M.; Xing, P. Chin. J. Org. Chem. 2018, 38, 3260(in Chinese).

    6. [6]

      Zhao, Y.; Wang, C.; Chow, A. H.; Ren, K.; Gong, T.; Zhang, Z. R.; Zheng, Y. Int. J. Pharm. B 2010, 383, 170.  doi: 10.1016/j.ijpharm.2009.08.035

    7. [7]

      Liao, G. Z.; Wang, Q.; Wang, H. Z.; Liu, W. D.; Wang, Z. M. Acta Petrolei Sinica 2017, 38, 196(in Chinese).

    8. [8]

      Yu, T.; Liu, H. J.; Ding, W. Chin. J. Appl. Chem. 2008, 25, 1107(in Chinese).

    9. [9]

      Chen, X. M.; Chen, Y.; Liu, Y. Chin. J. Chem. 2018, 36, 526.  doi: 10.1002/cjoc.201800063

    10. [10]

      Li, H. F.; Qiao, F. L.; Fan, Y. X.; Wang, Y. L. Acta Chim. Sinica 2018, 76, 564(in Chinese).


    11. [11]

      Li, M.; Zhang, C.; Yang, X. Chin. J. Chem. 2017, 35, 1706.  doi: 10.1002/cjoc.201700277

    12. [12]

      Li, Z. Q.; Guo, X. L.; Wang, H. Y.; Li, Q. H.; Yuan, S. L. Acta Phys.-Chim. Sin. 2009, 25, 6(in Chinese).

    13. [13]

      Jang, S. S.; Lin, S. T.; Maiti, P. K.; Blanco, M.; Goddard, W. A.; Shuler, P. J. Phys. Chem. B 2004, 108, 12130.  doi: 10.1021/jp048773n

    14. [14]

      Sun, H. Q.; Xiao, H. Y.; Liu, X. H. Sci. Chin. Chem. 2011, 54, 1078(in Chinese).

    15. [15]

      Shi, J.; Lv, K.; Yuan, S. L. J. Shandong Univ. (Engineering Science) 2012, 42, 77(in Chinese).

    16. [16]

      Wang, Y. F.; Yu, W. Z.; Hu, S. Q. J. Chin. Univ. Petro. 2011, 35, 153(in Chinese).

    17. [17]

      Niu, R. X.; Wang, D. Q.; Wang, J. L.; Wang, C.; Song, H. J. Chem. Ind. Eng. 2016, 67, 2944(in Chinese).

    18. [18]

      Tan, J. S.; Zhang, L.; Lim, F. C.; Cheong, D. W. Langmuir 2017, 33, 4461.  doi: 10.1021/acs.langmuir.7b00171

    19. [19]

      Martínez, L.; Andrade, R.; Birgin, E. G. J. Comput. Chem. 2009, 30, 2157.  doi: 10.1002/jcc.21224

    20. [20]

      Lundborg, M.; Lindahl, E. J. Phys. Chem. B 2014, 119, 810.

    21. [21]

      Wang, J.; Wolf, R. M.; Caldwell, J. W.; Kollman, P. A.; Case, D. A. J. Comp. Chem. 2004, 25, 1157.  doi: 10.1002/jcc.20035

    22. [22]

      Sastry, N. V.; Valand, M. K. J. Chem. Thermodyn. 1998, 30, 929.  doi: 10.1006/jcht.1998.0363

    23. [23]

      Pai, Y. H.; Chen, L. J. J. Chem. Eng. Data 1998, 43, 665.  doi: 10.1021/je980034a

    24. [24]

      Hou, M. D.; Li, H. P.; Hu, Z. Z.; Song, H. W. China Surfactant Detergent & Cosmetics 2018, 48, 243(in Chinese).

    25. [25]

      Hu, X. Y.; Song, X. W.; Li, Q. W.; He, X. J.; Li, Y. Acta Chim. Sinica 2009, 67, 1691(in Chinese).


    26. [26]

      Olayiwola, S. O.; Dejam, M. Fuel 2019, 241, 1045.  doi: 10.1016/j.fuel.2018.12.122

    27. [27]

      Jiang, R. J.; Luo, J. H.; Bai, R. B.; Jiang, B.; Zhou, G. Chem. J. Chin. Univ. 2017, 38, 1804(in Chinese).

    28. [28]

      Zeppieri, S.; Rodriguez, J.; López, R. A. J. Chem. Eng. Data 2001, 46, 1086.  doi: 10.1021/je000245r

    29. [29]

      Wang, J.; Wang, J. X.; Zeng, F. G.; Wu, X. L. Acta Chim. Sinica 2010, 68, 1653(in Chinese).


    30. [30]

      Liu, M. T.; Pu, M. F.; Ma, H. W. Chem. J. Chin. Univ. 2012, 33, 1319(in Chinese).

    31. [31]

      Liu, Z. Y.; Liao, Q.; Jin, Z. Q.; Zhang, L.; Zhang, L. Acta Phys.-Chim. Sinica 2016, 32, 1168(in Chinese).
