Citation: Qian Xiangyang, Xiong Peng, Xu Hai-Chao. Modular Synthesis of Functionalized 4-Quinolones via a Radical Cyclization Cascade Reaction[J]. Acta Chimica Sinica, ;2019, 77(9): 879-883. doi: 10.6023/A19050193 shu

Modular Synthesis of Functionalized 4-Quinolones via a Radical Cyclization Cascade Reaction

College of Chemistry and Chemical Engineering, Xiamen University, Xiamen 361005

Corresponding author: Xu Hai-Chao, haichao.xu@xmu.edu.cn
Received Date: 25 May 2019
Available Online: 1 September 2019
Fund Project: Project supported by the National Natural Science Foundation of China (No. 21672178) and Fundamental Research Funds for the Central Universitiesthe National Natural Science Foundation of China 21672178

Figures(4)

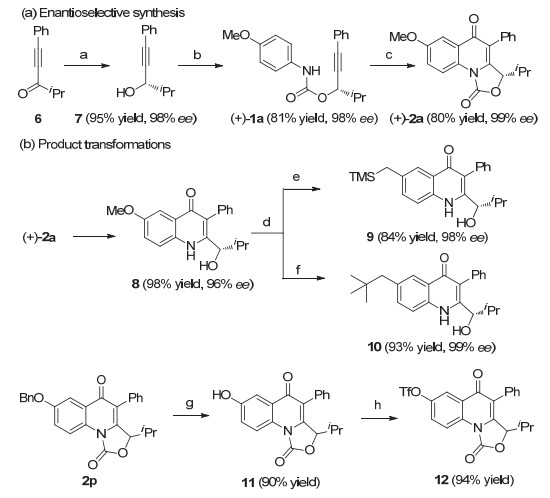

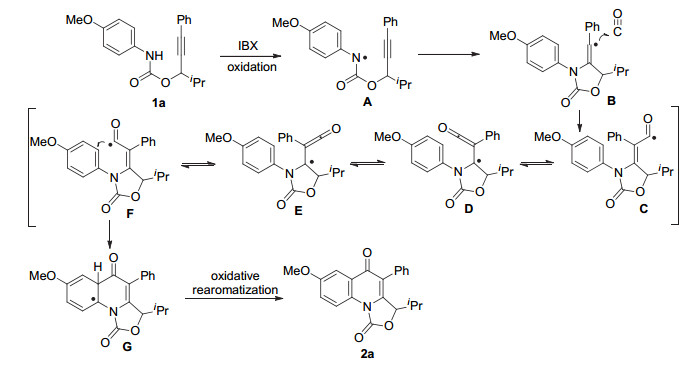

4-Quinolones are structural motifs prevalent in natural products and biologically active compounds. However, it remains challenging to synthesize 4-quinolones that bears diverse substituents at 2-and 3-positions. Herein we report an efficient and modular method for the synthesis of 4-quinolones from easily available N-aryl-O-propargyl carbamates and CO. The reactions employ 2-iodoxybenzoic acid (IBX) as an oxidant to oxidize the N-H group of the carbamate to generate an amide radical, which undergoes radical cyclization cascade with CO to afford the 4-quinolone product. The reactions provide speedy access to a series of 2, 3-disubstituted 4-quinolones by varying the substituents of the carbamate substrate. Late stage functionalization employing Ni-catalysis allows the conversion of an OMe group on the 4-quinonone benzene ring to alkyl substituents, further increasing the diversity of the 4-quinone product. The synthetic potential is further demonstrated by running the synthesis on gram scale and by preparation of an enantiomerically enriched 4-quinolone product. The typical procedure is detailed as follows:A magnetic stirring bar, the carbamate substrate (0.25 mmol), IBX (1.0 mmol), and anhydrous dimethyl sulfoxide (DMSO, 10 mL) were placed in a 50 mL stainless steel autoclave. The autoclave was sealed, vacuumed and purged five times with CO, and finally pressurized with 10 MPa of CO. The reaction vessel was heated at 90℃ for 12 h and then cooled to r.t.. Excess CO was released in a fume hood. The reaction mixture was diluted with ethyl acetate (20 mL) and 5% NaHCO₃ (15 mL). The phases were separated. The aqueous phase was extracted with ethyl acetate (20 mL×2). The combined organic solution was washed with 5% NaHCO₃ (20 mL) and brine (20 mL). The organic solution was dried over anhydrous MgSO₄, filtered and concentrated under reduced pressure. The residue was chromatographed through silica gel eluting with ethyl acetate/hexanes to give the desired product.
- radical,
- cyclization,
- 4-quinolone,
- oxidation
1. [1]
  (a) Mitscher, L. A. Chem. Rev. 2005, 105, 559; (b) Zhanel, G. G.; Ennis K.; Vercaigne, L.; Walkty, A.; Gin, A. S.; Embil, J.; Smith, H.; Hoban1, D. J. Drugs 2002, 62, 13.
2. [2]
  (a) Nilsen, A.; Miley, G. P.; Forquer, I. P.; Mather, M. W.; Katneni, K.; Li, Y.; Pou, S.; Pershing, A. M.; Stickles, A. M.; Ryan, E.; Kelly, J. X.; Doggett, J. S.; White, K. L.; Hinrichs, D. J.; Winter, R. W.; Charman, S. A.; Zakharov, L. N.; Bathurst, I.; Burrows, J. N.; Vaidya, A. B.; Riscoe, M. K. J. Med. Chem. 2014, 57, 3818; (b) Nilsen, A.; LaCrue, A. N.; White, K. L.; Forquer, I. P.; Cross, R. M.; Marfurt, J.; Mather, M. W.; Delves, M. J.; Shackleford, D. M.; Saenz, F. E.; Morrisey, J. M.; Steuten, J.; Mutka, T.; Li, Y.; Wirjanata, G.; Ryan, E.; Duffy, S.; Kelly, J. X.; Sebayang, B. F.; Zeeman, A.-M.; Noviyanti, R.; Sinden, R. E.; Kocken, C. H. M.; Price, R. N.; Avery, V. M.; Angulo-Barturen, I.; Jiménez-Díaz, M. B.; Ferrer, S.; Herreros, E.; Sanz, L. M.; Gamo, F.-J.; Bathurst, I.; Burrows, J. N.; Siegl, P.; Guy, R. K.; Winter, R. W.; Vaidya, A. B.; Charman, S. A.; Kyle, D. E.; Manetsch, R.; Riscoe, M. K. Sci. Transl. Med. 2013, 5, 177ra137.
3. [3]
  Wang, Z. (2010). Conrad-Limpach Quinoline Synthesis. In Comprehensive Organic Name Reactions and Reagents, Z. Wang (Ed.). doi: 10.1002/9780470638859.conrr152.
4. [4]
  Gould, R. G.; Jacobs, W. A. J. Am. Chem. Soc. 1939, 61, 2890. doi: 10.1021/ja01265a088
5. [5]
  (a) Mukhina, O. A.; Kutateladze, A. G. J. Am. Chem. Soc. 2016, 138, 2110; (b) Kwon, S.; Kang, D.; Hong, S. Eur. J. Org. Chem. 2015, 2015, 3671; (c) Shao, T.; Jiang, Z. Acta Chim. Sinica 2017, 75, 70. (d) Qiang Xie, Q.; Chen, X.-J.; Huang, P.-Q. Acta Chim. Sinica 2015, 73, 705.
6. [6]
  (a) Malacria, M. Chem. Rev. 1996, 96, 289; (b) Curran, D. P. Aldrichimica Acta 2000, 33, 104.
7. [7]
  Fuentes, N.; Kong, W. Q.; Fernandez-Sanchez, L.; Merino, E.; Nevado, C. J. Am. Chem. Soc. 2015, 137, 964. doi: 10.1021/ja5115858
8. [8]
  (a) Hou, Z. W.; Mao, Z. Y.; Zhao, H. B.; Melcamu, Y. Y.; Lu, X.; Song, J.; Xu, H.-C. Angew. Chem., Int. Ed. 2016, 55, 9168; (b) Zhu, L.; Xiong, P.; Mao, Z. Y.; Wang, Y. H.; Yan, X.; Lu, X.; Xu, H.-C. Angew. Chem., Int. Ed. 2016, 55, 2226; (c) Hou, Z.-W.; Mao, Z.-Y.; Song, J.; Xu, H.-C. ACS Catal. 2017, 5810; (d) Hou, Z.-W.; Yan, H.; Song, J.-S.; Xu, H.-C. Chin. J. Chem. 2018, 36, 909; (e) Hou, Z.-W.; Mao, Z.-Y.; Melcamu, Y. Y.; Lu, X.; Xu, H.-C. Angew. Chem., Int. Ed. 2018, 57, 1636; (f) Xu, F.; Long, H.; Song, J.; Xu, H.-C. Angew. Chem., Int. Ed. 2019, 58, 9017; (g) Long, H.; Song, J. S.; Xu, H. C. Org. Chem. Front. 2018, 5, 3129; (h) Xiong, P.; Xu, H.-H.; Xu, H.-C. J. Am. Chem. Soc. 2017, 139, 2956.
9. [9]
  Nicolaou, K. C.; Baran, P. S.; Zhong, Y. L.; Barluenga, S.; Hunt, K. W.; Kranich, R.; Vega, J. A. J. Am. Chem. Soc. 2002, 124, 2233. doi: 10.1021/ja012126h
10. [10]
  Matsumura, K.; Hashiguchi, S.; Ikariya, T.; Noyori, R. J. Am. Chem. Soc. 1997, 119, 8738. doi: 10.1021/ja971570a
11. [11]
  (a) Tobisu, M.; Chatani, N. Acc. Chem. Res. 2015, 48, 1717; (b) Guan, B.-T.; Xiang, S.-K.; Wu, T.; Sun, Z.-P.; Wang, B.-Q.; Zhao, K.-Q.; Shi, Z.-J. Chem. Commun. 2008, 1437; (c) Leiendecker, M.; Hsiao, C.-C.; Guo, L.; Alandini, N.; Rueping, M. Angew. Chem., Int. Ed. 2014, 53, 12912; (d) Tobisu, M.; Takahira, T.; Chatani, N. Org. Lett. 2015, 17, 4352.
12. [12]
  (a) Matsubara, H.; Ryu, I.; Schiesser, C. H. J. Org. Chem. 2005, 70, 3610; (b) Uenoyama, Y.; Fukuyama, T.; Nobuta, O.; Matsubara, H.; Ryu, I. Angew. Chem., Int. Ed. 2005, 44, 1075; (c) Fukuyama, T.; Nakashima, N.; Okada, T.; Ryu, I. J. Am. Chem. Soc. 2013, 135, 1006.
