Citation: Luo Wenhao, Zhu Shuihong, Lin Youhui, Liu Xiang Yang. Preparation of Crack-free Inverse-opal Films by Template/Matrix Co-assembly[J]. Acta Chimica Sinica, ;2017, 75(10): 1010-1016. doi: 10.6023/A17050236 shu

Preparation of Crack-free Inverse-opal Films by Template/Matrix Co-assembly

a.
College of Materials & College of Physical Science and Technology, Research Institute for Biomimetics and Soft Matter, Fujian Provincial Key Laboratory for Soft Functional Materials Research, Xiamen University, Xiamen 361005
b.
Department of Physics, National University of Singapore, Singapore 117542

Corresponding author: Lin Youhui, linyouhui@xmu.edu.cn Liu Xiang Yang, phyliuxy@nus.edu.sg
Received Date: 31 May 2017
Available Online: 3 October 2017
Fund Project: the 111 Project B16029the Natural Science Foundation of Guangdong Province 2014A030310005the Fundamental Research Funds for the Central Universities of China 20720170011the National Natural Science Foundation of China U1405226the National Natural Science Foundation of China 21401154Project supported by the National Natural Science Foundation of China (Nos. 21401154, U1405226), the 111 Project (No. B16029), the Natural Science Foundation of Guangdong Province (2014A030310005) and the Fundamental Research Funds for the Central Universities of China (No. 20720170011)

Figures(8)

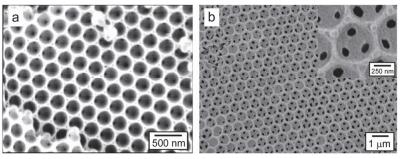

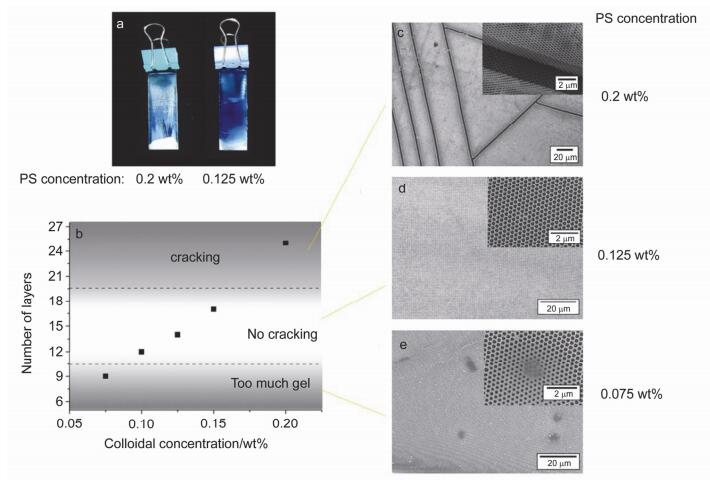

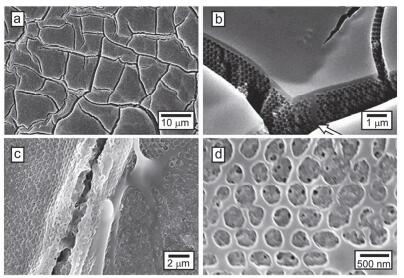

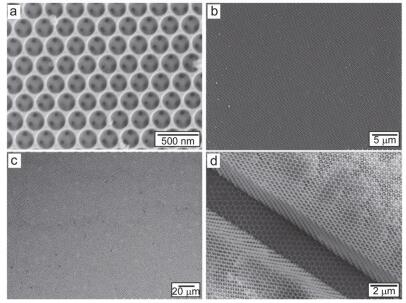

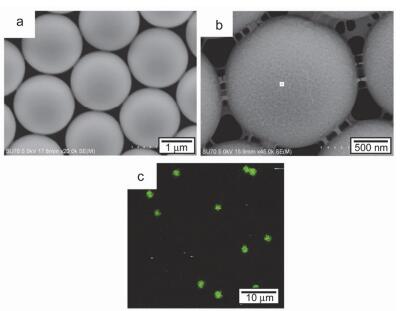

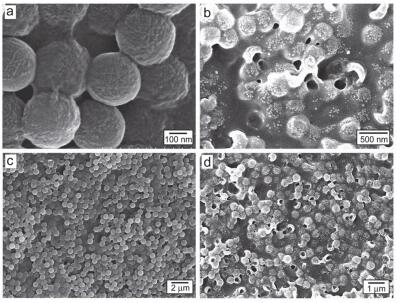

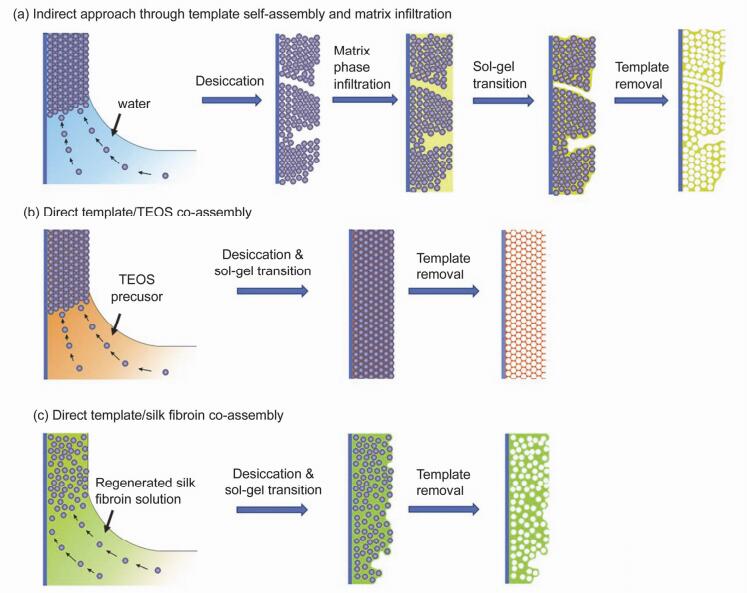

Recently, there has been a significant interest in utilizing well-ordered, porous inverse-opal films for applications in optical, electronic and (bio)chemical fields. However, uncontrolled defects are always formed during their preparation process, which limit their practical applications. In this work, we examine the feasibility of using template/matrix co-assembly strategies to fabricate crack-free inverse opal thin films. Polystyrene spheres (PS) are chosen as a colloidal template, and two matrix precursors[tetraethoxysilane (TEOS) precursor and regenerated silk fibroin solution] are used for the current study. Our scanning electron microscope (SEM) and optical spectrum results show that, for the TEOS-based system, the resulting silica gel due to the sol-gel transition of TEOS can effectively fill the gap between particles, but cannot affect the self-assembly of PS colloidal particles. After selective removal of the PS template, centimeter-scale crack-free and well-ordered inverse opal films can be obtained. In addition, for a constant concentration of TEOS, the film thickness and order degree of structure can be simply tuned by adjusting the concentrations of colloidal spheres. In comparison with indirect approach through template self-assembly and liquid infiltration, such a co-assembly approach can effectively minimize the associated cracking and avoid the need for matrix infiltration into the preassembled colloidal spheres. On the other hand, macro-molecule silk fibroin has a relatively strong interaction with PS colloidal particles, which is demonstrated by SEM and confocal images. Due to their interaction, silk fibroin molecules are preferably adsorbed on the surface of PS spheres, which can restrain the self-assembly of colloidal particles. As a result, it cannot form well-ordered silk film based on such co-assembly strategy. That is to say, the co-assembly approach is not suitable for systems that matrices have strong interactions with templates. These findings pave the way to use the template/matrix co-assembly strategy for rationally designing and developing crack-free inverse opal films and to apply such well-ordered and porous materials in a variety of fields.
- co-assembly,
- inverse-opal structure,
- crack-free,
- colloidal spheres
1. [1]
  Whitesides, G. M.; Grzybowski, B. Science 2002, 295, 2418. doi: 10.1126/science.1070821
2. [2]
  Zhao, X.; Su, F.; Yan, Q.; Guo, W.; Bao, X. Y.; Lv, L.; Zhou, Z. J. Mater. Chem. 2006, 16, 637. doi: 10.1039/B513060C
3. [3]
  Holland, B. T.; Blanford, C. F.; Stein, A. Science 1998, 281, 538. doi: 10.1126/science.281.5376.538
4. [4]
  Arsenault, A. C.; Clark, T. J.; von Freymann, G.; Cademartiri, L.; Sapienza, R.; Bertolotti, J.; Vekris, E.; Wong, S.; Kitaev, V.; Manners, I. Nat. Mater. 2006, 5, 179. doi: 10.1038/nmat1588
5. [5]
  Rinne, S. A.; García-Santamaría, F.; Braun, P. V. Nat. Photonics 2008, 2, 52. doi: 10.1038/nphoton.2007.252
6. [6]
  Choi, S. W.; Xie, J.; Xia, Y. Adv. Mater. 2009, 21, 2997. doi: 10.1002/adma.v21:29
7. [7]
  Lee, K.; Asher, S. A. J. Am. Chem. Soc. 2000, 122, 9534. doi: 10.1021/ja002017n
8. [8]
  Li, Y.; Qi, L.-M. Acta Chim. Sinica 2015, 73, 869.
9. [9]
  Hatton, B.; Mishchenko, L.; Davis, S.; Sandhage, K. H.; Aizenberg, J. Proc. Natl. Acad. Sci. U. S. A. 2010, 107, 10354. doi: 10.1073/pnas.1000954107
10. [10]
  Lytle, J. C.; Stein, A. Annual Review of Nano Research, Vol. 1, Eds.:Cao, G. Z.; Brinker, C. J., World Scientific Publishing Co., Singa-pore, 2006, 1, pp. 1~14.
11. [11]
  Velev, O. D.; Lenhoff, A. M. Curr. Opin. Colloid. Interface Sci. 2000, 5, 56. doi: 10.1016/S1359-0294(00)00039-X
12. [12]
  Jiang, F.-G.; Yao, J.-R.; Chen, X.; Shao, Z.-Z. Acta Chim. Sinica 2009, 67, 1675. doi: 10.3321/j.issn:0567-7351.2009.14.023
13. [13]
  Tu, H.; Yu, R.; Lin, Z.; Zhang, L.; Lin, N.; Yu, W. D.; Liu, X. Y. Adv. Funct. Mater. 2016, 26, 9032. doi: 10.1002/adfm.v26.48
14. [14]
  Ke, G.-Z.; Xie, H.-F.; Ruan, R.-P.; Yu, W.-D. Energy Convers. Manage. 2010, 51, 2294. doi: 10.1016/j.enconman.2010.04.001
15. [15]
  Liu, R.; Wan, L.; Liu, S.; Pan, L.; Wu, D.; Zhao, D. Adv. Funct. Mater. 2015, 25, 526. doi: 10.1002/adfm.v25.4
16. [16]
  Chen, Z.; Zhang, H.; Lin, Z.; Lin, Y.; van Esch, J. H.; Liu, X. Y. Adv. Funct. Mater. 2016, 26, 8978. doi: 10.1002/adfm.v26.48
17. [17]
  Nagarkar, S.; Nicolai, T.; Chassenieux, C.; Lele, A. Phys. Chem. Chem. Phys. 2010, 12, 3834. doi: 10.1039/b916319k
18. [18]
  Cao, H.; Chen, X.; Shao, Z.-Z. Acta Chim. Sinica 2008, 66, 2059. doi: 10.3321/j.issn:0567-7351.2008.18.007
19. [19]
  Schroden, R. C.; Al-Daous, M.; Blanford, C. F.; Stein, A. Chem. Mater. 2002, 14, 3305. doi: 10.1021/cm020100z
20. [20]
  Diao, Y. Y.; Liu, X. Y.; Toh, G. W.; Shi, L.; Zi, J. Adv. Funct. Mater. 2013, 23, 5373. doi: 10.1002/adfm.v23.43
21. [21]
  Wong, S.; Kitaev, V.; Ozin, G. A. J. Am. Chem. Soc. 2003, 125, 15589. doi: 10.1021/ja0379969
22. [22]
  Zhou, Z.; Zhao, X. Langmuir 2005, 21, 4717. doi: 10.1021/la046775t
23. [23]
  Zhang, T. H.; Kuipers, B. W.; Groenewold, J.; Kegel, W. K. Soft Matter. 2015, 11, 297. doi: 10.1039/C4SM02273D
24. [24]
  Zhang, T. H.; Liu, X. Y. Chem. Soc. Rev. 2014, 43, 2324. doi: 10.1039/C3CS60398A
25. [25]
  Chabanov, A. A.; Jun, Y.; Norris, D. J. Appl. Phys. Lett. 2004, 84, 3573. doi: 10.1063/1.1737066
26. [26]
  Huang, Y.; Zhou, J.; Su, B.; Shi, L.; Jiang, L. J. Am. Chem. Soc. 2012, 134, 17053. doi: 10.1021/ja304751k
27. [27]
  Busch, K.; John, S. Phys. Rev. E 1998, 58, 3896.
