Citation: Lin Yao, Ying Yilun, Gao Rui, Wang Huifeng, Long Yitao. Analysis of Single-entity Anisotropy with a Solid-state Nanopore[J]. Acta Chimica Sinica, ;2017, 75(7): 675-678. doi: 10.6023/A17040191 shu

Analysis of Single-entity Anisotropy with a Solid-state Nanopore

Lin Yao ^a ,
Ying Yilun ^a,*,, ,
Gao Rui ^a ,
Wang Huifeng ^b,*,, ,
Long Yitao ^a

a.
Key Laboratory for Advanced Materials & School of Chemistry and Molecular Engineering, East China University of Science and Technology, Shanghai 200237, China
b.
School of Information Science and Engineering, East China University of Science and Technology, Shanghai 200237, China

Corresponding author: Ying Yilun, yilunying@ecust.edu.cn Wang Huifeng, whuifeng@ecust.edu.cn
Received Date: 30 April 2017

Fund Project: the National Natural Science Foundation of China 21505043the Fundamental Research Funds for the Central Universities 222201714012the Fundamental Research Funds for the Central Universities 222201717003the National Natural Science Foundation of China 21327807the Fundamental Research Funds for the Central Universities 222201718001the National Natural Science Foundation of China 21421004

Figures(3)

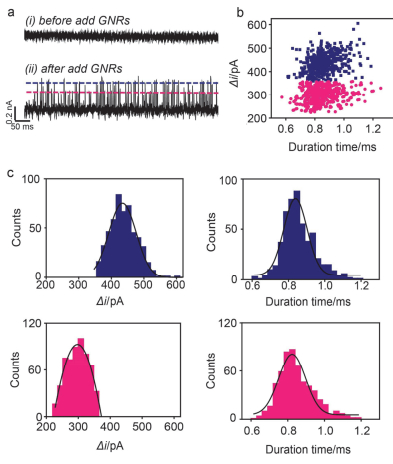

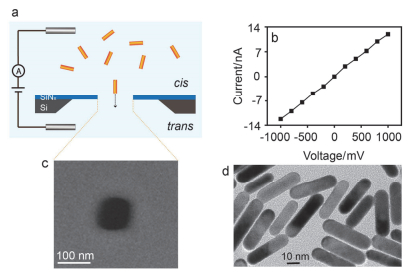

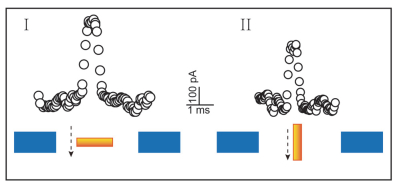

Solid-state nanopore has emerging as a promising tool for detection and analysis of single molecules due to its advantages of high stability, easy control of diameter and channel length, and the potential for integration into devices and arrays.Therefore, there are intensive studies regarding nanopore-based detection of DNAs, proteins, polymers and other small molecules.The electrochemical confined space of nanopore could efficiently convert the information in single biological molecules with anisotropy characters into measurable electrochemical signatures with high temporal resolution.The anisotropy characters of each analyte, due to its featured physical and chemical properties in different directions, strongly affects the translocation behavior of each single entity (single molecule, single nanoparticle, etc.).To analyze the single-entity anisotropy effects on nanopore translocation, here, we employed gold nanorods (GNRs) as a model for single entities with anisotropy to investigate its translocation behavior through a solid-state nanopore.We performed the GNRs translocation experiments in 10 mmol·L^-1 KCl (pH 8) electrolyte solution with a 100 nm SiN_x solid-state nanopore.The current trace of GNRs translocation through nanopores had been recorded with an ultra-sensitive current amplifier at a sampling rate of 100 kHz filtered at 5 kHz via a low-pass Bessel filter.At applied voltage of-600 mV, two types of characteristic current blockades were observed when single GNRs translocate through the pore.We found this two types of blockades are mainly related to two translocation orientation of GNRs due to its anisotropy.The smaller current blockades are due to the GNR passing through the pore vertically while the larger current blockades are due to the GNR passing through the pore horizontally.To verify our observation of this two types of GNRs translocation events, we employed a simple model which is based on the relationship between the blockade magnitude and the exclude ion volume.The calculated current blockades of two types of GNRs translocation events agree well with the experimental values.These results illustrate that the anisotropy of single entity is an important factor that should be taken into consideration in nanopore translocation.This work will lead to a better understanding of the translocation behavior of single entity with anisotropy in the electrochemical confined space of nanopore.Such understanding is vital to the development of the solid-state nanopore system as a useful single molecule analytical device.
- solid-state nanopore,
- single-entity anisotropy,
- gold nanorods,
- single-molecule analysis
1. [1]
  Miles, B. N.; Ivanov, A. P.; Wilson, K. A.; Doğan, F.; Japrung, D.; Edel, J. B. Chem. Soc. Rev. 2013, 42, 15. doi: 10.1039/C2CS35286A
2. [2]
  Liu, L.; Wu, H.-C. Angew. Chem. Int. Ed. 2016, 55, 15216. doi: 10.1002/anie.v55.49
3. [3]
  Lin, Y.; Shi, X.; Liu, S.-C.; Ying, Y.-L.; Li, Q.; Gao, R.; Fathi, F.; Long, Y.-T.; Tian, H. Chem. Commun. 2017, 53, 3539. doi: 10.1039/C7CC00060J
4. [4]
  Zhang, Y.; Wu, G.; Ma, J.; Yuan, Z.; Si, W.; Liu, L.; Sha, J.; Chen, Y. Sci. China Technol. Sci. 2015, 58, 519.
5. [5]
  Wang, H.-Y.; Ying, Y.-L.; Li, Y.; Kraatz, H.-B.; Long, Y.-T. Anal. Chem. 2011, 83, 1746. doi: 10.1021/ac1029874
6. [6]
  Hu, Y.-X.; Ying, Y.-L.; Gu, Z.; Cao, C.; Yan, B.-Y.; Wang, H.-F.; Long, Y.-T. Chem. Commun. 2016, 52, 5542. doi: 10.1039/C6CC01292B
7. [7]
  Kwak, D. K.; Chae, H.; Lee, M. K.; Ha, J. H.; Goyal, G.; Kim, M. J.; Kim, K. B.; Chi, S. W. Angew. Chem. Int. Ed. 2016, 55, 5713. doi: 10.1002/anie.201511601
8. [8]
  Ying, Y.-L.; Zhang, J.-J.; Gao, R.; Long, Y.-T. Angew. Chem. Int. Ed. 2013, 52, 13154. doi: 10.1002/anie.201303529
9. [9]
  Cao, C.; Liao, D.-F.; Ying, Y.-L.; Long, Y.-T. Acta Chim. Sinica 2016, 74, 734(in Chinese).
10. [10]
  Long, Y.-T.; Zhang, M.-N. Sci. China Ser. B 2009, 52, 731.
11. [11]
  Ying, Y.-L.; Zhang, X.; Liu, Y.; Xue, M.-Z.; Li, H.-L.; Long, Y.-T. Acta Chim. Sinica 2013, 71, 44(in Chinese).
12. [12]
  Dekker, C. Nat. Nanotechnol. 2007, 2, 209. doi: 10.1038/nnano.2007.27
13. [13]
  Guo, W.; Tian, Y.; Jiang, L. Acc. Chem. Res. 2013, 46, 2834. doi: 10.1021/ar400024p
14. [14]
  Bell, N. A. W.; Keyser, U. F. J. Am. Chem. Soc. 2015, 137, 2035. doi: 10.1021/ja512521w
15. [15]
  Plesa, C.; Ruitenberg, J. W.; Witteveen, M. J.; Dekker, C. Nano Lett. 2015, 15, 3153. doi: 10.1021/acs.nanolett.5b00249
16. [16]
  Mahmood, M. A. I.; Ali, W.; Adnan, A.; Iqbal, S. M. J. Phys. Chem. B 2014, 118, 5799. doi: 10.1021/jp411820w
17. [17]
  Prabhu, A. S.; Jubery, T. Z. N.; Freedman, K. J.; Mulero, R.; Dutta, P.; Kim, M. J. J. Phys.:Condens. Matter 2010, 22, 454107. doi: 10.1088/0953-8984/22/45/454107
18. [18]
  Lan, W. J.; Holden, D. A.; Zhang, B.; White, H. S. Anal. Chem. 2011, 83, 3840. doi: 10.1021/ac200312n
19. [19]
  Arjmandi, N.; Van Roy, W.; Lagae, L.; Borghs, G. Anal. Chem. 2012, 84, 8490. doi: 10.1021/ac300705z
20. [20]
  Wang, Y.; Kececi, K.; Mirkin, M.; Mani, V. Chem. Sci. 2013, 4, 655. doi: 10.1039/C2SC21502K
21. [21]
  Venta, K.; Wanunu, M.; Drndić, M. Nano Lett. 2013, 13, 423. doi: 10.1021/nl303576q
22. [22]
  Venta, K. E.; Zanjani, M. B.; Ye, X.; Danda, G.; Murray, C. B.; Lukes, J. R.; Drndić, M. Nano Lett. 2014, 14, 5358. doi: 10.1021/nl502448s
23. [23]
  Goyal, G.; Freedman, K. J.; Kim, M. J. Anal. Chem. 2013, 85, 8180. doi: 10.1021/ac4012045
24. [24]
  Talaga, D. S.; Li, J. J. Am. Chem. Soc. 2009, 131, 9287. doi: 10.1021/ja901088b
