Citation: Yang Xiangping, Guo Xiaoxue, Zhang Chenghua, Wang Xiaoping, Yang Yong, Li Yongwang. Synthesis and Catalytic Properties of Iron Based Fischer-Tropsch Catalyst Mediated by MOFs Fe-MIL-100[J]. Acta Chimica Sinica, ;2017, 75(4): 360-366. doi: 10.6023/A16100549 shu

Synthesis and Catalytic Properties of Iron Based Fischer-Tropsch Catalyst Mediated by MOFs Fe-MIL-100

Yang Xiangping ^a ,
Guo Xiaoxue ^a ,
Zhang Chenghua ^b,c ,
Wang Xiaoping ^b ,
Yang Yong ^b,c ,
Li Yongwang ^b,c,*,,

a.
College of Chemical Engineering, China University of Petroleum (HD), Qingdao 266000
b.
National Engineering Laboratory of Coal Indirect Liquefaction, Synfuels CHINA Co. Ltd., Beijing 101407
c.
State Key Laboratory of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan 030001

Corresponding author: Li Yongwang, zhangchh@sxicc.ac.cn
Received Date: 15 October 2016

Fund Project: the National Natural Science Foundation of China 91545109International Cooperation in Science and Technology of Shanxi Province 2014081004

Figures(8)

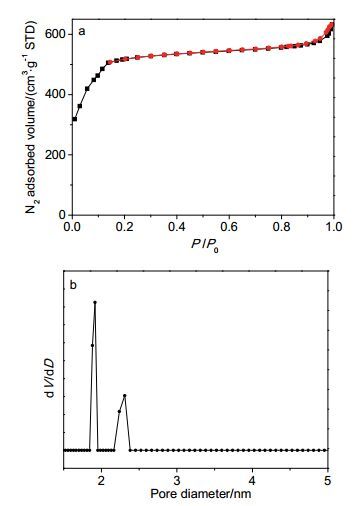

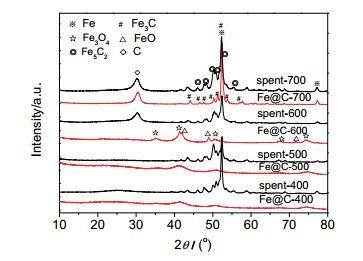

Depletion of crude oil resources and environmental concerns have spurred worldwide interest in finding un-oil route for liquid fuels. Fischer-Tropsch synthesis is an effective progress for a wide spectrum of hydrocarbon chains from synthesis gas. The use of iron-based catalysts would be preferred in the industry. Here we present a strategy to produce highly dispersed active component embedded in a matrix of porous carbon. Through the carbonization of iron-containing metal-organic frameworks (Fe-MIL-100) at different temperature in N₂, four kinds of Fe@C catalysts were prepared. Glucose was used as additional carbon precursor for the synthesis catalyst samples to prevent particle agglomeration. Our strategy avoids the particle agglomeration in the weak metal-support interaction Fe@C catalysts during calcination, reduction and reaction. The structure and morphology of prepared catalysts were characterized by X-ray diffraction (XRD), N₂ physical adsorption, transmission electron microscopy (TEM), inductively coupled plasma-atomic emission spectrometer (ICP-AES). It is demonstrated that the iron loading, the particle size, and the Fe phase structure of Fe@C catalysts can be controlled by changing the carbonization temperature of Fe-MIL-100. With increasing the temperature, the iron loading and the particle size increase gradually. Depending on the carbonization temperature, the Fe₃O₄ phase is dominant at 400 and 500℃. The FeO and Fe phase appear at 600℃. The Fe₃C phase prevails at 700℃. The high dispersion of the metal phase and its encapsulation in a highly porous carbon matrix result in an unrivalled FTS activity. The spatial restriction created by encapsulation seems to minimize sintering and oxidation of the active Hägg carbide phase. When the reaction conditions were set at 260℃, 3 MPa, the space velocity of 8000 h^-1, the conversion of CO is up to 68%. The Fe time yield (FTY) of the Fe@C-500 catalyst were as high as 164 μmol_CO·g_Fe^-1·s^-1, which surpasses that of most F-T catalysts reported in the literature in middle-temperature Fischer-Tropsch synthesis.
- Fischer-Tropsch synthesis,
- iron-based Fischer-Tropsch catalysts,
- iron carbide phases,
- metal organic frameworks,
- Fe-MIL-100
1. [1]
  Yang, W. S.; Fang, D. Y.; Xiang, H. W.; Li, Y. W. Acta Chim. Sinica 2005, 63, 157. doi: 10.3321/j.issn:0567-7351.2005.02.012
2. [2]
  Gao, L.; Xu, Y.; Hou, B.; Wu, D.; Sun, Y. H. Acta Chim. Sinica 2008, 66, 1851. doi: 10.3321/j.issn:0567-7351.2008.16.001
3. [3]
  Zhang, J.; Zhang, Z.-P.; Su, J.-J.; Fu, D.-L.; Dai, W.-W.; Liu, D.; Xu, J.; Han, Y.-F. CIESC J. 2016, 67, 550.
4. [4]
  Suo, H.-Y.; Wang, S.-G.; Zhang, C.-H.; Xu, J.; Wu, B.-S.; Yang, Y.; Xiang, H.-W.; Li, Y.-W. J. Catal. 2012, 286, 111. doi: 10.1016/j.jcat.2011.10.024
5. [5]
  Krylova, A. Y.; Panin, A. A.; Lyadov, A. S.; Sagitov, S. A.; Kurkon, V. I.; Kryazhev, Y. G. Petrol. Chem. 2011, 51, 317. doi: 10.1134/S0965544111050094
6. [6]
  Abbaslou, R. M. M.; Tavasoli, A.; Dalai, A. K. Appl. Catal. A-General 2009, 355, 33. doi: 10.1016/j.apcata.2008.11.023
7. [7]
  Lv, J.-Z.; Hu, R.-Z.; Zhuo, O.; Xu, B.-L.; Yang, L.-J.; Wu, Q.; Wang, X.-Z.; Fan, Y.-N.; Hu, Z. Acta Chim. Sinica 2014, 72, 1017. doi: 10.3866/PKU.WHXB201401251
8. [8]
  deKrafft, K. E.; Wang, C.; Lin, W. Adv. Mater. 2014, 24, 2014.
9. [9]
  Gascon, J.; Corma, A.; Kapteijn, F.; Llabrés, I.; Xamena, F. X. ACS Catal. 2014, 4, 361. doi: 10.1021/cs400959k
10. [10]
  Masoomi, M. Y.; Morsali, A. Coord. Chem. Rev. 2012, 256, 2921. doi: 10.1016/j.ccr.2012.05.032
11. [11]
  Wang, C.; Xie, Z.-G.; Kathryn, E. J. Am. Chem. Soc. 2011, 133, 13445. doi: 10.1021/ja203564w
12. [12]
  Liu, B.; Shioyama, H.; Jiang, H.; Zhang, X.; Xu, Q. Carbon 2010, 48, 456. doi: 10.1016/j.carbon.2009.09.061
13. [13]
  Santos, V. P.; Wezendonk, T. A.; Jaén, J. J. D.; Dugulan, A. L.; Nasalevich, M. A.; Islam, H.-U.; Chojecki, A.; Sartipi, S.; Sun, X. H.; Hakeem. A. A.; Koeken, A. C. J.; Ruitenbeek, M.; Davidian, T.; Meima, G. R.; Sankar, G.; Kapeijn, F.; Makkee, M.; Gascon, J. Nat. Commun. 2015, 6, 6451. doi: 10.1038/ncomms7451
14. [14]
  Horcajada, P.; Surblé, S.; Serre, C.; Hong, D.-Y.; Seo, Y.-K.; Chang, J.-C.; Grenéche, J.-M.; Margiolaki, I.; Frey, G. ChemComm 2007, 27, 2820.
15. [15]
  Fang, C. M.; Sluiter, M. H. F.; Huis, M. A.; Ande, C. K.; Zandbergen, H. W. Phys. Rev. Lett. 2010, 105, 055503. doi: 10.1103/PhysRevLett.105.055503
16. [16]
  Merkle, R.; Maier, J. Z. Anorg. Allg. Chem. 2005, 631, 1163. doi: 10.1002/(ISSN)1521-3749
17. [17]
  Qiu, C. W.; Wu, B. S.; Meng, S. C.; Li, Y. W. Acta Chim. Sinica 2015, 73, 690.
18. [18]
  Park, J. Y.; Lee, Y. J.; Khanna, P. K.; Jun, K. W.; Bae, J. W.; Kim, Y. H. J. Mol. Catal. A 2010, 323, 84. doi: 10.1016/j.molcata.2010.03.025
19. [19]
  Yang, C.; Zhao, H.; Hou, Y.; Ma, D. J. Am. Chem. Soc. 2012, 134, 15814. doi: 10.1021/ja305048p
20. [20]
  Zhang, Q.; Kang, J.; Wang, Y. ChemCatChem 2010, 2, 1030. doi: 10.1002/cctc.201000071
21. [21]
  Wezendonk, T. A.; Santos, V. P.; Nasalevich, M. A.; Warringa, Q. S. E.; Dugulan, A. L.; Chojecki, A.; Koeken, C. J.; Ruitenbeek, M.; Meima, G.; Islam, H.-U.; Sankar, G.; Makkee, M.; Kapteijn, F.; Gascon, H.-U. ACS Catal. 2016, 6, 3236. doi: 10.1021/acscatal.6b00426
22. [22]
  Yu, G.; Sun, B.; Pei, Y.; Xie, S.; Yan, S.; Qiao, M.; Fan, K.; Zhang, X.; Zong, B. J. J. Am. Chem. Soc. 2010, 132, 935. doi: 10.1021/ja906370b
