Citation: Zhang Yu-Jian, Xie Bin, Jiang Tao. Preparation and Properties of Crown Ethers Containing Amphiphilic Copolymer Nano-aggregates[J]. Acta Chimica Sinica, ;2016, 74(9): 752-757. doi: 10.6023/A16060281 shu

Preparation and Properties of Crown Ethers Containing Amphiphilic Copolymer Nano-aggregates

Zhang Yu-Jian ^a,b ,
Xie Bin ^b ,
Jiang Tao ^a,*,,

a.
Tianjin University of Science and Technology, Materials Science and Chemical Engineering Institute, Tianjin 300457, China
b.
Petrochemical Research Institute of PetroChina, Synthetic Resins and Processing Applications Lab, Beijing 100195, China

Corresponding author: Jiang Tao, jiangtao@tust.edu.cn
Received Date: 7 June 2016

Fund Project: Application Foundation and Frontier Technology Research Program of Tianjin Municipality 16JCZDJC31600

Figures(12)

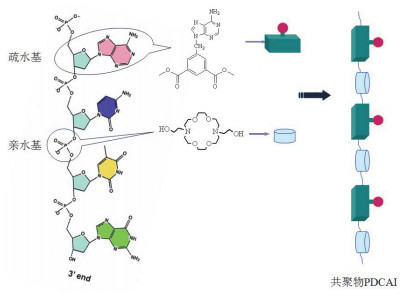

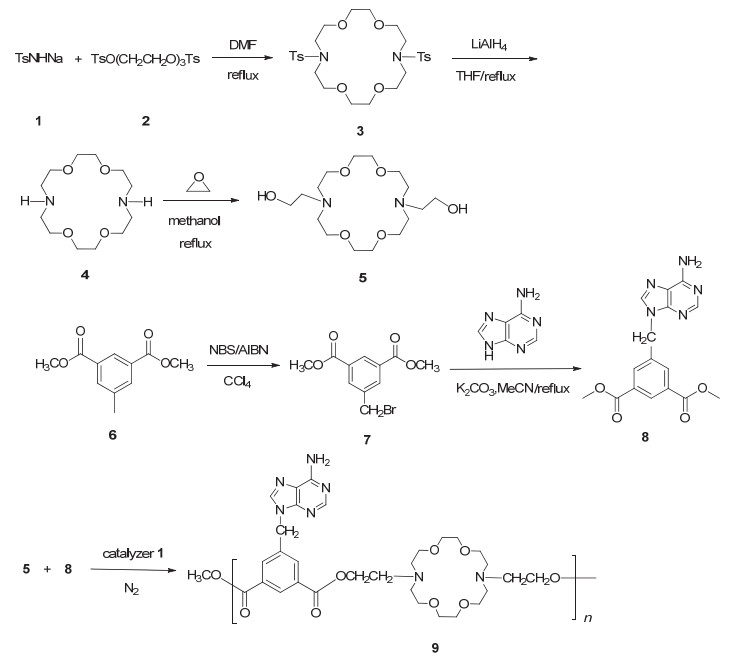

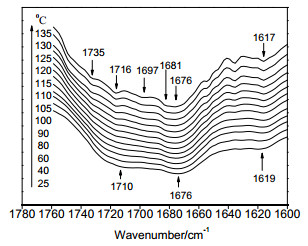

In this paper, an amphiphilic copolymer poly(2, 2'-(1, 10-diaza-[18]crown-6-1, 10-diyl)diethyl 5-((adenin-9-yl)-methyl)isophthalate) (PDCAI) was designed and synthesized by simulating the chemical structure of DNA. We observed its self-organized morphology in the aqueous solution and in potassium solution with scanning electron microscopy (SEM), amphiphilic copolymer PDCAI spontaneously aggregated into strip aggregates in aqueous solution, and which could change into a rod, nanotube or helical rod aggregates in KNO₃ solution. In addition, the molecular recognition between copolymer PDCAI and thymine substrate has been studied via FT-IR, and it is found that C₂=O of thymine had recognized with PDCAI through complementary nucleobases in aqueous solution, the C₂=O stretching band of thymine at 1737 cm^-1shifted to 1710 cm^-1 after recognition, however, the band of the C₄=O of thymine did not change at 1677 cm^-1. Meanwhile we attempted to regulate the molecular recognition of copolymer PDCAI with thymine substrate with K⁺, we surprisingly found that hydrogen bonding occurs on C₄=O of thymine when it recognized with PDCAI in KNO₃ solution, the C₄=O stretching band of thymine at 1677 cm^-1 shifted to 1671 cm^-1, however, the band of the C₂=O of thymine did not change at 1737 cm^-1 after recognition. It proves that the recognizing conformation of thymine re-organized during identification process due to the transition of aggregation form of PDCAI. And we further confirmed and studied the hydrogen bond formation and fracture process by variable temperature FT-IR, which formed at room temperature gradually broke while temperature rising from 25℃ up to 115℃, when temperature was above 115℃, hydrogen bonds broke completely, thymine and PDCAI return to their pre-recognition state. The formations of hydrogen bonds between adenine in the polymer and thymine substrate in nanospheres could enhance their interaction and loading capacity. The results have reference value for research of molecular characteristics of polymer which spontaneously formed spiral, preparation of helical polymer, and nucleic acid imitation drug carriers and its function regulation.
- drug carriers,
- aggregates,
- hydrogen bond,
- ion regulation
1. [1]
  Ben-Naim, A. Hydrophobic Interactions, Plenum Press, New York, 1980, p. 311.
2. [2]
  Saenger, W. Principles of Nucleic Acid Structure, Springer, New York, 1984, p. 298.
3. [3]
  Gao, Y. X.; Hu, J.; Ju, Y. Acta Chim. Sinica 2016, 74(4), 312. doi: 10.6023/A16010016
4. [4]
  Liu, C.; Yu, G.; Huang, C. Y.; Wang, C. S. Acta Chim. Sinica 2015, 73(4), 357. doi: 10.6023/A14120869
5. [5]
  Hawker, C. J.; Wooley, K. L. Science 2005, 309, 1200. doi: 10.1126/science.1109778
6. [6]
  Berti, D.; Luisi, P. L.; Baglioni, P. Colloids & Surfaces 2000, 167, 95.
7. [7]
  Eschenmoser, A. Science 1999, 284, 2118. doi: 10.1126/science.284.5423.2118
8. [8]
  Zhang, L.; Peritz, A.; Meggers, E. J. Am. Chem. Soc. 2005, 127, 4174. doi: 10.1021/ja042564z
9. [9]
  Yoshimoto, K.; Nishizawa, S.; Minagawa, M. J. Am. Chem. Soc. 2003, 125, 8982. doi: 10.1021/ja029786m
10. [10]
  Nowick, J. S.; Cao, T.; Noronha, G. J. Am. Chem. Soc. 1994, 116, 3285. doi: 10.1021/ja00087a014
11. [11]
  Baglioni, P.; Berti, D. Colloid Interface Sci. 2003, 8, 55. doi: 10.1016/S1359-0294(03)00015-3
12. [12]
  Miao, W.; Du, X.; Liang, Y. Langmuir 2003, 19, 5389. doi: 10.1021/la0345690
13. [13]
  Yashima, E.; Maeda, K. Chem.-Eur. J. 2004, 10, 42. doi: 10.1002/(ISSN)1521-3765
14. [14]
  Yang, M. J. Beijing Med. Univ. 1998, 30(2), 97.
15. [15]
  Pedersen, C. J. J. Am. Chem. Soc. 1967, 89, 7017. doi: 10.1021/ja01002a035
16. [16]
  Cram, D. J. Angew. Chem., Int. Ed. Engl. 1988, 27, 1009. doi: 10.1002/(ISSN)1521-3773
17. [17]
  Huang, F. H.; Ji, X. F.; Yao, Y. J. Am. Chem. Soc. 2013, 135, 74. doi: 10.1021/ja3108559
18. [18]
  Ji, X.; Dong, S.; Wei, P.; Xia, D.; Huang, F. Adv. Mater. 2013, 25, 5725. doi: 10.1002/adma.v25.40
19. [19]
  Masuda, M.; Okada, Y. Macromolecules 2000, 33, 9233. doi: 10.1021/ma001157e
20. [20]
  Buchet, R.; Sandorfy, C. J. Phys. Chem. 1983, 87, 275. doi: 10.1021/j100225a021
21. [21]
  Alabugin, I. V.; Manoharan, M.; Peabody, S.; Weinhold, F. J. Am. Chem. Soc. 2003, 125, 5973. doi: 10.1021/ja034656e
22. [22]
  Florian, J. Spectrochim. Acta 1993, 49A, 921.
23. [23]
  Zhang, Y. J.; Xie, B. Acta Chim. Sinica 2012, 70, 499. doi: 10.6023/A1110271
