Citation: Zhao Zigang, Niu Yongqiang, Zhao Yang, Song Qinghua, Xin Ling, Lu Xiaoqing. First-Principles Theory Investigation on Structural and Photoelectronic Properties of Formamidinium Lead Halide Perovskites[J]. Acta Chimica Sinica, ;2016, 74(8): 689-693. doi: 10.6023/A16050245 shu

First-Principles Theory Investigation on Structural and Photoelectronic Properties of Formamidinium Lead Halide Perovskites

  • Corresponding author: Lu Xiaoqing, luxq@upc.edu.cn
  • Received Date: 17 May 2016

    Fund Project: Postgraduate's Innovation Project YCXJ2016084Student's Platform for Innovation and Entrepreneurship Training Program 20151342the National Natural Science Foundation of China 21303266

Figures(5)

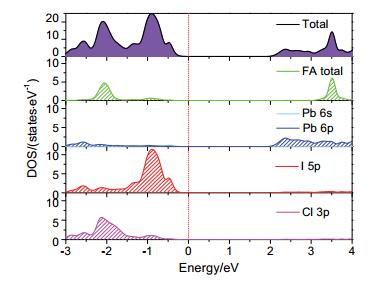

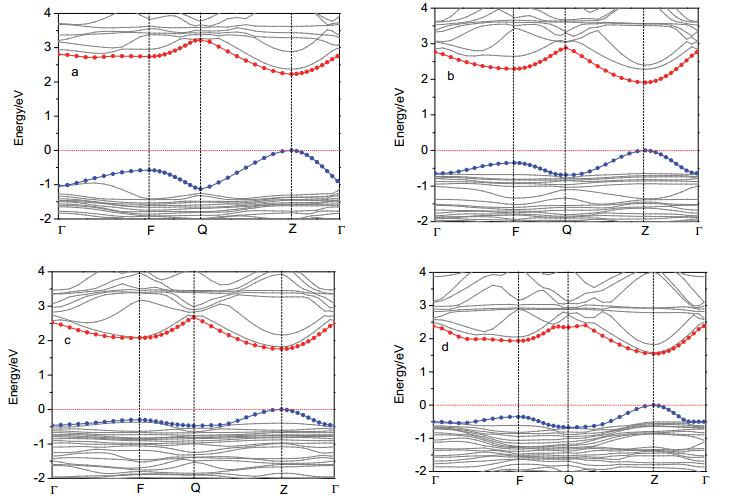

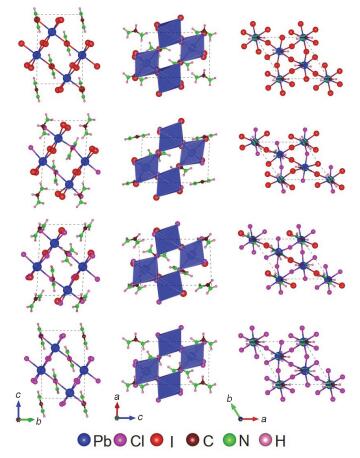

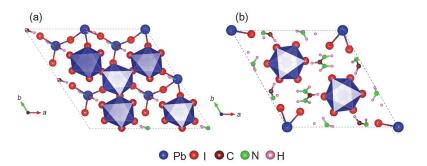

  • Formamidinium lead halide perovskites have attracted wide attention as photoelectronic conversion materials due to the high photoelectronic conversion efficiency (PCE), low cost and simple synthetic process. The structural, electronic and optical properties of mixed formamidinium lead halide perovskites FAPbIxCl3-x (FA=NH2CH=NH2+, x=0~3) have been investigated by the first-principles theory. Our results show that FA cations lie along [001] direction in the trigonal FAPbX3 (X=Cl, Br, I). However, the direction is slightly shifted owing to the distortion of PbX6 (X=Cl, I) octahedrons in the mixed FAPbIxCl3-x. The Pb-I bond distances (0.315~0.334 nm) are larger than Pb-Cl bond distances (0.282~0.302 nm). With the increase of I/Cl ratio, the lattice parameters and volumes of FAPbIxCl3-x increase. The FA cations play a crucial role in balancing the crystal structure, but they do not participate into the process of frontier orbital transition directly. They just play the role of charge donors to contribute ca. 0.76 e to PbI3 framework. FAPbIxCl3-x are direct band-gap semiconductors, with the direct bandgap nature at Z (0, 0, 0.5) symmetry point. The valence band maximum (VBM) is composed of antibonding orbitals of I 5p (Cl 3p) and a few Pb 6s orbitals, and the conduction band minimum (CBM) is composed of Pb 6p orbital. There exists a combined covalent and ionic bonding mechanism between Pb and I (Cl) ions. As the I/Cl ratio increases, the band gaps decrease and the absorption spectra are red shifted. FAPbI3 has an ideal band gap of 1.53 eV. It exhibits the superior absorption spectrum especially in the range of 300 nm to 500 nm, which elucidates that FAPbI3 has great potential as the photoelectronic conversion material. Our results could provide theoretical guidance for the experimental design and synthesis of perovskite solar cells.
  • 加载中
    1. [1]

      Snaith, H. J. J. Phys. Chem. Lett. 2013, 4, 3623.  doi: 10.1021/jz4020162

    2. [2]

      Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. J. Am. Chem. Soc. 2009, 131, 6050.  doi: 10.1021/ja809598r

    3. [3]

      Kim, H. S.; Lee, C. R.; Im, J. H.; Lee, K. B.; Moehl, T.; Marchioro, A.; Moon, S. J.; Humphry-Baker, R.; Yum, J. H.; Moser, J. E.; Gratzel, M.; Park, N. G. Sci. Rep. 2012, 2, 591.

    4. [4]

      Burschka, J.; Pellet, N.; Moon, S. J.; Humphry-Baker, R.; Gao, P.; Nazeeruddin, M. K.; Gratzel, M. Nature 2013, 499, 316.  doi: 10.1038/nature12340

    5. [5]

      Lee, M. M.; Teuscher, J.; Miyasaka, T.; Murakami, T. N.; Snaith, H. J. Science 2012, 338, 643.  doi: 10.1126/science.1228604

    6. [6]

      You, J.; Hong, Z.; Yang, Y.; Chen, Q.; Cai, M.; Song, T. B.; Chen, C. C.; Lu, S.; Liu, Y.; Zhou, H.; Yang, Y. ACS Nano 2014, 8, 1674.  doi: 10.1021/nn406020d

    7. [7]

      Wehrenfennig, C.; Eperon, G. E.; Johnston, M. B.; Snaith, H. J.; Herz, L. M. Adv. Mater. 2014, 26, 1584.  doi: 10.1002/adma.201305172

    8. [8]

      Gao, P.; Gratzel, M.; Nazeeruddin, M. K. Energy Environ. Sci. 2014, 7, 2448.  doi: 10.1039/C4EE00942H

    9. [9]

      Boix, P. P.; Nonomura, K.; Mathews, N.; Mhaisalkar, S. G. Mater. Today 2014, 17, 16.  doi: 10.1016/j.mattod.2013.12.002

    10. [10]

      Noh, J. H.; Im, S. H.; Heo, J. H.; Mandal, T. N.; Seok, S. I. Nano Lett. 2013, 13, 1764.  doi: 10.1021/nl400349b

    11. [11]

      Im, J. H.; Chung, J.; Kim, S. J.; Park, N. G. Nanoscale Res. Lett. 2012, 7, 1.  doi: 10.1186/1556-276X-7-1

    12. [12]

      Koh, T. M.; Fu, K.; Fang, Y.; Chen, S.; Sum, T. C.; Mathews, N.; Mhaisalkar, S. G.; Boix, P. P.; Baikie, T. J. Phys. Chem. C 2014, 118, 16458.  doi: 10.1021/jp411112k

    13. [13]

      Lv, S.; Pang, S.; Zhou, Y.; Padture, N. P.; Hu, H.; Wang, L.; Zhou, X.; Zhu, H.; Zhang, L.; Huang, C.; Cui, G. Phys. Chem. Chem. Phys. 2014, 16, 19206.  doi: 10.1039/C4CP02113D

    14. [14]

      Yang, W. S.; Noh, J. H.; Jeon, N. J.; Kim, Y. C.; Ryu, S.; Seo, J.; Seok, S. I. Science 2015, 348, 1234.  doi: 10.1126/science.aaa9272

    15. [15]

      Kresse, G.; Furthmüller, J. Comp. Mater. Sci. 1996, 6, 15.  doi: 10.1016/0927-0256(96)00008-0

    16. [16]

      Monkhorst, H. J.; Pack, J. D. Phys. Rev. B 1976, 13, 5188.  doi: 10.1103/PhysRevB.13.5188

    17. [17]

      Even, J.; Pedesseau, L.; Jancu, J. M.; Katan, C. J. Phys. Chem. Lett. 2013, 4, 2999.  doi: 10.1021/jz401532q

    18. [18]

      Mosconi, E.; Amat, A.; Nazeeruddin, M. K.; Grätzel, M.; De Angelis, F. J. Phys. Chem. C 2013, 117, 13902.  doi: 10.1021/jp4048659

    19. [19]

      Goldschmidt, V. M. Naturwissenschaften 1926, 14, 477.  doi: 10.1007/BF01507527

    20. [20]

      Guo, X.; Niu, G.; Wang, L. Acta Chim. Sinica 2014, 73, 211.


    21. [21]

      Yao, X.; Ding, Y.; Zhang, X.; Zhao, Y. Acta Phys. Sin. 2015, 64, 38805.

    22. [22]

      McKinnon, N. K.; Reeves, D. C.; Akabas, M. H. J. Gen. Physiol. 2011, 138, 453.  doi: 10.1085/jgp.201110686

    23. [23]

      Green, M. A.; Ho-Baillie, A.; Snaith, H. J. Nat. Photon. 2014, 8, 506.  doi: 10.1038/nphoton.2014.134

    24. [24]

      Eperon, G. E.; Stranks, S. D.; Menelaou, C.; Johnston, M. B.; Herz, L.; Snaith, H. Energy Environ. Sci. 2014, 7, 982.  doi: 10.1039/c3ee43822h

    25. [25]

      Pang, S.; Hu, H.; Zhang, J.; Lv, S.; Yu, Y.; Wei, F.; Qin, T.; Xu, H.; Liu, Z.; Cui, G. Chem. Mater. 2014, 26, 1485.  doi: 10.1021/cm404006p

    26. [26]

      Lee, J. W.; Seol, D. J.; Cho, A. N.; Park, N. G. Adv. Mater. 2014, 26, 4991.  doi: 10.1002/adma.201401137

    27. [27]

      Yuan, J.; Gao, B.; Wang, W.; Wang, J. Acta Phys.-Chim. Sin. 2015, 31, 1302.
