Citation: Wang Jianshan, Xia Hongjun, Wan Guangping, Liu Jiawei, Jin Lihua, Bai Quan. On-line Fast Purification of Three Kinds of Active Proteins from Egg White with Two-dimensional Liquid Chromatography Using a Single Column[J]. Acta Chimica Sinica, ;2016, 74(3): 265-270. doi: 10.6023/A15120761 shu

On-line Fast Purification of Three Kinds of Active Proteins from Egg White with Two-dimensional Liquid Chromatography Using a Single Column

1.
Key Laboratory of Synthetic and Natural Functional Molecule Chemistry of Ministry of Education of China, Institute of Modern Separation Science, Northwest University, Key Laboratory of Modern Separation Science in Shaanxi Province, Xi'an 710069

Corresponding author: Bai Quan, baiquan@nwu.edu.cn
Received Date: 4 December 2015

Fund Project: the National Natural Science Foundation of China 21545007Shaanxi Provincial Science and Technology Co-ordinating innovation projects 2013SZS18-K01Shaanxi Province Key Laboratory 14JS098, 15JS115

Figures(6)

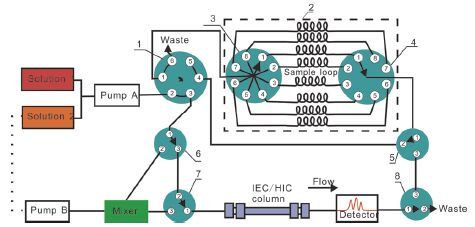

With the development of biotechnology and life science, both recombinant protein drug productions and proteomics research depend largely on fast and efficient protein separation technology. Analysis of complex samples has put forward higher and higher requirements to separation science. Therefore, developing new separation material, separation mode and more sensitive detection method should be one of the effective ways to solve these problems. Based on a novel strong cation exchange/hydrophobic interaction chromatography (SCX/HIC) dual-function column, which displays HIC character in a high salt concentration, and IEC character in a low salt concentration in mobile phase employed and can be employed to separate proteins with SCX and HIC modes, respectively, a new on-line two-dimensional liquid chromatography technology with a single column (2DLC-1C) was developed. An equipment with automatic control system called as “ChromatoExpert” for processing fast protein separation online 2DLC-1C was constructed, which has multiple functions, such as on-line fraction collection from the first separation mode and quantitatively sample re-injection into the second separation mode, on-line buffer exchange, etc. Eight kinds of protein standards were separated using SCX/HIC 2DLC-1C. The unretained and uncompletely separated proteins in SCX mode were collected online and could be separated completely with each other by online re-injection and second dimensional separation of HIC mode. As a result, these eight kinds of proteins can be separated within 2 h. It also was applied to purify three kinds of active intact proteins from egg white successfully. The results indicated that lysozyme, ovotransferrin and ovalbumin from egg white could be purified just within 70 min by online 2DLC-1C. The purity of these proteins obtained was 95%, 93% and 97%, respectively. The new online 2DLC-1C technology can simplify the purification process and lower the separation cost. It is easy to realize automation and scale-up to preparative scale. Therefore, this new technology has a broad application prospect in the fast separation and preparation of active protein.
- online 2DLC-1C,
- protein,
- purification,
- egg white
1. [1]
2. [2]
3. [3]
  Giddings, J. C. Anal. Chem. 1984, 56, 1258A.
4. [4]
  Pepaj, M.; Holm, A.; Fleckenstein, B.; Lundanes, E.; Greibrokk, T. J. Sep. Sci. 2006, 29, 519.
5. [5]
  Tian, H. Z.; Xu, J.; Xu, Y.; Guan, Y. F. J. Chromatogr. A 2006, 1137, 42.
6. [6]
  McLaughlin, L. W. Chem. Rev. 1989, 89, 309.
7. [7]
  Zhao, K. L.; Yang, F.; Xia, H. J.; Wang, F.; Song, Q. G.; Bai, Q. J. Sep. Sci. 2015, 38, 703.
8. [8]
  Yang, F.; Bai, Q.; Zhao, K. L.; Gao, D.; Tian, L. Anal. Bioanal. Chem. 2015, 407, 1721.
9. [9]
  Song, C.; Wang, J. S.; Zhao, K. L.; Bai, Q. Biomed. Chromatogr. 2013, 27, 1741.
10. [10]
  Zhao, K. L.; Yang, L.; Wang, X. J.; Bai, Q.; Yang, F.; Wang, F. Talanta 2012, 98, 86.
11. [11]
  Geng, X. D.; Ke, C. Y.; Chen, G.; Liu, P.; Wang, F.; Zhang, H. Q.; Sun, X. J. Chromatogr. A 2009, 1216, 3553.
12. [12]
  Lämmerhofer, M.; Nogueira, R.; Lindner, W. Anal. Bioanal. Chem. 2011, 400, 2517.
13. [13]
14. [14]
  Liu, T.; Geng, X. D. Chin. Chem. Lett. 1999, 10, 219.
15. [15]
  Geng, X. D.; Jia, X. D.; Liu, P.; Wang, F.; Yang, X. M. Analyst 2015, 140, 6692.
16. [16]
  Stadelman, W. J.; Newkirk, D.; Newby, L. Egg Science and Technology, CRC Press, 1995.
17. [17]
  Huntington, J. A.; Stein, P. E. J. Chromatogr. B 2001, 756, 189.
18. [18]
  Nimalaratne, C.; Bandara, N.; Wu, J. Food Chem. 2015, 188, 467.
19. [19]
  Diederich, P.; Amrhein, S.; Hämmerling, F.; Hubbuch,J. Chem. Eng. Sci. 2013, 104, 945.
20. [20]
  Xia, H. F.; Jin, X. H.; Wu, P. Q.; Zheng, Z. Y. J. Chromatogr. A 2012, 1223, 126.
