Citation: MA Pingchuan, MA Lili, YANG Zhenghui, GUO Haiquan, GAO Lianxun. Improved Corona-Resistance Properties of Alumina/Polyimide Films with Exfoliated Layered Double Hydroxide Nanosheets[J]. Chinese Journal of Applied Chemistry, ;2020, 37(6): 666-672. doi: 10.11944/j.issn.1000-0518.2020.06.190354 shu

Improved Corona-Resistance Properties of Alumina/Polyimide Films with Exfoliated Layered Double Hydroxide Nanosheets

a.
Laboratory of Polymer Composites Engineering, Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, China
b.
Advanced Electrical Materials Research Institute, Qingdao University of Science and Technology, Qingdao, Shandong 266042, China

Corresponding author: GUO Haiquan, hqguo@ciac.ac.cn
Received Date: 27 December 2019
Revised Date: 10 March 2020
Accepted Date: 31 March 2020

Fund Project: Supported by the Jilin Provincial Science and Technology Development Program(No.20170204024GX)the Jilin Provincial Science and Technology Development Program 20170204024GX

Figures(11)

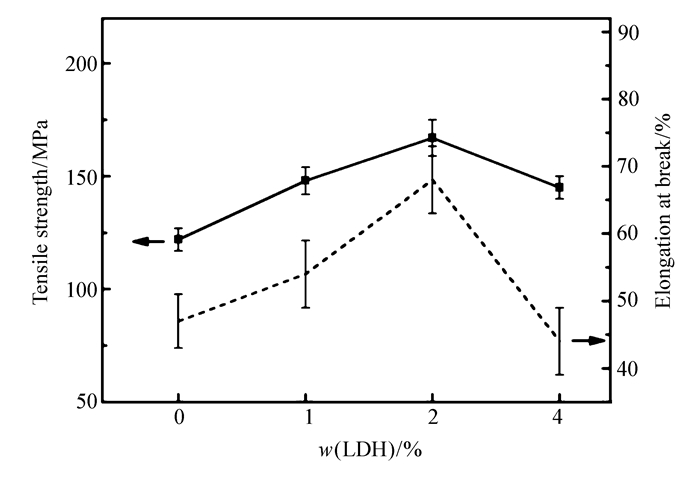

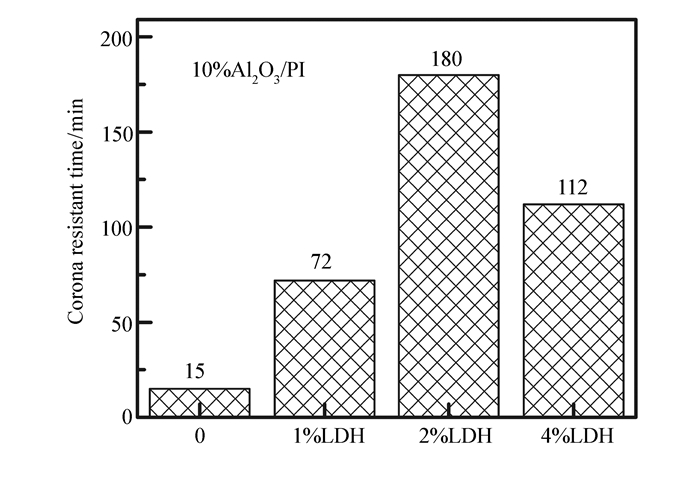

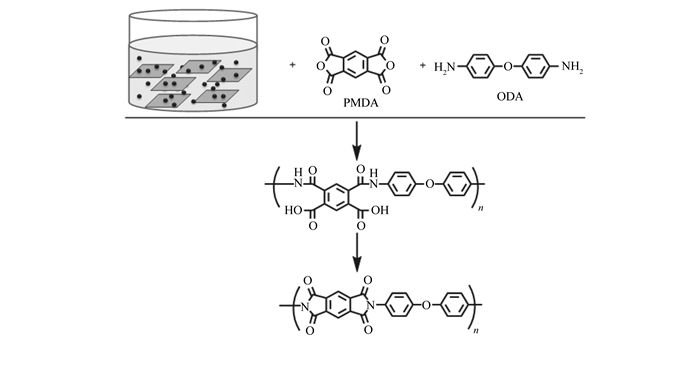

Incorporation of inorganic nanoparticles to polyimides is an important strategy to improve corona resistance. The improvement of corona-resistant characteristics is closely related to the dispersion of nano fillers. The controllable distribution of nanoparticles in polymer matrix has always been a challenge. In this paper, The Al₂O₃/polyimide(PI) composites were synthesised via in situ polymerization in the solution of two-dimensional nano-sheets exfoliated from layered double hydroxides (LDH). In the process of the film formation, the two-dimensional nano-sheets tend to aggregate and orientate towards the substrates with the solvent volatilization, which would affect the distribution of Al₂O₃ in the polymer matrix, and furthermore improve the corona resistance of the Al₂O₃/LDH/PI composites. The corona resistance time of Al₂O₃/LDH/PI composites is 180 min, and improves by twelve-fold when 2% (mass fraction) LDH is added into 10% (mass fraction) Al₂O₃/PI composites, and the tensile strength increases by 37.8%. Due to the different morphologies, the combination of two-dimensional nanosheets and nanoparticles can effectively improve the corona resistance and mechanical properties of Al₂O₃/LDH/PI composite films.
- polyimides,
- corona resistance,
- alumina,
- layered double hydroxides
1. [1]
  LEI Qingquan, LI Shengtao. Several Important Issues and Thinking about Engineering Dielectrics[J]. High Volt Eng, 2015,41(8):2473-2480.
2. [2]
  GUO Haiquan. Application and Challenges for High Performance Polyimide Films[J]. Copper Clad Lamin Inf, 2018,5:38-45.
3. [3]
  Shi H, Liu L, Weng L. Preparation and Characterization of Polyimide/Al₂O₃ Nanocomposite Film with Good Corona Resistance[J]. Polym Compos, 2016,37(3):763-770. doi: 10.1002/pc.23233
4. [4]
  Liu L, Weng L, Song Y. The Effects of Coupling Agents on the Properties of Polyimide/Nano-Al₂O₃ Three-Layer Hybrid Films[J]. J Nanomater, 2010,2010354364.
5. [5]
  Lu H, Lin J, Yang W. Effect of Nano-TiO₂ Surface Modification on Polarization Characteristics and Corona Aging Performance of Polyimide Nano-composites[J]. J Appl Polym Sci, 2017,134(29)45101. doi: 10.1002/app.45101
6. [6]
  Zou C, Kushner D, Zhang S. Wide Temperature Polyimide/ZrO₂ Nanodielectric Capacitor Film with Excellent Electrical Performance[J]. Appl Phys Lett, 2011,98(8)2905.
7. [7]
  Wu L Y, Wu K, Chen F. Largely Enhanced Energy Storage Density of Poly(vinylidene fluoride) Nanocomposites Based on Suface Hydroxylation of Boron Nitride Nanosheets[J]. J Mater Chem A, 2018,6:7573-7584. doi: 10.1039/C8TA01294F
8. [8]
  Ghosh S K, Rahman W, Mandal D. Improved Breakdown Strength and Electrical Energy Storage Performance of Poly(vinylidene fluoride)/Unmodified Montmorillonite Clay Nano-dielectrics[J]. Nanotechnology, 2016,27(21)215401. doi: 10.1088/0957-4484/27/21/215401
9. [9]
  MENG Ge, LIU Junfeng, SUN Xiaoming. Layered Double Hydroxide Nanoarrays Toward Electrochemical Energy Storage and Conversion[J]. Sci Sin Chim, 2017,47(4):408-419.
10. [10]
  Li K T, Wang G R, Li D Q. Intercalation Assembly Method and Intercalation Process Control of Layered Intercalated Functional Materials[J]. Chinese J Chem Eng, 2013,21(4):453-462. doi: 10.1016/S1004-9541(13)60482-6
11. [11]
  Tsai T Y, Bunekara N. The Effect of Organomodified ZnAl LDH for in situ Synthesis and the Properties of Poly(ethyleneterephthalate) Nanocomposites[J]. RSC Adv, 2016,6:65291-65298. doi: 10.1039/C6RA15790D
12. [12]
  Dinari M, Asadi P, Khajeh S. In situ Thermal Synthesis of Novel Polyimide Nanocomposite Films Containing Organo-modified Layered Double Hydroxide:Morphological, Thermal and Mechanical Properties[J]. New J Chem, 2015,39:8195-8203. doi: 10.1039/C5NJ01640A
13. [13]
  GUO Haiquan, MA Xiaoye, JIN Rizhe. Preparation and Properties of Nanocomposites Based on Polyimide and Polyfluorinated Surfactant Pillared Layered Double Hydroxide[J]. Chem J Chinese Univ, 2016,37(2):403-408.
