Citation: DENG Junfei, DU Weimin, WANG Mengyao, WEI Qinghe. Synthesis and the Electrochemical Energy Storage of Porous Biomass Carbon from Corn Stalk[J]. Chinese Journal of Applied Chemistry, ;2019, 36(11): 1323-1332. doi: 10.11944/j.issn.1000-0518.2019.11.190102 shu

Synthesis and the Electrochemical Energy Storage of Porous Biomass Carbon from Corn Stalk

DENG Junfei ^a,b ,
DU Weimin ^a,, ,
WANG Mengyao ^a ,
WEI Qinghe ^a

a.
College of Chemistry and Chemical Engineering, Anyang Normal University, Anyang, He'nan 455000, China
b.
Zhengyi High School, Anyang, He'nan 455000, China

Corresponding author: DU Weimin, dwmchem@163.com
Received Date: 15 April 2019
Revised Date: 24 June 2019
Accepted Date: 11 July 2019

Fund Project: Supported by the National Natural Science Foundation of China(No.U1404203), the Program for Innovative Research Team of Science and Technology in the University of Henan Province(No.16IRTSTHN003), and the Special Projects of New Energy Vehicle Development of Anyang City(No.2017-480-15)the Special Projects of New Energy Vehicle Development of Anyang City 2017-480-15the National Natural Science Foundation of China U1404203the Program for Innovative Research Team of Science and Technology in the University of Henan Province 16IRTSTHN003

Figures(7)

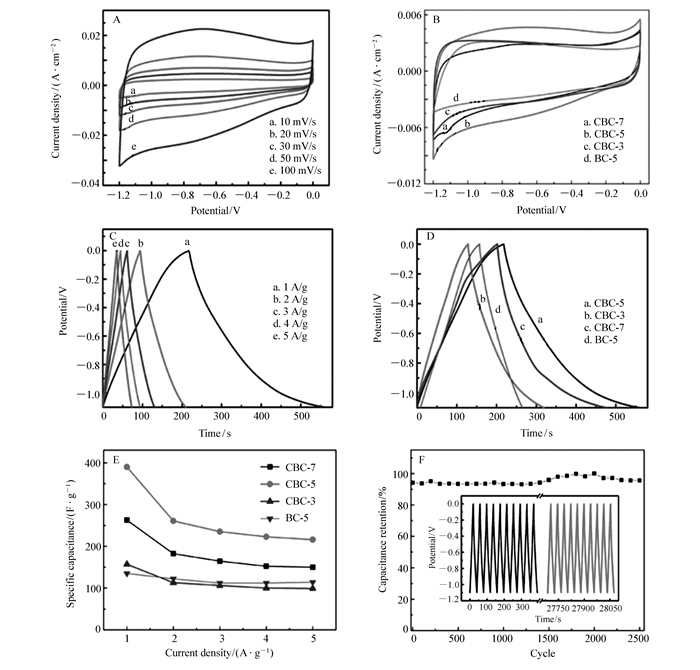

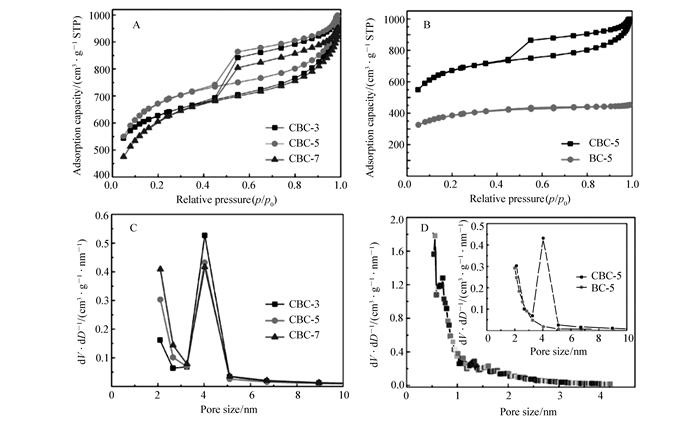

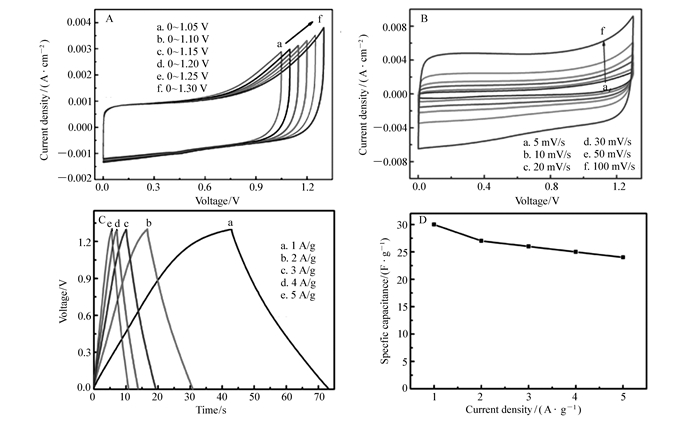

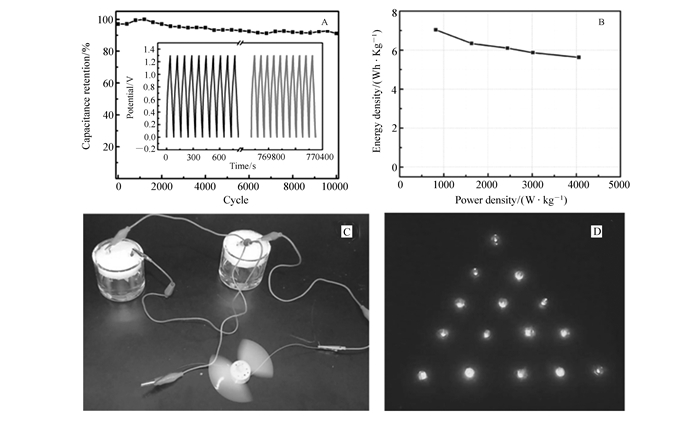

Porous biomass carbon with high specific surface area(2167 m²/g) was prepared from corn stalk. By optimizing the experimental conditions, porous biomass carbon material with the best performance can be obtained with specific capacitance of 390 F/g at a current density of 1 A/g. More importantly, liquid-phase symmetric supercapacitors were assembled with the optimal porous biomass carbon as the electrode material and 3 mol/L KOH solution as the electrolyte. The present symmetrical supercapacitors have an energy density of 7 Wh/kg at the power density of 818 W/kg, and 91.1% capacitance retention after 10000 cycles. Meanwhile, after charged, two such supercapacitors in series can easily illuminate 15 LED lights and drive the small fans to work normally. These results indicate that porous biomass carbon from corn stalks has great practical significance as an advanced electrode material for supercapacitors.
- corn stalks,
- biomass carbon,
- symmetrical,
- supercapacitors,
- energy storage
1. [1]
  Noori A, El-Kady M F, Rahmanifar M S. Towards Establishing Standard Performance Metrics for Batteries, Supercapacitors and Beyond[J]. Chem Soc Rev, 2019,48(5):1272-1341. doi: 10.1039/C8CS00581H
2. [2]
  Deb Nath N C, Jeon I Y, Ju M J. Edge-carboxylated Graphene Nanoplatelets as Efficient Electrode Materials for Eelectrochemical Supercapacitors[J]. Carbon, 2019,142(28):89-98.
3. [3]
  Cheng X Y, Liu C Z. Enhanced Coproduction of Hydrogen and Methane from Cornstalks by a Three-Stage Anaerobic Fermentation Process Integrated with Alkaline Hydrolysis[J]. Bioresource Technol, 2012,104(1):373-379.
4. [4]
  Zhu H, Wang X, Yang F. Promising Carbons for Supercapacitors Derived from Fungi[J]. Adv Mater, 2011,23(24):2745-2748. doi: 10.1002/adma.201100901
5. [5]
  Jiang H, Yang L, Li C. High-Rate Electrochemical Capacitors from Highly Graphitic Carbon-Tipped Manganese Oxide/Mesoporous Carbon/Manganese Oxide Hybrid Nanowires[J]. Energ Environ Sci, 2011,4(5):1813-1819. doi: 10.1039/c1ee01032h
6. [6]
  Liu C, Yu Z, Neff D. Graphene-based Supercapacitor with an Ultrahigh Energy Density[J]. Nano Lett, 2010,10(12):4863-4868. doi: 10.1021/nl102661q
7. [7]
  Ma T Y, Liu L, Yuan Z Y. Direct Synthesis of Ordered Mesoporous Carbons[J]. Chem Soc Rev, 2013,42(9):3977-4003. doi: 10.1039/C2CS35301F
8. [8]
  Huang J, Liang Y, Hu H. Ultrahigh-surface-area Hierarchical Porous Carbon from Chitosan:Acetic Acid Mediated Efficient Synthesis and Its Application in Superior Supercapacitors[J]. J Mater Chem A, 2017,5(47):24775-24781. doi: 10.1039/C7TA08046H
9. [9]
  Zhu G, Ma L, Lv H. Pine Needle-derived Microporous Nitrogen-Doped Carbon Frameworks Exhibit High Performances in Electrocatalytic Hydrogen Evolution Reaction and Supercapacitors[J]. Nanoscale, 2017,9(3):1237-1243. doi: 10.1039/C6NR08139H
10. [10]
  Qu G, Jia S, Wang H. Asymmetric Supercapacitor Based on Porous N-Doped Carbon Derived from Pomelo Peel and NiO Arrays[J]. ACS Appl Mater Interfaces, 2016,8(32):20822-20830. doi: 10.1021/acsami.6b06630
11. [11]
  Fabičovicová K, Malter O, Lucas M. Hydrogenolysis of Cellulose to Valuable Chemicals over Activated Carbon Supported Mono-and Bimetallic Nickel/Tungsten Catalysts[J]. Green Chem, 2014,16(7):3580-3588. doi: 10.1039/C4GC00664J
12. [12]
  Alonso D M, Wettstein S G, Dumesic J A. Bimetallic Catalysts for Upgrading of Biomass to Fuels and Chemicals[J]. Chem Soc Rev, 2012,41(24):8075-8098. doi: 10.1039/c2cs35188a
13. [13]
  Pan C M, Ma H C, Fan Y T. Bioaugmented Cellulosic Hydrogen Production from Cornstalk by Integrating Dilute Acid-Enzyme Hydrolysis and Dark Fermentation[J]. Int J Hydrogen Energy, 2011,36(8):4852-4862. doi: 10.1016/j.ijhydene.2011.01.114
14. [14]
  Cao G L, Guo W Q, Wang A J. Enhanced Cellulosic Hydrogen Production from Lime-treated Cornstalk Wastes Using Thermophilic Anaerobic Microflora[J]. Int J Hydrogen Energy, 2012,37(17):13161-13166. doi: 10.1016/j.ijhydene.2012.03.137
15. [15]
  Resch G, Held A, Faber T. Potentials and Prospects for Renewable Energies at Global Scale[J]. Energy Policy, 2008,36(11):4048-4056. doi: 10.1016/j.enpol.2008.06.029
16. [16]
  Jain A, Balasubramanian R, Srinivasan M P. Tuning Hydrochar Properties for Enhanced Mesopore Development in Activated Carbon by Hydrothermal Carbonization[J]. Micropor Mesopor Mat, 2015,203(3):178-185.
17. [17]
  Wang L, Tian C, Wang B. Controllable Synthesis of Graphitic Carbon Nanostructures from Ion-Exchange Resin-Iron Complex via Solid-State Pyrolysis process[J]. Chem Commun, 2008,42(42):5411-5413.
18. [18]
  Wang L, Tian C, Wang H. Mass Production of Graphene via an in situ Self-generating Template Route and Its Promoted Activity as Electrocatalytic Support for Methanol Electroxidization[J]. J Phys Chem C, 2010,114(19):8727-8733. doi: 10.1021/jp911292p
19. [19]
  Wang B, Tian C, Zheng C. A Simple and Large-Scale Strategy for the Preparation of Ag Nanoparticles Supported on Resin-Derived Carbon and Their Antibacterial Properties[J]. Nanotechnology, 2009,20(2):025603-025607. doi: 10.1088/0957-4484/20/2/025603
20. [20]
  Yu H, Zhang W, Li T. Capacitive Performance of Porous Carbon Nanosheets Derived from Biomass Cornstalk[J]. RSC Adv, 2017,7(2):1067-1074. doi: 10.1039/C6RA25899A
21. [21]
  Zhou Y J, Luner P, Caluwe P. Mechanism of Crosslinking of Papers with Polyfunctional Carboxylic Acids[J]. J Appl Polym Sci, 1995,58(9):1523-1534. doi: 10.1002/app.1995.070580915
