Citation: LIANG Shanshan, LIU Heng, HU Yanming, ZHANG Xuequan. Self-immobilization of Alkenyl-Functionalized Bis(imidate)pyridine Vanadium(Ⅲ) Complexes for Ethylene Homo(co)polymerization[J]. Chinese Journal of Applied Chemistry, ;2019, 36(10): 1128-1134. doi: 10.11944/j.issn.1000-0518.2019.10.190171 shu

Self-immobilization of Alkenyl-Functionalized Bis(imidate)pyridine Vanadium(Ⅲ) Complexes for Ethylene Homo(co)polymerization

a.
College of Material Science and Engineering, Shenyang University of Chemical Technology, Shenyang 110142, China
b.
Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, CAS Key Laboratory of High-Performance Synthetic Rubber and Its Composite Materials, Changchun 130022, China

Corresponding author: LIU Heng, hengliu@ciac.ac.cn HU Yanming, ymhu@ciac.ac.cn
Received Date: 20 June 2019
Revised Date: 26 July 2019
Accepted Date: 25 August 2019

Fund Project: Jilin Provincial Science and Technology Development Program 20190103122JHSupported by Jilin Provincial Science and Technology Development Program(No.20190103122JH)

Figures(4)

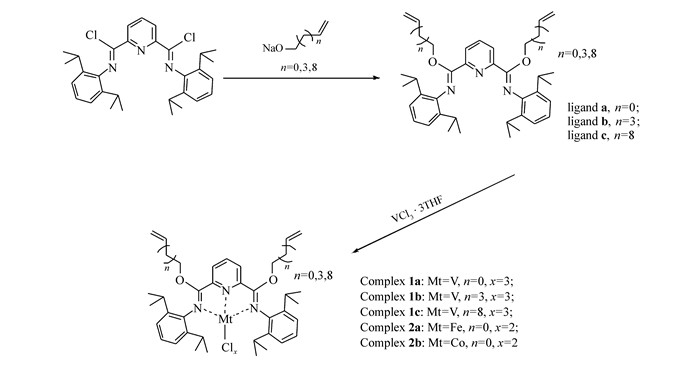

A series of alkenyl-functionalized bis(imidate)pyridine vanadium V(Ⅲ) complexes was synthesized and used for olefin polymerization in a self-immobilization mode. All the complexes were well-characterized by Fourier transform infrared spectrometer(FTIR), elemental analysis and nuclear magnetic resonance spectroscopy(NMR). Being activated by ethylaluminum sesquichloride(EASC), the V(Ⅲ) complexes displayeded high activity in ethylene polymerization(7.2~12.1 g/(mol·h·Pa)). Additionally, the length of self-immobilized alkenyl chains showed a little influence on the catalytic activity of the precatalysts. These V(Ⅲ) complexes also exhibited high activity in initiating ethylene/1-hexene copolymerization, affordiong copolymer products with high molecular weight(up to 68.1×10³). Scanning electron microscope(SEM) studies showed that the polymer products formed platelet clusters.
- self-immobilization,
- vanadium precatalyst,
- polyolefin
1. [1]
  Coates G W. Precise Control of Polyolefin Stereochemistry Using Single-Site Metal Catalysts[J]. Chem Rev, 2000,100(4):1223-1252. doi: 10.1021/cr990286u
2. [2]
  Ribeiro M R, Deffieux A D, Portela M F. Supported Metallocene Complexes for Ethylene and Propylene Polymerizations:Preparation and Activity[J]. Ind Eng Chem Res, 1997,36(4):1224-1237. doi: 10.1021/ie960475s
3. [3]
  XIAO Xian, FU Zhisheng, FAN Zhiqiang. Progress in Immobilization Mechanisms of Metallocene Catalysts for Olefin Polymerization[J]. China Synth Resin Plast, 2015,32(1):76-79. doi: 10.3969/j.issn.1002-1396.2015.01.021
4. [4]
  Alt H G. Self-Immobilizing Catalysts and Cocatalysts for Olefin Polymerization[J]. Dalton Trans, 2005(20):3271-3276. doi: 10.1039/b506074p
5. [5]
  Alt H G, Jung M. Ansa-Metallocenkomplexe des Typs (C₁₃H₈-SiR₂-C₉H_6-nR'_n)ZrCl₂(n=0, 1; R=Me, Ph, Alkenyl; R'=Alkyl, Alkenyl):Selbstimmobilisierende Katalysatorvorstufen für die Ethylenpolymerisation[J]. J Organomet Chem, 1998,562(2):229-253. doi: 10.1016/S0022-328X(98)00538-5
6. [6]
  Gibson V C, Redshaw C, Solan G A. Bis(imino)pyridines:Surprisingly Reactive Ligands and a Gateway to New Families of Catalysts[J]. Chem Rev, 2007,107(5):1745-1776. doi: 10.1021/cr068437y
7. [7]
  Ittel S D, Johnson L K, Brookhart M. Late-metal Catalysts for Ethylene Homo-and Copolymerization[J]. Chem Rev, 2000,100(4):1169-1204. doi: 10.1021/cr9804644
8. [8]
  Zhang D, Jin G X, Hu N. Self-Immobilized Catalysts for Ethylene Polymerization:Neutral, Single-component Salicylaldiminato Phenyl Nickel(Ⅱ) Complexes Bearing Allyl Substituents[J]. Chem Commun, 2002(6):574-575. doi: 10.1039/b110258n
9. [9]
  Liu C, Jin G. Polymer-incorporated Iron Catalysts for Ethylene Polymerization-A New Approach to Immobilize Iron Olefin Catalysts on Polystyrene Chains[J]. New J Chem, 2002,26(10):1485-1489. doi: 10.1039/B202715C
10. [10]
  Jin G, Zhang D. Micron-Granula Polyolefin with Self-Immobilized Nickel and Iron Diimine Catalysts Bearing One or Two Allyl Groups[J]. J Polym Sci Pol Chem, 2004,42(4):1018-1024. doi: 10.1002/pola.11050
11. [11]
  Liu H, Jia X, Wang F. Synthesis of Bis(N-arylcarboximidoylchloride)pyridine Cobalt(Ⅱ) Complexes and Their Catalytic Behavior for 1, 3-Butadiene Polymerization[J]. Dalton Trans, 2013,42(37):13723-13732. doi: 10.1039/c3dt51403j
12. [12]
  Cámpora J, Naz A M, Palma P. Iron and Cobalt Complexes of 4-Alkyl-2, 6-diiminopyridine Ligands:Synthesis and Ethylene Polymerization Catalysis[J]. Eur J Inorg Chem, 2008,2008(11):1871-1879. doi: 10.1002/ejic.200701220
