Citation: DENG Yukun, LIANG Xuechen, PEI Xiaopeng, ZHAI Kankan, WANG Chao, ZHANG Baichao, BAI Yungang, ZHANG Wende, TAN Ying, WANG Pixin, XU Kun. Influence of Branched Structures in Flexible Main Chain on the Properties of Impact Hardening Materials[J]. Chinese Journal of Applied Chemistry, ;2019, 36(10): 1155-1164. doi: 10.11944/j.issn.1000-0518.2019.10.190026 shu

Influence of Branched Structures in Flexible Main Chain on the Properties of Impact Hardening Materials

  • a.

    Key Laboratory of Polymer Ecomaterials, Changchun Institute of Applied Chemistry, Chinese Acdemy of Sciences, Changchun 130022, China

  • b.

    University of Chinese Academy of Sciences, Beijing 100049, China

  • Corresponding author: XU Kun, xukun@ciac.ac.cn
  • Received Date: 25 January 2019
    Revised Date: 25 February 2019
    Accepted Date: 6 May 2019

    Fund Project: the Jilin Province Science and Technology Development Project 20180201071GXSupported by the National Natural Science Foundation of China(No.51673191, No.21774124, No.U1762106), the Jilin Province Science and Technology Development Project(No.20180201071GX, No.201603101YY), the Special Funds for High Technology Industrialization of Scientific and Technological Cooperation Between Jilin and the Chinese Academy of Sciences(No.2018SYHZ0008), and the Basic Funds in Jilin Province′s Budget(No.2019C049-10)the Jilin Province Science and Technology Development Project 201603101YYthe Basic Funds in Jilin Province′s Budget 2019C049-10the National Natural Science Foundation of China 51673191the Special Funds for High Technology Industrialization of Scientific and Technological Cooperation Between Jilin and the Chinese Academy of Sciences 2018SYHZ0008the National Natural Science Foundation of China U1762106the National Natural Science Foundation of China 21774124

Figures(8)

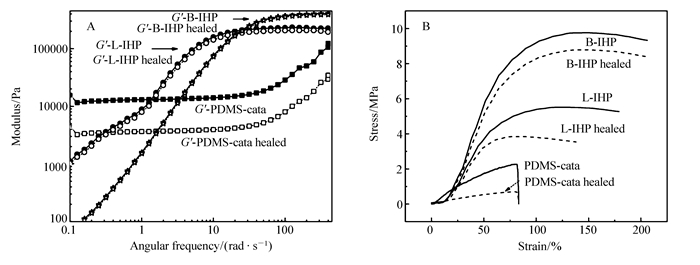

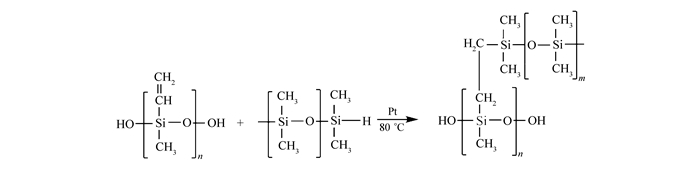

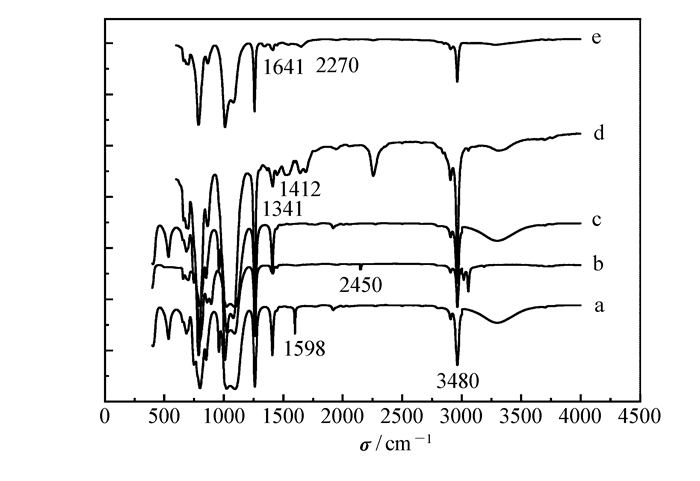

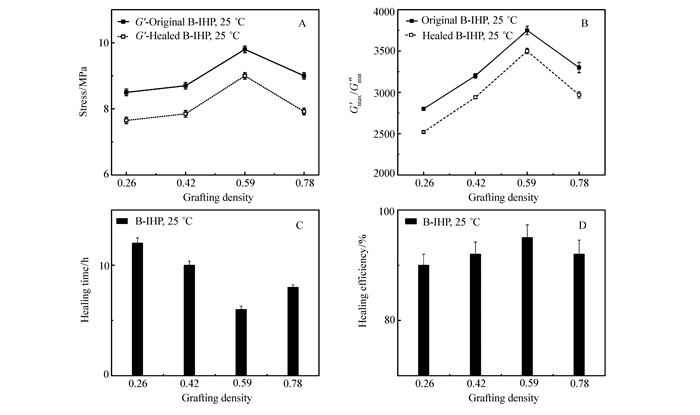

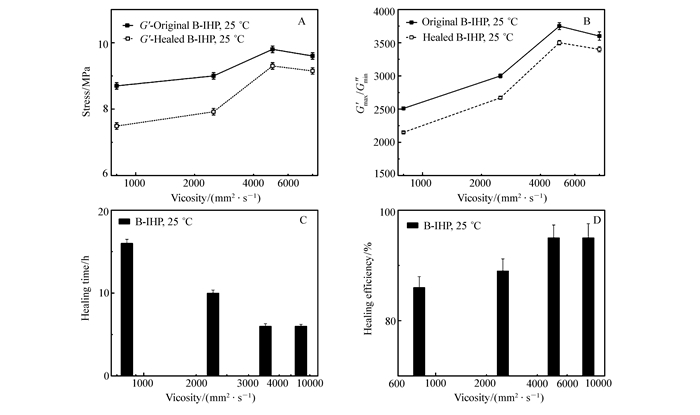

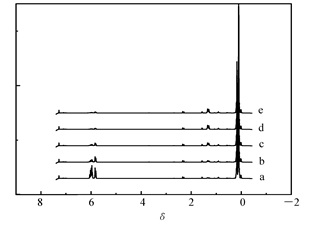

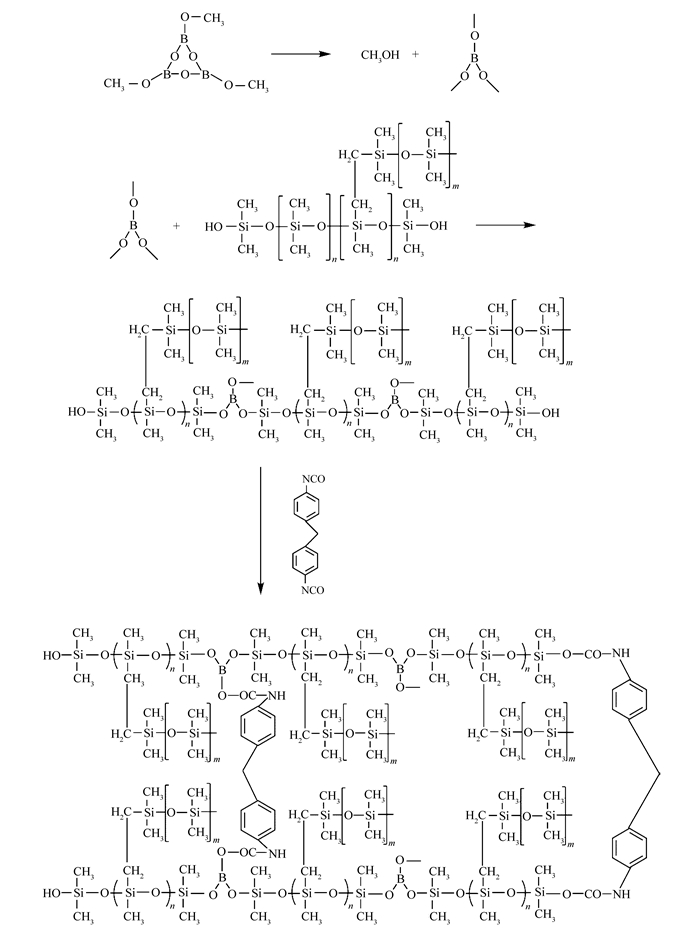

  • Hydroxyl-terminated dimethylmethylvinyl(siloxane and polysiloxane) (C＝C－PDMS－OH) was used as the graft branched chain to form a flexible main chain (Brush PDMS-OH) with bottle brushes by hydrogenation of H-PDMS with the caster catalyst. Brush impact hardening polymer (B-IHP) with branched chains was prepared by dynamic cross-linking of trimethoxyboroxyhexacyclic (TMOB) and stable chemical cross-linking by isophorone diisocyanate extender (IPDI). The structure and properties of the material were characterized by nuclear magnetic resonance spectroscopy (NMR), Fourier transform infrared spectrometer (FTIR) and rheometer. The results show that B-IHP has good mechanical properties and impact hardening properties. Its tensile strength can reach 9.8 MPa and impact hardening value can reach more than 3500. B-IHP has good self-healing performance, the healing efficiency can reach more than 95%, and the healing time is only 6 hours. The results show that the branched structure of flexible main chain can significantly reduce the relative molecular mass threshold of chain entanglement and improve the impact hardening and self-repairing ability of materials.
  • 加载中
    1. [1]

      SONG Xiaobang, JIN Limin, WANG Chunxia. Comparative Analysis of Impact Resistance Between Unidirectional Composite and Pure Resin Material[J]. J Text Res, 2012,33(6):15-19. doi: 10.3969/j.issn.0253-9721.2012.06.004

    2. [2]

      WEI Rubin, ZHAI Wen, LI Feng. Application of High Efficiency Impact Resistant Composites in Bulletproof and Explosionproof Shelter[J]. Eng Plast Appl, 2016,44(4):131-135. doi: 10.3969/j.issn.1001-3539.2016.04.029

    3. [3]

      GU Yaxin, WANG Hongmei, LIU Genhua. Effect of Two Types of Elastomers on Low Temperature Impact Resistance of PPR Materials[J]. China Plast Ind, 2016,44(12):18-22. doi: 10.3969/j.issn.1005-5770.2016.12.005

    4. [4]

      YANG Chang, WANG Jinxiang, DENG Hui. The Impact of New Composite Protective Material Impact Resistance Caused by the Raw Material[J]. J Funct Mater Dev, 2017,23(5):100-104.

    5. [5]

      Chen L, Revel S, Morris K. Low Molecular Weight Gelator-Dextran Composites[J]. Chem Comm, 2010,46(36):6738-6740. doi: 10.1039/c0cc01842b

    6. [6]

      ZHANG Yunlu. Influence of Interleaved Polyester Fibres to Carbon Fibre Composite on Impact Resistance[J]. Aero Wea, 2018,6(3):88-92.

    7. [7]

      YANG Deqing, WU Binghong, ZHANG Xiangwen. Anti-Explosion and Shock Resistance Performance of Sandwich Defensive Structure with Star-Shaped Auxetic Material Core[J/OL]. Explos Shock Waves, 2019, 39(6): 065102(in Chinese).

    8. [8]

      Maranzano B J, Wagner N J. The Effects of Particle Size on Reversible Shear Thickening of Concentrated Colloidal Dispersions[J]. J Chem Phys, 2001,114(23):10514-10528. doi: 10.1063/1.1373687

    9. [9]

      Lee Y S, Wetzel E D, Wagner N J. The Ballistic Impact Characteristics of Kevlar Woven Fabrics Impregnated with a Colloidal Shear Thickening Fluid[J]. J Mater Sci, 2003,38(13):2825-2833. doi: 10.1023/A:1024424200221

    10. [10]

      Lee Y P, Cheah S J, Ogilvie J F. Strengths of Absorption Features in Vibration-Rotational Band v=6←v=0 of 14N16OX2Πr in the near Infrared Region[J]. Infrared Phys Technol, 2003,44(3):199-205. doi: 10.1016/S1350-4495(03)00122-1

    11. [11]

      Alderson A, Evansr K E. Molecular Origin of Auxetic Behavior in Tetrahedral Framework Silicates[J]. Phys Rev Lett, 2002,89(22):55031-55034.

    12. [12]

      Evans K E, Alderson A. Auxetic Materials:Functional Materials and Structures from Lateral Thinking[J]. Adv Mater, 2000,12(9):617-627. doi: 10.1002/(SICI)1521-4095(200005)12:9<617::AID-ADMA617>3.0.CO;2-3

    13. [13]

      Zhou C, Wang B, Zhang F T. Micro-Gels for Impact Protection[J]. J Appl Polym Sci, 2013,130(4):2345-2351. doi: 10.1002/app.39453

    14. [14]

      Pritchard R H, Lava P, Debruyne D. Precise Determination of the Poisson Ratio in Soft Materials with 2D Digital Image Correlation[J]. Soft Matter, 2013,9(26):6037-6045. doi: 10.1039/c3sm50901j

    15. [15]

      Cauvin S, Liles D, Robson S, et al. Emulsions of Dilatant Organopolysilosanes: USP, 0033627[P], 2011.

    16. [16]

      ZHOU Chao, WANG Bo, XU Kun. The Synthesis and Appication of Novel Anti-impact Protective Microgel[J]. Funct Mater, 2013,12(44):1745-1749.

    17. [17]

      LIU Xiaoke, YU Kejing, QIAN Kun. Preparation and Mechanical Performance of Shear Thickenning Glue/Polyurethane Foam Composites[J]. Mater Rep B:Res Pap, 2018,32(9):3255-3260.

    18. [18]

      XIA Yanli, YU Kejing, QIAN Kun. Structure and Properties of Novel Impact Resistance and Energy-Absorbing Material STG[J]. Aero Mater Technol, 2018,12(2):40-44.

    19. [19]

      DENG Yukun, QIN Xiangge, XU Kun. Sythesis and Property of Impact Hardening Materials with New Chain Extender IPDI[J]. New Chem Mater, 2016,44(2):126-128.
