Citation: HU Kuan, JIANG Hai, HUANG Dong, LIU Chang, ZHANG Kunyu, PAN Li. Synergetic Modification of Polybutylene Succinate and Poly(epichlorohydrin-co-ethylene oxide) Elastomer in Toughening Poly(lactic acid)[J]. Chinese Journal of Applied Chemistry, ;2019, 36(9): 996-1002. doi: 10.11944/j.issn.1000-0518.2019.09.190096 shu

Synergetic Modification of Polybutylene Succinate and Poly(epichlorohydrin-co-ethylene oxide) Elastomer in Toughening Poly(lactic acid)

HU Kuan ^a ,
JIANG Hai ^b ,
HUANG Dong ^b ,
LIU Chang ^c,, ,
ZHANG Kunyu ^b,, ,
PAN Li ^a

a.
Tianjin Key Laboratory of Composite and Functional Materials, School of Materials Science and Engineering, Tianjin University, Tianjin 300350, China
b.
School of Chemical Engineering and Technology, Tianjin University, Tianjin 300350, China
c.
Jilin Province Product Quality Supervision and Inspection Institute, Changchun 130022, China

Corresponding author: LIU Chang, valborg@163.com ZHANG Kunyu, kyzhang@tju.edu.cn
Received Date: 9 April 2019
Revised Date: 7 May 2019
Accepted Date: 14 June 2019

Fund Project: Supported by the National Natural Science Foundation of China(No.51573130)the National Natural Science Foundation of China 51573130

Figures(5)

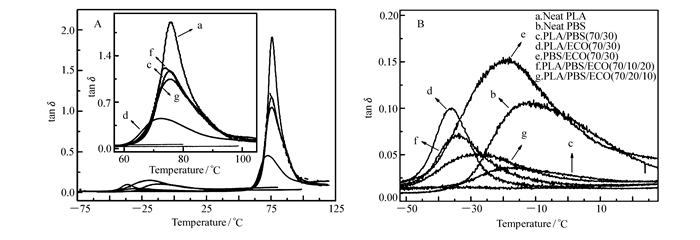

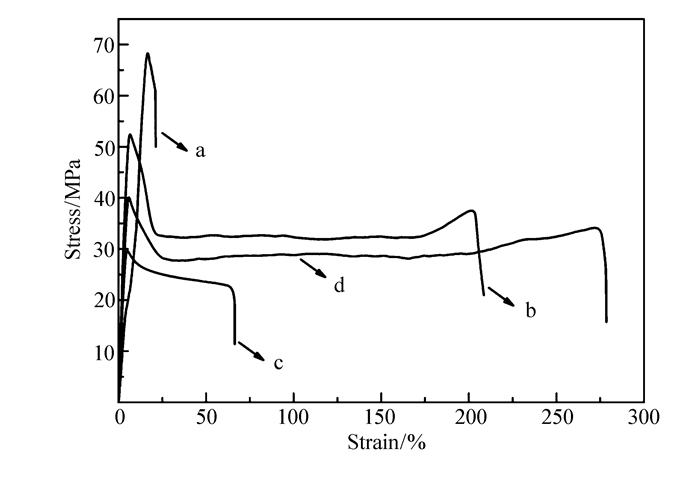

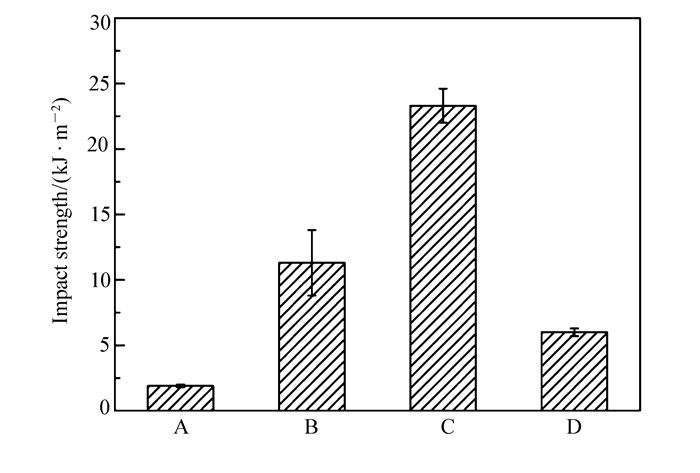

A ternary blend system was prepared via melt blending poly(lactic acid)(PLA) with renewable poly(butylene succinate)(PBS) and poly(epichlorohydrin-co-ethylene oxide) copolymer(ECO) to toughen PLA. The results of dynamic mechanical analysis(DMA) and scanning electron microscopy(SEM) showed that the ECO component improved the miscibility between PBS and PLA. The mechanical test proved that ECO and PBS could synergistically toughen the PLA matrix. The highest elongation at break was 280% for PLA/PBS/ECO(70/20/10) while the impact strength of PLA/PBS/ECO(70/10/20) blend was up to 23.7 kJ/m² which is 12 times as much as that of neat PLA. In the ternary blend, ECO plays a dual role as both the compatibilizer and the toughening agent, resulting in a favorable synergistic effect with PBS. Blending PLA with flexible biopolyester and bioelastomer is proved to be a simple and efficient way to obtain high performance biobased materials.
- poly(lactic acid),
- poly(butylene succinate),
- poly(epichlorohydrin-co-ethylene oxide),
- ternary blend,
- toughening
1. [1]
  Farah S, Anderson D G, Langer R. Physical and Mechanical Properties of PLA, and Their Functions in Widespread Applications-A Comprehensive Review[J]. Adv Drug Deliv Rev, 2016,107:367-392. doi: 10.1016/j.addr.2016.06.012
2. [2]
  Slomkowski S, Penczek S, Duda A. Polylactides-An Overview[J]. Polym Adv Technol, 2014,25(5):436-447. doi: 10.1002/pat.3281
3. [3]
  Budtri N, Aekrum S, Lertsiriyothin W. The Compatibility of Polylactides and Polybutylene Succinate in PLA Blends Based on Thermal, Mechanical, and Rheological Properties[J]. Orient J Chem, 2017,33(6):2766-2775. doi: 10.13005/ojc/330609
4. [4]
  Homklin R, Hongsriphan N. Mechanical and Thermal Properties of PLA/PBS Cocontinuous Blends Adding Nucleating Agent[J]. Energy Procedia, 2013,34:871-879. doi: 10.1016/j.egypro.2013.06.824
5. [5]
  Srimalanon P, Prapagdee B, Markpin T. Effects of DCP as a Free Radical Producer and HPQM as a Biocide on the Mechanical Properties and Antibacterial Performance of in situ Compatibilized PBS/PLA Blends[J]. Polym Test, 2018,67:331-341. doi: 10.1016/j.polymertesting.2018.03.017
6. [6]
  Supthanyakul R, Kaabbuathong N, Chirachanchai S. Poly(L-lactide-b-butylene succinate-b-L-lactide) Triblock Copolymer:A Multi-functional Additive for PLA/PBS Blend with a Key Performance on Film Clarity[J]. Polym Degrad Stab, 2017,142:160-168. doi: 10.1016/j.polymdegradstab.2017.05.029
7. [7]
  JIA Shikui, WANG Zhong, ZHU Yan. Morphology and Mechanical Properties of PLA/PBS Alloy via in-situ Reinforcement[J]. China Plast Ind, 2016,44(9):32-36. doi: 10.3969/j.issn.1005-5770.2016.09.008
8. [8]
  Zhang K, Mohanty A K, Misra M. Fully Biodegradable and Biorenewable Ternary Blends from Polylactide, Poly(3-hydroxybutyrate-co-hydroxyvalerate) and Poly(butylene succinate) with Balanced Properties[J]. ACS Appl Mater Interfaces, 2012,4(6):3091-3101. doi: 10.1021/am3004522
9. [9]
  Zhang K, Nagarajan V, Misra M. Supertoughened Renewable PLA Reactive Multiphase Blends System:Phase Morphology and Performance[J]. ACS Appl Mater Interfaces, 2014,6(15):12436-12448. doi: 10.1021/am502337u
10. [10]
  Zhang K, Ran X, Wang X. Improvement in Toughness and Crystallization of Poly(L-lactic acid) by Melt Blending with Poly(epichlorohydrin-co-ethylene oxide)[J]. Polym Eng Sci, 2011,51(12):2370-2380. doi: 10.1002/pen.22009
11. [11]
  Zolali A M, Heshmati V, Favis B D. Ultratough Co-continuous PLA/PA11 by Interfacially Percolated Poly(ether-b-amide)[J]. Macromolecules, 2017,50(1):264-274. doi: 10.1021/acs.macromol.6b02310
12. [12]
  Zolali A M, Favis B D. Compatibilization and Toughening of Co-continuous Ternary Blends via Partially Wet Droplets at the Interface[J]. Polymer, 2017,114:277-288. doi: 10.1016/j.polymer.2017.02.093
13. [13]
  Zolali A M, Favis B D. Toughening of Cocontinuous Polylactide/Polyethylene Blends via an Interfacially Percolated Intermediate Phase[J]. Macromolecules, 2018,51(10):3572-3581. doi: 10.1021/acs.macromol.8b00464
14. [14]
  Zhu L, Wang H, Liu M. Effect of Core-Shell Morphology on the Mechanical Properties and Crystallization Behavior of HDPE/HDPE-g-MA/PA6 Ternary Blends[J]. Polymers, 2018,10(9)1040. doi: 10.3390/polym10091040
15. [15]
  ZHANG Han, SUN Zhiqiang, PANG Xuan. Structure and Properties of Polylactide/Polycaprolactone/Poly(ε-caprolactone-L-lactide) Ternary Blends[J]. Chinese J Polym Sci, 2016,33(9):1026-1032.
