Citation: LIU Shiwei, Liang LIANG, LI Chenyang, LIU Changpeng, XING Wei, DONG Xiandui. Multilayered Anode Catalytic Electrode in High-Temperature Proton Exchange Membrane Fuel Cell[J]. Chinese Journal of Applied Chemistry, ;2019, 36(9): 1085-1090. doi: 10.11944/j.issn.1000-0518.2019.09.190034 shu

Multilayered Anode Catalytic Electrode in High-Temperature Proton Exchange Membrane Fuel Cell

LIU Shiwei ^a,b ,
Liang LIANG ^a,b ,
LI Chenyang ^a ,
LIU Changpeng ^a ,
XING Wei ^a,, ,
DONG Xiandui ^a,,

a.
State Key Laboratory of Electroanalytical Chemistry, Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, China
b.
University of Chinese Academy of Sciences, Beijing 100049, China

Corresponding author: XING Wei, xingwei@ciac.ac.cn DONG Xiandui, dxd@ciac.ac.cn
Received Date: 31 January 2019
Revised Date: 13 March 2019
Accepted Date: 23 April 2019

Fund Project: the Key Deployment Program of CAS KFZD-SW-412the National Natural Science Foundation of China U1601211the National Natural Science Foundation of China 21433003the National Natural Science Foundation of China 21673221the Jilin Province Science and Technology Development Plan Project 20170203003SFSupported by the National Natural Science Foundation of China(No.21673221, No.21433003, No.U1601211), the Jilin Province Science and Technology Development Plan Project(No.20170203003SF), and the Key Deployment Program of CAS(No.KFZD-SW-412)

Figures(5)

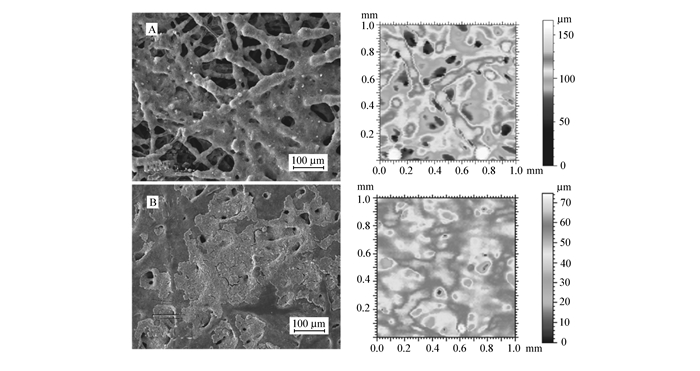

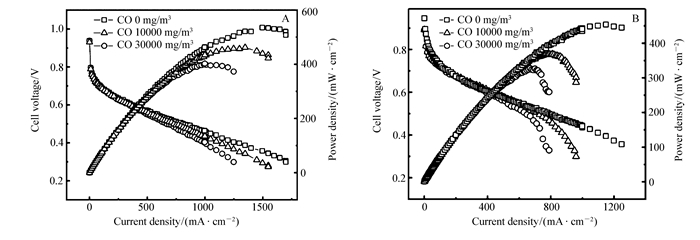

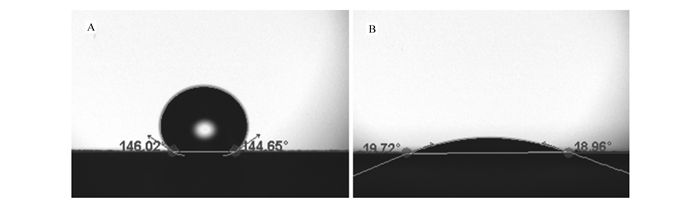

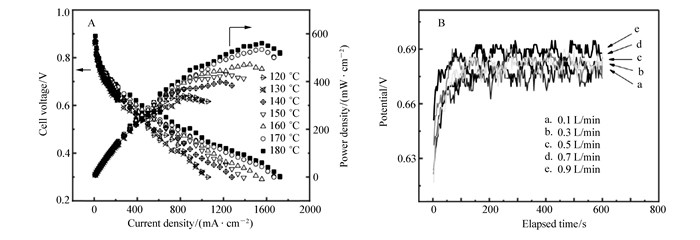

High temperature proton exchange membrane fuel cell is a promising energy conversion device with the advantages of toxicity resistance and good stability. In this report, the multilayered catalytic structure was designed to improve anode electrode catalytic activity of fuel cell. Poly vinylidene fluoride co-hexafluoropropylene(PVDF-HFP) and polybenzimidazoles(PBI) are used as electrode binders to adjust the wettability of the diffusion electrode interface. The surface morphology and wettability of the electrode catalyst have been characterized. It was found that the porosity and roughness of the electrode layer were improved. The wettability distinction between layers(contact angles:149° for PVDF-HFP and 19° for PBI) was conducive to produce more stable three-phase reaction interfaces. The catalytic performance of fuel cells shows that the peak power density is enhanced by about 22%, and it has retained 82.1% and 71.4% in H₂ fuel containing CO at the concentrations of 10000 mg/m³ and 30000 mg/m³, respectively. It is concluded that the catalytic layer with such structure could increase the catalyst utilization and still maintain good toxic resistance to CO impurity inside fuel gas.
- hydrogen electro-oxidation,
- phosphoric acid fuel cell,
- gas diffusion electrode,
- anti-poison,
- polybenzimidazoles membrane
1. [1]
  Wang S Y, Jiang S P. Prospects of Fuel Cell Technologies[J]. Nat Sci Rev, 2017,4(2):163-166.
2. [2]
  Krishnana N N, Lee S, Ghorpade R V. Polybenzimidazole(PBI-OO) Based Composite Membranes Using Sulfophenylated TiO₂ as Both Filler and Crosslinker, and Their Use in the HT-PEM Fuel Cell[J]. J Membr Sci, 2018,560:11-20. doi: 10.1016/j.memsci.2018.05.006
3. [3]
  Rosli R E, Sulong A B, Daud W R W. A Review of High-Temperature Proton Exchange Membrane Fuel Cell(HT-PEMFC) System[J]. Int J Hydrogen Energy, 2017,42(14):9293-9314. doi: 10.1016/j.ijhydene.2016.06.211
4. [4]
  Araya S S, Zhou F, Liso V. A Comprehensive Review of PBI-Based High Temperature PEM Fuel Cells[J]. Int J Hydrogen Energy, 2016,41(46):21310-21344. doi: 10.1016/j.ijhydene.2016.09.024
5. [5]
  Asensio J A, Sanchez E M, Gomez-Romero P. Proton-Conducting Membranes Based on Benzimidazole Polymers for High-Temperature PEM Fuel Cells. A Chemical Ques[J]. Chem Soc Rev, 2010,39(2):3210-3239. doi: 10.1039/B922650H
6. [6]
  Melchior J P, Majer G, Kreuer K D. Why do Proton Conducting Polybenzimidazole Phosphoric Acid Membranes Perform well in High-Temperature PEM Fuel Cells?[J]. Phys Chem Chem Phys, 2016,19(1):601-612. doi: 10.1039/C6CP05331A
7. [7]
  Xu W, Lu Z, Sun X. , Superwetting Electrodes for Gas-Involving Electrocatalysis[J]. Acc Chem Res, 2018,51(7):1590-1598. doi: 10.1021/acs.accounts.8b00070
8. [8]
  Ma Y L, Wainright J S, Litt M H. Conductivity of PBI Membranes for High-Temperature Polymer Electrolyte Fuel Cells[J]. J Electrochem Soc, 2004,151(1):A8-A16. doi: 10.1149/1.1630037
9. [9]
  Orogbemi O M, Ingham D B, Ismail M S. The Effects of the Composition of Microporous Layers on the Permeability of Gas Diffusion Layers Used in Polymer Electrolyte Fuel Cells[J]. Int J Hydrogen Energy, 2016,41(46):21345-21351. doi: 10.1016/j.ijhydene.2016.09.160
10. [10]
  Yuk S, Lee D H, Choi S. An Electrode-Supported Fabrication of Thin Polybenzimidazole Membrane-Based Polymer Electrolyte Membrane Fuel Cell[J]. Electrochim Acta, 2018,270:402-408. doi: 10.1016/j.electacta.2018.03.052
11. [11]
  Su H N, Xu Q, Chong J J. Eliminating Micro-Porous Layer from Gas Diffusion Electrode for Use in High Temperature Polymer Electrolyte Membrane Fuel Cell[J]. Power Sources, 2017,341:302-308. doi: 10.1016/j.jpowsour.2016.12.029
12. [12]
  Majlan E H, Rohendi D, Daud W R W. Electrode for Proton Exchange Membrane Fuel Cells:A review[J]. Renew Sust Energ Rev, 2018,89:117-134. doi: 10.1016/j.rser.2018.03.007
13. [13]
  Lv Q, Li K, Liu C. TiO₂ Inserted Carbon Materials with Fine-Tuned Pore Structure as Effective Model Supports for Electrocatalysts of fuel Cells[J]. Carbon, 2016,98:126-137. doi: 10.1016/j.carbon.2015.10.097
14. [14]
  YANG Juan, YUAN Ting, ZHANG Haifeng. Effect of Hydrophobicity of Anodic Backing Layer on Mass Transfer Characteristics of Passive DMFCs[J]. Chinese J Appl Chem, 2013,30(11):1348-1353.
