Citation: LIU Yongjun, ZHOU Liyun, SHENG Shouri, SONG Cheng, HOU Haoqing, SONG Caisheng. Synthesis and Properties of Super-high Temperature Diketone Anhydride Polyimides[J]. Chinese Journal of Applied Chemistry, ;2019, 36(6): 658-663. doi: 10.11944/j.issn.1000-0518.2019.06.180352 shu

Synthesis and Properties of Super-high Temperature Diketone Anhydride Polyimides

College of Chemistry and Chemical Engineering, Jiangxi Normal University, Nanchang 330022, China

Corresponding author: SONG Cheng, sonyia416@gmail.com
Received Date: 6 November 2018
Revised Date: 13 January 2019
Accepted Date: 14 January 2019

Fund Project: the National Natural Science Foundation of China 51663011Science and Technology Research Project of Jiangxi Provincial Department of Education GJJ170177Supported by the National Natural Science Foundation of China(No.51663011), Science and Technology Research Project of Jiangxi Provincial Department of Education(No.GJJ170177)

Figures(7)

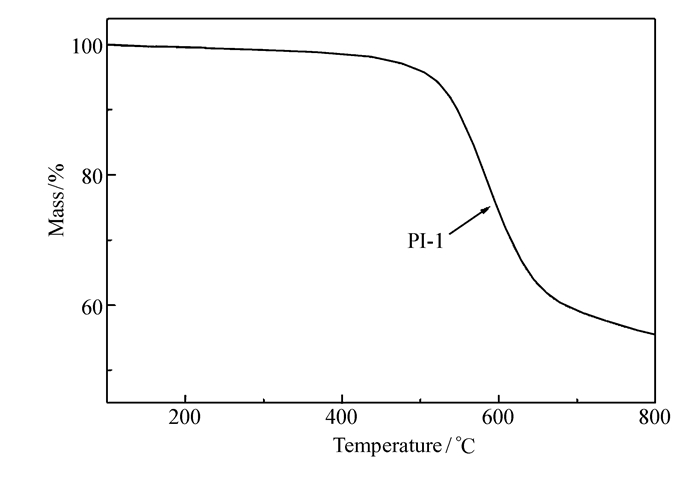

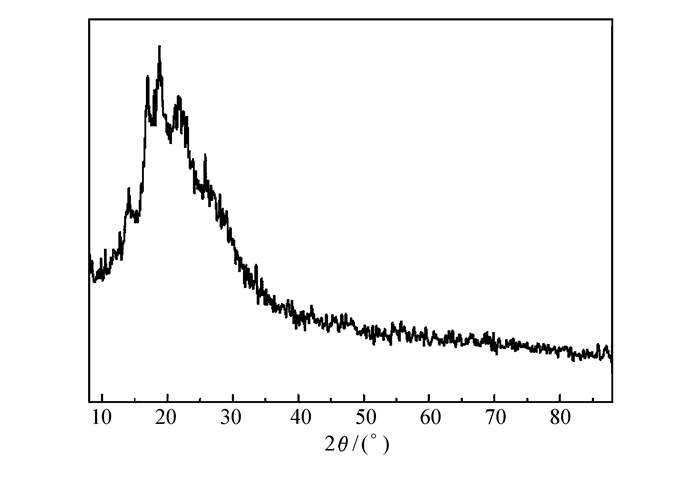

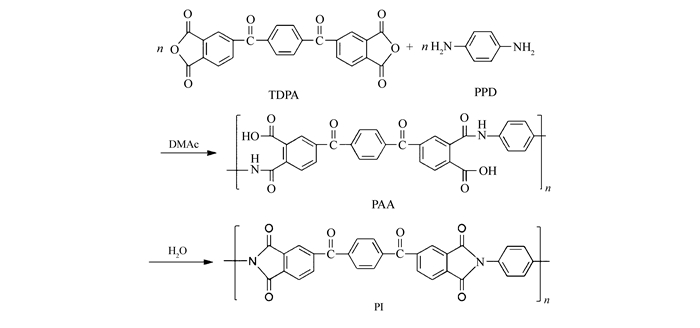

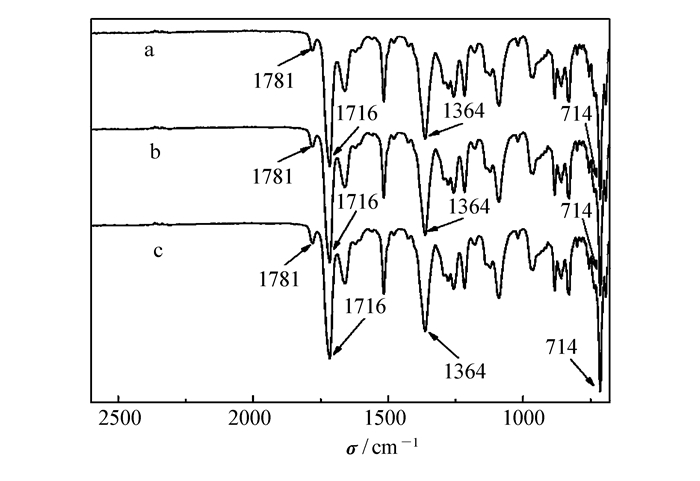

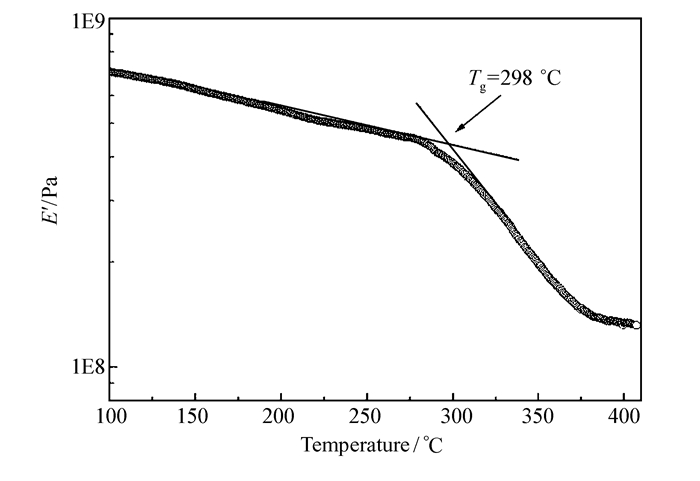

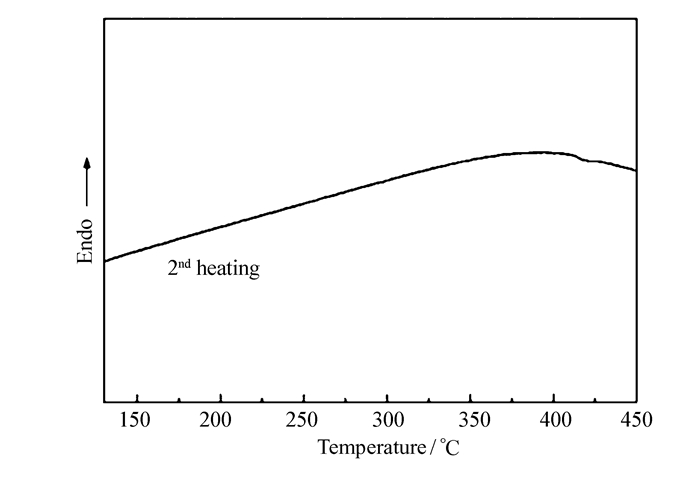

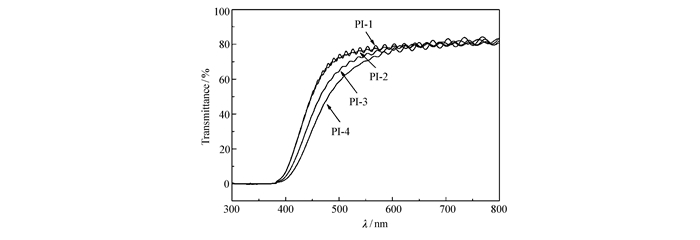

A novel diketone anhydride polyimide was synthesized by introducing p-phenylenediamine(PPD) to 4, 4'-terephthaloyldiphthalic anhydride through the traditional two-step method in dimethylacetamide(DMAc). The properties of the polyimide were characterized by Fourier transform infrared spectrometer(FT-IR), wide-angle X-ray diffraction(WAXD), differential scanning calorimetric(DSC), dynamic thermomechanical analyzer(DMA), thermal gravimetric analysis(TGA), tensile test and ultraviolet-visible spectrophotometry(UV-Vis). The relationship between different thermal imidization temperature and the properties of the diketone polyimide was studied. The results showed that PAA formed the imide ring structure completely at 320℃. The polyimide had good film-forming performance and partially ordered aggregate structure. The polyimide had excellent thermal properties:the glass transition temperature(T_g) was 298℃ and the thermal decomposition temperature(T_5%) was 523℃. The film had a tensile strength of 130 MPa and tensile modulus of 5.77 GPa at 320℃. The cutoff wavelength of the film was 375 nm and the film had good transmittance in visible region.
- diketone anhydride polyimide,
- thermal properties,
- transmittance
1. [1]
  WANG Jiaming. Technology Advances and Market Prospects of Polyimide Film[J]. Synth Technol Appl, 2012,37(3):24-29. doi: 10.3969/j.issn.1006-334X.2012.03.011
2. [2]
  Min C Y, Liu D D, He Z B. Preparation of Novel Polyimide Nanocomposites with High Mechanical and Tribological Performance Using Covalent Modified Carbon Nanotubes via Friedel-Crafts Reaction[J]. Polymer, 2018,150:223-231. doi: 10.1016/j.polymer.2018.07.035
3. [3]
  Cheng Y, Dong J, Yang C R. Synthesis of Poly(benzobisoxazole-co-imide) and Fabrication of High-Performance Fibers[J]. Polymer, 2017,133:50-59. doi: 10.1016/j.polymer.2017.11.015
4. [4]
  Chen D, Zhu H, Liu T. In Situ Thermal Preparation of Polyimide Nanocomposite Films Containing Functionalized Graphene Sheets[J]. ACS Appl Mater Interfaces, 2010,2(12):3702-3708. doi: 10.1021/am1008437
5. [5]
  YANG Shiyong. Progress in High Temperature Polyimide Resin[J]. Polym Bull, 2014(12):23-28.
6. [6]
  Pratt J R, Blackwell D A, Clair T L S. 4, 4′-Isophthaloyldiphthalic Anhydride Polyimides[J]. Polym Prepr, 1988,29(1):128-129.
7. [7]
  Pratt J R, Blackwell D A, St.clair T L. 4, 4′-Isophthaloyidiphthalic anhydride Polyimides[J]. Polym Eng Sci, 1989,29(1):63-68. doi: 10.1002/(ISSN)1548-2634
8. [8]
  Pratt J R, St.clair T L, Progar D J. Processable Polyimide Adhesive and Matrix Composite Resin: US, 4937317 A[P]. 1990-06-26.
9. [9]
  SONG Cheng, SONG Caisheng. A Preparation Method of 4, 4′-Terephthaloyldiphthalic and Its Products and Uses: CN201310384452[P]. 2013-08-29(in Chinese).
10. [10]
  ZHAN Meidong, HONG Huiming, WANG Liyun. Synthesis and Properties of Organosolubile Dikentone Anhydride Copolymides[J]. Polym Mater Sci Eng, 2016,32(8):16-20.
11. [11]
  HU Shuncheng, CHEN Zhiqiang, HONG Huiming. The Synthesis and Characterization of Novel Thermoplastic Polyimide Based on Diketone Anhydride[J]. J Jiangxi Norm Univ(Nat Sci), 2016,40(4):415-419.
12. [12]
  Seo Y, Lee S M, Kim D Y. Kinetic Study of the Imidization of a Poly(ester amic acid) by FT-Raman Spectroscopy[J]. Macromolecules, 1997,30(13):3747-3753. doi: 10.1021/ma961482v
13. [13]
  SONG Cheng, CHEN Zhiqiang, JIANG Yangcheng. Synthesis and Properties of 4, 4′-Terephthaloyldiphthalic/PMDA Anhydride Copolyimide[J]. Polym Mater Sci Eng, 2015,31(12):27-31.
14. [14]
  Vanherck K, Koeckelberghs G, Vankelecom I. Crosslinking Polyimides for Membrane Applications:A Review[J]. Prog Polym Sci, 2013,38:874-896. doi: 10.1016/j.progpolymsci.2012.11.001
15. [15]
  Liaw D J, Wang K L, Huang Y C. Advanced Polyimide Materials:Syntheses, Physical Properties, and Applications[J]. Prog Polym Sci, 2012,37:907-974. doi: 10.1016/j.progpolymsci.2012.02.005
