Citation: CHEN Guangmei, WANG Zhikun, WU Lixia, HUANG Yiping. Preparation and Properties of Polyurethane Modified by Acrylate/Nano-SiO2 Composites[J]. Chinese Journal of Applied Chemistry, ;2019, 36(5): 532-538. doi: 10.11944/j.issn.1000-0518.2019.05.180233 shu

Preparation and Properties of Polyurethane Modified by Acrylate/Nano-SiO2 Composites

  • a.

    School of Material and Chemical Engineering, Anhui Jianzhu University, Hefei 230601, China

  • b.

    School of Chemistry and Chemical Engineering of Anhui University, Hefei 230601, China

  • Corresponding author: CHEN Guangmei, chen_gm168@163.com
  • Received Date: 3 July 2018
    Revised Date: 11 September 2018
    Accepted Date: 18 October 2018

    Fund Project: the Key Project of Anhui Education Department KJ2018A0514Supported by the Key Project of Anhui Education Department(No.KJ2018A0514)

Figures(7)

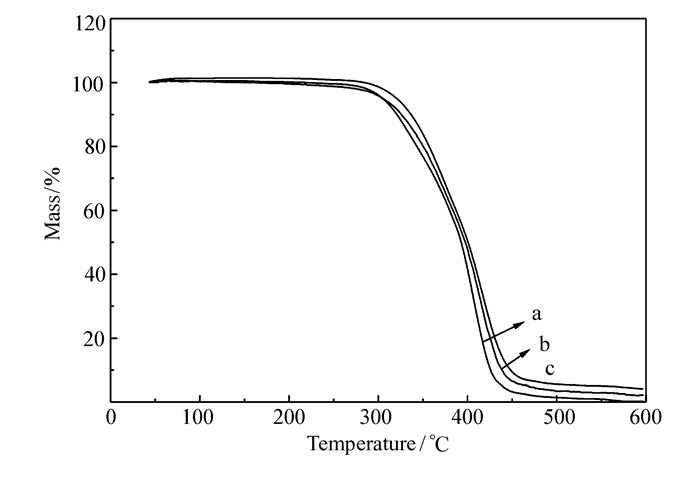

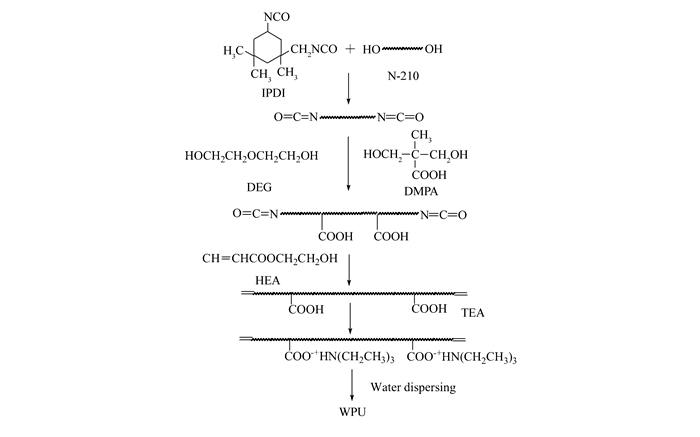

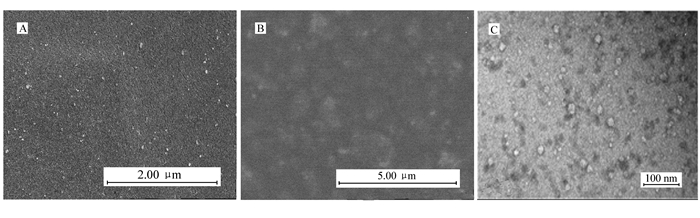

  • Polyurethane-acrylate/nano-SiO2(PUAS) composite emulsions were synthesized by in situ polymerization accompanying sol-gel process, in which the hydrolysis reaction and polymerization of monomers were accomplished at the same time. The properties and structure of the films and emulsion were characterized by a laser particle size analyzer, scanning electron microscopy(SEM) and transmission electron microscopy(TEM), etc. The results indicated that with the increase of the mass fraction of tetraethylorthosilicate(TEOS), the thermostability and the mechanical properties of the films were improved remarkably. When the mass fraction of TEOS was 8% in the PUAS composite emulsion, the water absorption of the obtained film was 2.1%, the tensile strength was 16.8 MPa, the Shore hardness was 94, and the temperature for the maximal thermal mass-loss rate was 416℃.
  • 加载中
    1. [1]

      Lin W C, Yang C H, Wang T L. Hybrid Thin Films Derived from UV-curable Acrylate-Modified Waterborne Polyurethane and Monodispersed Colloidal Silica[J]. Express Polym Lett, 2012,6(1):2-13. doi: 10.3144/expresspolymlett.2012.2

    2. [2]

      Maurya S D, Kurmvanshi S K, Mohanty S. A Review on Acrylate-Terminated Urethane Oligomers and Polymers:Synthesis and Applications[J]. Polym-Plast Technol Eng, 2018,57(7):625-656. doi: 10.1080/03602559.2017.1332764

    3. [3]

      Zhang S F, Wang R M, He Y F. Waterborne Polyurethane-Acrylic Copolymers Crosslinked Core Shell Nanoparticles for Humidity-Sensitive Coatings[J]. Prog Org Coat, 2013,76:729-735. doi: 10.1016/j.porgcoat.2013.01.003

    4. [4]

      Yang Z H, Ni A Q, Wang J H. Synthesis and Characterization of Novel Ultraviolet-Curing Polyurethane Acrylate/Epoxy Acrylate/SiO2 Hybrid Materials via Sol-Gel Reaction[J]. J Appl Polym Sci, 2013,10(1002):2905-2909.

    5. [5]

      Um M S, Ham D S, Cho S K. Surface Mechanical Properties of Poly(urethane acrylate)/Silica Hybrid Interpenetrating Polymer Network(IPN) Coatings[J]. Prog Org Coat, 2016,97:166-174. doi: 10.1016/j.porgcoat.2016.04.007

    6. [6]

      Duan Y N, Jana S C, Lama B. Reinforcement of Silica Aerogels Using Silane-End-Capped Polyurethanes[J]. Langmuir, 2013,29:6156-6165. doi: 10.1021/la4007394

    7. [7]

      Han W S. Synthesis and Properties of Networking Waterborne Polyurethane/Silica Nanocomposites by Addition of Poly(ester amine) Dendrimer[J]. Polym Comp, 2013,10(1002):156-163.

    8. [8]

      Zhang L H, Zhang H, Guo J S. Synthesis and Properties of UV-Curable Polyester-Based Waterborne Polyurethane/Functionalized Silica Composites and Morphology of Their Nanostructured Film[J]. Ind Eng Res, 2012,51:8434-8441. doi: 10.1021/ie3000248

    9. [9]

      Zhang S W, Yu A X, Liu S L. Effect of Silica Nanoparticles on Structure and Properties of Waterborne UV-curable Polyurethane Nanocomposites[J]. Polym Bull, 2012,68:1469-1482. doi: 10.1007/s00289-011-0689-3

    10. [10]

      Qiu F X, Xu H P, Wang Y Y. Preparation, Characterization and Properties of UV-Curable Waterborne Polyurethane Acrylate/SiO 2 Coating[J]. J Coat Technol Res, 2012,9(5):503-514. doi: 10.1007/s11998-012-9397-7

    11. [11]

      Wang Y Y, Qiu X F, Lv Y F. Preparation and Properties of Waterborne Poly(urethane acrylate)/Silica Dispersions and Hybrid Composites[J]. Plast Rubber Compos, 2012,41(10):418-425. doi: 10.1179/1743289812Y.0000000010

    12. [12]

      LI Hao, CHEN Guangmei, CHEN Wei. Synthesis and Characterization of Core-Shell Acrylicc/Polyurethane Emulsion with Unsaturated Macromolecule Monomer Method[J]. Chinese J Appl Chem, 2011,28(10):1135-1142.

    13. [13]

      ZHANG Mingyue, CHEN Guangmei, ZHANG Xiaoliang. Synthesis and Characterization of Core-Shell Structured Polyurethane Modified by Fluorinated Acrylate[J]. Fine Chem Eng, 2011,28(11):1041-1045.

    14. [14]

      Yang J, Han C R, Duan J F. Interaction of Silica Nanoparticle/Polymer Nanocomposite Cluster Network Structure: Revisiting the Reinforcement Mechanism[J]. J Phys Chem C, 2013,117:8223-8230.
