Citation: JU Le, ZHANG Ting, QIN Tianyou, SHENG Lan, ZHANG Sean Xiao-an. Endowing Hydrochromism to Fluoranes by Modifying Their Switch Sites and Their Applications in Water-Jet Printing[J]. Chinese Journal of Applied Chemistry, ;2019, 36(2): 137-145. doi: 10.11944/j.issn.1000-0518.2019.02.180121 shu

Endowing Hydrochromism to Fluoranes by Modifying Their Switch Sites and Their Applications in Water-Jet Printing

JU Le ^a,b ,
ZHANG Ting ^c,d ,
QIN Tianyou ^c,d ,
SHENG Lan ^d,, ,
ZHANG Sean Xiao-an ^a,b,c,d,,

a.
Department of Chemistry and Pharmacy, Zhuhai College of Jilin University, Zhuhai, Guangdong 519041, China
b.
College of Life Science, Jilin University, Changchun 130012, China
c.
State Key Lab of Supramolecular Structure and Materials, College of Chemistry, Jilin University, Changchun 130012, China
d.
College of Chemistry, Jilin University, Changchun 130012, China

Corresponding author: SHENG Lan, shenglan17@jlu.edu.cn ZHANG Sean Xiao-an, seanzhang@jlu.edu.cn
Received Date: 18 April 2018
Revised Date: 31 May 2018
Accepted Date: 20 July 2018

Fund Project: the National Natural Science Foundation of China 21572079Supported by the National Natural Science Foundation of China(No.51603085, No.21572079)the National Natural Science Foundation of China 51603085

Figures(8)

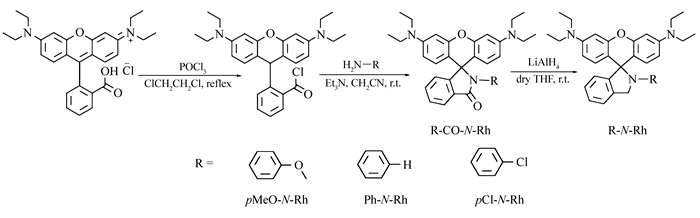

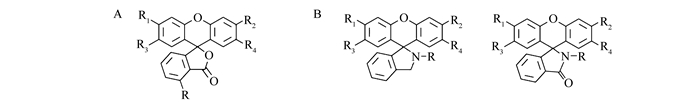

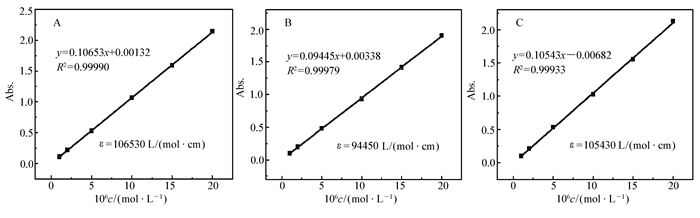

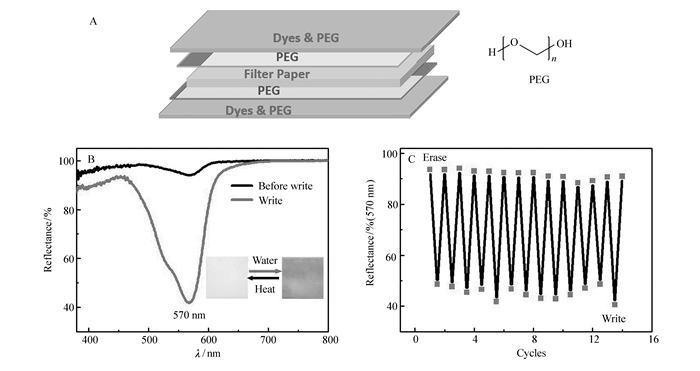

The concept of water-jet printing has made a great contribution to the reduction of environmental pollution and resource consumption. However, there are few hydrochromic dyes and they are difficult to develop. Therefore, in order to realize the adjustment of acidochromic dyes to hydrochromic dyes, we adjust the dynamic balance of the switch-ring in molecules by changing the switch units of fluoranes. Fluoranes are synthesized directly from commercial raw materials in two steps and have a high molar absorption coefficient up to 1×10⁵. The reflectivity changes 50% before and after writing with water, which makes it possible to apply widely in water-jet printing.
- hydrochromic,
- rhodamine,
- water-jet printing,
- rewritable
1. [1]
  Blanco A, Negro C, Monte C. Peer Reviewed:The Challenges of Sustainable Papermaking[J]. Environ Sci Technol, 2004,38(21):414-420. doi: 10.1021/es040654y
2. [2]
  Bajpai P. Pulp and Paper Industry:Chemicals[M]. Elsevier, 2015.
3. [3]
  Bajpai P. Pulp and Paper Industry:Energy Conservation[M]. Elsevier, 2016.
4. [4]
  WANG Xieqin. Greenhouse Effect and Emission Reduction of Greenhouse Gases[J]. Nat Gas Technol, 2008(6):53-58.
5. [5]
  Monte M C, Fuente E, Blanco A. Waste Management from Pulp and Paper Production in the European Union[J]. Environ Waste Manage, 2009,29(1):293-308. doi: 10.1016/j.wasman.2008.02.002
6. [6]
  Bajpai P. Generation of Waste in Pulp and Paper Mills[M]//Management of Pulp and Paper Mill Waste. Springer, Cham, 2015: 9-17.
7. [7]
  Koutinas A A, Vlysidis A, Pleissner D. Valorization of Industrial Waste and By-Product Streams via Fermentation for the Production of Chemicals and Biopolymers[J]. Chem Soc Rev, 2014,43(8):2587-2627. doi: 10.1039/c3cs60293a
8. [8]
  Koop G, Tole L. Country Choices' or Deforestation Paths:A Method for Global Change Analysis of Human-Forest Interactions[J]. J Environ Manage, 2001,63(2):133-148. doi: 10.1006/jema.2001.0466
9. [9]
  Rahman M O, Hussain A, Basri H. A Critical Review on Waste Paper Sorting Techniques[J]. Int J Environ Sci Technol, 2014,11(2):551-564. doi: 10.1007/s13762-013-0222-3
10. [10]
  Sheng L, Li M, Zhu S. Hydrochromic Molecular Switches for Water-Jet Rewritable Paper[J]. Nat Commun, 2014,53044. doi: 10.1038/ncomms4044
11. [11]
  Xi G, Sheng L, Zhang I. Endowing Hydrochromism to Fluorans via Bioinspired Alteration of Molecular Structures and Microenvironments and Expanding Their Potential for Rewritable Paper[J]. ACS Appl Mater Interfaces, 2017,9(43):38032-38041. doi: 10.1021/acsami.7b12363
12. [12]
  Yang Y K, Cho H J, Lee J. A Rhodamine-Hydroxamic Acid-Based Fluorescent Probe for Hypochlorous Acid and Its Applications to Biological Imagings[J]. Org Lett, 2009,11(4):859-861. doi: 10.1021/ol802822t
13. [13]
  HOU Shuhua, LIU Dong, QU Zhongguo. Synthesis of a Novel Rhodamine-Based Probe and Its Selective Detection of Trivalent Metallic Ions[J]. Chinese J Appl Chem, 2017,34(5):606-610.
14. [14]
  Nguyen T, Francis M B. Practical Synthetic Route to Functionalized Rhodamine Dyes[J]. Org Lett, 2003,5(18):3245-3248. doi: 10.1021/ol035135z
15. [15]
  LU Jing, LI Honglin, LIU Xiaojian. An Improved Fluorescence-Enhanced Pd²⁺ Probe Derived from Rhodamine Fluorophore[J]. Chinese J Appl Chem, 2011,28(11):1292-1297.
16. [16]
  Li H, Guan H, Duan X. An Acid Catalyzed Reversible Ring-Opening/Ring-Closure Reaction Involving a Cyano-Rhodamine Spirolactam[J]. Org Biomol Chem, 2013,11(11):1805-1809. doi: 10.1039/c3ob27356c
17. [17]
  Best Q A, Xu R, McCarroll M E. Design and Investigation of a Series of Rhodamine-Based Fluorescent Probes for Optical Measurements of pH[J]. Org Lett, 2010,12(14):3219-3221. doi: 10.1021/ol1011967
18. [18]
  Czaplyski W L, Purnell G E, Roberts C A. Substituent Effects on the Turn-On Kinetics of Rhodamine-Based Fluorescent pH Probes[J]. Org Biomol Chem, 2014,12(3):526-533.
19. [19]
  Zhang I, Wang Y, Wan C. A New Rhodamine Based Chemodosimeter for Ni²⁺ with High Sensitivity and Selectivity[J]. RSC Adv, 2015,5(81):66416-66419. doi: 10.1039/C5RA11737B
