Citation: FAN Ye, HAN Yichen, XIA Yongmei, BO Chunling, WANG Shuyu, FANG Yun. Investigation on Self-assembly of Nanocontainers by Vesiculation of Conjugated Linoleic Acid and Sodium Alginate and Their Drug Delivery Behavior[J]. Chinese Journal of Applied Chemistry, ;2018, 35(12): 1478-1484. doi: 10.11944/j.issn.1000-0518.2018.12.180046 shu

Investigation on Self-assembly of Nanocontainers by Vesiculation of Conjugated Linoleic Acid and Sodium Alginate and Their Drug Delivery Behavior

Key Laboratory of Synthetic and Biological Colloids(Ministry of Education), School of Chemical and Material Engineering, Jiangnan University, Wuxi, Jiangsu 214122, China

Corresponding author: XIA Yongmei, ymxia@jiangnan.edu.cn
Received Date: 9 February 2018
Revised Date: 26 March 2018
Accepted Date: 4 June 2018

Fund Project: Supported by the National Key Research and Development Program of China(No.2017YFB0308705), the National Natural Science Foundation of China(No.21606107, No.21276113), the National Students′ Platform for Innovation and Entrepreneurship Training Program of China(No.201710295006)the National Students′ Platform for Innovation and Entrepreneurship Training Program of China 201710295006the National Natural Science Foundation of China 21276113the National Natural Science Foundation of China 21606107the National Key Research and Development Program of China 2017YFB0308705

Figures(6)

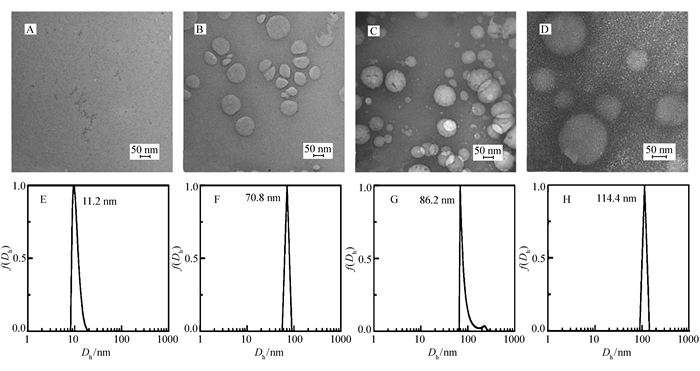

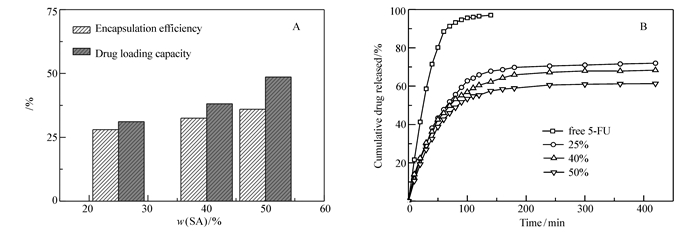

Fatty acid vesicles(FAVs) are a kind of important nanocontainers, but they are inherently alkaline-adapted and the pH window for the FAV formation is very narrow, which hinders their application in drug delivery. In this work, the vesicular nanocontainers were fabricated by self-assembly of conjugated linoleic acid(CLA) and sodium alginate(SA) in neutral pH range, and the membrane stability of the FAVs was enhanced. Dynamic light scattering(DLS) and transmission electron microscopy(TEM) results indicated that the vesicular nanocontainers with vesicular diameter of 50~250 nm were self-assembled in neutral pH range when the mass fraction of SA was 25%~50%. Moreover, the size of the vesicular nanocontainers increased with the increase of mass fraction of SA at pH=7.4. Based on the chemical species of SA and CLA in neutral pH range, it was proposed that hydrogen bonding is the driving force to self-assemble them into the vesicular nanocontainers. In vitro drug release results showed that the vesicular nanocontainers had a higher encapsulation efficiency and better sustained release effect. The vesicular nanocontainers are expected to be promising carriers in drug delivery.
- nanocontainer,
- fatty acid vesicle,
- conjugated linoleic acid,
- sodium alginate,
- drug delivery
1. [1]
  Mura S, Nicolas J, Couvreur P. Stimuli-Responsive Nanocarriers for Drug Delivery[J]. Nat Mater, 2013,12:991-1003. doi: 10.1038/nmat3776
2. [2]
  Yang J, Bahreman A, Daudey G. Drug Delivery via Cell Membrane Fusion Using Lipopeptide Modified Liposomes[J]. ACS Cent Sci, 2016,2:621-630. doi: 10.1021/acscentsci.6b00172
3. [3]
  Gebicki J, Hicks M. Ufasomes are Stable Particles Surrounded by Unsaturated Fatty Acid Membranes[J]. Nature, 1973,243(5404):232-234. doi: 10.1038/243232a0
4. [4]
  Zhang L, Eisenberg A. Multiple Morphologies and Characteristics of "Crew-Cut" Micelle-like Aggregates of Polystyrene-b-Poly(acrylic acid) Diblock Copolymers in Aqueous Solutions[J]. J Am Chem Soc, 1996,118(13):3168-3181. doi: 10.1021/ja953709s
5. [5]
  Sisinthy S P, Rao N K, Sarah C Y L. Design, Optimization and in Vitro Characterization of Self Nano Emulsifying Drug Delivery System of Olmesartan Medoxomil[J]. Int J Pharm, 2017,9:94-101.
6. [6]
  Zhu T F, Adamala K, Zhang N. Photochemically Driven Redox Chemistry Induces Protocell Membrane Pearling and Division[J]. Proc Nat Acad Sci USA, 2012,109(25):9828-9832. doi: 10.1073/pnas.1203212109
7. [7]
  Monnard P A, Deamer D W. Preparation of Vesicles from Nonphospholipid Amphiphiles[J]. Methods Enzymol, 2003,372:133-151. doi: 10.1016/S0076-6879(03)72008-4
8. [8]
  Morigaki K, Walde P. Fatty Acid Vesicles[J]. Curr Opin Colloid Interface Sci, 2007,12(2):75-80. doi: 10.1016/j.cocis.2007.05.005
9. [9]
  Namani T, Walde P. From Decanoate Micelles to Decanoic Acid/Dodecylbenzenesulfonate Vesicles[J]. Langmuir, 2005,21(14):6210-6219. doi: 10.1021/la047028z
10. [10]
  LIANG Xiaodan, FAN Ye, FANG Yun. Investigation of Vesiculation of Conjugated Linoleic Acid Assisted by Monolauryl Phosphate[J]. Chem J Chinese Univ, 2017,38(9):1639-1644.
11. [11]
  Namani T, Deamer D W. Stability of Model Membranes in Extreme Environments[J]. Orig Life Evol Biosph, 2008,38(4):329-341. doi: 10.1007/s11084-008-9131-8
12. [12]
  MA Jie, FAN Ye, FANG Yun. Influence of Alkyl Polyglucoside on Migration and Extension of pH Window for Forming Fatty Acid Vesicles of Conjugated Linoleic Acid[J]. Acta Phys-Chim Sin, 2015,31(7):1359-1364.
13. [13]
  Liu L, Siuda I, Richards M R. Structure and Stability of Carbohydrate-Lipid Interactions. Methylmannose Polysaccharide-Fatty Acid Complexes[J]. ChemBioChem, 2016,17(16):1571-1578. doi: 10.1002/cbic.201600123
14. [14]
  Veverka M, Dubaj T, Jor k V. Stabilization of Conjugated Linoleic Acid via Complexation with Arabinogalactan and β-Glucan[J]. Eur J Lipid Sci Technol, 2017,119(8)1600258. doi: 10.1002/ejlt.v119.8
15. [15]
  Tan H W, Misran M. Polysaccharide-Anchored Fatty Acid Liposome[J]. Int J Pharm, 2013,441(1):414-423.
16. [16]
  Fan Y, Fang Y, Ma L. The Self-Crosslinked Ufasome of Conjugated Linoleic Acid:Investigation of Morphology, Bilayer Membrane and Stability[J]. Colloid Surf B, 2014,123:8-14. doi: 10.1016/j.colsurfb.2014.08.028
17. [17]
  Shen J, Bi J, Tian H. Preparation and Evaluation of a Self-Nanoemulsifying Drug Delivery System Loaded with Akebia Saponin D-Phospholipid Complex[J]. Int J Nanomed, 2016,11:4919-4929. doi: 10.2147/IJN
