Citation: LIN Xiaoyi, ZHU Yongchao, MENG Xiangru. Synthesis, Crystal Structure and Luminescent Properties of a Europium Complex from Imidazole Dicarboxylate[J]. Chinese Journal of Applied Chemistry, ;2018, 35(1): 82-88. doi: 10.11944/j.issn.1000-0518.2018.01.170336 shu

Synthesis, Crystal Structure and Luminescent Properties of a Europium Complex from Imidazole Dicarboxylate

a.
No.1 Middle School of Nanyang, Nanyang, He'nan 473009, China
b.
College of Chemistry and Molecular Engineering, Zhengzhou University, Zhengzhou 450001, China

Corresponding author: MENG Xiangru, mengxiangru200008@163.com
Received Date: 14 September 2017
Revised Date: 12 December 2017
Accepted Date: 12 December 2017

Fund Project: He′nan Science and Technology Project 172102210128Supported by the National Natural Science Foundation of China(No.J1210060), the He′nan Science and Technology Project(No.172102210128)National Natural Science Foundation of China J1210060

Figures(6)

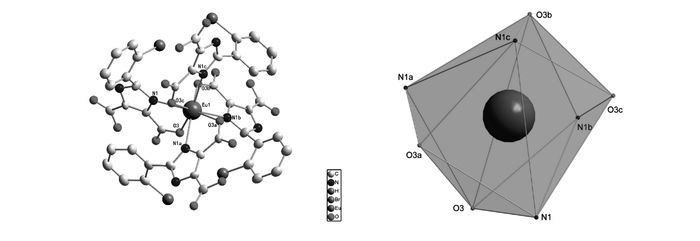

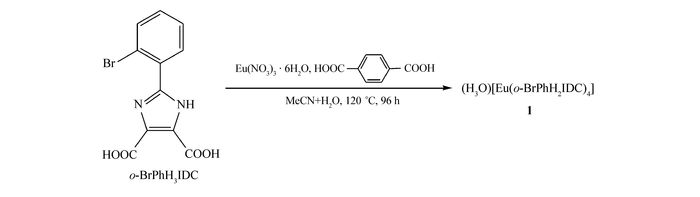

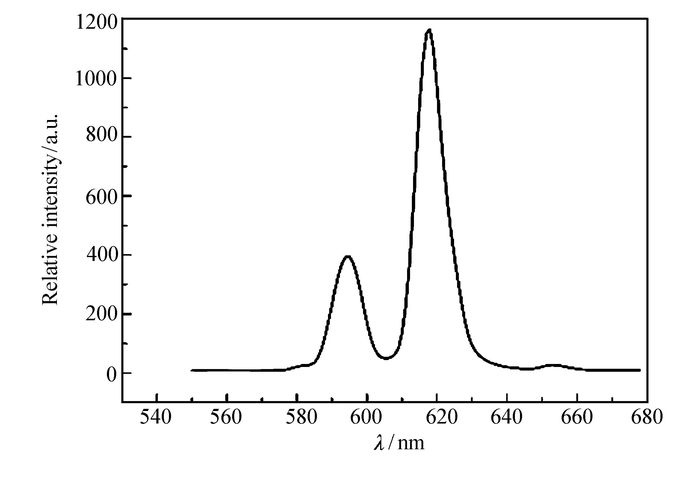

By solvothermal reaction of Eu(NO₃)₃ 6H₂O with 2-(2-bromophenyl)-1H-imidazole-4, 5-dicarboxylic acid (o-BrPhH₃IDC) in the presence of terephthalic acid, a three-dimensional supramolecular complex (H₃O)[Eu(o-BrPhH₂IDC)₄](1) was prepared. The crystal structure of complex 1 was determined by single crystal X-ray diffraction. The results show that complex 1 crystallizes in the cubic system, Ⅰ-43d space group, and the central europium ion is in a eight-coordinate system. The solid-state fluorescence of complex 1 reveals that complex 1 exhibits a characteristic europium emission spectra at the excitation wavelength of 395 nm which implies that the organic ligand has a good antenna effect and a good sensitization effect on europium ion.
- Eu-complex,
- imidazole dicarboxylate,
- crystal structure,
- fluorescence properties
1. [1]
  WANG Zheng, YIN Shaoyun, PAN Mei. Assembly and Luminescence of Mononuclear Ln to Heteronuclear Ln-M Supramolecular Complexes[J]. Chinese J Appl Chem, 2017,34(9):1017-1023. doi: 10.11944/j.issn.1000-0518.2017.09.170144
2. [2]
  Edelmann , Frank T. Lanthanides and Actinides:Annual Survey of Their Organometallic Chemistry Covering the Year 2016[J]. Coord Chem Rev, 2017,338:27-140. doi: 10.1016/j.ccr.2017.02.001
3. [3]
  Yi F Y, Chen D X, Wu M K. Chemical Sensors Based on Metal-Organic Frameworks[J]. Chem Plus Chem, 2016,81(8):675-690.
4. [4]
  LIU Liping, YE Shanghui, HUANG Wei. Advances on Fluorescent Sensors for Detection of Explosives[J]. Chinese J Appl Chem, 2017,34(9):1-24.
5. [5]
  Zhong D C, Lu T B. Porous Coordination Polymers Based on Three Planar Rigid Ligands[J]. Sci China Chem, 2011,54(9):1395-1406. doi: 10.1007/s11426-011-4358-z
6. [6]
  Guo M W, Chen N, Gao Y C. A Series of Lanthanide-Organic Frameworks Constructed by 2-Methyl Imidazole Dicarboxylate and Oxalate:Synthesis, Structures, and Properties[J]. J Coord Chem, 2012,65(10):1724-1739. doi: 10.1080/00958972.2012.680590
7. [7]
  Feng X, Zhao J S, Liu B. A Series of Lanthanide-Organic Frameworks Based on 2-Propyl-1H-imidazole-4, 5-dicarboxylate and Oxalate:Syntheses, Structures, Luminescence, and Magnetic Properties[J]. Cryst Grown Des, 2010,10(3):1399-1408. doi: 10.1021/cg901391y
8. [8]
  Feng X, Sun Y L, Li R F. Two Novel Europium Coordination Polymers Based on Fluorine Substituted and Similar Carboxylate Ligands:Syntheses, Structures and Luminescence[J]. Inorg Chem Commun, 2016,73:190-195. doi: 10.1016/j.inoche.2016.10.003
9. [9]
  Feng X, Ma L F, Liu L. A Series of Heterometallic Three-Dimensional Frameworks Constructed from Imidazole-Dicarboxylate:Structures, Luminescence, and Magnetic Properties[J]. Cryst Grown Des, 2013,13(10):4469-4479. doi: 10.1021/cg4009587
10. [10]
  Zhang L Y, Lu L P, Zhu M L. Self-assembly of Lanthanide(Ⅲ) Coordination Polymers from A Bifunctional 2-(Pyridin-2-Yl)-1H-imidazole-4, 5-Dicarboxylate Ligand with the Assistance of Oxalate:Syntheses, Structures, Luminescence, and Magnetic Properties[J]. CrystEngComm, 2017,19(14):1953-1964. doi: 10.1039/C7CE00149E
11. [11]
  Cai S L, Zheng S R, Wen Z Z. Two Types of New Three-Dimensional d-f Heterometallic Coordination Polymers Based on 2-(Pyridin-3-yl)-1H-imidazole-4, 5-Dicarboxylate and Oxalate Ligands:Syntheses, Structures, Luminescence, and Magnetic Properties[J]. Cryst Grown Des, 2012,12(9):4441-4449. doi: 10.1021/cg300613t
12. [12]
  Li X, Wu B L, Niu C Y. Syntheses of Metal-2-(Pyridin-4-yl)-1H-imidazole-4, 5-dicarboxylate Networks with Topological Diversity:Gas Adsorption, Thermal Stability and Fluorescent Emission Properties[J]. Cryst Grown Des, 2009,9(8):3423-3431. doi: 10.1021/cg801321e
13. [13]
  Shi B B, Zhu Y C, Guo L L. Two Dimethylphenyl Imidazole Dicarboxylatebased Lanthanide Metal-Organic Frameworks for Luminescence Sensing of Benzaldehyde[J]. Dalton Trans, 2015,44:4362-4369. doi: 10.1039/C4DT03326D
14. [14]
  HUANG Qiuying, LIN Xiaoyi, WANG Yong. Synthesis, Synthesis, Structure and Molecule Recognition Properties of a New Wave Shaped Chain Cadmium Complex[J]. Chinese J Appl Chem, 2017,34(9):1093-1098. doi: 10.11944/j.issn.1000-0518.2017.09.170060
15. [15]
  Sheldrick G M. SHELX-97, Program for the Solution and Refinement of Crystal Structures[M]. Germany, University of Göttingen, 1997.
16. [16]
  Li Z F, Luo X B, Gao Y C. Four Cadmium(Ⅱ) Polymeric Frameworks Constructed by 2-Methyl or 2-Ethylimidazole Dicarboxylates[J]. Inorg Chim Acta, 2012,384:352-362. doi: 10.1016/j.ica.2011.12.027
17. [17]
  Huang Q Y, Zhao Y, Fu L. A 3D Europium-Organic-Framework from Phenyl Imidazole Dicarboxylate Showing High Sensitivity in Detection of Nitrobenzene[J]. Russ J Coord Chem, 2017,43(9):604-611. doi: 10.1134/S1070328417090032
