Citation: LI Liangui, FU Zhipeng, LI Mingchao, ZHANG Qiang, WANG Rui, WANG Guoqiang, JIANG Min. Synthesis and Characterization of Polyethylene Terephthalate-b-poly(ethylene 2,5-furandicarboxylate) Block Polyester[J]. Chinese Journal of Applied Chemistry, ;2017, 34(1): 54-59. doi: 10.11944/j.issn.1000-0518.2017.01.160093 shu

Synthesis and Characterization of Polyethylene Terephthalate-b-poly(ethylene 2,5-furandicarboxylate) Block Polyester

LI Liangui ^a ,
FU Zhipeng ^a,b ,
LI Mingchao ^c ,
ZHANG Qiang ^b ,
WANG Rui ^b ,
WANG Guoqiang ^b ,
JIANG Min ^b,*,,

a.
College of Chemistry and Life Sciences, Changchun University of Technology, Changchun 130012, China
b.
Key Laboratory of Polymer Ecomaterials, Changchun Institute of Applied Chemistry, Chinese Academy of Science, Changchun 130022, China
c.
Carbide Factory of Jilin Petrochemical Co. Ltd, Petro. China, Jilin, Jilin 132022, China

Corresponding author: JIANG Min, jiangmin@ciac.ac.cn
Received Date: 7 March 2016
Revised Date: 5 May 2016
Accepted Date: 8 June 2016

Fund Project: Suported by the National Natural Science Foundation of China No. 51103152

Figures(5)

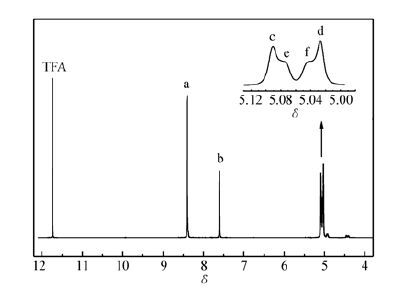

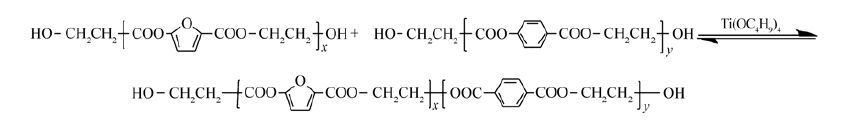

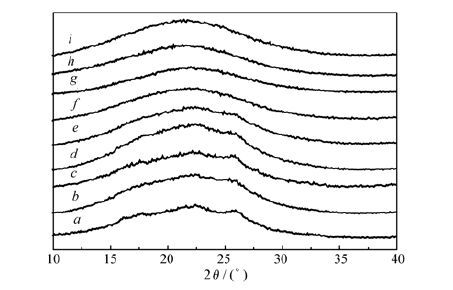

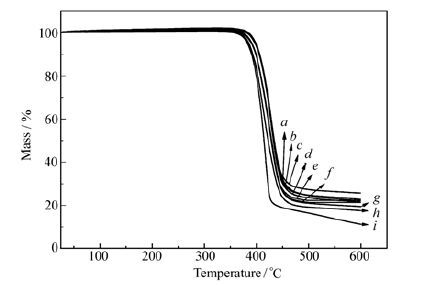

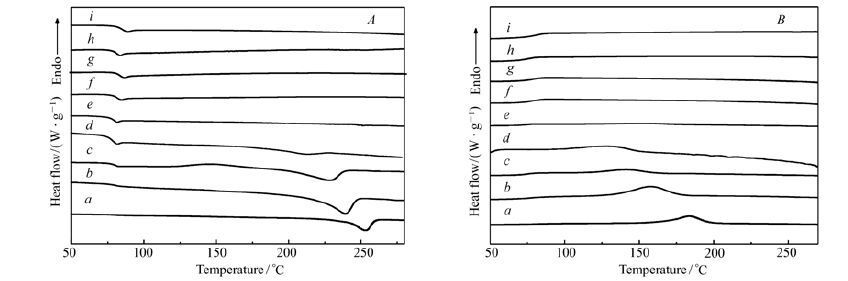

Poly(ethylene 2,5-furandicarboxylate)(PEF) was synthesized based on 2,5-furanicarboxylica acid and ethylene glycol. Polyethylene terephthalate-b-poly(ethylene 2,5-furandicarboxylate)(PET-b-PEF) block copolymers were prepared by melt transesterification method. PET was partly replaced by PEF polyester. The properties of PET-b-PEF block copolymers were characterized by nuclear magnetic resonance spectormeter(NMR), differential scanning calorimeter(DSC), thermo gravimetric analysis(TGA) and X-ray diffraction(XRD). The results show that the glass transition temperature(T_g) of copolyesters is about 75.8~80.3℃. The T_g of the PET-b-PEF block copolyesters first decreases and then increases; the crystallinity and the melting temperature decrease with the increasing contents of PEF segments, moreover, there is no crystalline diffraction peaks for the copolyesters when the chain segment content of PEF is higher than 15%. The initial decomposition temperature of this series of copolyesters is about 392.2~407.9℃. PEF has excellent thermal properties similar to that of PET(403.3℃). In addition, the thermal stability of the copolyesters is better than that of PET, when the chain segment contents of PEF in the coplyester is less than 15%, and the initial decomposition temperature of PET-b-PEF block copolymers is close to that of PET.
- poly(ethylene terephthalate),
- poly(ethylene furandicarboxylate),
- block copolymer
1. [1]
  Williams C K, Hillmyer M A. Polymers from Renewable Resources:A Perspective for a Special Issue of Polymer Rviews[J]. Polym Rev, 2008,48(1):1-10. doi: 10.1080/15583720701834133
2. [2]
  Nikolau B J, Perera M A D N, Brachova L. Platform Biochemicals for a Biorenewable Chemical Industry[J]. Plant J, 2008,54(1):536-545.
3. [3]
  Belgacem M N,Gandini A. Monomers Polymers and Composites from Renewable Resources[M]. Amsterdam:Elsevier Science,2008:3-15.
4. [4]
  Bozell J J, Patel M K. Feedstocks for the Future-biorefinery Production of Chemicals from Renewable Carbon[J]. Clean-Soil Air Water, 2008,36(8):641-647. doi: 10.1002/clen.v36:8
5. [5]
  Taarning E, Nielsen I S, Egelblad K. Chemicals from Renewables:Aerobic Oxidation of Furfural and Hydroxymethylfurfural over Gold Catalysts[J]. Chem Sus Chem, 2008,1(1/2):75-78.
6. [6]
  Zhao H, Holladay J E, Brown H. Metal Chlorides in Ionic Liquid Solvents Convert Sugars to 5-Hydroxymethylfurfural[J]. Science, 2007,316(5831):1597-1600. doi: 10.1126/science.1141199
7. [7]
  LU Yan, WU Siyu, MA Baiqing. Synthesis and Properties of Polyesters Containing Schiff Base Side Groups and Their Zinc Complexes[J]. Chinese J Appl Chem, 2016,33(4):452-458.
8. [8]
  Silvia B R, Cristina T, Judit M J. Effect of Thermal, Acid, Alkaline and Alkaline-Peroxide Pretreatments on the Biochemical Methane Potential and Kinetics of the Anaerobic Digestion of Wheat Straw and Sugarcane Bagasse[J]. Bioresour Technol, 2016,201:182-190. doi: 10.1016/j.biortech.2015.11.047
9. [9]
  Gandini A, Silvester A J D, Neto C P. The Furan Counterpart of Poly(ethylene terephthalate):An Alternative Material Based on Renewable Resources[J]. J Polym Sci Part A:Polym Chem, 2009,47(1):295-298. doi: 10.1002/pola.v47:1
10. [10]
  Vilela C, Sousa A F, Fonseca A C. The Quest for Sustainable Polyesters-insights into the Future[J]. Polym Chem, 2014,5(9):3119-3141. doi: 10.1039/C3PY01213A
11. [11]
  Jiang M, Liu Q, Zhang Q. A Series of Furan-aromatic Polyesters Synthesized via Direct Esterification Method Based on Renewable Resources[J]. J Polym Sci Part A:Polym Chem, 2012,50(5):1026-1036. doi: 10.1002/pola.v50.5
12. [12]
  Jiang Min, Liu Qian, Zhang Qiang. Synthesis and Characteration of Poly(ethylene 2,5-furandicarboxylate)[J]. Acta Polym Sin, 2013(1):24-29.
13. [13]
  Jiang Min, LU Tingting, JIANG Guowei. Synthesis and Characteration of Poly(ethylene terephthalate-co-ethylene 2,5-furandicarboxylate)[J]. Acta Polym Sin, 2013(8):1092-1098.
14. [14]
  CHEN Ying, JIANG Min, SUN Changjiang. Preparation and Characterization of Poly(ethylene 2,5-furandicarboxylate)/Poly(butylene succinate) Blends[J]. Chinese J Appl Chem, 2015,32(9):1022-1027.
15. [15]
  LIU Qian, JIANG Min, ZHOU Guangyuan. Synthesis of Poly(ethylene 2,5-furandicarboxylate) via Direct Esterification Method[J]. Chinese J Appl Chem, 2012,29(7):751-756.
16. [16]
  Tomita K, Lda H. Studies on the Formation of Poly-(ethylene terephthalate):2 Rate of Transesterification of Dimethyl Terephthalate with Ethylene Glycol[J]. Polymer, 1973,14(2):55-60. doi: 10.1016/0032-3861(73)90096-7
17. [17]
  Jedlinski Z, Sek D, Dziewiecka B. Investigations of Aromatic Polyesters with Poly-naphthalene Systems in Main Chain 6 NMR-studies of Structure of Aromatic Copolyesters[J]. Eur Polym J, 1977,13(11):871-874. doi: 10.1016/0014-3057(77)90058-1
