Citation: CHANG Yu, XIE Wenbing, ZHOU Shihong, LI Junling, LIU Baofeng, PAN Lihua. Synthesis and Spectroscopic Properties of a Cryptate Rare Earth Fluorescence Complex[J]. Chinese Journal of Applied Chemistry, ;2017, 34(3): 361-366. doi: 10.11944/j.issn.1000-0518.2016.03.160232 shu

Synthesis and Spectroscopic Properties of a Cryptate Rare Earth Fluorescence Complex

Laboratory of Polymer Composites Engineering, Changchun Institute of Applied Chemistry Chinese Academy of Sciences, Changchun 130022, China

Corresponding author: PAN Lihua, lihuap@ciac.ac.cn
Received Date: 2 June 2016
Revised Date: 14 July 2016
Accepted Date: 25 August 2016

Fund Project: Supported by the Science and Technology Development Project of Jilin Province of China No.20150204010YY

Figures(8)

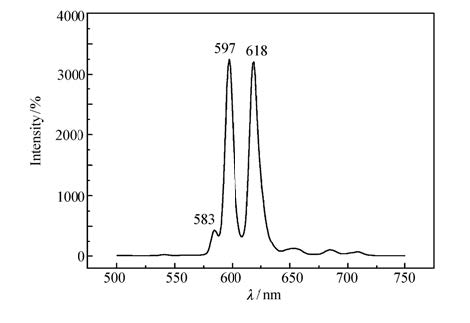

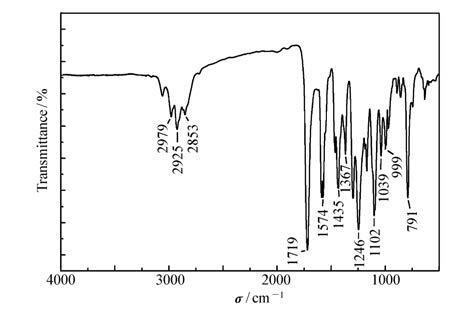

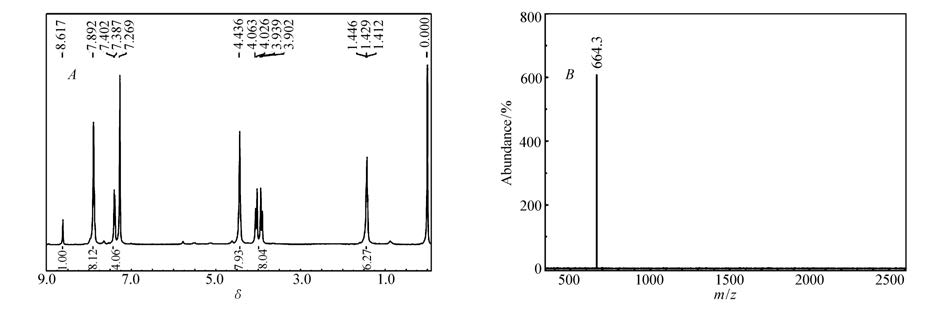

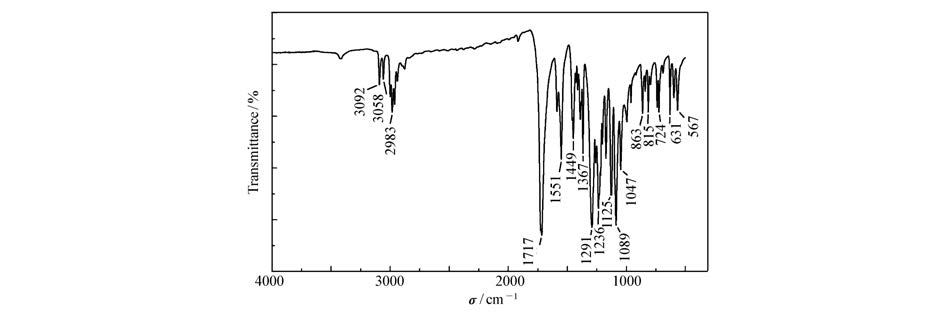

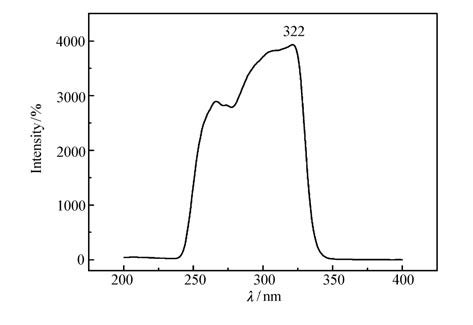

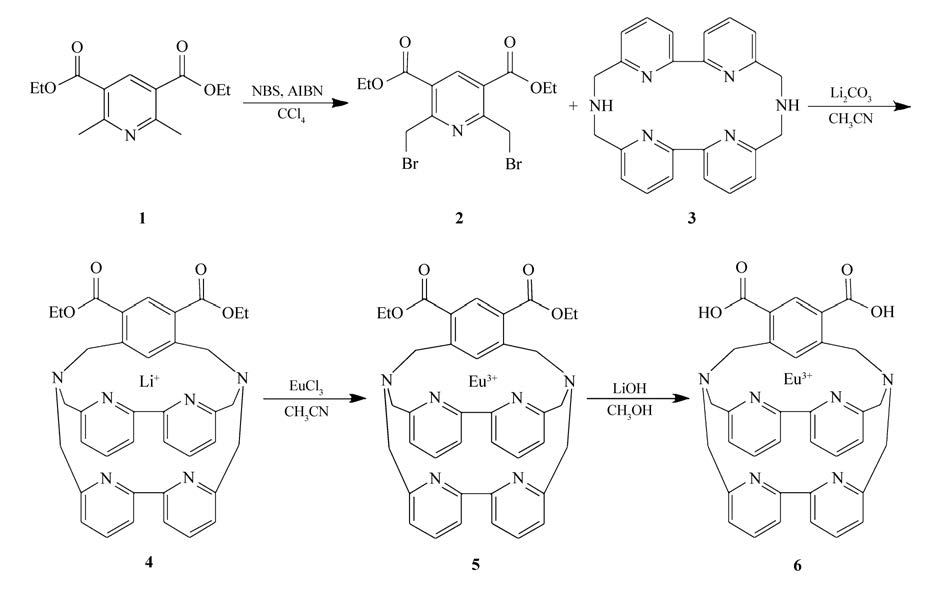

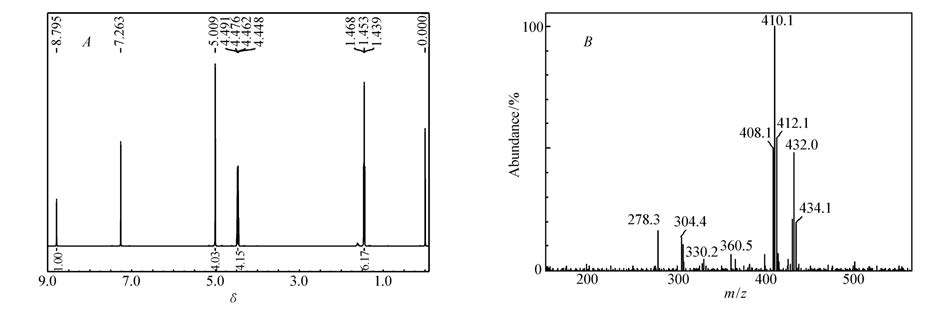

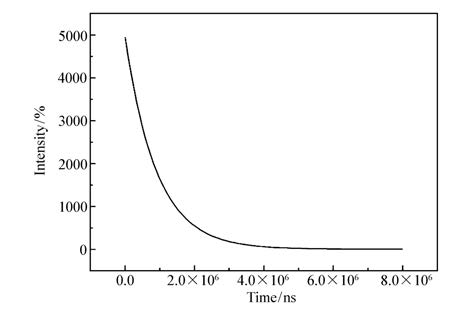

A bifuntional cryptate chelate 2, 6-{N, N', N, N'-[bis (2, 2'-bipyridine-6, 6'-dimethyl)]bis (aminomethyl)}-pyridine-3, 5-diethyl diester for homogeneous time-resolved fluorimmunoassay product was synthesized from the raw material diethyl 2, 6-dimethylpyridine-3, 5-dicarboxylate through N-bromobutanimide (NBS) bromination, electrophilic substitution. The structure and property were confirmed by differential thermal analysis (DTA) Fourier transform infrared spectroscopy (FTIR), proton nuclear magnetic resonance spectroscopy (¹H NMR) and mass spectrometry (MS). Also, the spectral properties of the Eu (Ⅲ)-cryptate chelate, such as absorption spectra, emission spectra, and fluorescence lifetime, were discussed. The fluorescence spectroscopic properties of Eu (Ⅲ)-cryptate are as follows:the excitation peak is at 322 nm, the narrow emission spectrum peaks are at 597 nm (⁵D₀-⁷F₁) and 618 nm (⁵D₀-⁷F₂), respectively, the Stokes shift is 290 nm, the fluorescence lifetime is 918 μs, and the fluorescence quantum yield is Φ=0.249.
- homogeneous time-resolved fluorescence immunoassay,
- chelate,
- synthesis,
- cryptate bipyridine derivative
1. [1]
  Kuo J E, Milby K H, Hinsberg W D. Direct Measurement of Antigens in Serum by Time-resolved Fluoroimmunoassay[J]. Clin Chem, 1985,31(1):50-53.
2. [2]
  Diamandis E P. Immunoassays with Time-resolved Fluorescence Spectroscopy:Principles and Applications[J]. Clin Biochem, 1988,21(2):139-150. doi: 10.1016/S0009-9120(88)80104-8
3. [3]
  NIU Qianqian, PAN Lihua, LI Zhen. Preparation of 2, 6-Dibromo-4-aminopyridine[J]. J Mol Sci, 2006,22(6):401-404.
4. [4]
  Jiang L, Wu J, Wang G L. Development of a Visible-light-sensitized Europium Complex for Time-resolved Fluorometric Application[J]. Anal Chem, 2010,82(6):2529-2535. doi: 10.1021/ac100021m
5. [5]
  Bazin H, Preaudat M, Trinquet E. Homogeneous Time Resolved Fluorescence Resonance Energy Transfer Using Rare Earth Cryptates as a Tool for Probing Molecular Interactions in Biology[J]. Spectrochim Acta A, 2001,57(11):2197-2211. doi: 10.1016/S1386-1425(01)00493-0
6. [6]
  Smeulders L, Bunkens L, Vereycken I. A Homogeneous Time-resolved Fluorescence Assay to Identify Inhibitors of HIV-1 Fusion[J]. Methods Mol Biol, 2013,1030(6):11-17.
7. [7]
  Degorce F, Card A, Soh S. HTRF:A Technology Tailored for Drug Discovery-A Review of Theoretical Aspects and Recent Applications[J]. Curr Chem Genomics, 2009,3(1):22-32. doi: 10.2174/1875397300903010022
8. [8]
  Rossant C J, Mattews C, Neal F. Versatility of Homogeneous Time-resolved Fluorescence Resonance Energy Transfer Assays for Biologics Drug Discovery[J]. J Biomol Screen, 2015,20(4):508-518. doi: 10.1177/1087057114557464
9. [9]
  Moore E G, Samuel A P S, Raymond K N. From Antenna to Assay:Lessons Learned in Lanthanide Luminescence[J]. Acc Chem Res, 2009,42(4):542-552. doi: 10.1021/ar800211j
10. [10]
  Havas F, Leygue N, Danel M. 6, 6'-Dimethyl-2, 2'-bipyridine-4-ester:A Pivotal Synthon for Building Tethered Bipyridine Ligands[J]. Tetrahedron, 2009,65(36):7673-7686. doi: 10.1016/j.tet.2009.06.111
11. [11]
  Shi L F, Li Y W, Cao H R. Synthesis of Novel Europium Complexes and Their Photoluminescence Properties[J]. J Rare Earths, 2012,30(1):17-20. doi: 10.1016/S1002-0721(10)60630-8
12. [12]
  CAO Xijie, XIE Wenbing, PAN Lihua. Synthesis and Characterization of 4, 4'-Di (p-aminophenylethynyl)-6, 6'-bis[N, N-bis (ethoxycarbonylmethyl) amino methyl]-2, 2'-bipyridine[J]. Chem J Chinese Univ, 2012,33(7):1462-1465.
13. [13]
  XIE Wenbing, CHANG Yu, ZHANG Yongli. Synthesis and Characterization of Rare Earth Fluorescent Compound for Biomolecules-labeling[J]. Chinese J Anal Chem, 2013,41(11):1749-1753.
14. [14]
  Yang X Y, Dang D D, Zhu W. Synthesis and Characterization of 4, 4'-Di (p-aminophenylethynyl)-6, 6'-bis (N, N-bis (t-butoxycarbonylmethyl) amino methyl)-2, 2'-bipyridine[J]. Asian J Chem, 2014,26(8):2256-2258.
