Citation: Wenjing SHI, Chunxiang ZHANG, Shuqin LIU, Jianjun ZHANG. Syntheses, structures, and doping-modulated afterglow properties of ZnSO4-based hybrid materials[J]. Chinese Journal of Inorganic Chemistry, ;2026, 42(7): 1534-1542. doi: 10.11862/CJIC.20260079 shu

Syntheses, structures, and doping-modulated afterglow properties of ZnSO4-based hybrid materials

  • School of Chemistry, Dalian University of Technology, Dalian, Liaoning 116024, China

Figures(5)

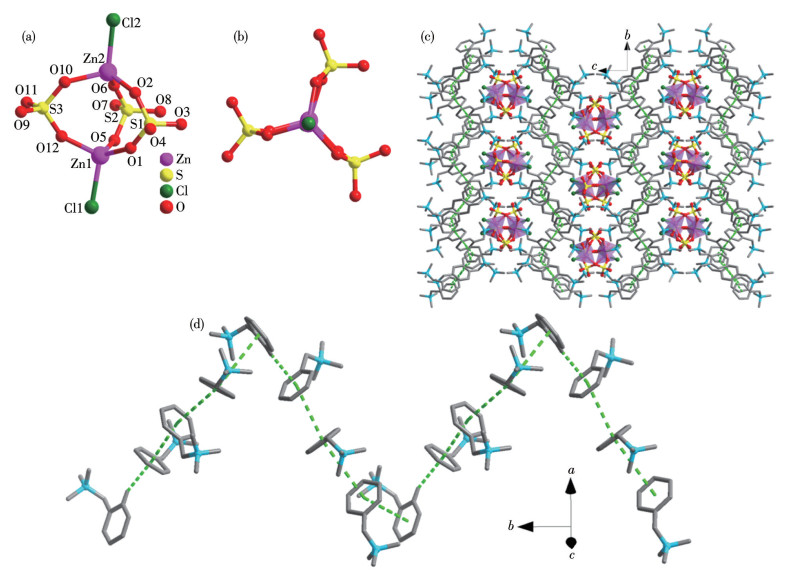

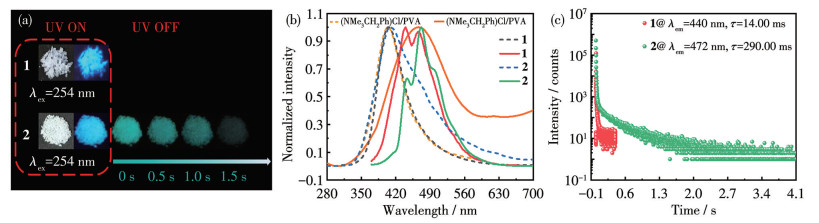

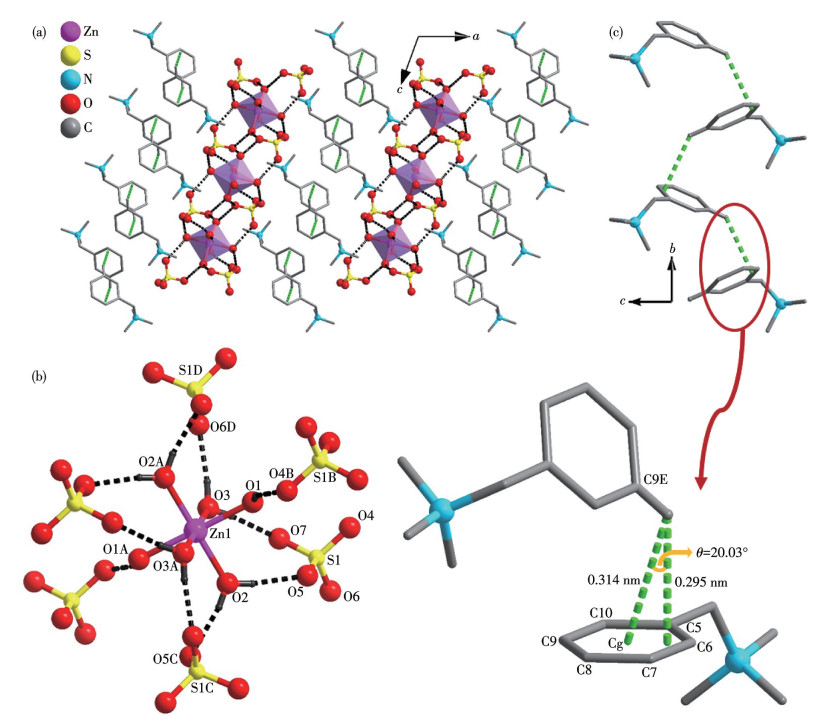

  • Two zero-dimensional inorganic-organic hybrids, (NMe3CH2Ph)2[Zn(H2O)6](SO4)2 (1) and (NMe3CH2Ph)4[Zn2Cl2(SO4)3] (2), were assembled from ZnSO4 and trimethylbenzylammonium chloride. Both feature an inorganic-organic sandwich structure with organic layers formed via aromatic stacking. 1 contains a {[Zn(H2O)6](SO4)2}2- hydrogen-bonded network, while 2 consists of binuclear zinc clusters. Both exhibited room-temperature phosphorescence. 1 showed a lifetime of 14.00 ms (invisible), whereas 2 displayed a lifetime of 290.00 ms with visible green afterglow. Furthermore, a series of host-guest doped afterglow materials was developed using compound 1 as the host matrix. Tuning the guest molecules enabled afterglow tuning from cyan to orange-yellow, with lifetimes enhanced up to about 65-fold versus the pristine host. Furthermore, the application of the doped systems in advanced anti-counterfeiting was preliminarily explored.
  • 加载中
    1. [1]

      SHI H F, YAO W, YE W P, MA H L, HUANG W, AN Z F. Ultralong organic phosphorescence: From material design to applications[J]. Accounts Chem. Res., 2022, 55(23): 3445-3459  doi: 10.1021/acs.accounts.2c00514

    2. [2]

      WANG H Y, LIU S Q, FENG K X, ZHANG J J. Afterglow stimulation response behaviors of a benzimidazole derivative based on crystalline-to-crystalline transition[J]. Chinese J. Inorg. Chem., 2023, 39(8): 1571-1578

    3. [3]

      QU W B, TIAN R W, YANG B, GUO T Y, WU Z, LI Y, GENG Z R, WANG Z L. Dual-channel/localization single-molecule fluorescence probe for monitoring ATP and HOCl in early diagnosis and therapy of rheumatoid arthritis[J]. Anal. Chem., 2024, 96(14): 5428-5436  doi: 10.1021/acs.analchem.3c05342

    4. [4]

      CHEN Y K, FENG K X, ZHANG B L, SONG W T, ZHANG J J. Syntheses, crystal structures and diametrically opposed mechanically-stimulated luminescence response of two Mg(Ⅱ) metal-organic frameworks[J]. Chinese J. Inorg. Chem., 2025, 41(6): 1227-1234

    5. [5]

      CHEN X Y, FENG X, ZHANG Z X, DENG X R, DAI F, ZHANG L L, NG S W. Multifunctional lanthanide metal-organic frameworks based on —NH2 modified ligand: Fluorescent ratio probe, CrO42- ions adsorption, and photocatalytic property[J]. Inorg. Chem., 2023, 62(39): 16170-16181  doi: 10.1021/acs.inorgchem.3c02448

    6. [6]

      CUI S, ZHAO Z Q, WU Z, CHEN J Y, LIU S Y, HU Z P, ZHOU T, LI X L. A 1H-imidazo[4, 5-f][1, 10]phenanthroline based ligand and its binuclear Cu(Ⅰ) complexes: Syntheses, structures and luminescence sensing for Cr2O72- and MnO4-[J]. Polyhedron, 2024, 263: 117210  doi: 10.1016/j.poly.2024.117210

    7. [7]

      CHEN T H, MA Y J, YAN D P. Single-component 0D metal-organic halides with color-variable long-afterglow toward multi-level information security and white-light LED[J]. Adv. Funct. Mater., 2023, 33(18): 2214962  doi: 10.1002/adfm.202214962

    8. [8]

      WANG T, ZHANG P P, LIU S Q, WANG R H, ZHANG J J. A Bi-CP-based solid-state thin-film sensor: Preparation and luminescence sensing for bioamine vapors[J]. Chinese J. Inorg. Chem., 2024, 40(8): 1615-1621

    9. [9]

      FU P Y, LI B N, ZHANG Q S, MO J T, WANG S C, PAN M, SU C Y. Thermally activated fluorescence vs long persistent luminescence in ESIPT-attributed coordination polymer[J]. J. Am. Chem. Soc., 2022, 144(6): 2726-2734  doi: 10.1021/jacs.1c11874

    10. [10]

      ZHOU B, YAN D P. Long persistent luminescence from metal-organic Compounds: State of the art[J]. Adv. Funct. Mater., 2023, 33(19): 2300735  doi: 10.1002/adfm.202300735

    11. [11]

      LIN J, GUO D W, TIAN Y Q. Synthesis and structural characterization of open-framework copper(Ⅱ) sulfates[J]. Cryst. Growth Des., 2008, 8(12): 4571-4575  doi: 10.1021/cg8006316

    12. [12]

      CHOUDHURY A, KRISHNAMOORTHY J, RAO C N R. An approach to the synthesis of organically templated open-framework metal sulfates by the amine-sulfate route[J]. Chem. Commun., 2001, 24: 2610-2611

    13. [13]

      MIAO L, ZHANG B L, SONG W T, CHEN J, SHI W J, WANG R H, LIU S Q, LI Y J, ZHANG J J. Zinc sulfate open-frameworks with nonconventional room-temperature phosphorescence for selective amine vapor detection[J]. Inorg. Chem., 2025, 64(14): 7214-7223  doi: 10.1021/acs.inorgchem.5c00917

    14. [14]

      SHELDRICK G M. SHELXT-integrated space-group and crystal-structure determination[J]. Acta Crystallogr. Sect. A, 2015, A71: 3-8

    15. [15]

      NAKAMOTO K. Infrared and Raman spectra of inorganic and coordination compounds[M]. Translated by HUANG D R, WANG R Q. Beijing: Chemical Industry Press, 1991: 276-279

    16. [16]

      ZHANG W Q, SONG W T, CHEN J, SHI W J, WANG R H, LI Y J, LIANG J Y, ZHANG J J. Afterglow properties of zinc sulfate open frameworks: Nonconventional chromophore induction and doping modulation[J]. Inorg. Chem., 2026, 65(1): 881-891  doi: 10.1021/acs.inorgchem.5c05229
