Citation: Ping LI, Geng TAN, Xin HUANG, Fuxing SUN, Jiangtao JIA, Guangshan ZHU, Jia LIU, Jiyang LI. Green synthesis of metal-organic frameworks with open metal sites for efficient ammonia capture[J]. Chinese Journal of Inorganic Chemistry, ;2025, 41(10): 2063-2068. doi: 10.11862/CJIC.20250020 shu

Green synthesis of metal-organic frameworks with open metal sites for efficient ammonia capture

Ping LI ¹ ,
Geng TAN ² ,
Xin HUANG ² ,
Fuxing SUN ¹ ,
Jiangtao JIA ^2,, ,
Guangshan ZHU ² ,
Jia LIU ^1,, ,
Jiyang LI ¹

1.
College of Chemistry, Jilin University, Changchun 130012, China
2.
Faculty of Chemistry, Northeast Normal University, Changchun 130024, China

Corresponding author: Jiangtao JIA, jiangtaojia@nenu.edu.cn Jia LIU, jia@jlu.edu.cn
Received Date: 17 January 2025
Revised Date: 3 April 2025

Figures(4)

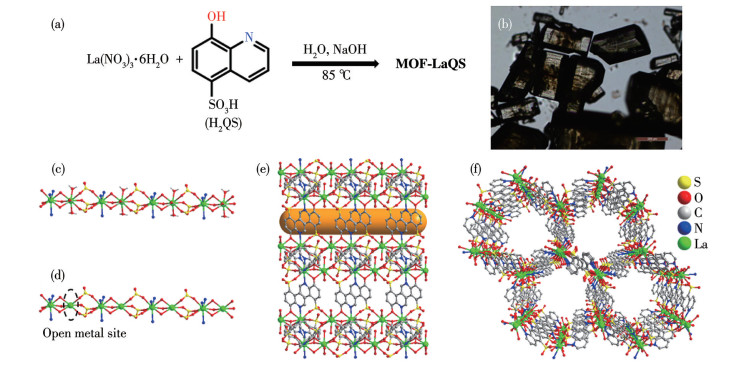

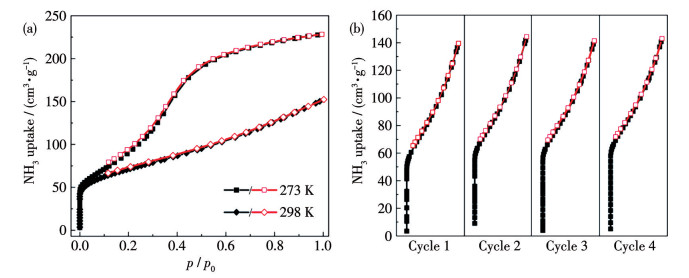

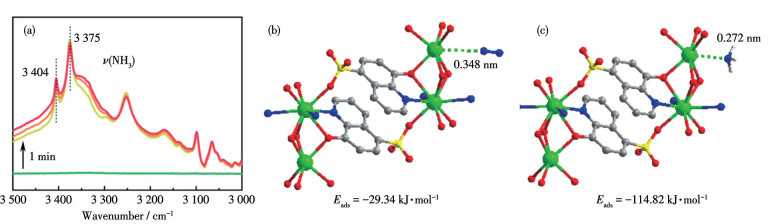

Ammonia, a toxic gas, poses significant risks to human health and the environment. Developing cost- effective and eco-friendly adsorbents for ammonia capture is crucial. In this study, a La³⁺-based metal-organic framework {[La₄(QS)₆(H₂O)₆]·18H₂O}_n (MOF-LaQS) was synthesized via a simple low-temperature hydrothermal method using inexpensive 8-hydroxyquinoline-5-sulfonic acid (H₂QS) as organic ligand. The material exhibited structural stability, low synthesis costs, and exceptional ammonia adsorption capacities of 228 cm³·g^-1 (10.2 mmol·g^-1) at 273 K (101 kPa) and 48 cm³·g^-1 (2.14 mmol·g^-1) at ultra-low pressure (0.101 kPa). In situ infrared spectroscopy and DFT calculations revealed that open La³⁺ sites are key to its ammonia adsorption, thereby elucidating the mechanism underlying its high ammonia uptake.
- ammonia capture,
- metal organic framework,
- open metal site,
- hydrothermal synthesis
1. [1]
  LU H, TAN X H, WU S R, ZHOU Y M, HUANG G B, ZHANG J Y, ZHENG Q W, CAI Z XI, LI F M, ZHANG M S. Preparation of polymethyl methacrylate-coated (CH₃NH₃)PbBr₃ nanocrystalline electrospinning film and fluorescence sensing of ammonia. Chinese J. Inorg. Chem. [J], 2023, 39(9): 1757-1765
2. [2]
  ZENG X D, LI J N, HE M, LU W P, CRAWSHAW D, GUO L X, MA Y J, KIPPAX-JONES M, CHENG Y Q, MANUEL P, RUDIC S, FROGLEY M D, SCHRÖDER M, YANG S H. High adsorption of ammonia in a titanium-based metal-organic framework[J]. Chem. Commun., 2024, 60: 5912-5915 doi: 10.1039/D4CC01449A
3. [3]
  KANG D W, JU S E, KIM D W, KANG M, KIM H, HONG C S. Emerging porous materials and their composites for NH₃ gas removal[J]. Adv. Sci., 2020, 7: 2002142 doi: 10.1002/advs.202002142
4. [4]
  RIETH A J, WRIGHT A M, DINCA M. Kinetic stability of metal- organic frameworks for corrosive and coordinating gas capture[J]. Nat. Rev. Mater., 2019, 4: 708-725 doi: 10.1038/s41578-019-0140-1
5. [5]
  WOELLNER M, HAUSDORF S, KLEIN N, MUELLER P, SMITH M W, KASKEL S. Adsorption and detection of hazardous trace gases by metal-organic frameworks[J]. Adv. Mater., 2018, 30: 1704679 doi: 10.1002/adma.201704679
6. [6]
  WARNER J X, DICKERSON R R, WEI Z, STROW L L, WANG Y, LIANG Q. Increased atmospheric ammonia over the world′s major agricultural areas detected from space[J]. Geophys. Res. Lett., 2017, 44: 2875-2884 doi: 10.1002/2016GL072305
7. [7]
  HAN X, YANG S H, SCHRODER M J. Metal-organic framework materials for production and distribution of ammonia[J]. J. Am. Chem. Soc., 2023, 145: 1998-2012
8. [8]
  RIETH A J, TULCHINSKY Y, DINCA M. High and reversible ammonia uptake in mesoporous azolate metal-organic frameworks with open Mn, Co, and Ni sites[J]. J. Am. Chem. Soc., 2016, 138: 9401-9404 doi: 10.1021/jacs.6b05723
9. [9]
  RIETH A J, DINCA M. Controlled gas uptake in metal-organic frameworks with record ammonia sorption[J]. J. Am. Chem. Soc., 2018, 140: 3461-3466 doi: 10.1021/jacs.8b00313
10. [10]
  KIM D W, KANG D W, KANG M, LEE J H, CHOE J H, CHAE Y S, CHOI D S, YUN H, HONG C S. High ammonia uptake of a metal- organic framework adsorbent in a wide pressure range[J]. Angew. Chem. ‒Int. Edit., 2020, 59: 22531-22536
11. [11]
  KIM D W, KANG D W, KANG M, CHOI D S, YUN H, KIM S Y, LEE S M, LEE J H, HONG C S. High gravimetric and volumetric ammonia capacities in robust metal-organic frameworks prepared via double postsynthetic modification[J]. J. Am. Chem. Soc., 2022, 144: 9672-9683
12. [12]
  ZHAO X, SUN L, ZHAI Z X, TIAN D, WANG Y, ZOU X Q, MIN C G, ZHUANG C F. An ultrastable La-MOF for catalytic hydrogen transfer of furfural: In situ activation of the surface[J]. Nanoscale, 2023, 15: 6645-6654
13. [13]
  HÜBSCHLE C B, SHELDRICK G M, DITTRICH B. ShelXle: A Qt graphical user interface for SHELXL[J]. J. Appl. Crystallogr., 2011, 44: 1281-1284
14. [14]
  KRESSE G, FURTHMULLER J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set[J]. Comput. Mater. Sci., 1996, 6: 15-50 doi: 10.1016/0927-0256(96)00008-0
15. [15]
  BLOCHL P E. Projector augmented-wave method[J]. Phys. Rev. B, 1994, 50: 17953-17979 doi: 10.1103/PhysRevB.50.17953
16. [16]
  PERDEW J P, CHEVARY J A, VOSKO S H, JACKSON K A, PEDERSON M R, SINGH D J, FIOLHAIS C. Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation[J]. Phys. Rev. B, 1992, 46: 6671-6687 doi: 10.1103/PhysRevB.46.6671
