Citation: Yuting DU, Jing YUAN, Peiyao DENG. Synthesis and application of a fluorescent probe for the detection of reduced glutathione[J]. Chinese Journal of Inorganic Chemistry, ;2025, 41(7): 1331-1337. doi: 10.11862/CJIC.20240461 shu

Synthesis and application of a fluorescent probe for the detection of reduced glutathione

Department of Chemistry, Xinzhou Normal University, Xinzhou, Shanxi 034000, China

Corresponding author: Yuting DU, yutingdu123@163.com
Received Date: 27 December 2024
Revised Date: 10 April 2025

Figures(7)

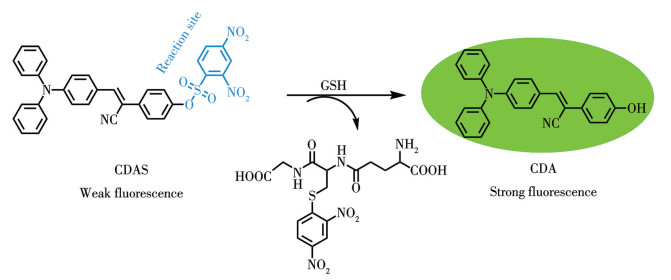

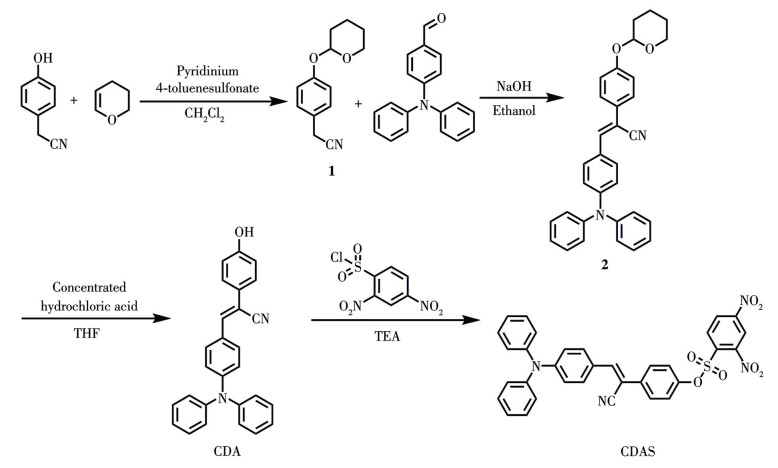

In this study, a fluorescent probe, CDAS, was synthesized to detect reduced glutathione (GSH). CDAS was designed by incorporating triphenylamine as an electron-donating group and a 2, 4-dinitrobenzenesulfonyl moiety as an electron-withdrawing group, with the response mechanism based on intramolecular charge transfer (ICT). These components were linked through Knoevenagel condensation. The probe exhibited no fluorescence; however, upon interaction with GSH, a nucleophilic substitution reaction occurred between GSH and probe CDAS, significantly enhancing fluorescent intensity at 561 nm. In a mixture of phosphate-buffered saline (PBS) and acetonitrile (1∶1, V/V, 10 mmol·L^-1, pH=7.4), CDAS demonstrated a low detection limit of 7.70 μmol·L^-1, high selectivity for GSH, and a large Stokes shift of 179 nm. Notably, CDAS can be effectively utilized to detect GSH in human cervical cancer cells (HeLa cells) via fluorescent cell imaging.
- triphenylamine,
- intramolecular charge transfer,
- fluorescent probe,
- reduced glutathione,
- cell imaging
1. [1]
  ARMSTRONG J S, STEINAUER K K, HORNUNG B, IRISH J M, LECANE P, BIRRELL G W, PEEHL D M, KNOX S J. Role of glutathione depletion and reactive oxygen species generation in apoptotic signaling in a human B lymphoma cell line[J]. Cell Death Differ., 2002, 9: 252-263 doi: 10.1038/sj.cdd.4400959
2. [2]
  HARRIS I S, TRELOAR A E, INOUE S, SASAKI G C, LEE K C, YUNG K Y, BRENNER D, KNOBBE-THOMSEN C B, COX M A, ELIA. BERGER T, CESCON D W, ADEOYE A, BRUSTLE A, MOLYNEUX S D, MASON J M, LI W Y, YAMAMOTO K, WAKEHAM A, BERMAN H K, KHOKHA R, DONE S J, KAVANAGH T J, LAM C W, MAK T W. Glutathione and thioredoxin antioxidant pathways synergize to drive cancer initiation and progression[J]. Cancer Cell, 2015, 27: 211-222 doi: 10.1016/j.ccell.2014.11.019
3. [3]
  WATANABE T, SAGISAKA H, ARAKAWA S, SHIBAYA Y, WATANABE M, IGARASHI I, TANAKA K, TOTSUKA S, TAKASAKI W, MANABE S. A novel model of continuous depletion of glutathione in mice treated with L-buthionine (S, R)-sulfoximine[J]. J. Toxicol. Sci., 2003, 28: 455-469 doi: 10.2131/jts.28.455
4. [4]
  TROYANO A, SANCHO P, FERNANDEZ C, DE BLAS E, BERNARDI P, ALLER P. The selection between apoptosis and necrosis is differentially regulated in hydrogen peroxide-treated and glutathione-depleted human promonocytic cells[J]. Cell Death Differ., 2003, 10: 889-898 doi: 10.1038/sj.cdd.4401249
5. [5]
  BALENDIRAN G, DABURR, FRASER D. The role of glutathione in cancer[J]. Cell Biochem. Funct., 2004, 22: 343-352 doi: 10.1002/cbf.1149
6. [6]
  ORTEGA A, MENA S, ESTRELA J. Glutathione in cancer cell death[J]. Cancers, 2011, 3(1): 1285-1310 doi: 10.3390/cancers3011285
7. [7]
  TOWNSEN D M, TEW K D, TAPIERO H. The importance of glutathione in human disease[J]. Biomed. Pharmacother., 2003, 57(3): 145-155
8. [8]
  KAMENCIC H, LYON A, PATERSON P G, JUURLINK B H. Monochlorobimane fluorometric method to measure tissue glutathione[J]. Anal. Biochem., 2000, 286(1): 35-37 doi: 10.1006/abio.2000.4765
9. [9]
  ROUSAR T, KUCERA O, LOTKOVA H. Assessment of reduced glutathione: Comparison of an optimized fluorometric assay with enzymatic recycling method[J]. Anal. Biochem., 2012, 423(2): 236-240 doi: 10.1016/j.ab.2012.01.030
10. [10]
  SENFT A P, DALTON T P, SHERTTZER H G. Determining glutathione and glutathione disulfide using the fluorescence probe o-phthalaldehyde[J]. Anal. Biochem., 2000, 280(1): 80-86 doi: 10.1006/abio.2000.4498
11. [11]
  BAO X Z, CAO X H, YUAN Y, ZHOU B, HUO C D. A water-soluble, highly sensitive and ultrafast fluorescence probe for imaging of mitochondrial hypochlorous acid[J]. Sens. Actuator B‒Chem., 2021, 344: 130210 doi: 10.1016/j.snb.2021.130210
12. [12]
  WANG Z K, WANG S, WANG B Y, SHEN J L, ZHAO L L, YU F B, HOU J T. A two-pronged detection of atherosclerosis with a dual-channel fluorescent probe for viscosity and hypochlorous acid[J]. Chem. Eng. J., 2023, 464: 142687 doi: 10.1016/j.cej.2023.142687
13. [13]
  YANG Y P, QI F J, QIAN Y P, BAO X Z, ZHANG H C, MA B, DAI F, ZHANG S X, ZHOU B. Developing push-pull hydroxylphenylpoly-enylpyridinium chromophores as ratiometric two-photon fluorescent probes for cellular and intravital imaging of mitochondrial NQO1[J]. Anal. Chem., 2021, 93(4): 2385-2393 doi: 10.1021/acs.analchem.0c04279
14. [14]
  WU Y Q, LUN W C, ZENG H, GUO X M, YANG M, LAN Q C. A facile near-infrared xanthene fluorescence probe for visualizing of hypochlorous acid in vitro and in vivo[J]. Anal. Chim. Acta, 2024, 1294: 342292 doi: 10.1016/j.aca.2024.342292
15. [15]
  XU S L, GUO F F, XU Z H, WANG W, JAMES T D. A hemicyanine-based fluorescent probe for ratiometric detection of ClO^- and turn-on detection of viscosity and its imaging application in mitochondria of living cells and zebrafish[J]. Sens. Actuator B‒Chem., 2023, 383: 133510 doi: 10.1016/j.snb.2023.133510
16. [16]
  ZHAN Z X, LEI X, DAI Y C, WANG D N, YU Q W, LV Y, LI W M. Simultaneous monitoring of HOCl and viscosity with drug-induced pyroptosis in live cells and acute lung injury[J]. Anal. Chem., 2022, 94(35): 12144-12151 doi: 10.1021/acs.analchem.2c02235
17. [17]
  YAN H M, HUO F J, YUE Y K, CHAO J B, YIN C X. Rapid reaction, slow dissociation aggregation, and synergetic multicolor emission for imaging the restriction and regulation of biosynthesis of Cys and GSH[J]. J. Am. Chem. Soc., 2020, 143(1): 318-325
18. [18]
  LONG Y, LIU J R, JU Z H, QI F J, TANG W, YAN S, DAI F, ZHANG S X, ZHOU B. Two-photon cellular and intravital imaging of hypochlorous acid by fluorescent probes that exhibit a synergistic excited-state intramolecular proton transfer-intramolecular charge transfer mechanism enabling near-infrared emission with a large Stokes shift[J]. Anal. Chem., 2024, 96(45): 18104-18112 doi: 10.1021/acs.analchem.4c04075
19. [19]
  DUAN D C, LIU J R, ZHENG Y L, CHEN H, ZHANG X Y, ZHANG Y, DAI F, ZHANG S X, ZHOU B. Cellular and intravital imaging of NAD(P)H by a red-emitting quinolinium-based fluorescent probe that features a shift of its product from mitochondria to the nucleus[J]. Anal. Chem., 2023, 95(2): 1335-1342
20. [20]
  WANG F Y, ZHOU L, ZHAO C C, WANG R, FEI Q, LUO S H, GUO Z Q, TIAN H, ZHU W H. A dual-response BODIPY-based fluorescent probe for the discrimination of glutathione from cystein and homocystein[J]. Chem. Sci., 2015, 6(4): 2584-2589 doi: 10.1039/C5SC00216H
21. [21]
  CHENG G J S, QIN J M, LI X, CAO Q Y. A naphthalimide-based fluorescent probe with mitochondria targeting for GSH sensing and cancer cell recognition[J]. Dyes Pigment., 2023, 211: 111089 doi: 10.1016/j.dyepig.2023.111089
22. [22]
  HOU X F, GUO X L, CHEN B, LIU, C H, GAO F, ZHAO J, WANG J H. Rhodamine-based fluorescent probe for highly selective detection of glutathione over cysteine and homocysteine[J]. Sens. Actuator B‒Chem., 2015, 209: 838-845 doi: 10.1016/j.snb.2014.12.009
23. [23]
  LIU C, ZHANG Y, SUN W, ZHU H, SU M, WANG X, RONG X, WANG K, YU M, SHENG W, ZHU B. A novel GSH-activable theranostic probe containing kinase inhibitor for synergistic treatment and selective imaging of tumor cells[J]. Talanta, 2023, 260: 124567 doi: 10.1016/j.talanta.2023.124567
24. [24]
  LIU J, SUN Y Q, HUO Y Y, ZHANG H X, WANG L F, ZHANG P, SONG D, SHI Y W, GUO W. Simultaneous fluorescence sensing of Cys and GSH from different emission channels[J]. J. Am. Chem. Soc., 2014, 136(2): 574-577 doi: 10.1021/ja409578w
25. [25]
  CHEN J W, JIANG X Q, ZHANG C W, MACKENZIE K, STOSSI F, PALZKILL T, WANG M C, WANG J. Reversible reaction-based fluorescent probe for real-time imaging of glutathione dynamics in mitochondria[J]. ACS Sens., 2017, 2(9): 1257-1261 doi: 10.1021/acssensors.7b00425
26. [26]
  ZHENG Y L, ZHANG H C, TIAN D H, DUAN D C, DAI F, ZHOU B. Rational design of an ESIPT-based fluorescent probe for selectively monitoring glutathione in live cells and zebrafish[J]. Spectroc. Acta Pt. A‒Molec. Biomolec. Spectr., 2020, 238: 118429 doi: 10.1016/j.saa.2020.118429
27. [27]
  ZHANG J, BAO X L, ZHOU J L, PENG F F, REN H, DONG X C, ZHAO W L. A mitochondria-targeted turn-on fluorescent probe for the detection of glutathione in living cells[J]. Biosens. Bioelectron., 2016, 85: 164-170 doi: 10.1016/j.bios.2016.05.005
28. [28]
  YIN J L, ZHAN J T, HU Q X, HUANG S H, LIN W Y. Fluorescent probes for ferroptosis bioimaging: Advances, challenges, and prospects[J]. Chem. Soc. Rev., 2023, 52(6): 2011-2030 doi: 10.1039/D2CS00454B
29. [29]
  XU Z Y, QIN T Y, ZHOU X F, WANG L, LIU B. Fluorescent probes with multiple channels for simultaneous detection of Cys, Hcy, GSH, and H₂S[J]. Trac-Trends Anal. Chem., 2019, 121: 115672 doi: 10.1016/j.trac.2019.115672
30. [30]
  KOTHAVALE S, SEKAR N. Methoxy supported, deep red emitting mono, bis and tris triphenylamine-isophorone based styryl colorants: Synthesis, photophysical properties, ICT, TICT emission and viscosity sensitivity[J]. Dyes Pigment., 2017, 136: 116-130 doi: 10.1016/j.dyepig.2016.08.025
31. [31]
  NING Z J, TIAN H. Triarylamine: A promising core unit for efficient photovoltaic materials[J]. Chem. Commun., 2009, 37: 5483-5495
32. [32]
  GAN X P, WANG Y, GE X P, LI, W, ZHANG X Z, ZHU W J, ZHOU H P, WU J Y, TIAN Y P. Triphenylamine isophorone derivatives with two photon absorption: Photo-physical property, DFT study and bio-imaging[J]. Dyes Pigment., 2015, 120: 65-73 doi: 10.1016/j.dyepig.2015.04.007
33. [33]
  NI L. Preparation and detection application of triphenylamine-containing fluorescent probes with aggregation-induced emission[D]. Guangzhou: South China University of Technology, 2020: 1-60
34. [34]
  WANG H L. Synthesis and study fluorene, pyrene and thiophene-based conjugated organic small molecules for solution-processable memory performance[D]. Suzhou: Soochow University, 2018: 1-112
