Citation: Feilong GONG, Jingxuan LIU, Mengmeng LIU, Sankui XU, Feng LI. Dynamical modulation and electrochemical water splitting effect of oxygen doped onto MoS₂ core-shell spheres[J]. Chinese Journal of Inorganic Chemistry, ;2024, 40(1): 256-262. doi: 10.11862/CJIC.20230390 shu

Dynamical modulation and electrochemical water splitting effect of oxygen doped onto MoS₂ core-shell spheres

Feilong GONG ¹ ,
Jingxuan LIU ¹ ,
Mengmeng LIU ¹ ,
Sankui XU ² ,
Feng LI ^{1, 3,,}

1.
Key Laboratory of Surface and Interface Science and Technology, Zhengzhou University of Light Industry, Zhengzhou 450002, China
2.
College of Material Engineering, Henan University of Technology, Zhengzhou 450001, China
3.
American Advanced Nanotechnology, Houston, TX 77459, USA

Corresponding author: Feng LI, lifeng696@yahoo.com
Received Date: 18 October 2023
Revised Date: 20 December 2023

Figures(4)

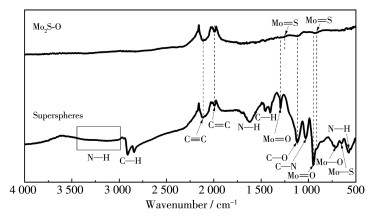

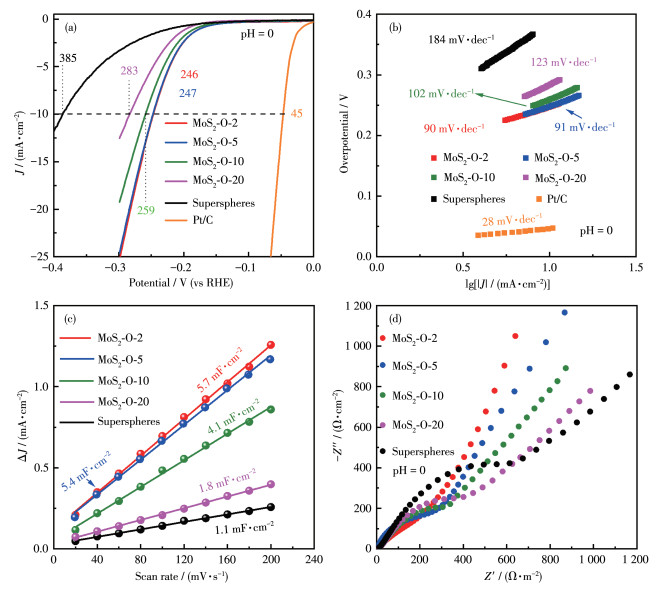

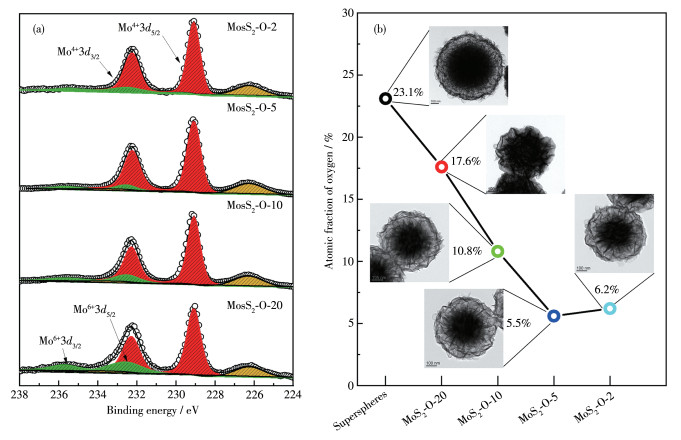

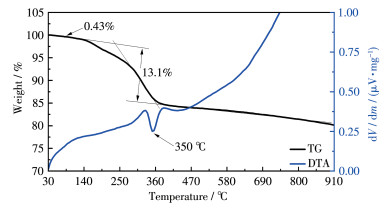

Monodispersed MoS₂ core-shell spheres were produced by annealing precursor MoS₂ core-shell superspheres at 900 ℃ in Ar. Simultaneously, O-doping amount (atomic fraction) can be tuned from 23.1% of precursor to 17.6%, 10.8%, 5.5%, and 6.2% of as-prepared materials by regulating the heating rate of 20, 10, 5, and 2 ℃·min^-1, respectively. The lower rate results in a lower amount of O doped onto MoS₂ core-shell spheres. Based on the special quasi-molecular superlattices of precursors, an in-situ anion exchange reaction mechanism was proposed to understand the dynamical modulation of O-doping. The study on the electrochemical properties of the materials demonstrates that their electrochemical performance in splitting water can be improved by tuning the O-doping amount.
- MoS₂,
- core-shell sphere,
- O-doped,
- dynamical modulation,
- electrochemical property,
- water splitting
1. [1]
  Zou X X, Zhang Y. Noble metal-free hydrogen evolution catalysts for water splitting[J]. Chem. Soc. Rev., 2015,44(15):5148-5180. doi: 10.1039/C4CS00448E
2. [2]
  Jaramillo T F, Jorgensen K P, Bonde J, Nielsen J H, Horch S, Chorkendorff I. Identification of active edge sites for electrochemical H₂ evolution from MoS₂ nanocatalysts[J]. Science, 2007,317(5834):100-102. doi: 10.1126/science.1141483
3. [3]
  Chen J, Liu G, Zhu Y Z, Su M, Yin P F, Wu X J, Lu Q P, Tan C L, Zhao M T, Liu Z Q, Yang W M, Li H, Nam G H, Zhang L P, Chen Z H, Huang X, Radjenovic P M, Huang W, Tian Z Q, Li J F, Zhang H. Ag@MoS₂ core-shell heterostructure as SERS platform to reveal the hydrogen evolution active sites of single-layer MoS₂[J]. J. Am. Chem. Soc., 2020,142(15):7161-7167. doi: 10.1021/jacs.0c01649
4. [4]
  Han J H, Kim H K, Baek B, Han J, Ahn H S, Baik M H, Cheon J. Activation of the basal plane in two-dimensional transition metal chalcogenide nanostructures[J]. J. Am. Chem. Soc., 2018,140(42):13663-13671. doi: 10.1021/jacs.8b05477
5. [5]
  Xiao W, Liu P T, Zhang J Y, Song W D, Feng Y P, Gao D Q, Ding J. Dual‑functional N dopants in edges and basal plane of MoS₂ nanosheets toward efficient and durable hydrogen evolution[J]. Adv. Energy Mater., 2017,7(7)1602086.
6. [6]
  Kim M, Anjum M A R, Lee M, Lee B J, Lee J S. Activating MoS₂ basal plane with Ni₂P nanoparticles for Pt-like hydrogen evolution reaction in acidic media[J]. Adv. Funct. Mater., 2019,29(10)1809151. doi: 10.1002/adfm.201809151
7. [7]
  Li G, Zhang D, Yu Y F, Huang S Y, Yang W T, Cao L Y. Activating MoS₂ for pH-universal hydrogen evolution catalysis[J]. J. Am. Chem. Soc., 2017,139(45):16194-16200. doi: 10.1021/jacs.7b07450
8. [8]
  Zhang Y C, Yang T R, Li J, Zhang Q, Li B Z, Gao M. Construction of Ru, O co-doping MoS₂ for hydrogen evolution reaction electrocatalyst and surface-enhanced Raman scattering substrate: High-performance, recyclable, and durability improvement[J]. Adv. Funct. Mater., 2022,33(3)2210939.
9. [9]
  Pető J, Ollár T, Vancsó P, Popov Z I, Magda G Z, Dobrik G, Hwang C, Sorokin P B, Tapasztó L. Spontaneous doping of the basal plane of MoS₂ single layers through oxygen substitution under ambient conditions[J]. Nat. Chem., 2018,10:1246-1251. doi: 10.1038/s41557-018-0136-2
10. [10]
  Deng J, Li H B, Xiao J P, Tu Y C, Deng D H, Yang H X, Tian H F, Li J Q, Ren P J, Bao X H. Triggering the electrocatalytic hydrogen evolution activity of the inert two-dimensional MoS₂ surface via single-atom metal doping[J]. Energy Environ. Sci., 2015,8(5):1594-1601. doi: 10.1039/C5EE00751H
11. [11]
  Wu W Z, Niu C Y, Wei C, Jia Y, Li C, Xu Q. Activation of MoS₂ basal planes for hydrogen evolution by zinc[J]. Angew. Chem. Int. Ed., 2019,131(7):2051-2055. doi: 10.1002/ange.201812475
12. [12]
  Yang W W, Zhang S Q, Chen Q, Zhang C, Wei Y, Jiang H, Lin Y X, Zhao M T, He Q Q, Wang X G, Du Yi, Song L, Yang S B, Nie A M, Zou X L, Gong Y J. Conversion of intercalated MoO₃ to multi-heteroatoms-doped MoS₂ with high hydrogen evolution activity[J]. Adv. Mater., 2020,32(30)e2001167. doi: 10.1002/adma.202001167
13. [13]
  Cao D F, Ye K, Moses O A, Xu W J, Liu D B, Song P, Wu C Q, Wang C D, Ding S Q, Chen S M, Ge B H, Jiang J, Song L. Engineering the in-plane structure of metallic phase molybdenum disulfide via Co and O dopants toward efficient alkaline hydrogen evolution[J]. ACS Nano, 2019,13(10):11733-11740. doi: 10.1021/acsnano.9b05714
14. [14]
  Shi Y, Zhou Y, Yang D R, Xu W X, Wang C, Wang F B, Xu J J, Xia X H, Chen H Y. Energy level engineering of MoS₂ by transition- metal doping for accelerating hydrogen evolution reaction[J]. J. Am. Chem. Soc., 2017,139(43):15479-15485. doi: 10.1021/jacs.7b08881
15. [15]
  Chen Z X, Leng K, Zhao X X, Malkhandi S, Tang W, Tian B B, Dong L, Zheng L R, Lin M, Yeo B S, Loh K P. Interface confined hydrogen evolution reaction in zero valent metal nanoparticles-intercalated molybdenum disulfide[J]. Nat. Commun., 2017,814548. doi: 10.1038/ncomms14548
16. [16]
  Xie J F, Zhang J J, Li S, Grote F, Zhang X D, Zhang H, Wang R X, Lei Y, Pan B C, Xie Y. Controllable disorder engineering in oxygen- incorporated MoS₂ ultrathin nanosheets for efficient hydrogen evolution[J]. J. Am. Chem. Soc., 2013,135(47):17881-17888. doi: 10.1021/ja408329q
17. [17]
  Yu L, Xia B Y, Wang X, Lou X W. General formation of M-MoS₃ (M=Co, Ni) hollow structures with enhanced electrocatalytic activity for hydrogen evolution[J]. Adv. Mater., 2016,28(1):92-97. doi: 10.1002/adma.201504024
18. [18]
  Zhang L, Wu H B, Yan Y, Wang X, Lou X W. Hierarchical MoS₂ microboxes constructed by nanosheets with enhanced electrochemical properties for lithium storage and water splitting[J]. Energy Environ. Sci., 2014,7(10):3302-3306. doi: 10.1039/C4EE01932F
19. [19]
  Park S, Park J, Abroshan H, Zhang L, Kim J K, Zhang J, Guo J, Siahrostami S, Zheng X. Enhancing catalytic activity of MoS₂ basal plane S-vacancy by Co cluster addition[J]. ACS Energy Lett., 2018,3(11):2685-2693. doi: 10.1021/acsenergylett.8b01567
20. [20]
  Li H, Tsai C, Koh A L, Cai L, Contryman A W, Fragapane A H, Zhao J, Han H S, Manoharan H C, Abild-Pedersen F. Correction: Corrigendum: Activating and optimizing MoS₂ basal planes for hydrogen evolution through the formation of strained sulphur vacancies[J]. Nat. Mater., 2016,15(3):364-364.
21. [21]
  Pető J, Ollár T, Vancsó P, Popov Z I, Magda G Z, Dobrik G, Hwang C, Sorokin P B, Tapasztó L. Spontaneous doping of the basal plane of MoS₂ single layers through oxygen substitution under ambient conditions[J]. Nat. Chem., 2018,10(12):1246-1251. doi: 10.1038/s41557-018-0136-2
22. [22]
  Li L, Qin Z, Ries L, Hong S, Michel T, Yang J, Salameh C, Bechelany M, Miele P, Kaplan D. Role of sulfur vacancies and undercoordinated Mo regions in MoS₂ nanosheets toward the evolution of hydrogen[J]. ACS Nano, 2019,13(6):6824-6834. doi: 10.1021/acsnano.9b01583
23. [23]
  Gong F L, Peng L F, Liu H Z, Zhang Y H, Jia D Z, Fang S M, Li F, Li D M. 3D core-shell MoS₂ superspheres composed of oriented nanosheets with quasi molecular superlattices: Mimicked embryo formation and Li-storage properties[J]. J. Mater. Chem. A, 2018,6(38):18498-18507. doi: 10.1039/C8TA07165A
24. [24]
  Li F, Gong F L, Xiao Y H, Zhang A Q, Zhao J H, Fang S M, Jia D Z. ZnO twin-spheres exposed in +/-(001) facets: Stepwise self-assembly growth and anisotropic blue emission[J]. ACS Nano, 2013,7(12):10482-10491. doi: 10.1021/nn404591z
25. [25]
  Li F, Ding Y, Gao P X, Xin X Q, Wang Z L. Single-cystal hexagonal disks and rings of ZnO: Low temperature, large-scale synthesis and growth mechanism[J]. Angew. Chem. Int. Ed., 2004,43(39):5238-5242. doi: 10.1002/anie.200460783
26. [26]
  Liu Y H, Gong L H, Zhang Y H, Wang P Y, Wang G Q, Bai F H, Zhao Z T, Gong F L, Liu J. Metal sulfides yolk-shell nanoreactors with dual component for enhanced acidic electrochemical hydrogen production[J]. Small Struct., 2022,4(3)2200247.
27. [27]
  Yang Y, Luo M C, Xing Y, Wang S T, Zhang W Y, Lv F, Li Y J, Zhang Y L, Wang W, Guo S J. A Universal strategy for intimately coupled carbon nanosheets/MoM nanocrystals (M=P, S, C, and O) hierarchical hollow nanospheres for hydrogen evolution catalysis and sodium-ion storage[J]. Adv. Mater., 2018,30(18)e1706085. doi: 10.1002/adma.201706085
1. [1]
  Qin Hu , Liuyun Chen , Xinling Xie , Zuzeng Qin , Hongbing Ji , Tongming Su . Construction of Electron Bridge and Activation of MoS₂ Inert Basal Planes by Ni Doping for Enhancing Photocatalytic Hydrogen Evolution. Acta Physico-Chimica Sinica, 2024, 40(11): 2406024-0. doi: 10.3866/PKU.WHXB202406024
2. [2]
  Xiaonan LI , Hui HAN , Yihan ZHANG , Jing XIONG , Tingting GUO , Juanzhi YAN . A viologen‐based Cd(Ⅱ) coordination polymer: Self‐assembly, thermochromism, and electrochemical property. Chinese Journal of Inorganic Chemistry, 2025, 41(7): 1439-1444. doi: 10.11862/CJIC.20240376
3. [3]
  Shuqi Yu , Yu Yang , Keisuke Kuroda , Jian Pu , Rui Guo , Li-An Hou . Selective removal of Cr(Ⅵ) using polyvinylpyrrolidone and polyacrylamide co-modified MoS₂ composites by adsorption combined with reduction. Chinese Chemical Letters, 2024, 35(6): 109130-. doi: 10.1016/j.cclet.2023.109130
4. [4]
  Ping Wang , Ting Wang , Ming Xu , Ze Gao , Hongyu Li , Bowen Li , Yuqi Wang , Chaoqun Qu , Ming Feng . Keplerate polyoxomolybdate nanoball mediated controllable preparation of metal-doped molybdenum disulfide for electrocatalytic hydrogen evolution in acidic and alkaline media. Chinese Chemical Letters, 2024, 35(7): 108930-. doi: 10.1016/j.cclet.2023.108930
5. [5]
  Ruilong WANG , Jinlong MAO , Guoxia JIN , Jianping MA , Haiying WANG , Jie QIN . 2-Cyanobenzyl-substituted [FeFe]-hydrogenase compounds: Preparation, characterization, and photocatalytic H₂-production performance. Chinese Journal of Inorganic Chemistry, 2026, 42(4): 817-825. doi: 10.11862/CJIC.20250376
6. [6]
  Lixing LU , Shaoxian LIU , Jian XU , Ziqi JIN , Jiongjia CHENG , Jiyang ZHAO , Fubo WANG , Haiying WANG . [FeFe]-hydrogenase-containing compound and its photocatalytic H₂-production performance. Chinese Journal of Inorganic Chemistry, 2025, 41(12): 2584-2590. doi: 10.11862/CJIC.20250200
7. [7]
  Xinyu Guo , Chang Li , Wenjun Deng , Yi Zhou , Yan Chen , Yushuang Xu , Rui Li . Phase engineering and heteroatom incorporation enable defect-rich MoS₂ for long life aqueous iron-ion batteries. Chinese Chemical Letters, 2025, 36(3): 109715-. doi: 10.1016/j.cclet.2024.109715
8. [8]
  Hao WANG , Kun TANG , Jiangyang SHAO , Kezhi WANG , Yuwu ZHONG . Electro-copolymerized film of ruthenium catalyst and redox mediator for electrocatalytic water oxidation. Chinese Journal of Inorganic Chemistry, 2024, 40(11): 2193-2202. doi: 10.11862/CJIC.20240176
9. [9]
  Xinpeng LIU , Liuyang ZHAO , Hongyi LI , Yatu CHEN , Aimin WU , Aikui LI , Hao HUANG . Ga₂O₃ coated modification and electrochemical performance of Li_1.2Mn_0.54Ni_0.13Co_0.13O₂ cathode material. Chinese Journal of Inorganic Chemistry, 2024, 40(6): 1105-1113. doi: 10.11862/CJIC.20230488
10. [10]
  Shudi Yu , Jie Li , Jiongting Yin , Wanyu Liang , Yangping Zhang , Tianpeng Liu , Mengyun Hu , Yong Wang , Zhengying Wu , Yuefan Zhang , Yukou Du . Built-in electric field and core-shell structure of the reconstructed sulfide heterojunction accelerated water splitting. Chinese Chemical Letters, 2024, 35(12): 110068-. doi: 10.1016/j.cclet.2024.110068
11. [11]
  Hao GUO , Tong WEI , Qingqing SHEN , Anqi HONG , Zeting DENG , Zheng FANG , Jichao SHI , Renhong LI . Electrocatalytic decoupling of urea solution for hydrogen production by nickel foam-supported Co₉S₈/Ni₃S₂ heterojunction. Chinese Journal of Inorganic Chemistry, 2024, 40(11): 2141-2154. doi: 10.11862/CJIC.20240085
12. [12]
  Jun Yu , Yangping Zhang , Nannan Zhang , Jie Li , Huiyu Sun , Xinyu Gu , Changqing Ye , Tianpeng Liu , Yukou Du . The interface engineering strategy assists the 3D core-shell structure Co₃S₄/CuS@NiFe LDH nanocoral spheres to achieve significant overall water splitting. Chinese Chemical Letters, 2026, 37(2): 110830-. doi: 10.1016/j.cclet.2025.110830
13. [13]
  Min Song , Qian Zhang , Tao Shen , Guanyu Luo , Deli Wang . Surface reconstruction enabled o-PdTe@Pd core-shell electrocatalyst for efficient oxygen reduction reaction. Chinese Chemical Letters, 2024, 35(8): 109083-. doi: 10.1016/j.cclet.2023.109083
14. [14]
  Yaoyin Lou , Xiaoyang Jerry Huang , Kuang-Min Zhao , Mark J. Douthwaite , Tingting Fan , Fa Lu , Ouardia Akdim , Na Tian , Shigang Sun , Graham J. Hutchings . Stable core-shell Janus BiAg bimetallic catalyst for CO₂ electrolysis into formate. Chinese Chemical Letters, 2025, 36(3): 110300-. doi: 10.1016/j.cclet.2024.110300
15. [15]
  Min Jie Wang , Jiao Yang , Lishan Peng , Yongjie Bai , Zehui Liu , Xiaoliang Yang , Huijuan Lu , Bingjie Zhou , Ningtao Jiang , Guoxu He , Han-Ming Zhang , Liwei Mi , Yonghui Deng . Optimizing the size and electronic effects of core-shell heterostructures via well-constructed Ru clusters encapsulated in N-doped carbon layers. Chinese Chemical Letters, 2025, 36(12): 110573-. doi: 10.1016/j.cclet.2024.110573
16. [16]
  Tianli Hui , Tao Zheng , Xiaoluo Cheng , Tonghui Li , Rui Zhang , Xianghai Meng , Haiyan Liu , Zhichang Liu , Chunming Xu . A review of plasma treatment on nano-microstructure of electrochemical water splitting catalysts. Chinese Journal of Structural Chemistry, 2025, 44(3): 100520-100520. doi: 10.1016/j.cjsc.2025.100520
17. [17]
  Liwei Hou , Xianyun Peng , Siliu Lyu , Zhongjian Li , Bin Yang , Qinghua Zhang , Qinggang He , Lecheng Lei , Yang Hou . Advancements in MXene-based nanohybrids for electrochemical water splitting. Chinese Chemical Letters, 2025, 36(6): 110392-. doi: 10.1016/j.cclet.2024.110392
18. [18]
  Cuiping Lin , Chenchen Wang , Shaoqi Li , Qi Shen , Xiaodong Yang , Zengsheng Guo , Haiming Feng , Cuncheng Li , Yiqing Sun , Lifeng Hang . Pd@PtNiCoRuIr core-shell high-entropy alloys mesoporous nanospheres for temporally decoupled ammonia splitting by a Zn-NH₃ battery. Chinese Chemical Letters, 2026, 37(1): 111826-. doi: 10.1016/j.cclet.2025.111826
19. [19]
  Lin Xu , Lifen Liu , Guohua Chen , Deming Xia . In-situ grown high-load single-atom Fe on MoS₂/CFC with super high activity in ammonia synthesis via electrochemical nitrate reduction. Chinese Chemical Letters, 2026, 37(3): 111188-. doi: 10.1016/j.cclet.2025.111188
20. [20]
  Yuan Zhang , Shenghao Gong , A.R. Mahammed Shaheer , Rong Cao , Tianfu Liu . Plasmon-enhanced photocatalytic oxidative coupling of amines in the air using a delicate Ag nanowire@NH₂-UiO-66 core-shell nanostructures. Chinese Chemical Letters, 2024, 35(4): 108587-. doi: 10.1016/j.cclet.2023.108587

Get Citation

PDF

XML

Metrics

PDF Downloads(4)
Abstract views(1924)
HTML views(233)

通讯作者: 陈斌, bchen63@163.com

1.
沈阳化工大学材料科学与工程学院沈阳 110142

Dynamical modulation and electrochemical water splitting effect of oxygen doped onto MoS2 core-shell spheres

Metrics

通讯作者: 陈斌, bchen63@163.com

Dynamical modulation and electrochemical water splitting effect of oxygen doped onto MoS₂ core-shell spheres
