Citation: Hui-Yu WANG, Shu-Qin LIU, Ke-Xin FENG, Jian-Jun ZHANG. Afterglow stimulation response behaviors of a benzimidazole derivative based on crystalline-to-crystalline transition[J]. Chinese Journal of Inorganic Chemistry, ;2023, 39(8): 1571-1578. doi: 10.11862/CJIC.2023.118 shu

Afterglow stimulation response behaviors of a benzimidazole derivative based on crystalline-to-crystalline transition

School of Chemical Engineering, Dalian University of Technology, Dalian, Liaoning 116024, China

Corresponding author: Shu-Qin LIU, shuqinliu@163.com Jian-Jun ZHANG, zhangjj@dlut.edu.cn
Received Date: 7 March 2023
Revised Date: 6 May 2023

Figures(5)

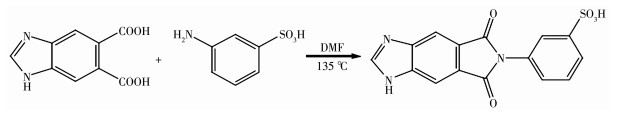

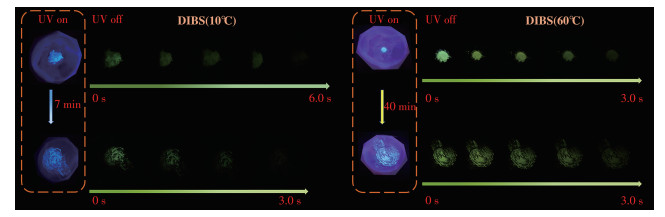

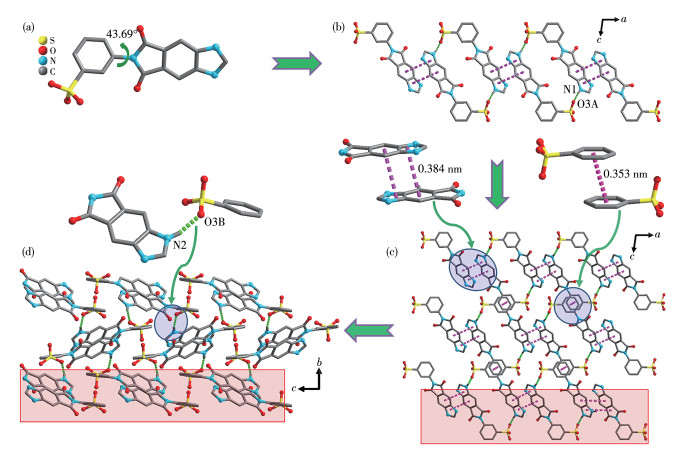

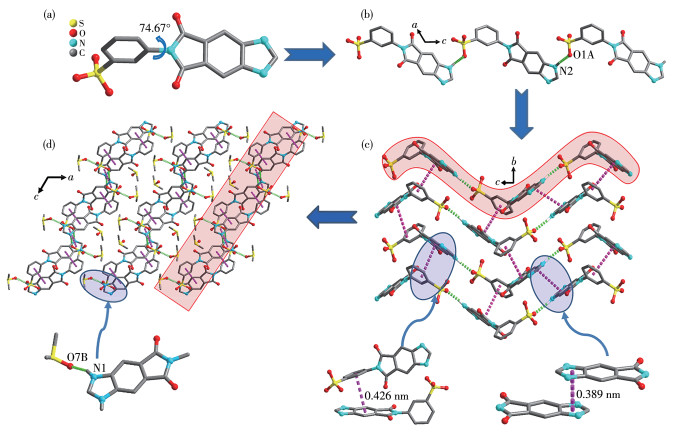

A new organic compound 3-(5, 7-dioxoimidazo[4, 5-f]isoindol-6(1H, 5H, 7H)-yl) benzenesulfonic acid (DIBS) was synthesized by condensation of benzimidazo-5, 6-dicarboxylic acid and m-aminobenzene sulfonic acid. Then two solid phases, DIBS(10℃) and DIBS(60℃), were obtained by recrystallization at different temperatures. DIBS(10℃) had green room temperature phosphorescence with a lifetime of 721.6 ms, while the yellow-green afterglow of DIBS(60℃) consisted of delayed fluorescence and room temperature phosphorescence with lifetimes of 259.8 and 336.3 ms, respectively. The different luminescence behaviors of the two phases can be attributed to the different conformations and stacking structures of DIBS molecules in the two phases. Interestingly, DIBS(10℃) could be transformed into DIBS(60℃) under grinding or heating stimulation, showing rare afterglow stimulus - response behavior.
- room temperature phosphorescence,
- delayed fluorescence,
- mechanochromic luminescence,
- thermochromic luminescence,
- molecular packing
1. [1]
  LIU J J, LIU N, LU Y W. Three multiple-responsive complexes based on a carboxybenzyl viologen ligand[J]. Chinese J. Inorg. Chem., 2022,38(9):1825-1833.
2. [2]
  Ekbote A, Mobin S M, Misra R. Stimuli-responsive phenothiazine-based donor-acceptor isomers: AIE, mechanochromism and polymorphism[J]. J. Mater. Chem. C, 2020,8(10):3589-3602. doi: 10.1039/C9TC05192A
3. [3]
  Huang J X, Zhao H, Zhang J J, Zhang B L, Ni J, Song B, Li Y Q, Liu S Q, Duan C Y. Diemissive dye@CP composites with full-spectrum tunable mechanoluminescence[J]. J. Mater. Chem. C, 2021,9(42):15165-15174. doi: 10.1039/D1TC02841C
4. [4]
  Fang M M, Yang J, Xie Y J, Dong Y Q, Peng Q, Li Z. Unexpected room-temperature phosphorescence from a non-aromatic, low molecular weight, pure organic molecule through the intermolecular hydrogen bond[J]. Mater. Chem. Front., 2018,2(11):2124-2129. doi: 10.1039/C8QM00396C
5. [5]
  Gao M X, Tian Y, Yang J, Li X N, Ni J, Fang M M, Li Z. The same molecule but a different molecular conformation results in a different room temperature phosphorescence in phenothiazine derivatives[J]. J. Mater. Chem. C, 2021,9(42):15375-15380. doi: 10.1039/D1TC03460J
6. [6]
  Zhang P P, Zhou H J, Ni A Y, Zhao H, Zhang J J, Wei H H, Liu S Q, Ni J, Duan C Y. Luminescent coordination polymer with its multistimuli-responsive sensitivity enabled and boosted by its dual emission[J]. Cryst. Growth Des., 2022,22(8):4845-4853. doi: 10.1021/acs.cgd.2c00338
7. [7]
  WANG S Y, CHEN D, LIU X L, WANG S W, YUAN Y N, WANG Z P, YANG C. Structures and photoluminescence properties of zinc/cadmium-based organic-inorganic hybrid metal halides derived from (E)-N, N-dimethyl-4-(2-(pyridin-4-yl)vinyl)aniline[J]. Chinese J. Inorg. Chem., 2021,37(9):1659-1664.
8. [8]
  Sudhakar P, Radhakrishnan T P. Stimuli responsive and reversible crystalline—Amorphous transformation in a molecular solid: Fluorescence switching and enhanced phosphorescence in the amorphous state[J]. J. Mater. Chem. C, 2019,7(23):7083-7089. doi: 10.1039/C9TC01600G
9. [9]
  Liu Y J, Li A S, Xu S P, Xu W Q, Liu Y, Tian W J, Xu B. Reversible luminescent switching in an organic cocrystal: Multi-stimuli-induced crystal-to-crystal phase transformation[J]. Angew. Chem. Int. Ed., 2020,59(35):15098-15103. doi: 10.1002/anie.202002220
10. [10]
  Shen Z Y, Yan X L, Cui S Q, Bo C C, Liu J Y, Wang B W, Li Y, Chen L G. Color-tunable, time-dependent, temperature and humidity-responsive afterglow from hyaluronic acid-based films[J]. Dyes Pigment., 2023,212111113. doi: 10.1016/j.dyepig.2023.111113
11. [11]
  Liu Y W, Li Y Z, Wen Y, Su X L, Xu M, Feng W, Liu Q, Li F Y. Significantly enhanced afterglow brightness via intramolecular energy transfer[J]. ACS Mater. Lett., 2021,3(6):713-720. doi: 10.1021/acsmaterialslett.1c00183
12. [12]
  Nandi R P, Kalluvettukuzhy N K, Pagidi S, Thilagar P. Molecular persistent room-temperature phosphorescence from tetraarylaminoboranes[J]. Inorg. Chem., 2023,62(3):1122-1134. doi: 10.1021/acs.inorgchem.2c03386
13. [13]
  Liu Y, Ma Z M, Liu J W, Chen M X, Ma Z Y, Jia X R. Robust white-light emitting and multi-responsive luminescence of a dual-mode phosphorescence molecule[J]. Adv. Opt. Mater., 2020,9(2)2001685.
14. [14]
  Sun Y P, Qu H M, Zhang J C, Duan X Y, Zhang X K. Room temperature phosphorescence, thermally activated delayed fluorescence and multicolor mechanochromic luminescence of emitters through molecular interaction and conformational modulations[J]. Tetrahedron, 2022,110132692. doi: 10.1016/j.tet.2022.132692
15. [15]
  Zhang Y W, Ma H L, Wang S P, Li Z Q, Ye K Q, Zhang J Y, Liu Y, Peng Q, Wang Y. Supramolecular structure-dependent thermally-activated delayed fluorescence (TADF) properties of organic polymorphs[J]. J. Phys. Chem. C, 2016,120:19759-19767. doi: 10.1021/acs.jpcc.6b05537
