Citation: Yan-Ling SONG, Qi-Yuan ZHANG, Ai-Hua YAO. Template-free electrodeposition and electrochromic performance of porous WO3·2H2O thin film[J]. Chinese Journal of Inorganic Chemistry, ;2023, 39(1): 127-134. doi: 10.11862/CJIC.2022.260 shu

Template-free electrodeposition and electrochromic performance of porous WO3·2H2O thin film

  • Corresponding author: Ai-Hua YAO, 07182@tongji.edu.cn
  • Received Date: 3 August 2022
    Revised Date: 4 November 2022

Figures(6)

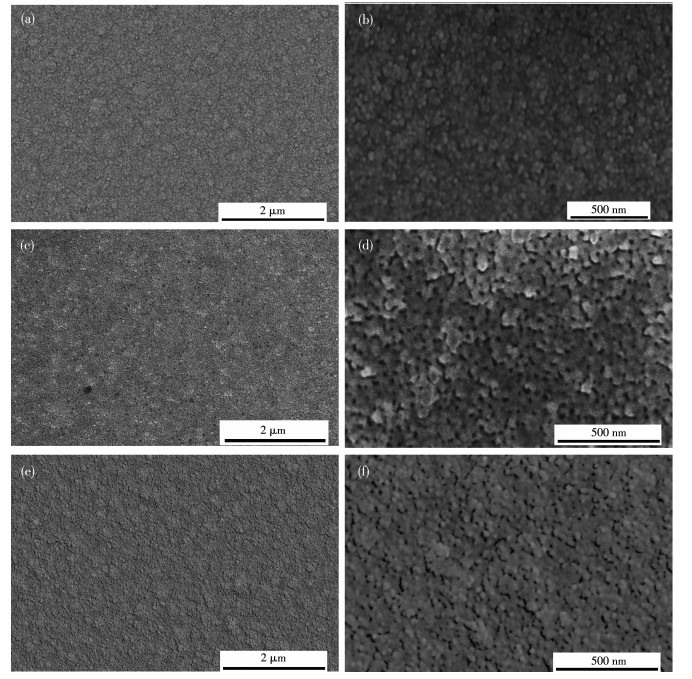

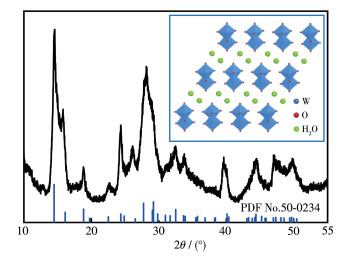

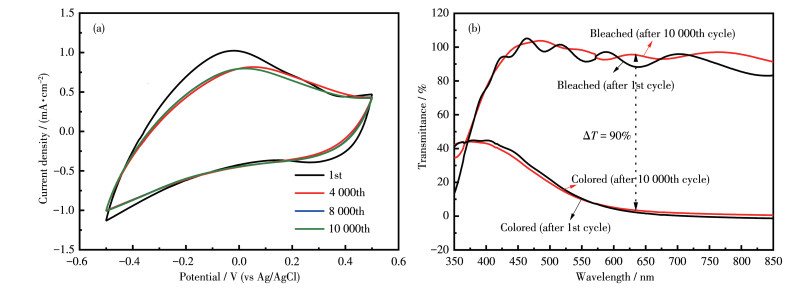

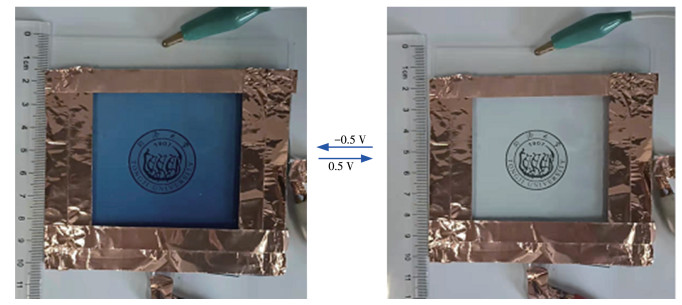

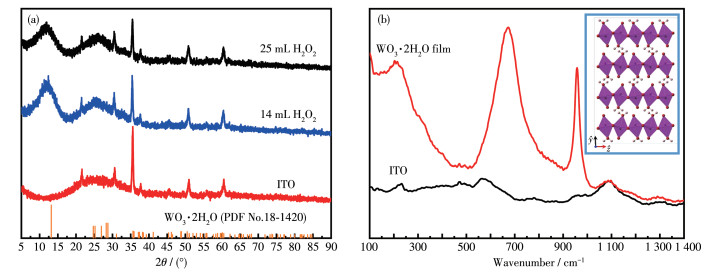

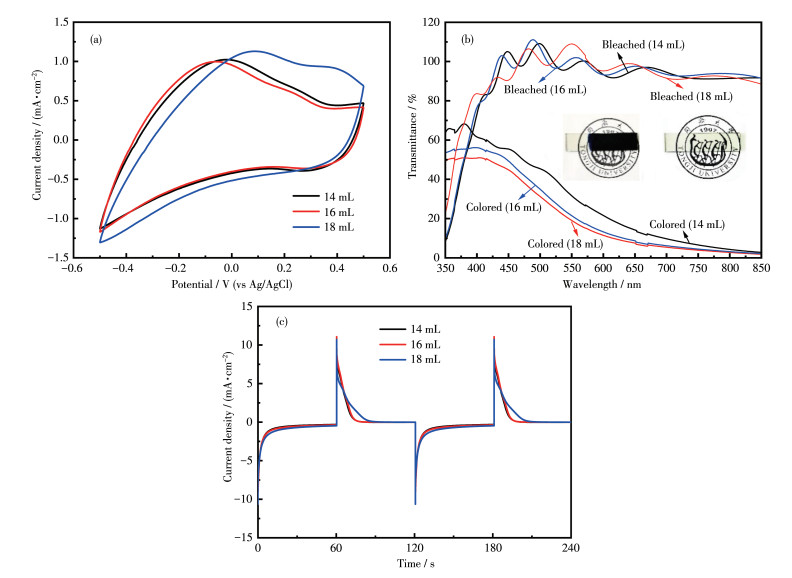

  • Compared with anhydrous WO3, tungsten oxide dihydrate (WO3·2H2O) shows superior electrochromic properties because of its unique layered structure and rich interlayer structural water. In this study, WO3·2H2O films were successfully fabricated on indium tin oxide (ITO) glass substrates using a facile, template-free cathodic electrodeposition method. The composition of the electrodeposition solution was optimized by modifying the volume of hydrogen peroxide (H2O2) added into the solution, and thus highly porous films were obtained. The thus deposited WO3·2H2O films exhibited excellent electrochromic performance, including significant optical contrast of over 90% at 633 nm, a fast switching speed of fewer than 10 s, and a long cycling lifetime (90% original optical modulation was retained after 10 000 cycles).
  • 加载中
    1. [1]

      Huang Y, Wang B S, Chen F X, Han Y, Zhang W S, Wu X K, Li R, Jiang Q Y, Jia X L, Zhang R F. Electrochromic materials based on ions insertion and extraction[J]. Adv. Opt. Mater., 2022,102101783. doi: 10.1002/adom.202101783

    2. [2]

      Pan J B, Zheng R Z, Wang Y, Ye X K, Wan Z Q, Jia C Y, Weng X L, Xie J L, Deng L J. A high-performance electrochromic device assembled with hexagonal WO3 and NiO/PB composite nanosheet electrodes towards energy storage smart window[J]. Sol. Energy Mater. Sol. Cells, 2020,207110337. doi: 10.1016/j.solmat.2019.110337

    3. [3]

      Granqvist C G. Electrochromics for smart windows: Oxide-based thin films and devices[J]. Thin Solid Films, 2014,564:1-38. doi: 10.1016/j.tsf.2014.02.002

    4. [4]

      Wang L, Guo M R, Zhan J, Jiao X L, Chen D R, Wang T. A new design of an electrochromic energy storage device with high capacity, long cycle lifetime and multicolor display[J]. J. Mater. Chem. A, 2020,8:17098-17105. doi: 10.1039/D0TA04824K

    5. [5]

      Wu W, Wang M, Ma J M, Cao Y L, Deng Y H. Electrochromic metal oxides: Recent progress and prospect[J]. Adv. Electron. Mater., 2018,41800185. doi: 10.1002/aelm.201800185

    6. [6]

      Wang Y A, Meng Z H, Chen H, Li T, Zheng D J, Xu Q C, Wang H, Liu X Y, Guo W X. Pulsed electrochemical deposition of porous WO3 on silver networks for highly flexible electrochromic devices[J]. J. Mater. Chem. C, 2019,7:1966-1973. doi: 10.1039/C8TC05698F

    7. [7]

      Sun W M, Yeung M T, Lech A T, Lin C W, Lee C, Li T Q, Duan X F, Zhou J, Kaner R B. High surface area tunnels in hexagonal WO3[J]. Nano Lett., 2015,15:4834-4838. doi: 10.1021/acs.nanolett.5b02013

    8. [8]

      Mitchell J B, Lo W C, Genc A, LeBeau J, Augustyn V. Transition from battery to pseudocapacitor behavior via structural water in tungsten oxide[J]. Chem. Mater., 2017,29:3928-3937. doi: 10.1021/acs.chemmater.6b05485

    9. [9]

      Bi Z J, Li X M, Chen Y B, He X L, Xu X K, Gao X D. Large-scale multifunctional electrochromic-energy storage device based on tungsten trioxide monohydrate nanosheets and Prussian white[J]. ACS Appl. Mater. Interfaces, 2017,9:29872-29880. doi: 10.1021/acsami.7b08656

    10. [10]

      Xie Z, Gao L N, Liang B, Wang X F, Chen G, Liu Z, Chao J F, Chen D, Shen G Z. Fast fabrication of a WO3·2H 2O thin film with improved electrochromic properties[J]. J. Mater. Chem., 2012,22:19904-19910. doi: 10.1039/c2jm33622g

    11. [11]

      Wang Z, Gong W B, Wang X Y, Chen Z G, Chen X L, Chen J, Sun H Z, Song G, Cong S, Geng F X, Zhao Z G. Remarkable near-infrared electrochromism in tungsten oxide driven by interlayer water-induced battery-to-pseudocapacitor transition[J]. ACS Appl. Mater. Interfaces, 2020,12:33917-33925. doi: 10.1021/acsami.0c08270

    12. [12]

      Cai G F, Cui M Q, Kumar V, Darmawan P, Wang J X, Wang X, Eh A L, Qian K, Lee P S. Ultra-large optical modulation of electrochromic porous WO3 film and the local monitoring of redox activity[J]. Chem. Sci., 2016,7:1373-1382. doi: 10.1039/C5SC03727A

    13. [13]

      Baeck S H, Choi K S, Stucky J G D, McFarland E W. Enhancement of photocatalytic and electrochromic properties of electrochemically fabricated mesoporous WO3 thin films[J]. Adv. Mater., 2003,15:1269-1273. doi: 10.1002/adma.200304669

    14. [14]

      Qi C X, Tan Z, Feng Z H, Yu L P. Fabrication of bowl-like porous WO3 film by colloidal crystal template-assisted electrodeposition method[J]. J. Mater. Sci. Mater. Electron., 2014,25:1553-1558.

    15. [15]

      Giannouli M, Leftheriotis G. The effect of precursor aging on the morphology and electrochromic performance of electrodeposited tungsten oxide films[J]. Sol. Energy Mater. Sol. Cells, 2011,95:1932-1939. doi: 10.1016/j.solmat.2011.02.024

    16. [16]

      Kim C Y, Lee M, Huh S H, Kim E K. WO3 thin film coating from H2O-controlled peroxotungstic acid and its electrochromic properties[J]. J. Sol-Gel Sci. Technol., 2010,53:176-183. doi: 10.1007/s10971-009-2074-3

    17. [17]

      Yamanaka K. Electrodeposited films from aqueous tungstic acidhydrogen peroxide solutions for electrochromic display devices[J]. J. Appl. Phys., 1987,26:1884-1890. doi: 10.1143/JJAP.26.1884

    18. [18]

      Nakajima H, Tanaka H, Hibino M, Kudo T, Mizuno N. Reaction of nitrides of molybdenum and tungsten with hydrogen peroxide to form inorganic proton conductors[J]. Bull. Chem. Soc. Jpn., 1998,71:955-960. doi: 10.1246/bcsj.71.955

    19. [19]

      LIN H Q, LI H M, YU X Y, ZHAI H S, YUAN Y Z, WAN H L. Raman study of transformation behaviors of tungsten-containing peroxo species affected by different precursors and solution acidities[J]. Acta Chim. Sinica, 2004,62(18):1780-1784. doi: 10.3321/j.issn:0567-7351.2004.18.021

    20. [20]

      Pecquenard B, Castro-Garcia S, Livage J, Zavalij P Y, Whittingham S, Thouvenot R. Structure of hydrated tungsten peroxides[WO2(O2) H2O]·nH2O[J]. Chem. Mater., 1998,10:1882-1888. doi: 10.1021/cm980045n

    21. [21]

      Wang S L, Dou K, Zou Y S, Dong Y H, Li J B, Ju D, Zeng H B. Assembling tungsten oxide hydrate nanocrystal colloids formed by laser ablation in liquid into fast-response electrochromic films[J]. J. Colloid Interface Sci., 2017,489:85-91. doi: 10.1016/j.jcis.2016.08.072

    22. [22]

      Meulenkamp E A. Mechanism of WO3 electrodeposition from peroxy-tungstate solution[J]. J. Electrochem. Soc., 1997,144:1664-1671. doi: 10.1149/1.1837657

  • 加载中
    1. [1]

      Xiangyu CAOJiaying ZHANGYun FENGLinkun SHENXiuling ZHANGJuanzhi YAN . Synthesis and electrochemical properties of bimetallic-doped porous carbon cathode material. Chinese Journal of Inorganic Chemistry, 2025, 41(3): 509-520. doi: 10.11862/CJIC.20240270

    2. [2]

      Linbao Zhang Weisi Guo Shuwen Wang Ran Song Ming Li . Electrochemical Oxidation of Sulfides to Sulfoxides. University Chemistry, 2024, 39(11): 204-209. doi: 10.3866/PKU.DXHX202401009

    3. [3]

      Ping Ye Lingshuang Qin Mengyao He Fangfang Wu Zengye Chen Mingxing Liang Libo Deng . 荷叶衍生多孔碳的零电荷电位调节实现废水中电化学捕集镉离子. Acta Physico-Chimica Sinica, 2025, 41(3): 2311032-. doi: 10.3866/PKU.WHXB202311032

    4. [4]

      Zhihuan XUQing KANGYuzhen LONGQian YUANCidong LIUXin LIGenghuai TANGYuqing LIAO . Effect of graphene oxide concentration on the electrochemical properties of reduced graphene oxide/ZnS. Chinese Journal of Inorganic Chemistry, 2024, 40(7): 1329-1336. doi: 10.11862/CJIC.20230447

    5. [5]

      Jiahong ZHENGJiajun SHENXin BAI . Preparation and electrochemical properties of nickel foam loaded NiMoO4/NiMoS4 composites. Chinese Journal of Inorganic Chemistry, 2024, 40(3): 581-590. doi: 10.11862/CJIC.20230253

    6. [6]

      Qin ZHUJiao MAZhihui QIANYuxu LUOYujiao GUOMingwu XIANGXiaofang LIUPing NINGJunming GUO . Morphological evolution and electrochemical properties of cathode material LiAl0.08Mn1.92O4 single crystal particles. Chinese Journal of Inorganic Chemistry, 2024, 40(8): 1549-1562. doi: 10.11862/CJIC.20240022

    7. [7]

      Qingtang ZHANGXiaoyu WUZheng WANGXiaomei WANG . Performance of nano Li2FeSiO4/C cathode material co-doped by potassium and chlorine ions. Chinese Journal of Inorganic Chemistry, 2024, 40(9): 1689-1696. doi: 10.11862/CJIC.20240115

    8. [8]

      Zhuo Wang Xue Bai Kexin Zhang Hongzhi Wang Jiabao Dong Yuan Gao Bin Zhao . MOF模板法合成氮掺杂碳材料用于增强电化学钠离子储存和去除. Acta Physico-Chimica Sinica, 2025, 41(3): 2405002-. doi: 10.3866/PKU.WHXB202405002

    9. [9]

      Xiaofeng Zhu Bingbing Xiao Jiaxin Su Shuai Wang Qingran Zhang Jun Wang . Transition Metal Oxides/Chalcogenides for Electrochemical Oxygen Reduction into Hydrogen Peroxides. Acta Physico-Chimica Sinica, 2024, 40(12): 2407005-. doi: 10.3866/PKU.WHXB202407005

    10. [10]

      Caixia Lin Zhaojiang Shi Yi Yu Jianfeng Yan Keyin Ye Yaofeng Yuan . Ideological and Political Design for the Electrochemical Synthesis of Benzoxathiazine Dioxide Experiment. University Chemistry, 2024, 39(2): 61-66. doi: 10.3866/PKU.DXHX202309005

    11. [11]

      Qianwen Han Tenglong Zhu Qiuqiu Lü Mahong Yu Qin Zhong . 氢电极支撑可逆固体氧化物电池性能及电化学不对称性优化. Acta Physico-Chimica Sinica, 2025, 41(1): 2309037-. doi: 10.3866/PKU.WHXB202309037

    12. [12]

      Yuanchao LIWeifeng HUANGPengchao LIANGZifang ZHAOBaoyan XINGDongliang YANLi YANGSonglin WANG . Effect of heterogeneous dual carbon sources on electrochemical properties of LiMn0.8Fe0.2PO4/C composites. Chinese Journal of Inorganic Chemistry, 2024, 40(4): 751-760. doi: 10.11862/CJIC.20230252

    13. [13]

      Xinpeng LIULiuyang ZHAOHongyi LIYatu CHENAimin WUAikui LIHao HUANG . Ga2O3 coated modification and electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2 cathode material. Chinese Journal of Inorganic Chemistry, 2024, 40(6): 1105-1113. doi: 10.11862/CJIC.20230488

    14. [14]

      Yuting ZHANGZunyi LIUNing LIDongqiang ZHANGShiling ZHAOYu ZHAO . Nickel vanadate anode material with high specific surface area through improved co-precipitation method: Preparation and electrochemical properties. Chinese Journal of Inorganic Chemistry, 2024, 40(11): 2163-2174. doi: 10.11862/CJIC.20240204

    15. [15]

      Meiqing Yang Lu Wang Haozi Lu Yaocheng Yang Song Liu . Recent Advances of Functional Nanomaterials for Screen-Printed Photoelectrochemical Biosensors. Acta Physico-Chimica Sinica, 2025, 41(2): 100018-. doi: 10.3866/PKU.WHXB202310046

    16. [16]

      Pengcheng Yan Peng Wang Jing Huang Zhao Mo Li Xu Yun Chen Yu Zhang Zhichong Qi Hui Xu Henan Li . Engineering Multiple Optimization Strategy on Bismuth Oxyhalide Photoactive Materials for Efficient Photoelectrochemical Applications. Acta Physico-Chimica Sinica, 2025, 41(2): 100014-. doi: 10.3866/PKU.WHXB202309047

    17. [17]

      Ru SONGBiao WANGChunling LUBingbing NIUDongchao QIU . Electrochemical properties of stable and highly active PrBa0.5Sr0.5Fe1.6Ni0.4O5+δ cathode material. Chinese Journal of Inorganic Chemistry, 2025, 41(4): 639-649. doi: 10.11862/CJIC.20240397

    18. [18]

      Shengbiao Zheng Liang Li Nini Zhang Ruimin Bao Ruizhang Hu Jing Tang . Metal-Organic Framework-Derived Materials Modified Electrode for Electrochemical Sensing of Tert-Butylhydroquinone: A Recommended Comprehensive Chemistry Experiment for Translating Research Results. University Chemistry, 2024, 39(7): 345-353. doi: 10.3866/PKU.DXHX202310096

    19. [19]

      Shuhui Li Xucen Wang Yingming Pan . Exploring the Role of Electrochemical Technologies in Everyday Life. University Chemistry, 2025, 40(3): 302-307. doi: 10.12461/PKU.DXHX202406059

    20. [20]

      Zihan Lin Wanzhen Lin Fa-Jie Chen . Electrochemical Modifications of Native Peptides. University Chemistry, 2025, 40(3): 318-327. doi: 10.12461/PKU.DXHX202406089

Metrics
  • PDF Downloads(23)
  • Abstract views(1925)
  • HTML views(558)

通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索
Address:Zhongguancun North First Street 2,100190 Beijing, PR China Tel: +86-010-82449177-888
Powered By info@rhhz.net

/

DownLoad:  Full-Size Img  PowerPoint
Return
