Citation: Xiao-Qin WEI, Zhuan GAO, Fan REN, Xiao-You CUI, Yue ZHOU, Dong SHAO. A Halogen Hydrogen-Bonded Fe(Ⅲ) Complex Showing Hysteretic Spin-Crossover Behavior above Room Temperature[J]. Chinese Journal of Inorganic Chemistry, ;2022, 38(11): 2283-2290. doi: 10.11862/CJIC.2022.235 shu

A Halogen Hydrogen-Bonded Fe(Ⅲ) Complex Showing Hysteretic Spin-Crossover Behavior above Room Temperature

Xiao-Qin WEI ¹ ,
Zhuan GAO ¹ ,
Fan REN ¹ ,
Xiao-You CUI ¹ ,
Yue ZHOU ² ,
Dong SHAO ^{2, 3,,}

1.
Shanxi Province Collaborative Innovation Center for Light Materials Modification and Application, Department of Material Science and Engineering, Jinzhong University, Jinzhong, Shanxi 030619, China
2.
Hubei Key Laboratory of Processing and Application of Catalytic Materials, College of Chemistry and Chemical Engineering, Huanggang Normal University, Huanggang, Hubei 438000, China
3.
State Key Laboratory of Coordination Chemistry, Nanjing University, Nanjing 210023, China

Corresponding author: Dong SHAO, shaodong@nju.edu.cn
Received Date: 6 April 2022
Revised Date: 19 September 2022

Figures(7)

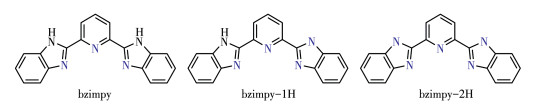

A mononuclear Fe(Ⅲ) complex, [Fe^Ⅲ(bzimpy-1H)₂]Cl (1) was prepared by the reaction of a tridentate ligand 2, 6-bis(benzimidazol-2-yl)pyridine (bzimpy), where bzimpy-1H is the product of bzimpy after removing one proton, and its structure and magnetic properties were characterized in detail. The single crystal structure analysis shows that the Fe³⁺ center features a rare distorted octahedral N₆ coordination environment for the complex, and the 3D supramolecular structure is constructed by N—H⋯Cl hydrogen bonding between the adjacent cation complex units and counterbalance chloride ions. The complex showed hysteretic spin-crossover (SCO) behavior above room temperature as evidenced by combined magnetic investigations and differential scanning calorimetry measurements (T_1/2↑=345 K, T_1/2 ↓=330 K). In addition, the light-induced excited spin state trapping (LIESST) effect was also observed in the complex. The magnetism-structure relationship shows that the N—H⋯Cl hydrogen bonding plays an important role in the bistable SCO behavior of the complex.
- spin crossover,
- Fe(Ⅲ) complex,
- bistable state,
- hydrogen bond,
- supramolecular interactions
1. [1]
  Halcrow M A. Spin Crossover Materials: Properties and Applications. New York: Wiley, 2013.
2. [2]
  Ruben M, Kuppusamy S K. Sublimable Spin-Crossover Complexes: From Spin-State Switching to Molecular Devices[J]. Angew. Chem. Int. Ed., 2021,60(14):7502-7521. doi: 10.1002/anie.201911256
3. [3]
  Sato O, Tao J, Zhang Y Z. Control of Magnetic Properties through External Stimuli[J]. Angew. Chem. Int. Ed., 2007,46(13):2152-2187. doi: 10.1002/anie.200602205
4. [4]
  Halcrow M A. Structure: Function Relationships in Molecular Spin-Crossover Complexes[J]. Chem. Soc. Rev., 2011,40(7):4119-4142. doi: 10.1039/c1cs15046d
5. [5]
  Shao D, Shi L, Shen F X, Wei X Q, Sato O, Wang X Y. Reversible On-Off Switching of the Hysteretic Spin Crossover in a Cobalt(Ⅱ) Complex via Crystal to Crystal Transformation[J]. Inorg. Chem., 2019,58(17):11589-11598. doi: 10.1021/acs.inorgchem.9b01436
6. [6]
  Zhao X H, Shao D, Chen J T, Gan D X, Yang J, Zhang Y Z. A Trinuclear {Fe₂^ⅢFe^Ⅱ} Complex Involving Both Spin and Non-spin Transitions Exhibits Three-Step and Wide Thermal Hysteresis[J]. Sci. China Chem., 2022,65(3):532-538. doi: 10.1007/s11426-021-1153-0
7. [7]
  Shen K Y, Zhang C J, Qu L Y, Jiang S Q, Zhang Y, Tong M L, Bao X. Thermodriven, Acidity-Driven, and Photo-Driven Spin-State Switching in Pyridylacylhydrazoneiron(Ⅱ) Complexes at or above Room Temperature[J]. Inorg. Chem., 2021,60(23):18225-18233. doi: 10.1021/acs.inorgchem.1c02866
8. [8]
  Wang L F, Lv B H, Wu F T, Huang G Z, Ruan Z Y, Chen Y C, Liu M, Ni Z P, Tong M L. Reversible On-Off Switching of Spin-Crossover Behavior via Photochemical[2+2] Cycloaddition Reaction[J]. Sci. China Chem., 2022,65(1):120-127. doi: 10.1007/s11426-021-1093-2
9. [9]
  Craze A R, Zenno H, Pfrunder M C, McMurtrie J C., Hayami S, Clegg J K, Li F. Supramolecular Modulation of Spin Crossover in an Fe(Ⅱ) Dinuclear Triple Helicate[J]. norg. Chem., 2021,60(9):6731-6738.
10. [10]
  Shen F X, Pi Q, Le S, Shao D, Li H Q, Sun Y C. Spin Crossover in Hydrogen-Bonded Frameworks of Fe^Ⅱ Complexes with Organodisulfonate Anions[J]. Dalton Trans., 2019,48(24):8815-8825. doi: 10.1039/C9DT01326A
11. [11]
  Zhao X H, Zhang S L, Shao D, Wang X Y. Spin Crossover in[Fe(2-picolylamine)₃]²⁺ Adjusted by Organosulfonate Anions[J]. Inorg. Chem., 2015,54(16):7857-7867. doi: 10.1021/acs.inorgchem.5b00870
12. [12]
  Zhang S L, Zhao X H, Wang Y M, Shao D, Wang X Y. Spin Crossover Behaviour in One-Dimensional Fe^Ⅱ Compounds Based on the[M(CN)₄]^2- (M=Pd, Pt) Units[J]. Dalton Trans., 2015,44(20):9682-9690. doi: 10.1039/C5DT00836K
13. [13]
  Harding D J, Harding P, Phonsri W. Spin Crossover in Iron(Ⅲ) Complexes[J]. Coord. Chem. Rev., 2016,313:38-61. doi: 10.1016/j.ccr.2016.01.006
14. [14]
  Nakaya M, Ohtani R, Lindoy L F, Hayami S. Light-Induced Excited Spin State Trapping in Iron(Ⅲ) Complexes[J]. Inorg. Chem. Front., 2021,8(2):484-498. doi: 10.1039/D0QI01188F
15. [15]
  WANG K J, LI H Q, SUN Y C, WANG X Y. Synthesis and Properties of an Iron Spin Crossover Compound with 1D Chains Bridged by Hydrogen Bonds[J]. Chinese J. Inorg. Chem., 2020,36(6):1143-1148.
16. [16]
  Boca M, Jameson R F, Linert W. Fascinating Variability in the Chemistry and Properties of 2, 6-Bis-(benzimidazol-2-yl)-pyridine and 2, 6-Bis-(benzthiazol-2-yl)-pyridine and Their Complexes[J]. Coord. Chem. Rev., 2011,255(1/2):290-317.
17. [17]
  Ruttimann S, Moreau C M, Williams A F, Bernardinelli G, Addison A W. Complexes of Structural Analogs of Terpyridyl with Iron and Zinc—The X-ray Crystal Structure of Bis[2, 6-bis(benzimidazol-2-yl) pyridine]iron (Ⅱ) Trifluoromethylsulfonate Bis-ethanol Solvate[J]. Polyhedron, 1992,11(6):635-646. doi: 10.1016/S0277-5387(00)83320-3
18. [18]
  Boca R, Baran P, Dlhifi L, Fuess H, Haase W, Renz F, Linert W, Svoboda I, Wemer R. Crystal Structure and Spin Crossover Studies on Bis(2, 6-bis(benzimidazol-2-yl)pyridine) Iron(Ⅱ) Perchlorate[J]. Inorg. Chim. Acta, 1997,260(2):129-136. doi: 10.1016/S0020-1693(96)05550-8
19. [19]
  Boca R, Baran P, Boca M, Fuess H, Haase W, Linert W, Papfinkovz B, Werner R. Spin Crossover in Bis(2, 6-bis(benzimidazol-2-yl)pyridine) Iron(Ⅱ) Tetraphenylborate[J]. Inorg. Chim. Acta, 1998,278(2):190-196. doi: 10.1016/S0020-1693(98)00023-1
20. [20]
  Boca R, Boca M, Dlhan L, Falk K, Fuess H, Haase W, Jaroščiak R, Papánková B, Renz F, Vrbová M, Werner R. Strong Cooperativeness in the Mononuclear Iron(Ⅱ) Derivative Exhibiting an Abrupt Spin Transition above 400 K[J]. Inorg. Chem., 2001,40(13):3025-3033. doi: 10.1021/ic000807s
21. [21]
  Boca R, Renz F, Boca M, Fuess H, Haase W, Kicklbick G, Linert W, Vrbova-Schikora M. Tuning the Spin Crossover Above Room Temperature: Iron(Ⅱ) Complexes of Substituted and Deprotonated 2, 6-Bis (benzimidazol-2-yl)pyridine[J]. Inorg. Chem. Commun., 2005,8(2):227-230. doi: 10.1016/j.inoche.2004.12.014
22. [22]
  Sheldrick G M. SHELXTL, Version 6.14. Bruker AXS, Inc., Madison, WI, 2000-2003.
23. [23]
  Dolomanov O V, Bourhis L J, Gildea R J, Howard J A K, Puschmann H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program[J]. J. Appl. Crystallogr., 2009,42:339-341. doi: 10.1107/S0021889808042726
24. [24]
  Llunell M, Casanova D, Cirera J, Alemany P, Alvarez S. SHAPE, Version 2.1. University of Barcelona, 2013.
25. [25]
  Ketkaew R, Tantirungrotechai Y, Harding P, Chastanet G, Guionneau P, Marchivie M, Harding D J. OctaDist: A Tool for Calculating Distortion Parameters in Spin Crossover and Coordination Complexes[J]. Dalton Trans., 2021,50(3):1086-1096. doi: 10.1039/D0DT03988H
26. [26]
  Martin J P, Zarembowitch J, Bousseksou A, Dworkin A, Haasnoot J G, Varret F. Solid State Effects on Spin Transitions: Magnetic, Calorimetric, and Mössbauer-Effect Properties of[Fe_xCo_1-x(4, 4'-bis-1, 2, 4-triazole)₂(NCS)₂] ·H₂O Mixed-Crystal Compounds[J]. Inorg. Chem., 1994,33(26):6325-6333. doi: 10.1021/ic00104a049
27. [27]
  Domracheva N E, Pyataev A V, Vorobeva V E, Zueva E M. Detailed EPR Study of Spin Crossover Dendrimeric Iron(Ⅲ) Complex[J]. J. Phys. Chem. B, 2013,117(25):7833-7842. doi: 10.1021/jp403682p
28. [28]
  Domracheva N, Pyataev A, Manapov R, Gruzdev M, Chervonova U, Kolker A. Structural, Magnetic and Dynamic Characterization of Liquid Crystalline Iron(Ⅲ) Schiff Base Complexes with Asymmetric Ligands[J]. Eur. J. Inorg. Chem., 2011(8):1219-1229.
29. [29]
  Thammasangwan W, Harding P, Telfer S G, Alkaş A, Phonsri W, Murray K S, Clérac R, Rouzières M, Chastanet G, Harding D J. Thermal and Light-Activated Spin Crossover in Iron(Ⅲ) qnal Complexes[J]. Eur. J. Inorg. Chem., 2020(14):1325-1330.
30. [30]
  Ouyang Z J, Mo X Y, Yang M, Zhong L, Chen W B, Gao S, Dong W. High Temperature Fe(Ⅲ) Spin Crossover Behaviours in Three Unprecedented Fe^Ⅲ—M^Ⅱ—Fe^Ⅲ (M=Fe, Cd) Linear Trinuclear Complexes[J]. Inorg. Chem. Front., 2020,7(7):1526-1531. doi: 10.1039/C9QI01560D
31. [31]
  Weber B, Bauer W, Obel J. An Iron(Ⅱ) Spin-Crossover Complex with a 70 K Wide Thermal Hysteresis Loop[J]. Angew. Chem. Int. Ed., 2008,47(52):10098-10101. doi: 10.1002/anie.200802806
32. [32]
  Hayami S, Gu Z, Yoshiki H, Fujishima A, Sato O. Iron(Ⅲ) Spin-Crossover Compounds with a Wide Apparent Thermal Hysteresis around Room Temperature[J]. J. Am. Chem. Soc., 2001,123(47):11644-11650. doi: 10.1021/ja0017920
33. [33]
  Feng L J, Yuan Y H, Yan B J, Feng T T, Jian Y P, Zhang J C, Sun W Y, Lin K, Luo G S, Wang N. Halogen Hydrogen-Bonded Organic Framework (XHOF) Constructed by Singlet Open-Shell Diradical for Efficient Photoreduction of U(Ⅵ)[J]. Nat. Commun., 2022,131389. doi: 10.1038/s41467-022-29107-9
