Citation: Pei-Pei QIAO, Yue-Wei TIAN, Qing HE, Yong-Po ZHANG, Chun-Yan GAO, Jin-Zhong ZHAO, Wei-Jun DU. Synthesis, Structure and Anticancer Activity of Binuclear Polypyridine Nickel Complexes[J]. Chinese Journal of Inorganic Chemistry, ;2021, 37(10): 1738-1744. doi: 10.11862/CJIC.2021.207 shu

Synthesis, Structure and Anticancer Activity of Binuclear Polypyridine Nickel Complexes

1.
Department of Basic Sciences, Shanxi Agricultural University, Jinzhong, Shanxi 030801, China
2.
College of Agronomy, Shanxi Agricultural University, Jinzhong, Shanxi 030801, China

Corresponding author: Chun-Yan GAO, gaocynk@163.com Wei-Jun DU, duweijun68@126.com
Received Date: 2 February 2021
Revised Date: 16 July 2021

Figures(5)

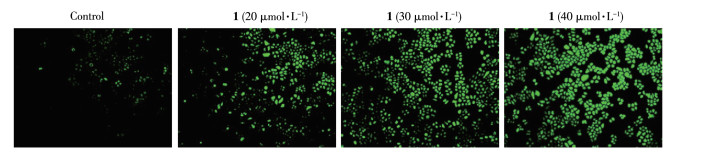

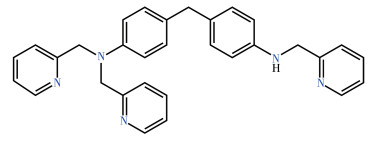

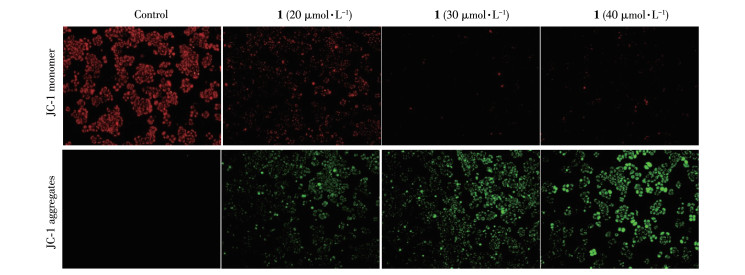

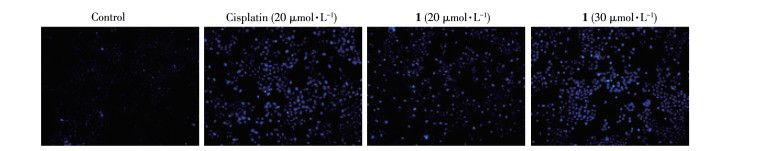

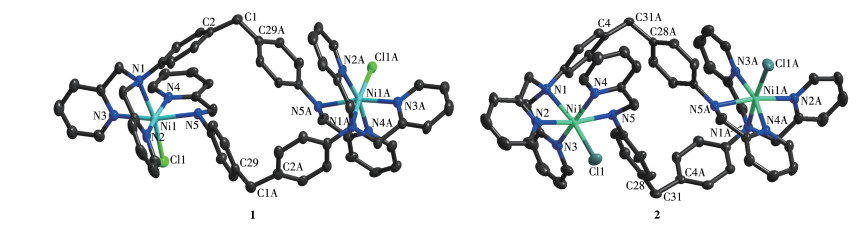

Two new polypyridine dinuclear nickel (Ⅱ) complexes[Ni₂(L)₂Cl₂](ClO₄)₂·3H₂O (1) and[Ni₂(L)₂Cl₂](PF₆)₂ (2) (L=N, N-bis(pyridin-2-ylmethyl)-4-(4-((pyridin-2-ylmethyl)amino)benzyl)aniline) were synthesized, and their structures were determined by X-ray single crystal diffraction, elemental analysis and infrared spectroscopy. Moreover, the in vitro toxic effects of the two complexes on cancer cells (HeLa, BGC-823, NCI-H460, HepG-2) were tested by thiazole blue (MTT) method, and the results indicate that the two complexes showed good toxicity on NCIH460 cells. IC₅₀=(26.0±2.2) μmol·L^-1 (1), (31.3±2.7) μmol·L^-1 (2). The cytotoxic mechanism of complex 1 towards NCI-H460 cells was further explored by Hoechst 33342 staining, detection of intracellular reactive oxygen species levels and measurement of mitochondrial membrane potential change. The results demonstrate that complex 1 is likely to induce cell apoptosis through the mitochondrial pathway, thereby causing lethal effects on cancer cells.
- nickel complex,
- crystal structure,
- cytotoxicity,
- mitochondrial pathway
1. [1]
  Farrell N, Spinelli S. Uses of Inorganic Chemistry in Medicine. Cambridge: RSC, 1999: 124-134
2. [2]
  Johnstone T C, Suntharalingam K, Lippard S J. Chem. Rev., 2016, 116(5): 3436-3486 doi: 10.1021/acs.chemrev.5b00597
3. [3]
  JIN S X, GUO Z J, WANG X Y. Progress in Pharmaceutical Sciences, 2020, 44(4): 280-293
4. [4]
  Galluzzi L, Vitale I, Michels J, Brenner C, Szabadkai G, Harel-Bellan A, Castedo M, Kroemer G. Cell Death Dis., 2014, 5(5): e1257
5. [5]
  MO H W, LIU Y X, CAI D H, SHEN F, LE X Y. Chinese J. Inorg. Chem., 2019, 35(3): 477-484
6. [6]
  Zhang P L, Hou X X, Liu M R, Huang F P, Qin X Y. Dalton Trans., 2020, 49: 6043-6055 doi: 10.1039/D0DT00380H
7. [7]
  Zhao Y, Li Z, Li H, Wang S, Niu M. Inorg. Chim. Acta, 2018, 482: 136-143 doi: 10.1016/j.ica.2018.06.008
8. [8]
  Walsh C T, Orme-Johnson W H. Biochemistry, 1987, 26(16): 4901-4906 doi: 10.1021/bi00390a001
9. [9]
  Ramasubramanian R, Anandababu K, Kumar M, Mayilmurugan R. Dalton Trans., 2018, 47(12): 4049-4053 doi: 10.1039/C7DT04739H
10. [10]
  Saylor Z, Maier R. Microbiology, 2018, 164(8): 1059-1068 doi: 10.1099/mic.0.000680
11. [11]
  Su X, Mccardle K M, Panetier J A, Jurss J W. Chem. Commun., 2018, 54: 3351-3354 doi: 10.1039/C8CC00266E
12. [12]
  Pang H, Lu Q, Li Y, Gao F. Chem. Commun., 2009, 48(48): 7542-7544
13. [13]
  Campo R, Criado J J, García E, Hermosa M R, Jiménez-Sánchez A, Manzano J L, Monte E, Rodríguez-Fernández E, Sanz F. J. Inorg. Biochem., 2002, 89(1/2): 74-82
14. [14]
  ZHANG Y P, LÜ J Y, WANG Y F, GAO C Y, ZHAO J Z. Acta Scientiarum Naturallum Universitatis Nankaiensis, 2016, 49(2): 77-83
15. [15]
  Gao C Y, Ma Z Y, Zhang Y P, Li S T, Gu W, Liu X, Tian J L, Xu J Y, Zhao J Z, Yan S P. RSC Adv., 2015, 5(39): 30768-30779 doi: 10.1039/C4RA16755D
16. [16]
  PAN J B, CHEN X, FANG W J, LIU W, YU G W. Chinese J. Inorg. Chem., 2018, 34(5): 889-896
17. [17]
  Fujita M. Chem. Soc. Rev., 1998, 27(6): 417-425 doi: 10.1039/a827417z
18. [18]
  Olenyuk B, Fechtenkötter A, Stang P J. J. Chem. Soc. Dalton Trans., 1998(11): 1707-1728 doi: 10.1039/a801057i
19. [19]
  Wang F Y, Xi Q Y, Huang K B, Tang X M, Chen Z F, Liu Y C, Liang H. J. Inorg. Biochem., 2017, 169: 23-31 doi: 10.1016/j.jinorgbio.2017.01.001
20. [20]
  Icsel C, Yilmaz V T, Aydinlik S, Aygun M. Dalton Trans., 2020, 49(23): 7842-7851 doi: 10.1039/D0DT01535K
21. [21]
  Gao C Y, Qiao X, Ma Z Y, Wang Z G, Lu J, Tian J L, Xu J Y, Yan S P. Dalton Trans., 2012, 41(39): 12220-12232 doi: 10.1039/c2dt31306e
22. [22]
  Sheldrick G M. Correction Software, University of Göttingen, Germany, 1996.
23. [23]
  Sheldrick G M. SHELXS-97, Program for the Solution of Crystal Structure, University of Göttingen, Germany, 1997.
24. [24]
  Sheldrick G M. SHELXL-97, Program for the Refinement of Crystal Structure, University of Göttingen, Germany, 1997.
25. [25]
  Feng C, Gan Q, Liu X, He H. Chin. J. Chem., 2012, 30(7): 1589-1593 doi: 10.1002/cjoc.201100744
26. [26]
  Wan D, Lai S H, Zeng C C, Zhang C, Tang B, Liu Y J. J. Inorg. Biochem., 2017, 173: 1-11 doi: 10.1016/j.jinorgbio.2017.04.026
27. [27]
  Yue X L, Lehri S, Li P, Barbier-Chassefière V, Petit E, Huang Q F, Albanese P, Barritault D, Caruelle J P, Papy-Garcia D, Morin C. Cell Death Differ., 2009, 16(5): 770-781 doi: 10.1038/cdd.2009.9
28. [28]
  Green D R, Kroemer G. Science, 2004, 305(5684): 626-629 doi: 10.1126/science.1099320
