Citation: Yu CHEN, Zhao-Dong WANG. Synthesis and Magnetic Characterization of Mononuclear Co(Ⅱ) Complex Based on Pyrazine-Containing Hydrazone Schiff Base Ligand[J]. Chinese Journal of Inorganic Chemistry, ;2021, 37(3): 525-530. doi: 10.11862/CJIC.2021.050 shu

Synthesis and Magnetic Characterization of Mononuclear Co(Ⅱ) Complex Based on Pyrazine-Containing Hydrazone Schiff Base Ligand

Yu CHEN ,
Zhao-Dong WANG ^,

College of Chemistry and Environmental Engineering, Chongqing Key Laboratory of Environmental Materials & Remediation Technologies, Chongqing University of Arts and Sciences, Chongqing 402160, China

Corresponding author: Zhao-Dong WANG, ouwzdong@qq.com
Received Date: 10 August 2020
Revised Date: 16 November 2020

Figures(6)

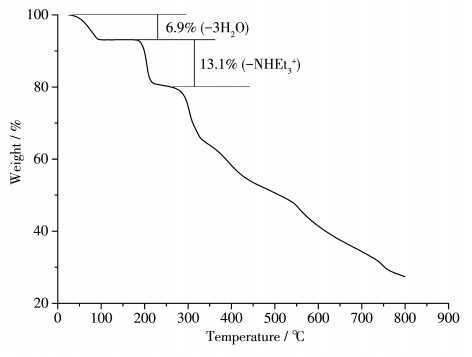

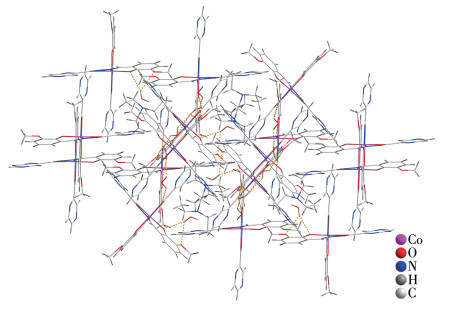

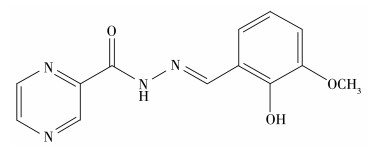

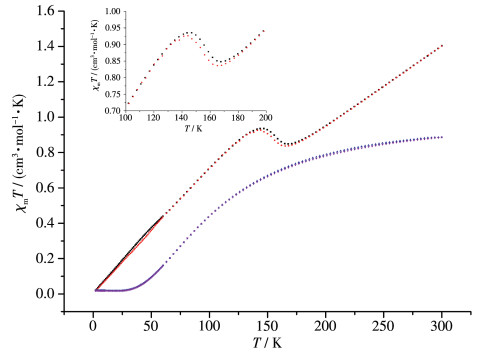

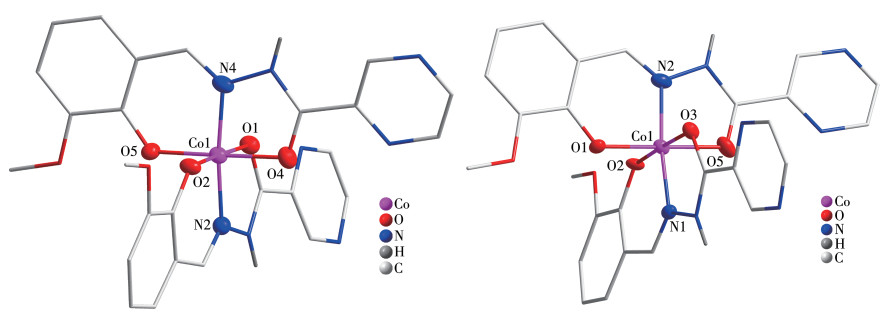

A mononuclear Co(Ⅱ)complex (NHEt₃)[Co(HL)₂] ·3H₂O (1) based on a pyrazine-containing hydrazone Schiff base ligand H₂L was synthesized and characterized by IR, thermogravimetric analysis, X-ray single diffraction and magnetic susceptibility measurements. X-ray single crystal analysis reveals that it consists of a Co(Ⅱ)ion, two deprotonated HL- ligands, three uncoordinated H₂O and a protonated triethylamine. The central Co(Ⅱ)ion is six- coordinated with N₂O₄ donor sets to form distorted octahedral geometry. Magnetic susceptibility measurement of both complex 1 and the dehydrated 1 showed a gradual high spin to low spin transition, and the differences can be attributed to the hydrogen bonding effects on the magnetic properties. CCDC: 1973542, 1 (298 K); 20274281, 1 (100 K).
- hydrazone ligand,
- single crystal structure,
- spin transition,
- mononuclear Co complex
1. [1]
  Halcrow M A. Chem. Soc. Rev. , 2011, 40: 4119-4142 doi: 10.1039/c1cs15046d
2. [2]
  Sato O. Nat. Chem. , 2016, 8: 644-656 doi: 10.1038/nchem.2547
3. [3]
  Feltham H L C, Barltrop A S, Brooker S. Coord. Chem. Rev. , 2017, 344: 26-53 doi: 10.1016/j.ccr.2016.10.006
4. [4]
  Hogue R W, Singh S, Brooker S. Chem. Soc. Rev. , 2018, 47: 7303-7338 doi: 10.1039/C7CS00835J
5. [5]
  Harding D J, Harding P, Phonsri W. Coord. Chem. Rev. , 2016, 313: 38-61 doi: 10.1016/j.ccr.2016.01.006
6. [6]
  WANG K J, LI H Q, SUN Y C, WANG X Y. Chinese J. Inorg. Chem. , 2020, 35(6): 1143-1148
7. [7]
  Hayami S, Komatsu Y, Shimizu T, Kamihata H, Lee Y H. Coord. Chem. Rev. , 2011, 255: 1981-1990 doi: 10.1016/j.ccr.2011.05.016
8. [8]
  Kumar K S, Bayeh Y, Gebretsadik T, Elemo F, Gebrezgiabher M, Thomas M, Ruben M. Dalton Trans. , 2019, 48: 15321-15337 doi: 10.1039/C9DT02085C
9. [9]
  Shao D, Shi L, Shen F X, Wei X Q, Sato O, Wang X Y. Inorg. Chem. , 2019, 58(17): 11589-11598 doi: 10.1021/acs.inorgchem.9b01436
10. [10]
  Cowan M G, Olgurin J, Narayanaswamy S, Tallon J L, Brooker S. J. Am. Chem. Soc. , 2012, 134(6): 2892-2894 doi: 10.1021/ja208429u
11. [11]
  Olguín J. Coord. Chem. Rev. , 2020, 407: 213148 doi: 10.1016/j.ccr.2019.213148
12. [12]
  Su X, Aprahamian I. Chem. Soc. Rev. , 2014, 43: 1963-1981 doi: 10.1039/c3cs60385g
13. [13]
  Tian H Q, Zhao L, Guo Y N, Guo Y, Tang J K, Liu Z L. Chem. Commun. , 2012, 48: 708-710 doi: 10.1039/C1CC15814G
14. [14]
  Tian H Q, Wang B L, Lu J, Liu H T, Su J H, Li D C, Dou J M. Chem. Commun. , 2018, 54: 12105-12108 doi: 10.1039/C8CC06699J
15. [15]
  Tian H Q, Bao S S, Zheng L M. Chem. Commun. , 2016, 52: 2314-2317 doi: 10.1039/C5CC08740F
16. [16]
  Tian H Q, Zhao L, Tang J K. Cryst. Growth Des. , 2018, 18(2): 1173-1181 doi: 10.1021/acs.cgd.7b01612
17. [17]
  Tian H Q, Zhao L, Lin H F, Tang J K, Li G S. Chem. -Eur. J. , 2013, 19(39): 13235-13241 doi: 10.1002/chem.201301313
18. [18]
  Sheldrick G M. Acta Crystallogr. Sect. C, 2015, C71: 3-8
19. [19]
  Dolomanov O V, Bourhis L J, Gildea R J, Howard J A K, Puschamann H. J. Appl. Crystallogr. , 2009, 42: 339-341 doi: 10.1107/S0021889808042726
20. [20]
  Chandrasekhar V, Dey A, Mota A J, Colacio E. Inorg. Chem. , 2013, 52(8): 4554-4561 doi: 10.1021/ic400073y
21. [21]
  Hayami S, Kato K, Komatsu Y, Fuyuhiro A, Ohba M. Dalton Trans. , 2011, 40: 2167-2169 doi: 10.1039/C0DT01052A
22. [22]
  Hayami S, Nakaya M, Ohmagari H, Alao A S, Nakamura M, Ohtani R, Yamaguchi R, Kuroda-Sowa T, Clegg J K. Dalton Trans. , 2015, 44: 9345-9348 doi: 10.1039/C4DT03743J
23. [23]
  Weselski M, Ksiażek M, Mess P, Kusz J, Bronisz R. Chem. Commun. , 2019, 55: 7033-7036 doi: 10.1039/C9CC02755F
24. [24]
  Shao D, Shi L, Yin L, Wang B L, Wang Z X, Zhang Y Q, Wang X Y. Chem. Sci. , 2018, 9: 7986-7991 doi: 10.1039/C8SC02774A
