Citation: Zhou-Rong XIAO, Fang HOU, Xiang-Wen ZHANG, Li WANG, Guo-Zhu LI. Preparation of Ordered Mesoporous Nitrogen Doped Carbon Supported Fe2O3 for Oxygen Reduction Reaction[J]. Chinese Journal of Inorganic Chemistry, ;2021, 37(2): 243-250. doi: 10.11862/CJIC.2021.024 shu

Preparation of Ordered Mesoporous Nitrogen Doped Carbon Supported Fe2O3 for Oxygen Reduction Reaction

  • 1.

    School of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, China

  • 2.

    Collaborative Innovation Center of Chemical Science & Engineering, Tianjin University, Tianjin 300072, China

  • Corresponding author: Guo-Zhu LI, gzli@tju.edu.cn
  • Received Date: 30 July 2020
    Revised Date: 27 October 2020

Figures(11)

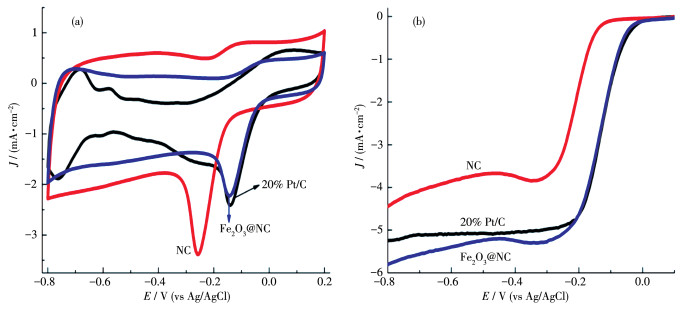

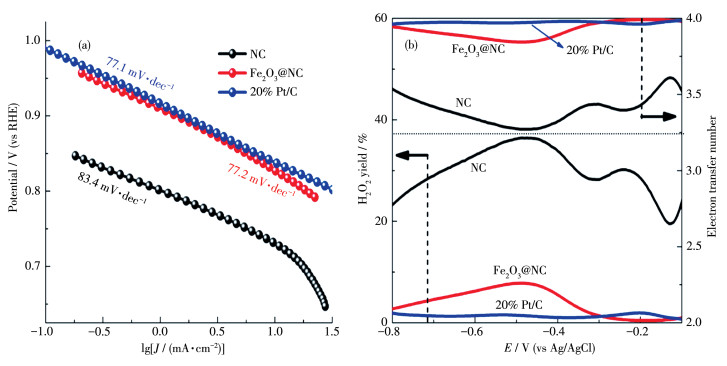

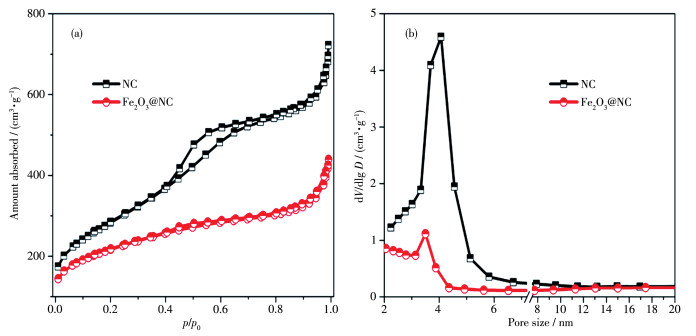

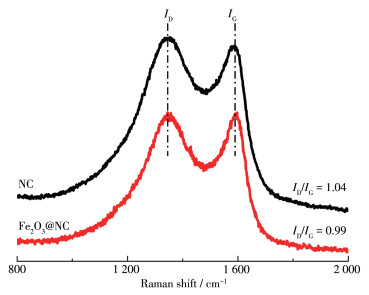

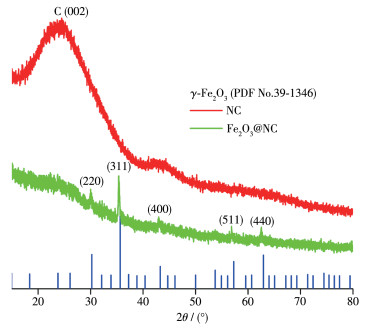

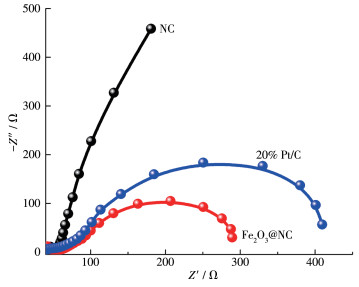

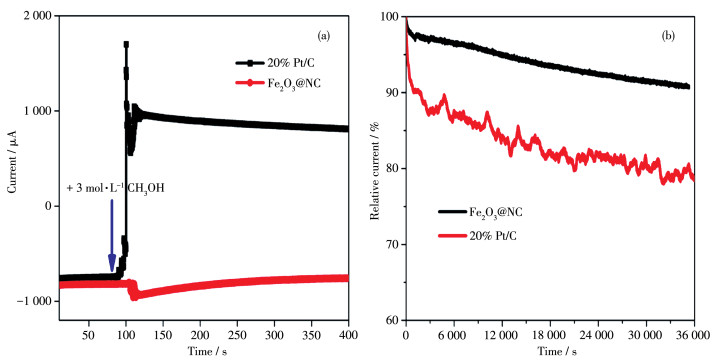

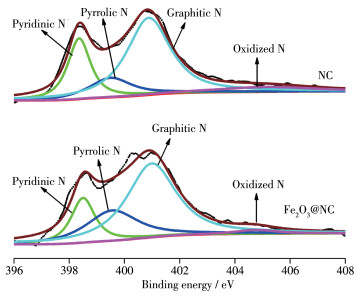

  • Ordered mesoporous nitrogen doped carbon supported iron oxide was prepared, which effectively reduced the overpotential of oxygen reduction. The physicochemical properties of the as-prepared catalysts were characterized by scanning electron microscopy, transmission electron microscopy, nitrogen adsorption-desorption test, powder X-ray diffraction, X-ray photoelectron spectroscopy and Raman spectroscopy. In addition, the activity and selectivity for oxygen reduction reaction was tested by rotating disc electrode under alkaline conditions. The results show that iron was loaded in ordered mesoporous nitrogen doped carbon in the form of Fe2O3 after nitrogen pyrolysis, and its specific surface area reached 755 cm2·g-1. The results of Raman and X-ray photoelectron spectroscopy show that the graphitization degree of the catalyst increased with adding iron precursor. The impedance was decreased and its conductivity was increased. Under alkaline conditions, Fe2O3@NC exhibited a 4-electron oxygen reduction reaction, and its initial potential (-0.01 V vs Ag/AgCl) and half slope potential (-0.13 V vs Ag/AgCl) were comparable to those of commercial 20% Pt/C. In addition, the catalyst had superior methanol resistance and excellent constant voltage stability compared with commercial Pt/C. The discharge power of Fe2O3@NC reached 88 mW·cm-2, which was 1.29 times that of commercial Pt/C.
  • 加载中
    1. [1]

      Peng X W, Zhang L, Chen Z X, Zhong L X, Zhao D K, Chi X, Zhao X X, Li L G, Lu X H, Leng K, Liu C B, Liu W, Tang W, Loh K P. Adv Mater., 2019, 31:1900341-1900347

    2. [2]

      Gewirth A A, Varnell J A, DiAscro A M. Chem. Rev., 2018, 118:2313-2339  doi: 10.1021/acs.chemrev.7b00335

    3. [3]

      Zhu C Z, Li H, Fu S F, Du D, Lin Y H. Chem. Soc. Rev., 2016, 45:517-531  doi: 10.1039/C5CS00670H

    4. [4]

      Gao W B, Zhang Z P, Dou M L, Wang F. ACS Catal., 2019, 9:3278-3288

    5. [5]

      Xiao Z R, Hou F, Li Y T, Zhang R R, Shen G Q, Wang L, Zhang X W, Wang Q F, Li G Z. Chem. Eng. Sci., 2019, 207:235-246

    6. [6]

      Liu S, Li G Z, Gao Y Y, Xiao Z R, Zhang J F, Wang Q F, Zhang X W, Wang L. Catal. Sci. Technol., 2017, 7:4007-4016

    7. [7]

      Hu E L, Yu X Y, Chen F, Wu Y D, Hu Y, Lou X W. Adv. Energy Mater., 2018, 8:1702476-1702483

    8. [8]

      Zang Y P, Zhang H M, Zhang X, Liu R R, Liu S W, Wang G Z, Zhang Y X, Zhao H J. Nano Res., 2016, 9:2123-2137

    9. [9]

      Tian Y H, Xu L, Qian J C, Bao J, Yan C, Li H N, Li H M, Zhang S Q. Carbon, 2019, 146:763-771

    10. [10]

      Gao Y Y, Wang L, Li G Z, Xiao Z R, Wang Q F, Zhang X W. Int. J. Hydrogen Energy, 2018, 43:7893-7902

    11. [11]

      Xiao Z R, Hou F, Zhang R R, Li Y T, Yuan G, Pan L, Zou J J, Wang L, Zhang X W, Li G Z. Catal. Sci. Technol., 2019, 9:4581-4587

    12. [12]

      Gao S Y, Fan B F, Feng R, Ye C L, Wei X J, Liu J, Bu X H. Nano Energy, 2017, 40:462-470


    13. [13]

      Wang H T, Wang W, Gui M X, Muhammad A, Wang Z Y, Yu Y, Xiao J W, Liu H F. ACS Appl. Mater. Interfaces, 2017, 9:335-344

    14. [14]

      Wang H T, Wang W, Xu Y Y, Dong S, Xiao J W, Wang F, Liu H F, Xia B Y. ACS Appl. Mater. Interfaces, 2017, 9(12):10610-10617  doi: 10.1021/acsami.6b15392

    15. [15]

      He J N, Li B B, Mao J, Liang Y Q, Yang X J, Cui Z D, Zhu S L, Li Z Y. J. Mater. Sci., 2017, 52:10938-10947

    16. [16]

      Dhavale V, Singh S, Nadeema A, Gaikwad S, Kurungot S. Nanoscale, 2015, 7:20117-20125  doi: 10.1039/C7NR90179H

    17. [17]

      Li B, Chen Y, Ge X M, Chai J W, Zhang X, Andy Hor T S, Du G J, Liu Z L, Zhang H, Zong Y. Nanoscale, 2016, 8:5067-5075

    18. [18]

      Guo D K, Han S C, Wang J C, Zhu Y F. Appl. Surf. Sci., 2018, 434:1266-1273

    19. [19]

      Ao X, Zhang W, Li Z S, Li J G, Soule L, Huang X, Chiang W H, Chen H M, Wang C D, Liu M L, Zeng X C. ACS Nano, 2019, 13(10):11853-11862

    20. [20]

      Li Y Q, Huang H Y, Chen S R, Yu X, Wang C, Ma T L. Nano Res., 2019, 12(8):1900-1905
