Citation: ZHANG Wei-Min, JIA Han-Qiong, HU Su-Fang, MA Jing-Hong, LI Rui-Feng. Promotion Effect of Surfactant AEO-3 on Synthesis of β Zeolites[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(10): 1917-1924. doi: 10.11862/CJIC.2020.219 shu

Promotion Effect of Surfactant AEO-3 on Synthesis of β Zeolites

College of Chemistry and Chemical Engineering, Taiyuan University of Technology, Taiyuan 030024, China

Corresponding author: MA Jing-Hong, majinghong@tyut.edu.cn
Received Date: 23 April 2020
Revised Date: 20 August 2020

Figures(6)

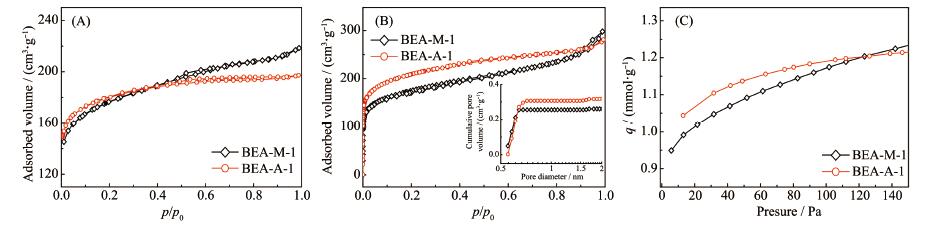

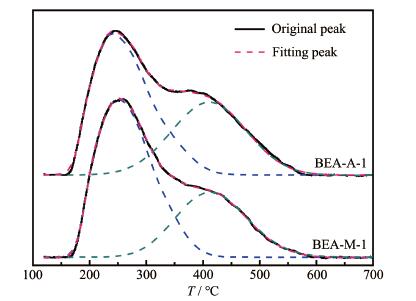

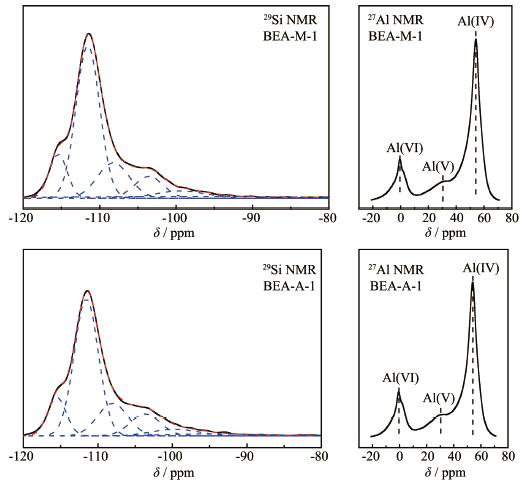

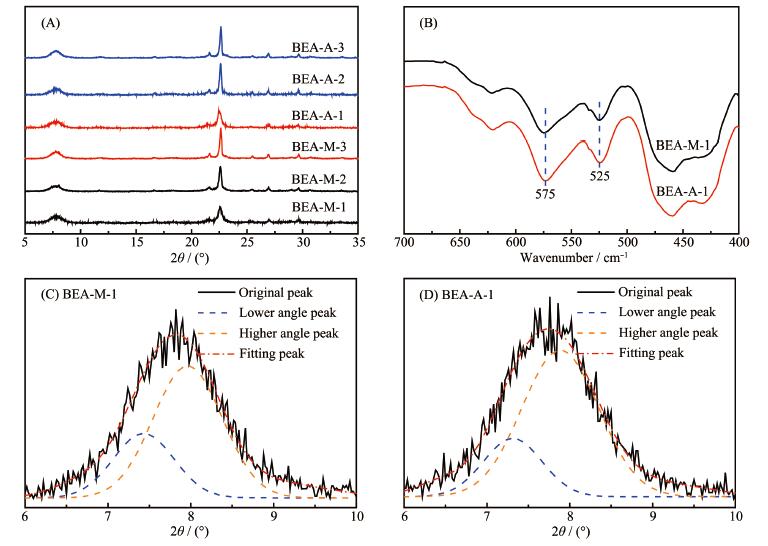

The effect of the nonionic surfactant primary alcobol ethoxylate (AEO-3) as an additive on the crystallization of β zeolites was investigated by adding it into the conventional hydrothermal synthesis system of the β zeolites with a formula of n_Al₂O₃:n_SiO₂:n_Na₂O:n_TEAOH:n_H₂O:n_AEO-3:n_C₂H₅OH=(0.28~1):40:1.55:10:640:(0.45~7.69):11.37. It was indicated that the addition of AEO-3 could promote the formation of aluminosilicate sol and increase the degree of its homogenization, as well as the yield of the product. The as-synthesized samples were characterized by X-ray diffraction, N₂ and Ar adsorption-desorption, scanning electron microscope, NMR and n-decane adsorption. The results showed that the nano particles of β zeolites were more complete and uniform, the crystallinity and micropore volume increased by the addition of surfactant AEO-3, and the yield of product, Si/Al ratio and acid strength increased as well. In addition, the addition of AEO-3 increased the proportion of chiral polymorph A in the structure of β zeolites.
- zeolites,
- hydrothermal synthesis,
- AEO-3,
- crystallinity,
- yield of product,
- polymorph A
1. [1]
  Treacy M M J, Newsam J M. Nature, 1988, 332(6161):249-251 doi: 10.1038/332249a0
2. [2]
  Corma A, Fornés V, Montón J B, et al. J. Catal., 1987, 107(2):288-295 doi: 10.1016/0021-9517(87)90295-8
3. [3]
  Al-Eid M, Ding L H, Saleem Q, et al. Microporous Mesoporous Mater., 2019, 279:99-106 doi: 10.1016/j.micromeso.2018.12.015
4. [4]
  Corma A. Chem. Rev., 1995, 95(3):559-614 doi: 10.1021/cr00035a006
5. [5]
  Nakao R, Kubota Y, Katada N, et al. Appl. Catal. A, 2004, 273(1/2):63-73 doi: 10.1016/j.apcata.2004.06.013
6. [6]
  Nivarthy G S, Seshan K, Lercher J A. Microporous Mesoporous Mater., 1998, 22(1/2/3):379-388
7. [7]
  Clerici M G. Top. Catal., 2000, 13(4):373-386 doi: 10.1023/A:1009063106954
8. [8]
  Moliner M. Dalton Trans., 2014, 43(11):4197-4208 doi: 10.1039/C3DT52293H
9. [9]
  Brandenberger S, Kröcher O, Tissler A, et al. Catal. Rev.:Sci. Eng., 2008, 50(4):492-531 doi: 10.1080/01614940802480122
10. [10]
  Chen S, Yang Y R, Zhang K X, et al. Catal. Today, 2006, 116(1):2-5 doi: 10.1016/j.cattod.2006.04.005
11. [11]
  Ali M A, Tatsumi T, Masuda T. Appl. Catal. A, 2002, 233(1):77-90 doi: 10.1016/s0926-860x(02)00121-7
12. [12]
  Landau M V, Vradman L, Valtchev V, et al. Ind. Eng. Chem. Res., 2003, 42(12):2773-2782 doi: 10.1021/ie020899o
13. [13]
  Wadlinger R L, Kerr G T, Rosinski E J. US Patent, 3308069. 1967-03-07
14. [14]
  XIE Chuan-Xin, PAN Hui-Fang. Chin. J. Chem. Phys., 2005, 18(1):129-135
15. [15]
  Pazos Zarama M C, Valencia Ríos J S, Alba M D, et al. J. Porous Mater., 2007, 14(2):239-242 doi: 10.1007/s10934-006-9029-7
16. [16]
  Inagaki S, Nakatsuyama K, Kikuchi E, et al. Stud. Surf. Sci. Catal., 2005, 158(5):343-350
17. [17]
  QI Xiao-Lan, LIU Xi-Yao. Journal of Molecular Catalysis (China), 1999, 13(6):471-482
18. [18]
  Möller K, Yilmaz B, Jacubinas R M, et al. J. Am. Chem. Soc., 2011, 133(14):5284-5295 doi: 10.1021/ja108698s
19. [19]
  Camblor M A, Corma A, Valencia S. Microporous Mesoporous Mater., 1998, 25(1/2/3):59-74
20. [20]
  Möller K, Yilmaz B, Müller U, et al. Chem. Mater., 2011, 23(19):4301-4310 doi: 10.1021/cm103533e
21. [21]
  Camblor M A, Corma A, Mifsud A, et al. Stud. Surf. Sci. Catal., 1997, 105:341-348 doi: 10.1016/S0167-2991(97)80574-5
22. [22]
  Lu T T, Yan W F, Xu R R. Inorg. Chem. Front., 2019, 6(8):1938-1951 doi: 10.1039/C9QI00574A
23. [23]
  Newsam J M, Treacy M M J, Koetsier W T, et al. Proc. R. Soc. London Ser. A, 1988, 420(1859):375-405 doi: 10.1098/rspa.1988.0131
24. [24]
  Higgins J B, LaPierre R B, Schlenker J L, et al. Zeolites, 1988, 8:446-452 doi: 10.1016/S0144-2449(88)80219-7
25. [25]
  YAN Wen-Fu(闫文付), TONG Ming-Quan(童明全), YU Ji-Hong(于吉红), et al. Chinese Patent, CN102190314A. 2011-09-21.
26. [26]
  Dartt C B, Davis M E. Catal. Today, 1994, 19(1):151-186
27. [27]
  Lu T T, Zhu L K, Wang X H, et al. Inorg. Chem. Front., 2018, 5(7):1640-1645 doi: 10.1039/C8QI00265G
28. [28]
  Takagi Y, Komatsu T, Kitabata Y. Microporous Mesoporous Mater., 2008, 109(1/2/3):567-576
29. [29]
  Lu T T, Zhu L K, Wang X H, et al. Inorg. Chem. Front., 2018, 5(4):802-805
30. [30]
  Pérez-Pariente J, Martens J A, Jacobs P A. Appl. Catal., 1987, 31(1):35-64
31. [31]
  Mintova S, Valtchev V, Onfroy T, et al. Microporous Mesoporous Mater., 2006, 90(1/2/3):237-245
32. [32]
  Pérez-Pariente J, Sanz J, Fornés V, et al. J. Catal., 1990, 124(1):217-223
33. [33]
  Maier S M, Jentys A, Lercher J A. J. Phys. Chem. C, 2011, 115(16):8005-8013 doi: 10.1021/jp108338g
