Citation: SUN Ai-Jing, BU De-Yan, ZHANG Hui, WANG Zuo-Xiang. Syntheses, Crystal Structures and Characterization of Two Polymeric Cadmium(Ⅱ) Complexes Based on 2-Methyl-5-(2-pyridyl)-1, 3, 4-oxadiazole[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(10): 1959-1966. doi: 10.11862/CJIC.2020.213 shu

Syntheses, Crystal Structures and Characterization of Two Polymeric Cadmium(Ⅱ) Complexes Based on 2-Methyl-5-(2-pyridyl)-1, 3, 4-oxadiazole

School of Chemistry and Chemical Engineering, Southeast University, Nanjing 211189, China

Corresponding author: WANG Zuo-Xiang, wangzx0908@aliyun.com
Received Date: 2 February 2020
Revised Date: 6 June 2020

Figures(6)

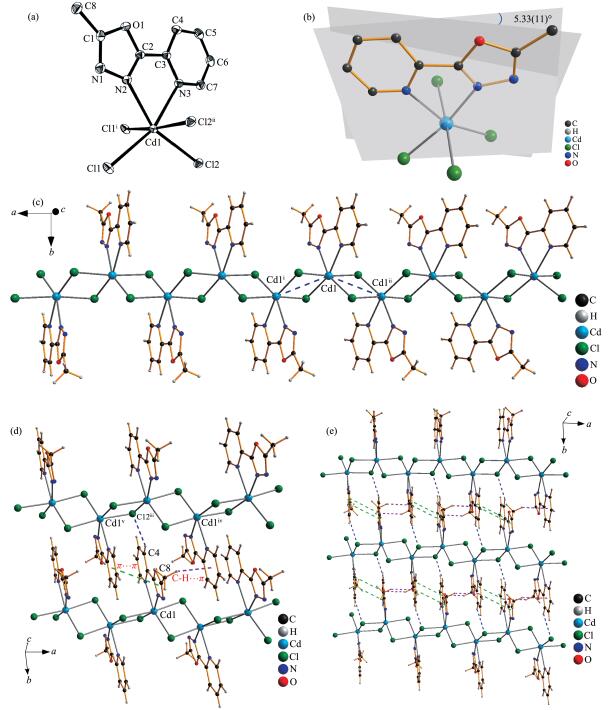

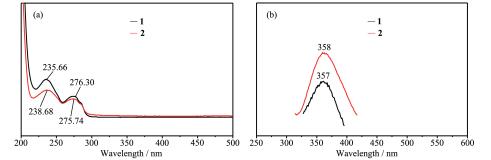

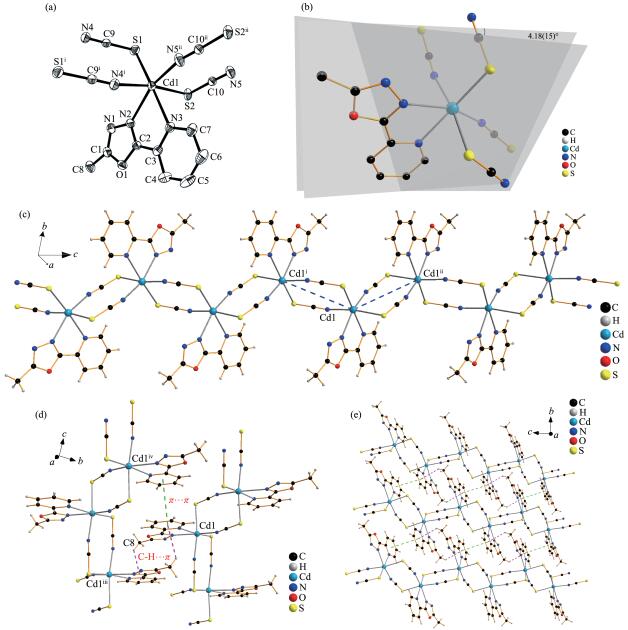

Two polymeric cadmium (Ⅱ) complexes derived from 2-methyl-5-(2-pyridyl)-1, 3, 4-oxadiazole (L), [Cd₂(L)₂(μ-SCN)₄]_n (1) and[Cd₂(L)₂(μ-Cl)₄]_n (2), were synthesized and characterized by single crystal X-ray diffraction, UV-visible spectra, fluorescence and thermogravimetric analysis (TGA). Complexes 1 and 2 crystallize in triclinic and monoclinic system, respectively. The space groups of complexes 1 and 2 are P\begin{document}$\bar 1$\end{document} and P2₁/n, respectively. Complex 1 is a double-bridged cadmium(Ⅱ) polymer bridged by two thiocyanate anions, and the central Cd1(Ⅱ) ions have distorted octahedral geometries[CdN₄S₂]. Complex 2 is a double-bridged cadmium(Ⅱ) polymer bridged by two chloride anions, and the central cadmium(Ⅱ) ions have distorted octahedral geometries[CdCl₄N₂]. Both complexes 1 and 2 have fluorescence properties.
- 1, 3, 4-oxadiazole,
- synthesis,
- crystal structure,
- cadmium(Ⅱ) complex,
- fluorescence
1. [1]
  Sahin G, Palaska E, Ekizoğlu M, et al. Il Farmaco, 2002, 57(7):539-542 doi: 10.1016/S0014-827X(02)01245-4
2. [2]
  Kadi A A, El-Brollosy N R, Al-Deeb O A, et al. Eur. J. Med. Chem., 2007, 42:235-242 doi: 10.1016/j.ejmech.2006.10.003
3. [3]
  Zarghi A, Hajimahdi Z, Mohebbi S, et al. Chem. Pharm. Bull., 2008, 56(4):509-512 doi: 10.1248/cpb.56.509
4. [4]
  Shingalapur R V, Hosamani K M, Keri R S, et al. Eur. J. Med. Chem., 2010, 45:1753-1759 doi: 10.1016/j.ejmech.2010.01.007
5. [5]
  Ingale N, Maddi V, Palkar M, et al. Med. Chem. Res., 2012, 21:16-26 doi: 10.1007/s00044-010-9494-z
6. [6]
  Dawood K M, Gomha S M. J. Heterocycl. Chem., 2015, 52(5):1400-1405 doi: 10.1002/jhet.2250
7. [7]
  Wafa O M A, El-Metwalli M A E. Arch. Pharm., 1992, 325:603-608
8. [8]
  Akhtar T, Hameed S, Al-Masoudi N A, et al. Acta Pharm., 2008, 58:135-149
9. [9]
  Qian X, Zhang R. J. Chem. Tech. Biotechnol., 1996, 67:124-130 doi: 10.1002/(SICI)1097-4660(199610)67:2<124::AID-JCTB528>3.0.CO;2-G
10. [10]
  Kotaiah Y, Harikrishna N, Nagaraju K, et al. Eur. J. Med. Chem., 2012, 58:340-345 doi: 10.1016/j.ejmech.2012.10.007
11. [11]
  El-Sayed W A, El-Essawy F A, Ali O M, et al. Monatsh. Chem., 2010, 141:1021-1028 doi: 10.1007/s00706-010-0360-y
12. [12]
  Rajak H, Kharya M D, Mishra P. Arch. Pharm. Chem. Life Sci., 2008, 341:247-261 doi: 10.1002/ardp.200700146
13. [13]
  Adachi C, Tokito S, Tsutsui T, et al. Jpn. J. Appl. Phys., 1988, 27:L269-L271
14. [14]
  Bouanis M, Tourabi M, Nyassi A, et al. Appl. Surf. Sci., 2016, 389:952-966 doi: 10.1016/j.apsusc.2016.07.115
15. [15]
  Gurudatt D M, Mohana K N. Ind. Eng. Chem. Res., 2014, 53:2092-2105 doi: 10.1021/ie402042d
16. [16]
  Raj X J, Rajendran N. Prot. Met. Phys. Chem. Surf., 2013, 49:763-775 doi: 10.1134/S2070205113060257
17. [17]
  Mohamed N A. Polym. Degrad. Stab., 2017, 146:42-45 doi: 10.1016/j.polymdegradstab.2017.09.017
18. [18]
  Shavaleev N M, Scopelliti R, Grätzel M, et al. Inorg. Chim. Acta, 2013, 394:295-299 doi: 10.1016/j.ica.2012.07.026
19. [19]
  Bharty M K, Bharti A, Dani R K, et al. J. Mol. Struct., 2012, 1011:34-41 doi: 10.1016/j.molstruc.2011.12.015
20. [20]
  Slyvka Y, Goreshnik E, Veryasov G, et al. Polyhedron, 2017, 133:319-326 doi: 10.1016/j.poly.2017.05.052
21. [21]
  Bharty M K, Dani R K, Nath P, et al. Polyhedron, 2015, 98:84-95 doi: 10.1016/j.poly.2015.05.045
22. [22]
  Garcia A, Machado R C, Grazul R M, et al. J. Biol. Inorg. Chem., 2016, 21:275-292 doi: 10.1007/s00775-016-1338-y
23. [23]
  Chaves J D S, Tunes L G, de J. Franco C H, et al. Eur. J. Med. Chem., 2017, 127:727-739 doi: 10.1016/j.ejmech.2016.10.052
24. [24]
  Gallego B, Kaluđerović M R, Kommera H, et al. Invest. New Drugs, 2011, 29:932-944 doi: 10.1007/s10637-010-9449-8
25. [25]
  Köhler C, Rentschler E. Eur. J. Inorg. Chem., 2016, 13-14:1955-1960
26. [26]
  BU De-Yan, GUO Yan-Hong, ZHENG Tao, et al. Chinese J. Inorg. Chem., 2018, 34(10):1875-1882
27. [27]
  Sheldrick G M. SHELXL-2014, Program for the Crystal Structure Solution, University of Göttingen, Germany.
28. [28]
  Zhang X D, Hua J A, Guo J H, et al. J. Mater. Chem. C, 2018, 6:12623-12630
