Citation: HOU Xiao-Fei, ZHAO Wan-Nan, MA Jing, SUN Ji-Qiang, LI Yan-Hong. Synthesis and Luminescence Properties of Eu³⁺ doped LaBO₃ Phosphors[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(2): 276-282. doi: 10.11862/CJIC.2020.016 shu

Synthesis and Luminescence Properties of Eu³⁺ doped LaBO₃ Phosphors

School of Material Science and Engineering, Shenyang University of Chemical Technology, Shenyang 110142, China

Corresponding author: LI Yan-Hong, lyhciom@126.com
Received Date: 3 August 2019
Revised Date: 8 November 2019

Figures(9)

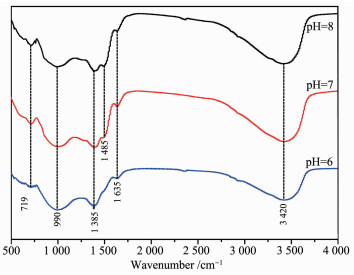

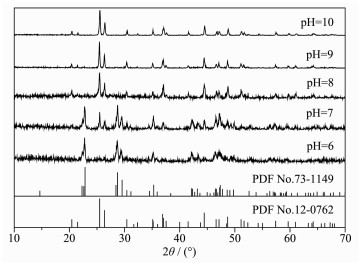

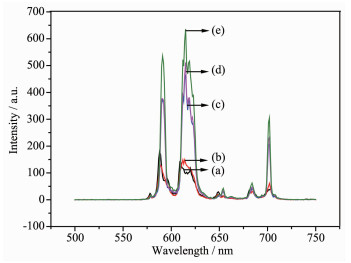

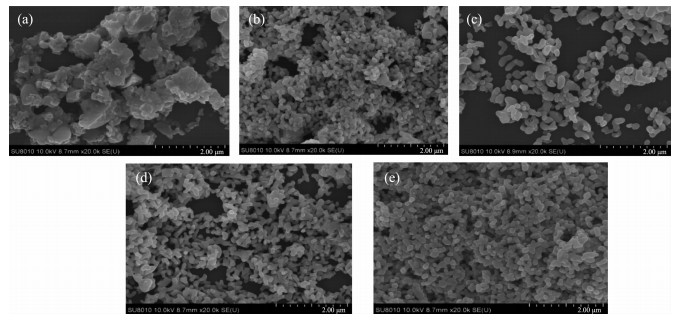

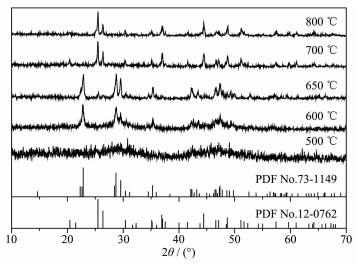

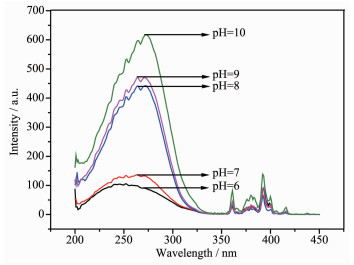

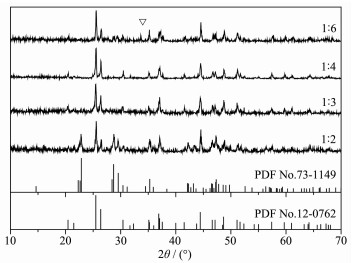

LaBO₃:Eu³⁺ phosphors with different crystal phase were prepared by heat treatment precursor prepared by hydrothermal method. The structure, morphology and luminescence properties of the samples were characterized with X-ray diffraction (XRD), field emission scanning electron microscopy (SEM), infrared spectroscopy and fluorescence spectroscopy. The effects of boric acid dosage, heat treatment temperature, and initial solution pH of precursor on structure and luminescence properties of the samples were studied. The results of XRD showed that the phosphors with orthogonal structure, monoclinic structure and both phase mixed structure can be obtained. LaBO₃ with pure orthogonal structure can be obtained by heating treatment at 700℃ for precursors synthesized with initial solution pH=8 and molar ratio of rare earth ions to boric acid of 1:3 and 1:4, respectively. It is convenient to obtained phosphors with orthogonal structure at proper boric acid dosage, higher heat treatment temperature and higher initial solution pH value. Infrared spectra showed that the change of initial solution pH and boric acid dosage effected the composition of precursor, and the heat treatment temperature effected the crystal phase transformation. SEM showed that particle size of LaBO₃:Eu³⁺ phosphor decreased with the increase of initial solution pH, which were consistent with the results calculated from XRD. The excitation spectra of samples consisted of the broad band in a range of 200~350 nm and another weak narrow lines in a range of 350~450 nm, which were assigned to O^2--Eu³⁺ charge transfer band and f-f transitions of Eu³⁺ ions, respectively. The emission spectra of samples consisted of sharp lines ranging from 500 to 750 nm, which are associated with the transitions from the excited ⁵D₀-⁷F_J (J=1, 2, 3, 4) of Eu³⁺ ions. The main emission peak at 615 nm was due to the ⁵D₀-⁷F₂ transitions of Eu³⁺, the peak at 593 nm was attributed to ⁵D₀-⁷F₁ transitions of Eu³⁺. The excitation and emission intensities are related to the structure of the samples. LaBO₃:Eu³⁺ with orthogonal structure has higher ultraviolet absorption and higher emission intensity with pure red light.
- phosphors,
- LaBO₃:Eu³⁺,
- hydrothermal method,
- heat treatment,
- luminescence
1. [1]
  NING Hong-Yu, CHEN Zhi-Yuan, DONG Chao, et al. Chinese Journal of Luminescence, 2018, 39(8):1087-1094
2. [2]
  WU Zhan-Chao, WANG Shuai, LIU Jie. New Chemical Materials, 2015, 43(13):13-15
3. [3]
  Wang D Y, Chen T M, Cheng B M. Inorg. Chem., 2012, 51:2961-2965 doi: 10.1021/ic202241h
4. [4]
  Wei H W, Shao L M, Jiao H, et al. Opt. Mater., 2018, 75:442-447 doi: 10.1016/j.optmat.2017.10.011
5. [5]
  Lakshmanan A, Bhaskar R S, Thomas P C, et al. Mater. Lett., 2010, 64:1809-1812 doi: 10.1016/j.matlet.2010.05.034
6. [6]
  ZHU Fan, YOU Fang-Tian, SHI Qiu-Feng, et al. Chinese Journal of Luminescence, 2015, 36(7):751-756
7. [7]
  Srivastava S, Mondal A, Sahu N K, et al. RSC Adv., 2015, 5:11009-11012 doi: 10.1039/C4RA12745E
8. [8]
  GAO Rong, ZHANG Zhi-Jun, ZHAO Jing-Tai. J. Chin. Rare Earth Soc., 2014, 32(4):387-396
9. [9]
  MA Jing, ZHAO Wan-Nan, LI Yan-Hong. Chinese Journal of Luminescence, 2018, 39(9):1213-1219
10. [10]
  ZHAO Wan-Nan, MA Jing, ZHANG Zhen-Qian, et al. Journal of the Chinese Ceramic Society, 2017, 45(4):526-541
11. [11]
  Sari S, Senberber F T, Meral Y, et al. Mater. Chem. Phys., 2017, 200:196-203 doi: 10.1016/j.matchemphys.2017.07.056
12. [12]
  Liang P, Liu J W, Liu Z H. RSC Adv., 2016, 6:89113-89123 doi: 10.1039/C6RA19101K
13. [13]
  Grzyb T, Kubasiewicz K, Szczeszak A, et al. Dalton Trans., 2015, 44:4063-4069 doi: 10.1039/C4DT03667K
14. [14]
  Yi H, Wu L, Wu L W, et al. Inorg. Chem., 2016, 55:6487-6495 doi: 10.1021/acs.inorgchem.6b00552
15. [15]
  LI Qi-Hua, LIU Li-Min, ZENG Li-Hua, et al. Chinese Journal of Luminescence, 2006, 27(2):183-186 doi: 10.3321/j.issn:1000-7032.2006.02.009
16. [16]
  Rambabu U, Han S D. RSC Adv., 2013, 3:1368-1379 doi: 10.1039/C2RA21304D
17. [17]
  DONG Yan, JIANG Jian-Qing, XIAO Rui, et al. J. Chin. Rare Earth Soc., 2004, 22(4):201-205
18. [18]
  Zeng Y B, Li Z Q, Liang Y F, et al. Inorg. Chem., 2013, 52:9590-9596 doi: 10.1021/ic401299h
19. [19]
  YIN Xin-Hao, LI Yun-Hui, GAO Ying, et al. Chinese J. Inorg. Chem., 2014, 30(9):2064-2074
20. [20]
  GUO Fan, FU Pei-Zhen, WANG Jun-Xin, et al. J. Synth Cryst, 2000, 29(5):16
21. [21]
  LI Lin-Yan, LI Bao-Guo, LIAO Fu-Hui, et al. Acta Phys.-Chim. Sin., 2005, 21(7):769-773 doi: 10.3866/PKU.WHXB20050714
22. [22]
  Jia G, Zhang C M, Wang C Z, et al. CrystEngComm, 2012, 14:579-584 doi: 10.1039/C1CE05973D
23. [23]
  Gadsden J A. Infrared Spectra of Minerals and Related Inorganic Compounds. London:Butterworth, 1975.
24. [24]
  Qin C X, Qin L, Chen G Q, et al. J. Nanopart. Res., 2013, 15:1827-1836 doi: 10.1007/s11051-013-1827-7
25. [25]
  Shmyt'ko I M, Kiryakin I N, Strukova G K. Phys. Solid State, 2013, 55(7):1468-147 doi: 10.1134/S1063783413070305
26. [26]
  Cansin B, Okan E, Aysen Y. Solid State Sci., 2012, 14:1710-1716 doi: 10.1016/j.solidstatesciences.2012.07.026
