Citation: LIU Zhuo-Cheng, GUO Rui-Hua, RUAN Fei, HU Feng, ZHANG Jie-Yu, AN Sheng-Li. Synthesis of Ce-Mg-Ni/C Nano-Composite Hydrogen Storage Materials by Solvent-Thermal Method[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(12): 2284-2290. doi: 10.11862/CJIC.2019.259 shu

Synthesis of Ce-Mg-Ni/C Nano-Composite Hydrogen Storage Materials by Solvent-Thermal Method

LIU Zhuo-Cheng ^1,, ,
GUO Rui-Hua ^1,2,, ,
RUAN Fei ² ,
HU Feng ² ,
ZHANG Jie-Yu ¹ ,
AN Sheng-Li ²

1.
College of Materials Science and Engineering, Shanghai University, Shanghai 200072, China
2.
Institute of materials and metallurgy, Inner Mongolia University of Science and Technology, Baotou, Inner Mongolia 014010, China

Corresponding author: LIU Zhuo-Cheng, liuzhuo567@126.com GUO Rui-Hua, grh7810@163.com
Received Date: 4 July 2019
Revised Date: 13 October 2019

Figures(10)

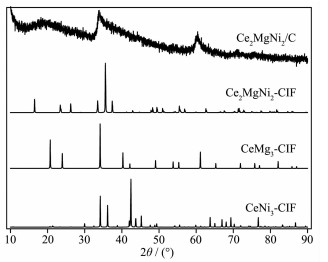

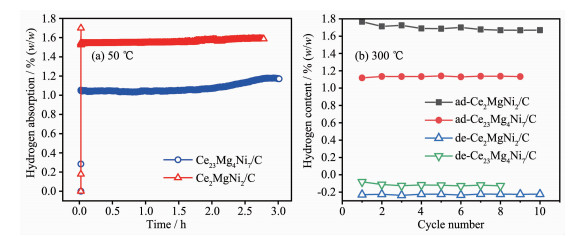

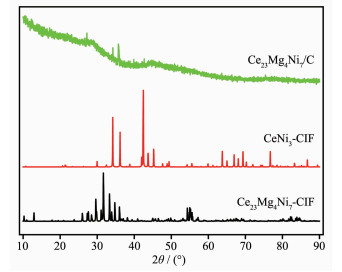

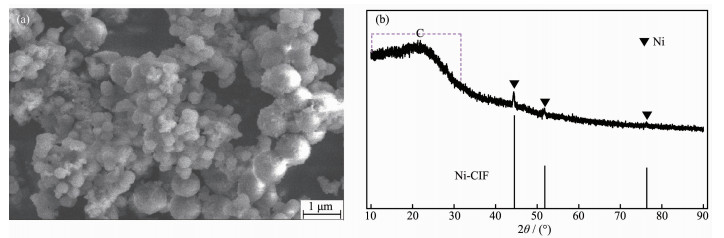

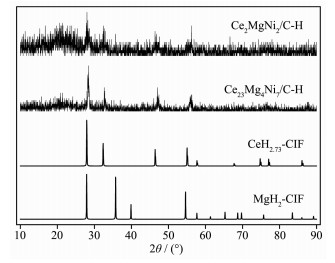

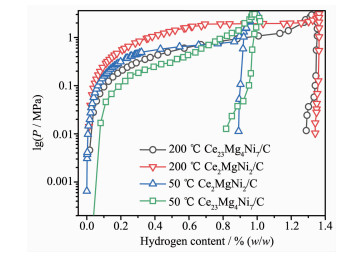

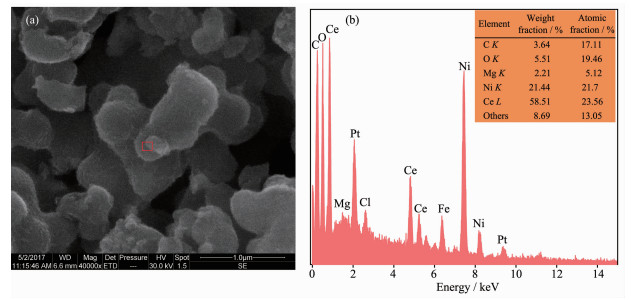

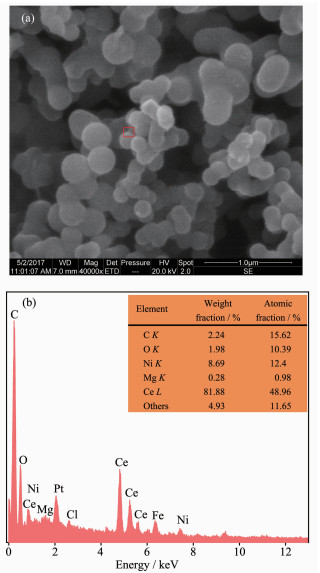

The hydrothermal method was taken to preparing uniform C-sphere from glucose as the C source, then using ethylene glycol as the solvent, and nickel acetate, magnesium acetate and cerium chloride were added successively. Finally, the Ce-Mg-Ni/C nano-composite for hydrogen storage was producing. X-ray diffraction (XRD) and scanning electron microscopy (SEM) were employed to analyze the phase composition and morphology of the solvent-thermal synthesis the nano-composites. Hydrogen adsorption-desorption measurements were performed by an automatic controlled Sieverts. SEM analysis indicated that the pre-fabricated composites with atom radios of 2:1:2 and 23:4:7 presented a nano-scale structure in uniform C-sphere templates. The XRD analysis showed that Ce₂MgNi₂ and Ce₂₃Mg₄Ni₇ have been formed as nano-composite with carbon, and the peaks of the second phase CeMg₃ and CeNi₃ were presented in XRD patterns. P-C-T (pressure-composition-temperature) test date revealed that the hydrogen adsorption capacity of Ce₂MgNi₂/C and Ce₂₃Mg₄Ni₇/C composites reached 1.54% and 1.05%(w/w) at 50℃, respectively.
- Ce-Mg-Ni/C composites,
- solvent-thermal synthesis,
- nano-composite structure,
- hydrogen storage
1. [1]
  Zhang H W, Zheng X Y, Tian X, et al. Prog. Mater Sci., 2017, 27(1):50-57
2. [2]
  TANG Zheng-Yao, ZHOU Wan-Hai, ZHU Ding, et al. Chinese J. Inorg. Chem., 2017, 33(10):1881-1888 doi: 10.11862/CJIC.2017.228
3. [3]
  JIANG Wan-Ting, LUO Yong-Chun, ZHAO Lei, et al. Chinese J. Inorg. Chem., 2018, 34(10):1817-1825 doi: 10.11862/CJIC.2018.222
4. [4]
  Yong H, Guo S H, Yuan Z M, et al. Int. J. Hydrogen Energy, 2019, 44(31):16765-16776 doi: 10.1016/j.ijhydene.2019.04.281
5. [5]
  Zhu Y F, Liu Z B, Yang Y, et al. Int. J. Hydrogen Energy, 2010, 35(12):6350-6355 doi: 10.1016/j.ijhydene.2010.03.094
6. [6]
  Yang T, Wang P, Li Q, et al. Energy, 2018, 165:709-719
7. [7]
  Lei C M, Su C J, Liao J A, et al. Int. J. Hydrogen Energy, 2012, 37(18):13849-13854 doi: 10.1016/j.ijhydene.2012.04.079
8. [8]
  Pandey S K, Singh R K, Srivastava O N. Int. J. Hydrogen Energy, 2009, 34(23):9379-9384 doi: 10.1016/j.ijhydene.2009.09.077
9. [9]
  Yang T, Liu Y A, Yang D X, et al. Energy Storage Mater., 2019, 17:374-384 doi: 10.1016/j.ensm.2018.05.024
10. [10]
  Hou X J, Hu R, Zhang T B, et al. Int. J. Hydrogen Energy, 2013, 38(36):16168-16176 doi: 10.1016/j.ijhydene.2013.09.053
11. [11]
  Elezovi N R, Babi B M, Krstaji N V, et al. Int. J. Hydrogen Energy, 2007, 32(12):1991-1998 doi: 10.1016/j.ijhydene.2006.09.042
12. [12]
  Jiang L, Hsu A, Chu D, et al. Int. J. Hydrogen Energy, 2010, 35(1):365-372 doi: 10.1016/j.ijhydene.2009.10.058
13. [13]
  Hegde M S, Larcher D, Dupont L, et al. Solid State Ionics, 1996, 93(1):33-50
14. [14]
  Sasikala R, Sudarsan V, Sudakar C, et al. Int. J. Hydrogen Energy, 2008, 33(19):4966-4973 doi: 10.1016/j.ijhydene.2008.07.080
15. [15]
  Zhai Y P, Dou Y Q, Liu X X, et al. Carbon, 2011, 49(2):545-555 doi: 10.1016/j.carbon.2010.09.055
16. [16]
  Xu P F, Yu R B, Ren H, et al. Chem. Sci., 2014, 5(11):4221-4226
17. [17]
  Liu Z C, Ruan F, Li Y M, et al. Intermetallics, 2019, 105:79-91 doi: 10.1016/j.intermet.2018.10.026
