Citation: GENG Cong, ZHENG Hui, CHEN Yu-Ting, JIANG Jian-Zhuang. Receptor Influence on Sensing Performance of Metal-Free Porphyrin Sensor[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(11): 2152-2158. doi: 10.11862/CJIC.2019.235 shu

Receptor Influence on Sensing Performance of Metal-Free Porphyrin Sensor

1.
Beijing Key Laboratory for Science and Application of Functional Molecular and Crystalline Materials, Beijing 100083, China
2.
Department of Chemistry, Dezhou University, Dezhou, Shandong 253023, China

Corresponding author: CHEN Yu-Ting, ch_yt@126.com JIANG Jian-Zhuang, jianzhuang@ustb.edu.cn
Received Date: 4 September 2019
Revised Date: 25 September 2019

Figures(5)

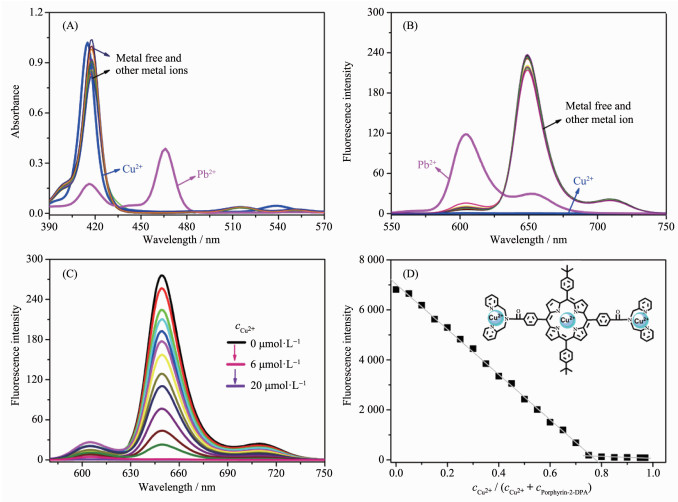

The optical properties of a metal-free tetra(aryl)porphyrin with two N, N-di(2-pyridylmethyl)amino groups (Porphyrin-2-DPA) upon respective addition of different metal ion were investigated. Systemic studies show that the rigid π-conjugated tetrapyrrole macrocyclic moiety of Porphyrin-2-DPA is employed not only as the sensitive signaling fluorophore but also as the primary receptor with excellent binding affinity and distinctive selectivity to metal ion, which together with the no-conjugated DPA auxiliary receptor endows Porphyrin-2-DPA the sensitive versatile sensor to Pb²⁺/Cu²⁺ on the basis of dual-optical signals.
- fluorescent probe,
- porphyrin,
- N, N-di(2-pyridylmethyl)amino group (DPA),
- cations,
- dual-analytes,
- multi-signals
1. [1]
  Zhu H, Fan J L, Wang B H, et al. Chem. Soc. Rev., 2015, 44:4337-4366 doi: 10.1039/C4CS00285G
2. [2]
  Qin M, Huang Y, Li F Y, et al. J. Mater. Chem. C, 2015, 3:9265-9275 doi: 10.1039/C5TC01939G
3. [3]
  Tang J, Yin H Y, Zhang J L. Chem. Sci., 2018, 9:1931-1939 doi: 10.1039/C7SC04498D
4. [4]
  Chen Y T, Pan H H, Jiang J Z, et al. Eur. J. Inorg. Chem., 2017, 19:5254-5259
5. [5]
  Su D D, Teoh C L, Wang L, et al. Chem. Soc. Rev., 2017, 46:4833-4844 doi: 10.1039/C7CS00018A
6. [6]
  Yao Y W, Wang F, Zhang X L, et al. J. Porphyrins Phthalo-cyanines, 2018, 22:1-7 doi: 10.1142/S1088424617500699
7. [7]
  Chen Y T, Wang K L, Jiang J Z. Photochem. Photobiol. Sci., 2013, 12:2001-2007 doi: 10.1039/c3pp50126d
8. [8]
  Kotani H, Ohkubo K, Crossley M J, et al. J. Am. Chem. Soc., 2011, 133:11092-11095 doi: 10.1021/ja204161j
9. [9]
  Diana R, Caruso U, Concilio S, et al. Dyes Pigm., 2018, 155:249-257 doi: 10.1016/j.dyepig.2018.03.055
10. [10]
  Aprahamian I. Chem. Commun., 2017, 53:6674-6684 doi: 10.1039/C7CC02879B
11. [11]
  Wu W N, Wu H, Wang Y, et al. RSC Adv., 2018, 8:5640-5646 doi: 10.1039/C7RA10219D
12. [12]
  Yang M, Chae J B, Kim C, et al. Photochem. Photobiol. Sci., 2019, doi. org/10.1039/C8PP00545A
13. [13]
  He L W, Dong B L, Liu Y, et al. Chem. Soc. Rev., 2016, 45:6449-6461 doi: 10.1039/C6CS00413J
14. [14]
  Chen Y T, Pan H H, Wang F, et al. Dyes Pigm., 2019, 165:279-286 doi: 10.1016/j.dyepig.2019.02.034
15. [15]
  Kolanowski J L, Liu F, New E J. Chem. Soc. Rev., 2018, 47:195-208 doi: 10.1039/C7CS00528H
16. [16]
  Bozdemir O A, Guliyev R, Buyukcakir O, et al. J. Am. Chem. Soc., 2010, 132:8029-8036 doi: 10.1021/ja1008163
17. [17]
  Komatsu H, Citterio D, Fujiwara Y, et al. Org. Lett., 2005, 7:2857-2859 doi: 10.1021/ol0507219
18. [18]
  Chen Y T, Wan L, Li W J, et al. Org. Lett., 2011, 13:5774-5777 doi: 10.1021/ol202338c
19. [19]
  Huang C B, Li H R, Luo Y Y, et al. Dalton. Trans., 2014, 43:8102-8108 doi: 10.1039/c4dt00014e
20. [20]
  Zhang X L, Guo X H, Yuan H H, et al. Dyes Pigm., 2018, 155:100-106 doi: 10.1016/j.dyepig.2018.03.037
21. [21]
  Zhang J F, Zhou Y, Yoon J, et al. Org. Lett., 2010, 12:3852-3855 doi: 10.1021/ol101535s
22. [22]
  Zhu M L, Zhang J H, Zhou Y B, et al. Inorg. Chem., 2018, 57:11537-11542 doi: 10.1021/acs.inorgchem.8b01581
23. [23]
  Chen J D, Zhou Z X, Chen Z X, et al. New J. Chem., 2017, 41:10272-10280 doi: 10.1039/C7NJ01263B
24. [24]
  Zhang L, Chen Y T, Jiang J Z. Dyes Pigm., 2016, 124:110-119 doi: 10.1016/j.dyepig.2015.09.005
25. [25]
  Weng Y Q, Yue F, Zhong Y R, et al. Inorg. Chem., 2006, 46:7749-7755
26. [26]
  Zhu X J, Fu S T, Wong W K, et al. Angew. Chem. Int. Ed., 2006, 45:150-3153 doi: 10.1002/anie.200502706
27. [27]
  Abdullah K, Chen Y L, Jiang J Z. J. Porphyrins Phthalocy-anines, 2017, 21:893-899 doi: 10.1142/S1088424617500985
28. [28]
  Fang Z, Pu K Y, Liu B. Macromolecules, 2008, 41:8380-8387 doi: 10.1021/ma801874z
29. [29]
  Li C Y, Zhang X B, Qiao L, et al. Anal. Chem., 2009, 81:9993-10001 doi: 10.1021/ac9018445
30. [30]
  Brittle S A, Richardson T H, Dunbar A D F, et al. J. Mater. Chem., 2011, 21:4882-4887 doi: 10.1039/c0jm03670f
31. [31]
  Chen Y T, Jiang J Z. Org. Biomol. Chem., 2012, 10:4782-4787 doi: 10.1039/c2ob25313e
