Citation: SONG Yang, SUN Hai-Xia, WANG Yan, LIU Hong-Ke. Synthesis, Characterization and Fluorescence Properties of Macrocyclic Gold(Ⅰ) Complexes with Flexible Bisimidazolate-Containing Ligands[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(12): 2269-2274. doi: 10.11862/CJIC.2019.220 shu

Synthesis, Characterization and Fluorescence Properties of Macrocyclic Gold(Ⅰ) Complexes with Flexible Bisimidazolate-Containing Ligands

SONG Yang ¹ ,
SUN Hai-Xia ² ,
WANG Yan ^1,, ,
LIU Hong-Ke ^2,,

1.
Anhui Province Key Laboratory of Optoelectronic and Magnetism Functional Materials, Key Laboratory of Functional Coordination Compounds of Anhui Higher Education Institutes, Anqing Normal University, Anqing, Anhui 246011, China
2.
School of Chemistry and Materials Science, Nanjing Normal University, Nanjing 210023, China

Corresponding author: WANG Yan, njwangy@126.com LIU Hong-Ke, liuhongke@njnu.edu.cn
Received Date: 29 May 2019
Revised Date: 29 August 2019

Figures(4)

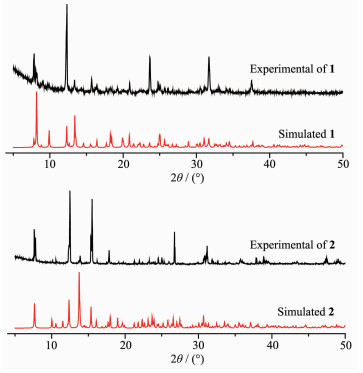

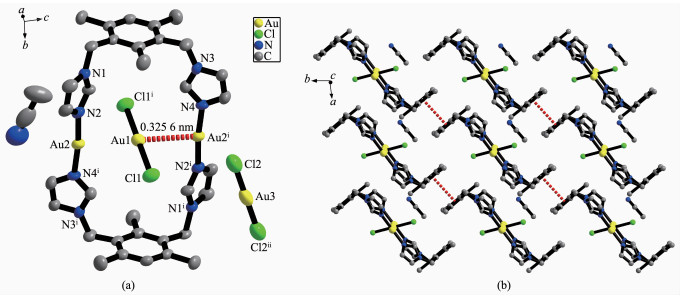

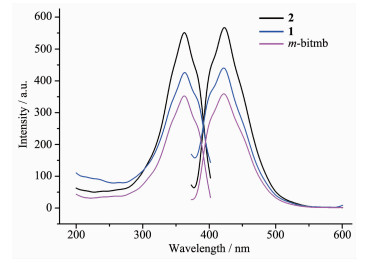

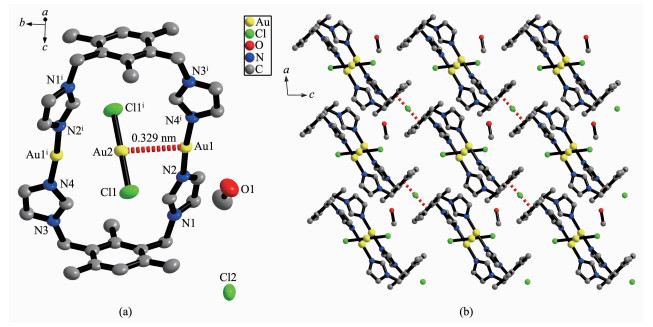

Two novel cyclic Au(Ⅰ) complexes based on flexible bisimidazole-containing ligand, namely, [Au₂(m-bitmb)₂] [AuCl₂]Cl·2CH₃OH (1) and[Au₂(m-bitmb)₂] [AuCl₂]2·2CH₃CN (2) (m-bitmb=1, 3-bis(imidazol-1-ylmethyl)-2, 4, 6-trimethylbenzene), respectively, were obtained by diffusion method, which were further characterized by X-ray single crystal diffraction, elemental analysis, XRD and fluorescence spectroscopy. Complex 1 crystallizes in space group P2/c with a=0.895 6(9) nm, b=1.129 0(12) nm, c=2.166 3(2) nm, β=91.934(19)°, V=2.182 1(4) nm³, Z=2, D_c=2.012 g·cm^-3, F(000)=1 248, the final R=0.036 6, wR=0.091 0. Complex 2 crystallizes in space group P1 with a=0.847 16(13) nm, b=1.168 82(17) nm, c=1.183 72(17) nm, α=97.132 0(10)°, β=96.872(2)°, γ=95.391(2)°, V=1.147 6(3) nm³, Z=1, D_c=2.275 g·cm^-3, F(000)=728, the final R=0.038 1, wR=0.087 8. Both the title complexes have similar cyclic M₂L₂ structural units. The m-bitmb in 1 and 2 all adopt cis-conformation to coordinate to Au(Ⅰ) centers. The cyclic units in 1 and 2 are regularly arranged through π-π stacking interaction to form one-dimensional chain structures. Complex 1 has stronger π-π stacking effect than 2, but its aurophility is slightly weaker. The structural diversities of title complexes may be caused by the different solvents used in the synthesis process. Fluorescence results show that the aurophilic interactions in title complexes play important roles on their fluorescence properties.
- crystal structure,
- Au(Ⅰ) complex,
- aurophility,
- π-π stacking,
- luminescence
1. [1]
  Lim S H, Olmstead M M, Balch A L. Chem. Sci., 2013, 4(1):311-318 doi: 10.1039/C2SC20820B
2. [2]
  Cui P P, Wang P, Sun W Y, et al. Cryst. Growth Des., 2019, 19(2):1454-1470 doi: 10.1021/acs.cgd.8b01628
3. [3]
  Lasanta T, Lopez-de-Luzuriaga J M, Monge M, et al. Chem. Eur. J., 2013, 19(15):4754-4766 doi: 10.1002/chem.201203789
4. [4]
  Koshevoy I O, Chang Y C, Karttunen A J, et al. J. Am. Chem. Soc., 2012, 134(15):6564-6567 doi: 10.1021/ja3018994
5. [5]
  Shakirova J R, Grachova E V, Melnikov A S, et al. Organo-metallics., 2013, 32(15):4061-4069 doi: 10.1021/om301100v
6. [6]
  Cored J, Crespo O, Serrano J L, et al. Inorg. Chem., 2018, 57(20):12632-12640 doi: 10.1021/acs.inorgchem.8b01778
7. [7]
  Jobbágy C, Tunyogi T, Pálinkás G, et al. Inorg. Chem., 2011, 50(15):7301-7308 doi: 10.1021/ic200893n
8. [8]
  Zhou Y P, Liu E B, Wang J, et al. Inorg. Chem., 2013, 52(15):8629-8637 doi: 10.1021/ic400791a
9. [9]
  Penney A A, Sizov V V, Grachova E V, et al. Inorg. Chem., 2016, 55(10):4720-4732 doi: 10.1021/acs.inorgchem.5b02722
10. [10]
  Kawaguchi K, Seki T, Karatsu T, et al. Chem. Commun., 2013, 49(97):11391-11393 doi: 10.1039/c3cc47162d
11. [11]
  Seki T, Sakurada K, Muromoto M, et al. Chem. Sci., 2015, 6(2):1491-1497 doi: 10.1039/C4SC02676D
12. [12]
  Nasser N, Puddephatt R J. Inorg. Chim. Acta, 2014, 409:238-243 doi: 10.1016/j.ica.2013.09.024
13. [13]
  ZHAN Pei-Ying, JI Jian-Ye, NIU Yan-Ling, et al. Chinese J. Inorg. Chem., 2013, 29(2):424-428
14. [14]
  Koshevoy I O, Ostrova P V, Karttunen A J, et al. Dalton Trans., 2010, 39(38):9022-9031 doi: 10.1039/c0dt00587h
15. [15]
  Cheng E C, Lo W Y, Lee T K, et al. Inorg. Chem., 2014, 53(7):3854-3863
16. [16]
  Liang J h, Chen Z X, Liang J, et al. J. Mater. Chem. C, 2014, 2(12):2243-2250 doi: 10.1039/c3tc31638f
17. [17]
  MA Ai-Qing, ZHU Long-Guan. Chinese J. Inorg. Chem., 2015, 31(8):1651-1660
18. [18]
  Nikolayenko V I, Heyns A, Barbour L J. Chem. Commun., 2017, 53(82):11306-11309 doi: 10.1039/C7CC06676G
19. [19]
  Ramsay W J, Bell N A W, Qing Y, et al. J. Am. Chem. Soc., 2018, 140(50):17538-17546 doi: 10.1021/jacs.8b09282
20. [20]
  Sheldrick G M. SHELXS-97, Program for Crystal Structure Solution, University of Göttingen, Germany, 1997.
21. [21]
  Sheldrick G M. SHELXL-97, Program for Crystal Structure Refinement, University of Göttingen, Germany, 1997.
22. [22]
  Elbjeirami O, Rashdan M D, Nesterov V, et al. Dalton Trans., 2010, 39(40):9465-9468 doi: 10.1039/c0dt00736f
23. [23]
  Chi Y, Marc M, Philip C, et al. Inorg. Chem., 2006, 45(17):6592-6594 doi: 10.1021/ic060943i
24. [24]
  Schraff S, Sun Y, Orthaber A, et al. Eur. J. Inorg. Chem., 2019, 2019(1):42-50 doi: 10.1002/ejic.201801031
25. [25]
  Liang J, Chen Z, Yin J, et al. Chem. Commun., 2013, 49(34):3567-3569 doi: 10.1039/c3cc00157a
