Citation: ZHAO Chen, ZHANG Ting, HE Yong, QU Liang-Wu, ZHOU Qing-Jun. Preparation and Performance of Sr₃Fe_2-xNi_xO_7-δ (x=0, 0.1, 0.2, 0.3) Cathode for Intermediate-Temperature Solid Oxide Fuel Cells[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(6): 1027-1033. doi: 10.11862/CJIC.2019.113 shu

Preparation and Performance of Sr₃Fe_2-xNi_xO_7-δ (x=0, 0.1, 0.2, 0.3) Cathode for Intermediate-Temperature Solid Oxide Fuel Cells

College of Science, Civil Aviation University of China, Tianjin 300300, China

Corresponding author: ZHOU Qing-Jun, qjzhou@cauc.edu.cn
Received Date: 10 January 2019
Revised Date: 28 March 2019

Figures(6)

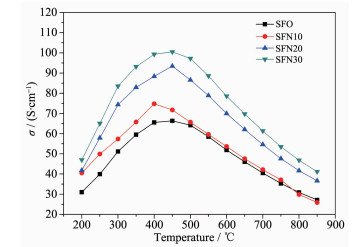

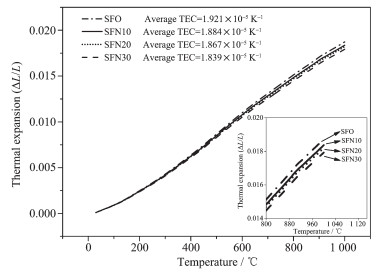

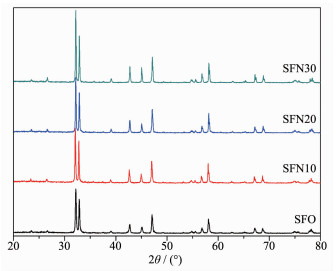

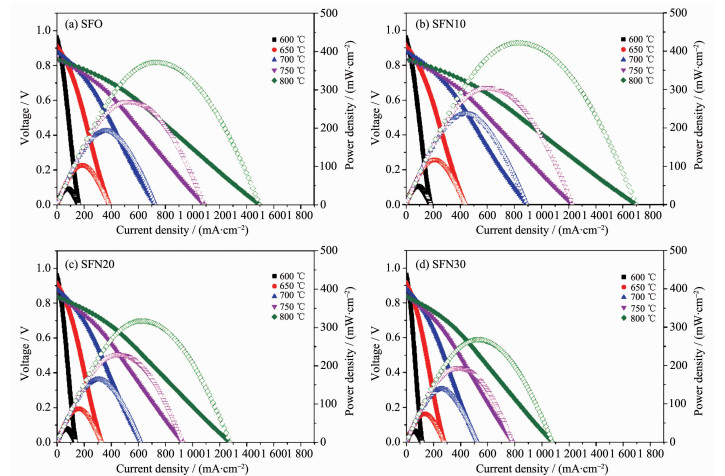

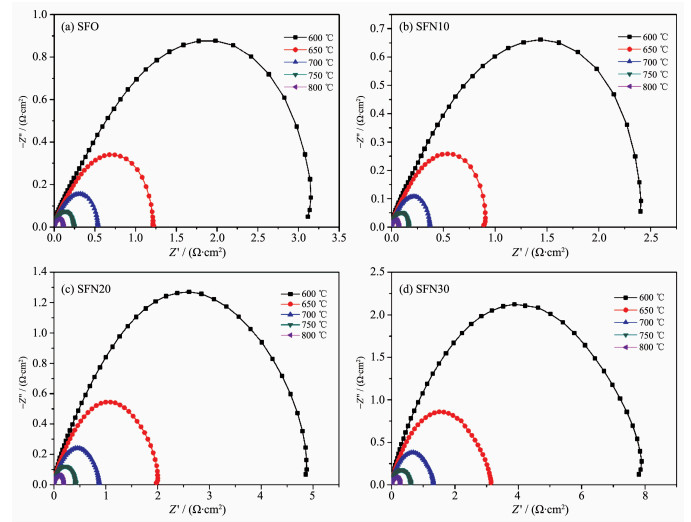

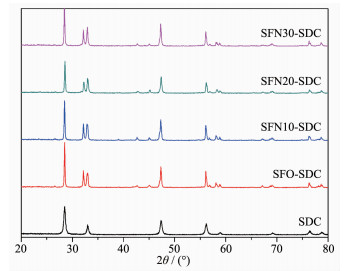

Sr₃Fe_2-xNi_xO_7-δ (x=0, 0.1, 0.2, 0.3) were synthesized by a modified complexing sol-gel process as cathode for intermediate temperature solid oxide fuel cells (IT-SOFCs). The phase structure, thermodynamic properties and electrochemical properties of the materials were characterized by X-ray diffraction, thermal expansion coefficient test, conductivity test, polarization impedance (R_p) test and single cell performance test. The results showed that all samples were successfully synthesized with perovskite-like structure. The Sr₃Fe_2-xNi_xO_7-δ cathode exhibited good chemical compatibility with the Ce_0.8Sm_0.2O_1.9 (SDC) electrolyte at 1 000℃ for 5 h. The coefficient of thermal expansion (TEC) decreased with the increase of x, and the minimum value was 1.839×10^-5 K^-1. Its high temperature conductivity increased with the increase of Ni doping content, and SFN30 had the highest conductivity of 101 S·cm^-1. The R_p of this series of samples showed a trend of decrease first and then increase with the increase of the doping content of Ni. SFN10 had the lowest polarization impedance of 0.078 8 Ω·cm² at 800℃. The trend of the output power of the electrolyte-supported cell was consistent with the trend of polarization impedance. The SFN10 achieved an output power density of 421.6 mW·cm^-2 at 800℃.
- Sr₃Fe_2-xNi_xO_7-δ,
- perovskite-like structure,
- intermediate temperature solid oxide fuel cells,
- cathode material
1. [1]
  Tsipis E V, Kharton V V. J. Solid State Electrochem., 2011, 15:1007-1040 doi: 10.1007/s10008-011-1341-8
2. [2]
  Jacobson A J. Chem. Mater., 2010, 22:660-674 doi: 10.1021/cm902640j
3. [3]
  Cheng Y, Zhou Q J, Chen L B, et al. Mater. Lett., 2017, 193:105-107 doi: 10.1016/j.matlet.2017.01.066
4. [4]
  Inprasit T, Skinner S J, Burriel M, et al. RSC Adv., 2015, 5:2486-2492 doi: 10.1039/C4RA11672K
5. [5]
  Pelosato R, Cordaro G, Stucchi D, et al. J. Power Sources, 2015, 298:46-67 doi: 10.1016/j.jpowsour.2015.08.034
6. [6]
  Khandale A P, Punde J D, Bhoga S S. J. Solid State Electrochem., 2013, 17:617-626 doi: 10.1007/s10008-012-1892-3
7. [7]
  Yoo S Y, Choi S, Shin J, et al. RSC Adv., 2012, 2:4648-4655 doi: 10.1039/c2ra20402a
8. [8]
  Zhou X D, Templeton J W, Nie Z, et al. Electrochim. Acta, 2012, 71:44-49 doi: 10.1016/j.electacta.2012.03.067
9. [9]
  Sun C, Hui R, Roller J. J. Solid State Electrochem., 2010, 14:1125-1144 doi: 10.1007/s10008-009-0932-0
10. [10]
  Laberty C, Zhao F, Virkar A V. J. Solid State Electrochem., 2007, 10:170-174 doi: 10.1149/1.2760188
11. [11]
  Takahashi S, Nishimoto S, Matsuda M, et al. J. Am. Ceram. Soc., 2010, 93:2329-2333 doi: 10.1111/jace.2010.93.issue-8
12. [12]
  Wang Z Q, Yang W Q, Shafi S P, et al. J. Mater. Chem. A, 2015, 3:8405-8412 doi: 10.1039/C5TA00391A
13. [13]
  Sharma R K, Celikbilek O, Burriel M, et al. ECS Trans., 2016, 72:1-8
14. [14]
  Mogni L, Prado F, Caneiro A. Chem. Mater., 2006, 18:4163-4170 doi: 10.1021/cm0604007
15. [15]
  Huan D M, Wang Z Q, Wang Z B, et al. ACS Appl. Mater. Interfaces, 2016, 8:4592-4599 doi: 10.1021/acsami.5b10844
16. [16]
  Shannon R D. Acta Cryst., 1976, 32:751-767 doi: 10.1107/S0567739476001551
17. [17]
  Zhou Q J, Wei T, Shi Y H, et al. Curr. Appl. Phys., 2012, 12:1092-1095 doi: 10.1016/j.cap.2012.01.012
18. [18]
  Wei B, Lü Z, Huang X Q, et al. J. Eur. Ceram. Soc., 2006, 26:2827-2832 doi: 10.1016/j.jeurceramsoc.2005.06.047
19. [19]
  Zhou Q J, Gao Y, Wang F, et al. Ceram. Int., 2015, 41:639-643 doi: 10.1016/j.ceramint.2014.08.114
20. [20]
  Zhao C, Zhou Q J, Zhang T, et al. Mater. Res. Bull., 2019, 113:25-30 doi: 10.1016/j.materresbull.2019.01.016
21. [21]
  Wang Y X, Zhao X Y, Lü S Q, et al. Ceram. Int., 2014, 40:7321-7327 doi: 10.1016/j.ceramint.2013.12.074
22. [22]
  Mogni L, Prado F, Caneiro A, et al. Solid State Ionics, 2006, 177:1807-1810 doi: 10.1016/j.ssi.2006.03.050
23. [23]
  Hyodo J, Tominaga K, Ju Y W, et al. Solid State Ionics, 2014, 256:5-10 doi: 10.1016/j.ssi.2013.12.036
24. [24]
  Mogni L, Prado F, Ascolani H, et al. J. Solid State Chem., 2005, 178:1559-1568 doi: 10.1016/j.jssc.2005.02.018
