Citation: CHEN Pei-Lei, HUANG Ji-Chun, CHEN Yi-Xin, JI Chong-Xing, ZHU De-Cheng, LI De-Cheng. Structure and Electrochemical Properties of xLi₂MnO₃-(1-x)Li[Ni_0.8Co_0.15Al_0.05]O₂ (0.5 ≤ x ≤ 0.8)[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(6): 937-946. doi: 10.11862/CJIC.2019.112 shu

Structure and Electrochemical Properties of xLi₂MnO₃-(1-x)Li[Ni_0.8Co_0.15Al_0.05]O₂ (0.5 ≤ x ≤ 0.8)

College of Energy, Soochow University, Suzhou, Jiangsu 215006, China

Corresponding author: LI De-Cheng, lidecheng@suda.edu.cn
Received Date: 28 September 2018
Revised Date: 21 March 2019

Figures(8)

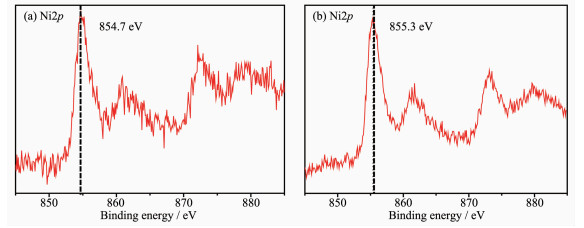

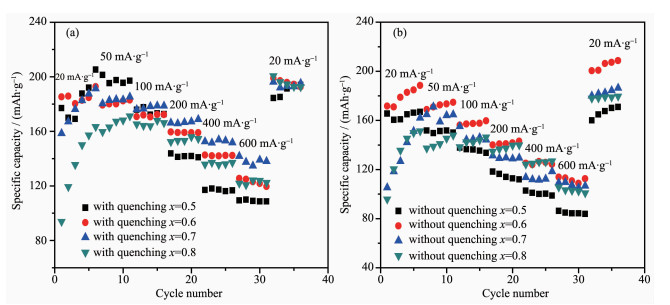

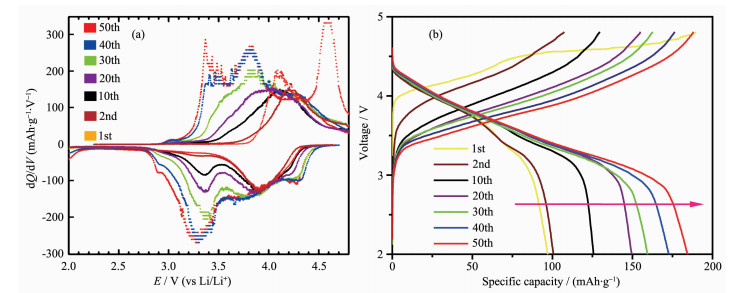

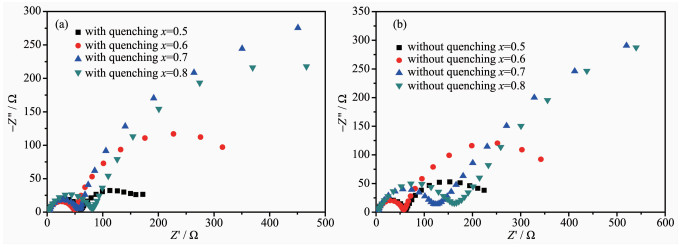

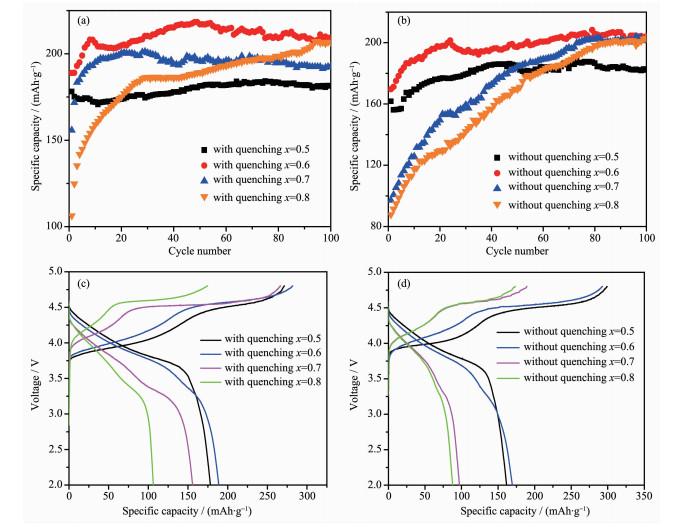

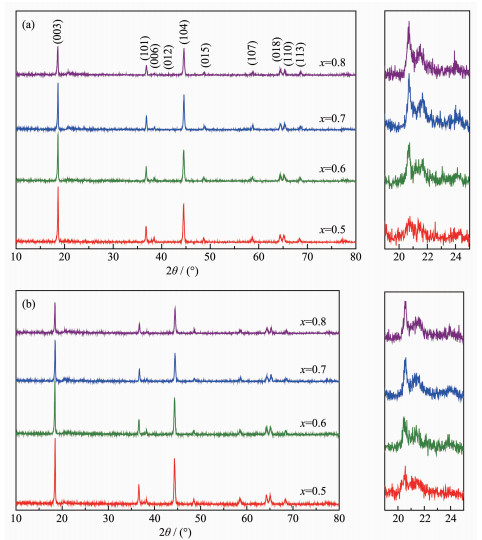

A new type of material based on the rich lithium-layered solid solution material system, xLi₂MnO₃-(1-x)Li[Ni_0.8Co_0.15Al_0.05]O₂ (0.5 ≤ x ≤ 0.8) was obtained by spray dry process with post annealing treatment. The effect of x value on the structural and electrochemical properties of the materials was investigated by XRD, SEM, TEM, XPS, EIS and charge-discharge tested. Our results suggested that the crystal structure of the sample gradually changed from layered Li[Ni_0.8Co_0.15Al_0.05]O₂ type to Li₂MnO₃ type with the increase of x. Moreover, the quenching treatment in liquid nitrogen was helpful to improve the electrochemical properties of xLi₂MnO₃-(1-x)Li[Ni_0.8Co_0.15Al_0.05]O₂ (0.5 ≤ x ≤ 0.8), which was attributed to the change in terms of the micro structure and valence of the transit metals caused by quenching. The sample with x=0.6 after quenching treatment showed good electrochemical properties, with above 209 mAh·g^-1 of reversible capacity after 100 cycles.
- lithium-ion batteries,
- lithium-rich layered solid solution material,
- liquid-nitrogen quench
1. [1]
  Islam M S, Fisher C A J. Chem. Soc. Rev., 2014, 5:1922-1938 doi: 10.1039/b915141a
2. [2]
  Zhu J, Zhang G H, Yu X Z, et al. Nano Energy, 2014, 3:80-87 doi: 10.1016/j.nanoen.2013.10.009
3. [3]
  Zhang Q F, Xu C M, Lu B A. Electrochim. Acta, 2014, 132:180-185 doi: 10.1016/j.electacta.2014.03.111
4. [4]
  Zhang Q Y, Zhang C L, Li B, et al. Electrochim. Acta, 2013, 107:139-146 doi: 10.1016/j.electacta.2013.05.151
5. [5]
  Goodenough J B, Kim Y J. Power Sources, 2011, 196:6688-6694 doi: 10.1016/j.jpowsour.2010.11.074
6. [6]
  Armstrong A R, Holzapfel M, Novak P, et al. J. Am. Chem. Soc., 2006, 128:8694-8698 doi: 10.1021/ja062027+
7. [7]
  Kleiner K, Dixon D, Jakes P, et al. J. Power Sources, 2015, 273:70-82 doi: 10.1016/j.jpowsour.2014.08.133
8. [8]
  Hu S K, Cheng G H, Cheng M Y, et al. J. Power Sources, 2009, 188:564-569 doi: 10.1016/j.jpowsour.2008.11.113
9. [9]
  Lim S, Cho J. Electrochem. Commun., 2008, 10:1478-1481 doi: 10.1016/j.elecom.2008.07.028
10. [10]
  Gong C L, Xue Z G, Wen S, et al. J. Power Sources, 2016, 318:93-112 doi: 10.1016/j.jpowsour.2016.04.008
11. [11]
  Lu Z, Dahn J D. J. Electrochem. Soc., 2002, 149:A815-A822 doi: 10.1149/1.1480014
12. [12]
  Johnson C S, Dees D W, Mansuetto M F, et al. J. Power Sources, 1997, 68:570-577 doi: 10.1016/S0378-7753(96)02633-X
13. [13]
  Johnson C S, Li N, Lefief C, et al. Chem. Mater., 2008, 20:6095-6106 doi: 10.1021/cm801245r
14. [14]
  Thackeray M M, Kang S H, Johnson C S, et al. J. Mater. Chem., 2007, 17:3112-3125 doi: 10.1039/b702425h
15. [15]
  Liu J L, Wang J, Xia Y Y. Electrochim. Acta, 2011, 56:7392-7396 doi: 10.1016/j.electacta.2011.05.080
16. [16]
  Wei G Z, Lu X, Ke F S, et al. Adv. Mater., 2010, 22:4364-4367 doi: 10.1002/adma.v22:39
17. [17]
  Li D C, Sasaki Y, Kobayakawa K, et al. J. Power Sources, 2006, 157:488-493 doi: 10.1016/j.jpowsour.2005.08.023
18. [18]
  Ozan T, Hatice A K, Li Y, et al. J. Power Sources, 2013, 241:522-528 doi: 10.1016/j.jpowsour.2013.04.155
19. [19]
  Saavedra-Arias J J, Rao C V, Shojan J, et al. J. Power Sources, 2012, 211:12-18 doi: 10.1016/j.jpowsour.2012.02.029
20. [20]
  Liu W W, Fang G Q, Xia B B, et al. RSC Adv., 2013, 3:15630-15635 doi: 10.1039/c3ra41653d
21. [21]
  Ito A, Li D C, Sato Y, et al. J. Power Sources, 2010, 195:567-573 doi: 10.1016/j.jpowsour.2009.07.052
22. [22]
  Ju J H, Ryu K S. J. Alloys Compd., 2011, 509:7985-7992 doi: 10.1016/j.jallcom.2011.05.060
23. [23]
  Lee K S, Myung S T, Sun Y K. J. Power Sources, 2010, 195:6043-6048 doi: 10.1016/j.jpowsour.2010.02.002
24. [24]
  Ito A, Li D, Sato Y, et al. J. Power Sources, 2010, 195:567-573 doi: 10.1016/j.jpowsour.2009.07.052
25. [25]
  Li D, Sasaki Y, Kobayakawa K, et al. J. Power Sources, 2006, 157:488-493 doi: 10.1016/j.jpowsour.2005.08.023
