Citation: PAN Miao, HU Yuan-Yuan, ZHAO Zhuo, YAO Yong-Lin, ZHOU Hui-Dong, TONG Bi-Hai, ZHANG Qian-Feng. Beryllium Ion-Selective Phosphorescence Probes Based on 9-Crown-3 Ether Iridium Complexes[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(2): 293-299. doi: 10.11862/CJIC.2019.049 shu

Beryllium Ion-Selective Phosphorescence Probes Based on 9-Crown-3 Ether Iridium Complexes

Key Laboratory of Metallurgical Emission Reduction & Resources Recycling, Ministry of Education, Institute of Molecular Engineering and Applied Chemistry, School of Metallurgy Engineering, Anhui University of Technology, Maanshan, Anhui 243002, China

Corresponding author: TONG Bi-Hai, tongbihai@163.com ZHANG Qian-Feng, 1665604075@qq.com
Received Date: 19 September 2018
Revised Date: 3 December 2018

Figures(6)

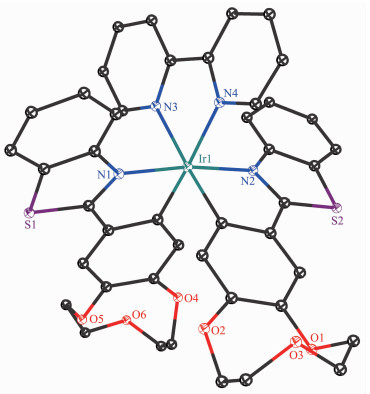

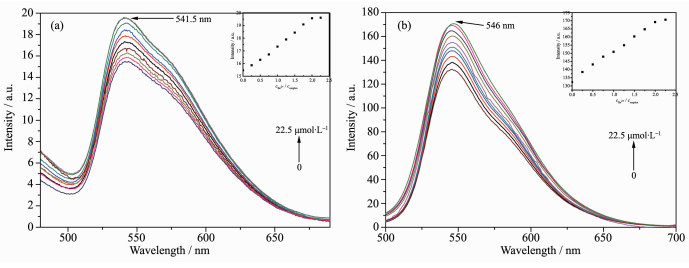

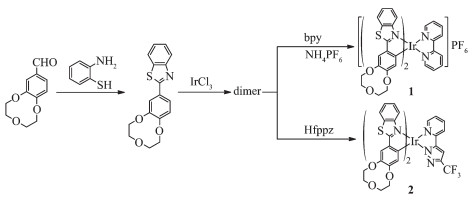

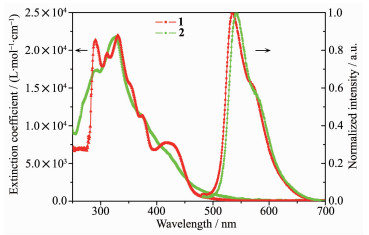

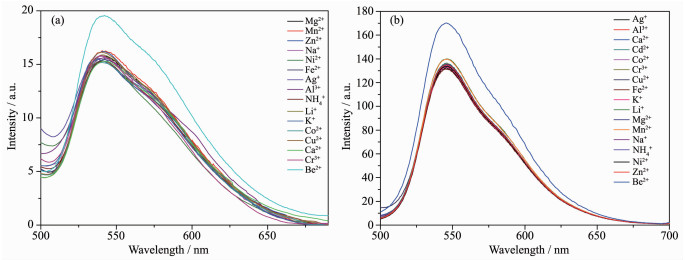

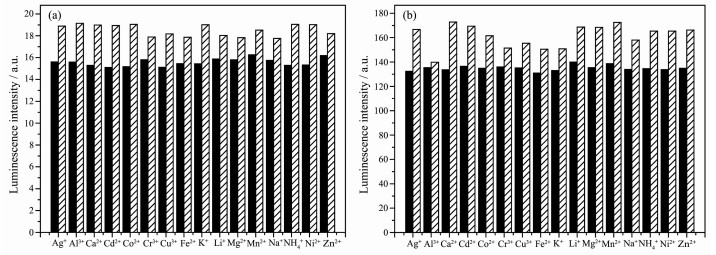

Ionic iridium complex[Ir(BTZ9C3)₂(bpy)]PF₆ (1) and neutral iridium complex[Ir(BTZ9C3)₂(fppz)] (2) were synthesized with 4'-(2-benzothiazolyl)benzo-9-crown-3 ether(BTZ9C3) primary ligand and different ancillary ligands:2, 2'-bipyridine(bpy) and 3-trifluoromethyl-5-(2'-pyridyl)-1, 2-diazole(Hfppz). The structures of the complexes were characterized by NMR, high resolution mass spectrometry, and the single crystal structure of 1 was determined by X-ray structural analysis. All these complexes showed a strong Kelly phosphorescent emission. The photoluminescence spectra of complexes 1 and 2 in PMMA (1%(w/w)) showed emission maximum at 535 and 541 nm, respectively. Their quantum efficiencies were 10.8% and 45.0% and the luminescence lifetimes were 3.01 and 2.58 μs. By means of the cyclic voltammogram, the HOMO levels of complexes 1 and 2 were calculated to be -5.60 and -5.35 eV. Both complexes displayed a high selectivity for Be²⁺ among relevant metal ions, and exhibited luminescence enhancement effect in the presence of Be²⁺. The stoichiometric ratio of iridium complexes responding to Be²⁺ was determined to be 1:2, and the detection limit is down to 6.0 μmol·L^-1. The ionic iridium complex 1 has good anti-disturbance, however the neutral iridium complex 2 is greatly interfered by Al³⁺.
- 9-crown-3 derivatives,
- cyclometalated iridium(Ⅲ) complex,
- Be²⁺,
- phosphorescence probe
1. [1]
  Lee J C, Son Y O, Pratheeshkumar P, et al. Free Radical Biol. Med., 2012, 53:742-757 doi: 10.1016/j.freeradbiomed.2012.06.002
2. [2]
  Boffetta P, Fryzek J P, Mandel J S. Crit. Rev. Toxicol., 2012, 42:107-118 doi: 10.3109/10408444.2011.631898
3. [3]
  Shi W Y, Bai L Q, Guo J, et al. Sens. Actuators B, 2016, 223:671-678 doi: 10.1016/j.snb.2015.09.149
4. [4]
  Isildak I, Attar A, Demir E, et al. Curr. Anal. Chem., 2018, 14:43-48
5. [5]
  Li J, Ma F, Wei X, et al. Anal. Chim. Acta, 2015, 871:51-56 doi: 10.1016/j.aca.2015.02.038
6. [6]
  Wang J, Thongngamdee S, Lu D. Anal. Chim. Acta, 2006, 564:248-252 doi: 10.1016/j.aca.2006.01.100
7. [7]
  Ganjali M R, Ghorbani M, Norouzi P, et al. Sens. Actuators B, 2004, 100:315-319 doi: 10.1016/j.snb.2004.01.021
8. [8]
  Ganjali M R, Rahimi-Nasrabadi M, Maddah B, et al. Talanta, 2004, 63:899-906 doi: 10.1016/j.talanta.2003.12.052
9. [9]
  Soleymanpour A, Rad N A, Niknam K. Sens. Actuators B, 2006, 114:740-746 doi: 10.1016/j.snb.2005.06.046
10. [10]
  Gupta V K, Singh A K, Mergu N. Anal. Chim. Acta, 2012, 749:44-50 doi: 10.1016/j.aca.2012.08.050
11. [11]
  Ji X, Shi W, Zhang S, et al. Anal. Chim. Acta, 2012, 728:77-85 doi: 10.1016/j.aca.2012.04.001
12. [12]
  Shi W Y, Bai L Q, Guo J, et al. Sens. Actuators B, 2016, 223:671-678 doi: 10.1016/j.snb.2015.09.149
13. [13]
  Guerchais V, Fillaut J L. Coord. Chem. Rev., 2011, 255:2448-2457 doi: 10.1016/j.ccr.2011.04.006
14. [14]
  Buchanan G W, Driega A B, Moghimi A, et al. Can. J. Chem., 1993, 71:951-959 doi: 10.1139/v93-127
15. [15]
  Dondoni A, Mara A, Scherrmann M C, et al. Chem. Eur. J., 2001, 7(7):1371-1382 doi: 10.1002/(ISSN)1521-3765
16. [16]
  PAN Miao, LI Si-Hua, CHENG Mao-Ling, et al. Chinese J. Inorg. Chem., 2018, 34(4):627-632
17. [17]
  Tong B H, Qiang J Y, Mei Q B, et al. Z. Naturforsch. B:Chem. Sci., 2012, 67b:213-218
18. [18]
  TONG Bi-Hai, MEI Qun-Bo, LI Zhi-Wen, et al. Acta Chim. Sinica, 2012, 70(23):2451-2456
19. [19]
  Ma D X, Qiu Y, Duan L. Adv. Funct. Mater., 2016, 26:3438-3445 doi: 10.1002/adfm.v26.20
20. [20]
  Zhao Q, Li F Y, Huang C H. Chem. Soc. Rev., 2010, 39:3007-3030 doi: 10.1039/b915340c
21. [21]
  Wang Y C, Xie Y Y, Qu H E, et al. J. Org. Chem., 2014, 79:4463-4469 doi: 10.1021/jo5004339
22. [22]
  Sheldrick G M. SHELX-97, Program for the Solution and the Refinement of Crystal Structures, University of Göttingen, Germany, 1997.
