Citation: BU Guan, SUN Jing, ZHOU Chen, YU Wen-Sheng, WANG Yuan, TANG Juan. Preparation and Properties of the Temperature Sensitive Paints[Eu(PBrBA)3phen] and[Eu(PCBA)3phen][J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(2): 203-208. doi: 10.11862/CJIC.2019.029 shu

Preparation and Properties of the Temperature Sensitive Paints[Eu(PBrBA)3phen] and[Eu(PCBA)3phen]

  • School of Chemistry and Environmental Engineering, Changchun University of Science and Technology, Jilin Provincial Science and Technology Innovation Center of Optical Materials and Chemistry, Changchun 130022, China

Figures(6)

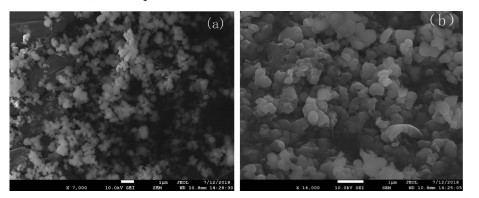

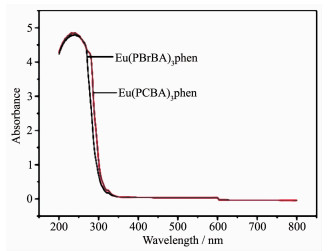

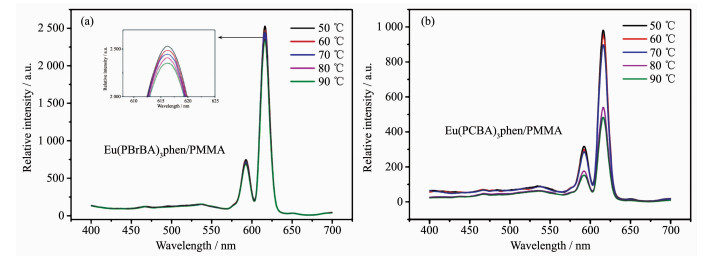

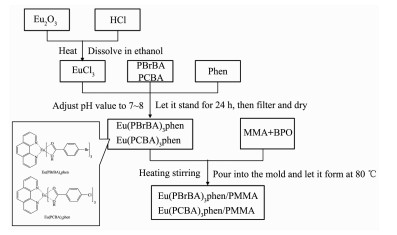

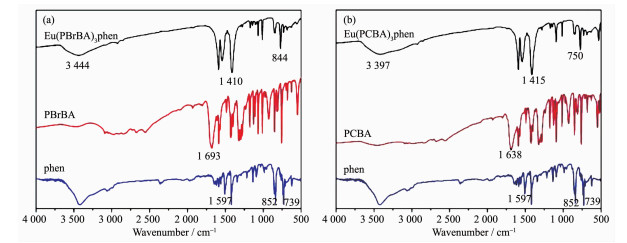

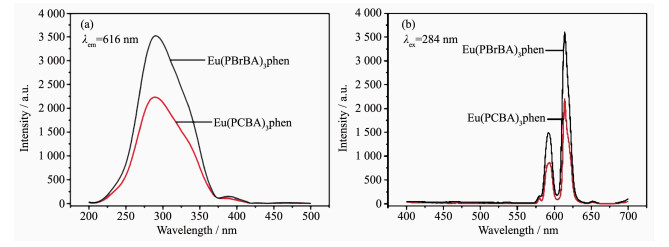

  • Europiumsesquioxide (Eu2O3), parachlorobenzoic-acid (PCBA), parabromobenzoic acid (PBrBA) and o-phenanthroline (phen) were used as raw materials to synthesize two kinds of probe molecules Eu(PCBA)3phen and Eu(PBrBA)3phen. And these two probe molecules were doped in the substrate of polymethyl methacrylate (MMA), benzoyl (BPO) peroxide as initiator, to prepare two kinds of temperature sensitive paints. The infrared spectrometer, ultraviolet spectrometer, scanning electron microscope and fluorescence spectrometer were utilized to analyze the structure, fluorescence properties, morphology and temperature sensitivity of the probes, respectively. Meanwhile the effects of different ligands on the fluorescence properties of the probe molecules and the relevant temperature sensitive paints were studied. The results showed that Eu3+ was coordinated with the main ligand of PCBA and PBrBA, respectively, and the second ligand phen was involved in the coordination, which confirms that two new complexes were synthesized. Both complexes emit characteristic fluorescence of Eu3+, and the ternary complex of phenanthroline europium with PBrBA as the main ligand has better fluorescent properties. Furthermore, the temperature sensitive paints based on these two probes both had temperature-quenching performance in a range of 50~90℃, and the temperature sensitive paint doped with Eu(PCBA)3phen had better temperature sensitivity.
  • 加载中
    1. [1]

      Ruyten W M. Rev. Sci. Instrum., 1997, 68(9):3452-3457

    2. [2]

      Wang J F, Zhang D H, Liu X, et al. J. Chem. Eng. Data, 2010, 55(12):5608-5613  doi: 10.1021/je1004565

    3. [3]

      SUN Meng-Ting, LU Si-Yu, SUN Jing, et al. Chinese J. Inorg. Chem., 2017, 33(7):1217-1222


    4. [4]

      Cattafesta Ⅲ L N, Iyer V, Masad J A, et al. AIAA J., 1995, 33(11):2032-2037  doi: 10.2514/3.12944

    5. [5]

      ZHANG Min, SUN Jing, LIU Hui-Min, et al. Chinese J. Inorg. Chem., 2016, 32(3):421-426


    6. [6]

      ZENG Xue-Jun, LI Ming, LIU Tai-Kui, et al. Acta Aerodynamica Sinica, 2004, 22(4):494-498  doi: 10.3969/j.issn.0258-1825.2004.04.024

    7. [7]

      DAI Jing-Min. Techniques of Automation and Application, 2004, 23(3):11-16  doi: 10.3969/j.issn.1003-7241.2004.03.003

    8. [8]

      WU Sheng-Nan, CHEN Yong-Jie, XING Zhen-Fang, et al. Acta Optica Sinica, 2015, 35(1):305-312


    9. [9]

      LU Si-Yu, LIU Xu-Ri, BI Guan, et al. Chinese J. Inorg. Chem., 2018(4):683-688


    10. [10]

      Fey U, Engler R H, Egami Y, et al. 20th International Congress on Instrumentation in Aerospace Simulation Facilities. Gottingen: [s.n.], 2003: 77-88

    11. [11]

      Whan R E, Crosby G A, et al. J. Mol. Spectrosc., 1962, 8(1):315-327


    12. [12]

      SONG Ya-Jiao, SUN Jing, ZHU Peng, et al. Chinese J. Inorg. Chem., 2013, 29(6):1171-1175


    13. [13]

      Latva M, Takalo H, Mukkala V M, et al. J. Lumin., 1997, 75(2):149-169  doi: 10.1016/S0022-2313(97)00113-0
