Citation: LI Hong-Yan, HUANG Yi-Chuan, LI Zhen-Biao, GUO Hong-Qi, YANG Xin, YANG Ting-Ting, LU Ai-Dang. Synthesis and Electroluminescence of a Red Iridium Complex[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(12): 2211-2218. doi: 10.11862/CJIC.2018.238 shu

Synthesis and Electroluminescence of a Red Iridium Complex

1.
School of Chemical Engineering and Technology, Hebei University of Technology, Tianjin 300130, China
2.
Engineering Research Center of Seawater Utilization Technology of Ministry of Education, Tianjin 300130, China

Corresponding author: LI Hong-Yan, hongyan841210@126.com LU Ai-Dang, aidang_lu@163.com
Received Date: 6 July 2018
Revised Date: 9 August 2018

Figures(5)

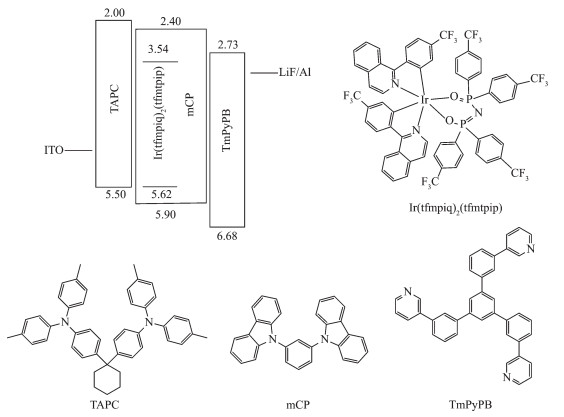

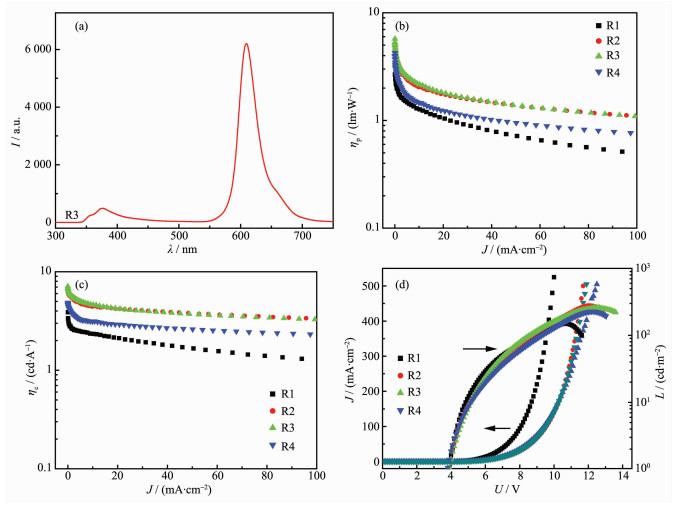

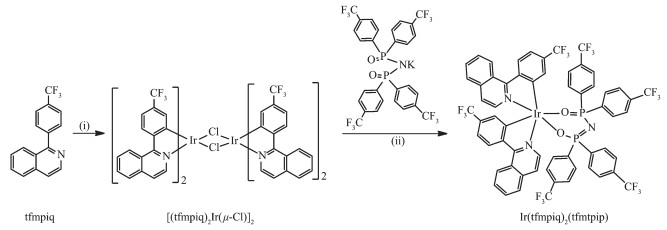

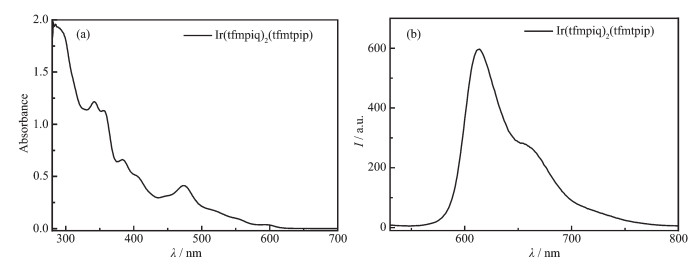

A novel iridium(Ⅲ) cyclometalated complex Ir(tfmpiq)₂(tfmtpip) with 1-(4-(trifluoromethyl) phenyl) isoquinoline(tfmpiq) as main ligand and tetra-(4-trifluoromethylpheny) limidodiphosphinate (tfmtpip) as ancillary ligands have been synthesized. The complex Ir(tfmpiq)₂(tfmtpip) is thermally stable up to 373℃ indicating good thermal stability. For the emission spectra in toluene, the maximum peak located at 613 nm with quantum efficiency of 3.7%. The HOMO and LUMO levels are calculated as -5.62 and -3.54 eV, respectively. The devices R1~R4 with the structure of ITO/TAPC(40 nm)/Ir(tfmpiq)₂(tfmtpip)(x%):mCP (20 nm)/TmPyPB(40 nm)/LiF(1 nm)/Al(100 nm) were fabricated. The device R3 with a 4%(w/w) doped concentration exhibited a luminance of 10 542 cd·m^-2 at a driving voltage of 12.8 V with a maximum power efficiency (η_p) of 5.73 lm·W^-1 and a maximum current efficiency (η_c) of 7.13 cd·A^-1.
1. [1]
  WANG Fang-Fang, TAO You-Tian, HUANG Wei. Acta Chim. Sinica, 2015, 73(1):9-22 doi: 10.3969/j.issn.0253-2409.2015.01.002
2. [2]
  Liu J, Yu L, Zhong C M, et al. RSC Adv., 2012, 2(2):689-696 doi: 10.1039/C1RA00610J
3. [3]
  Han H B, Cui R Z, Lu G Z, et al. Dalton Trans., 2017, 46(43):14916-14925 doi: 10.1039/C7DT03310A
4. [4]
  Kuo H H, Chen Y T, Devereux L R, et al. Adv. Mater., 2017, 29(33):1702464 doi: 10.1002/adma.v29.33
5. [5]
  Henwood A F, Zysman-Colman E. Chem. Commun., 2017, 53(5):807-826 doi: 10.1039/C6CC06729H
6. [6]
  King K A, Spellane P J, Watts R J. J. Am. Chem. Soc., 1985, 107(5):1431-1432 doi: 10.1021/ja00291a064
7. [7]
  Zhu M R, Ye T L, He X, et al. J. Mater. Chem., 2011, 21(25):9326-9331 doi: 10.1039/c1jm10987a
8. [8]
  Chou H H, Cheng C H. Adv. Mater., 2010, 22(22):2468-2471 doi: 10.1002/adma.v22:22
9. [9]
  Tao Y T, Wang Q A, Yang C L, et al. Adv. Funct. Mater., 2010, 20(17):2923-2929 doi: 10.1002/adfm.201000669
10. [10]
  Tsuboyama A, Iwawaki H, Furugori M, et al. J. Am. Chem. Soc., 2003, 125(42):12971-12979 doi: 10.1021/ja034732d
11. [11]
  Adachi C, Kwong R C, Djurovich P, et al. Appl. Phys. Lett., 2001, 79(13):2082-2084 doi: 10.1063/1.1400076
12. [12]
  Yersin H. Top. Curr. Chem., 2004, 241:1-26 doi: 10.1007/b83770
13. [13]
  Lamansky S, Djurovich P, Murphy D, et al. Inorg. Chem., 2001, 40(7):1704-1711 doi: 10.1021/ic0008969
14. [14]
  Zhu Y C, Zhou L, Li H Y, et al. Adv. Mater., 2011, 23(35):4041-4046 doi: 10.1002/adma.v23.35
15. [15]
  ZHANG Song, XUE Li-Sha, WU Chen, et al. Chinese J. Inorg. Chem., 2014, 30(1):134-141
16. [16]
  Li H Y, Zhou L, Teng M Y, et al. J. Mater. Chem. C, 2013, 1(3):560-565 doi: 10.1039/C2TC00052K
17. [17]
  (a) Sheldrick G M. SADABS, University of Göttingen, Germany, 1996.
  (b) Sheldrick G M. SHELXL-97, Program for the Refinement of Crystal Structures, University of Göttingen, Germany, 1997.
18. [18]
  CHEN Shi-Qi, DAI Jun, ZHOU Kai-Feng, et al. Acta Chim. Sinica, 2017, 75(4):367-374
19. [19]
  Wong W Y, Ho C L, Gao Z Q, et al. Angew. Chem. Int. Ed., 2006, 45(46):7800-7803 doi: 10.1002/(ISSN)1521-3773
20. [20]
  PAN Miao, LI Si-Hua, CHENG Mao-Ling, et al. Chinese J. Inorg. Chem., 2018, 34(4):627-632
21. [21]
  Seo H J, Song M, Jin S H, et al. RSC Adv., 2011, 1(5):755-757 doi: 10.1039/c1ra00140j
22. [22]
  Xiao L X, Chen Z J, Qu B, et al. Adv. Mater., 2011, 23(8):926-952 doi: 10.1002/adma.v23.8
23. [23]
  Reineke S, Walzer K, Leo K. Phys. Rev. B, 2007, 75(12):125328 doi: 10.1103/PhysRevB.75.125328
24. [24]
  Ashraf R S, Shahid M, Klemm E, et al. Macromol. Rapid Commun., 2006, 27(17):1454-1459 doi: 10.1002/(ISSN)1521-3927
25. [25]
  Chen L Q, You H, Yang C L, et al. Chem. Commun., 2007(13):1352-1354 doi: 10.1039/b616493e
26. [26]
  Wang Y, Herron N, Grushin V V, et al. Appl. Phys. Lett., 2001, 79(4):449-451 doi: 10.1063/1.1384903
27. [27]
  Hung L S, Chen C H. Mater. Sci. Eng. R, 2002, 39(5/6):143-222
28. [28]
  Ho C L, Wong W Y, Wang Q, et al. Adv. Funct. Mater., 2008, 18(6):928-937 doi: 10.1002/(ISSN)1616-3028
29. [29]
  ZHOU Yong-Hui, KONG Qing-Gang, WANG Zheng-Mei, et al. Chinese J. Inorg. Chem., 2014, 30(10):2288-2294
30. [30]
  Su S J, Chiba T, Takeda T, et al. Adv. Mater., 2008, 20(11):2125-2130 doi: 10.1002/(ISSN)1521-4095
31. [31]
  Tao Y T, Yang C L, Qin J G. Chem. Soc. Rev., 2011, 40(5):2943-2970 doi: 10.1039/c0cs00160k
32. [32]
  Baldo M A, Thompson M E, Forrest S R. Nature, 2000, 403(6771):750-753 doi: 10.1038/35001541
