Citation: YU Ji, WEI Hai-Yan, Li LI, YANG Zhen-Yu, CAI Jian-Xin. Preparation and Lithium Storage Properties of Grid-like SnO₂ Fibers[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(10): 1792-1798. doi: 10.11862/CJIC.2018.232 shu

Preparation and Lithium Storage Properties of Grid-like SnO₂ Fibers

College of Chemistry, Nanchang University, Nanchang 330031, China

Corresponding author: YU Ji, yuji@ncu.edu.cn
Received Date: 16 April 2018
Revised Date: 19 July 2018

Figures(6)

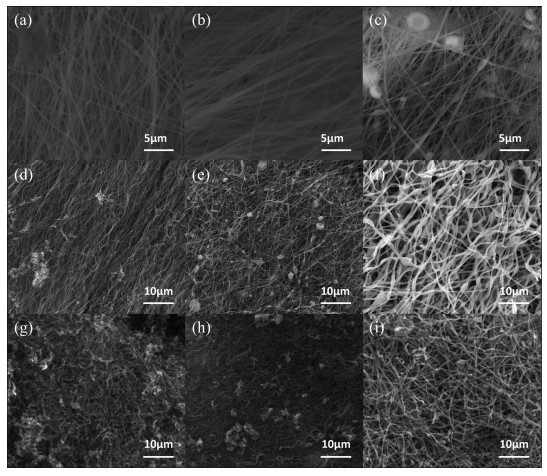

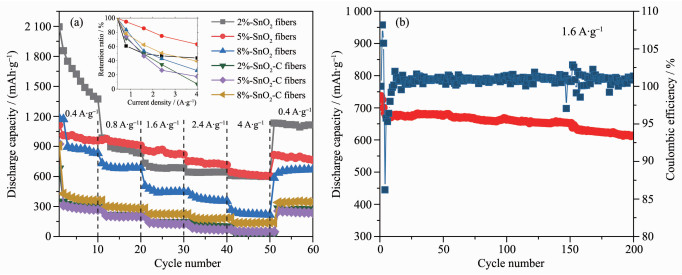

SnO₂ fibers and SnO₂-C fibers were synthesized through electrospun technology and calcined under air or Ar atmosphere. Samples were characterized by different methods. The results showed that SnO₂ fibers and SnO₂-C fibers have a grid-like structure, which can effectively alleviate the disadvantages caused by the huge volume change of SnO₂ during charging-discharging process. SnO₂-C fibers showed a better electrochemical performance than SnO₂ nanoparticles, but worse than that of SnO₂ fibers. SnO₂ fibers could discharged a much high capacity and had a good rate performance and long cycle life at the same time. After working at the current density of 0.4, 0.8, 1.6, 2.4 A·g^-1 and 4 A·g^-1 for 10 cycles, SnO₂ fibers could still discharge a capacity of 1 372, 832, 685, 642 and 599 mAh·g^-1. And when the current density went back to 0.4 A·g^-1, its capacity could arrive 1 113 mAh·g^-1 again. Furthermore, the SnO₂ fibers could also release a high discharge capacity of 613 mAh·g^-1 and almost 100% coulomb efficiency after 200 cycles at the current density of 1.6 A·g^-1, showing an excellent electrochemistry performance.
- lithium-ion battery,
- SnO₂ fibers,
- SnO₂-C fibers,
- anode material,
- electrospinning
1. [1]
  Liu H, Liu B H, Li Z P. Solid State Ionics, 2016, 294:6-14 doi: 10.1016/j.ssi.2016.06.008
2. [2]
  Wang H K, Lu X, Jiri T, et al. Electrochim. Acta, 2016, 211:636-643 doi: 10.1016/j.electacta.2016.06.089
3. [3]
  Zhou H, Li Z Y, Qiu Y P, et al. J. Alloys Compd., 2016, 670:35-40 doi: 10.1016/j.jallcom.2016.02.032
4. [4]
  Ni J F, Li L, Lu J. ACS Energy Lett., 2018, 3(5):1137-1144 doi: 10.1021/acsenergylett.8b00312
5. [5]
  Ni J F, Bi X X, Jiang Y, et al. Nano Energy, 2017, 34:356-366 doi: 10.1016/j.nanoen.2017.02.041
6. [6]
  Li Z, Tan Y Y, Huang X X, et al. Ceram. Int., 2016, 42(16):18887-18893 doi: 10.1016/j.ceramint.2016.09.036
7. [7]
  Li J, Guo J Q, Zhang X, et al. Ionics, 2016, 22(12):2307-2313 doi: 10.1007/s11581-016-1764-4
8. [8]
  Chen S, Xin Y L, Zhou Y Y, et al. J. Mater. Chem. A, 2014, 2(37):15582-15589 doi: 10.1039/C4TA03218G
9. [9]
  Yang Y, Ren S Z, Song X D, et al. Electrochim. Acta, 2016, 209:350-359 doi: 10.1016/j.electacta.2016.05.105
10. [10]
  Yuan J J, Chen C H, Hao Y, et al. J. Alloys Compd., 2017, 691:34-39 doi: 10.1016/j.jallcom.2016.08.229
11. [11]
  Wang C, Du G H, Kenny S, et al. J. Phys. Chem. C, 2012, 116(6):4000-4011 doi: 10.1021/jp300136p
12. [12]
  Ding S J, Luan D, Boey F Y C, et al. Chem. Commun., 2011, 47(25):7155-7157 doi: 10.1039/c1cc11968k
13. [13]
  Mao R, Guo H, Tian D X, et al. Mater. Res. Bull., 2013, 48(4):1518-1522 doi: 10.1016/j.materresbull.2012.12.056
14. [14]
  Guo H, Mao R, Yang X J, et al. J. Power Sources, 2012, 219:280-284 doi: 10.1016/j.jpowsour.2012.07.063
15. [15]
  Qu J, Yang Y A, Shi X M, et al. J. Alloys Compd., 2016, 686:122-129 doi: 10.1016/j.jallcom.2016.06.007
16. [16]
  Ma L A, Wei Z H, Guo T L. J. Mater. Sci.-Mater. Electron., 2016, 27(9):9044-9051 doi: 10.1007/s10854-016-4937-z
17. [17]
  Liu Y, Palmieri A, He J K, et al. Sci. Rep., 2016, 6:25860-25867 doi: 10.1038/srep25860
18. [18]
  Luo L, Xu W Z, Xia Z K, et al. Ceram. Int., 2016, 42(9):10826-10832 doi: 10.1016/j.ceramint.2016.03.211
19. [19]
  Cheng S, Shen D Z, Zhu X S, et al. Eur. Polym. J., 2009, 45(10):2767-2778 doi: 10.1016/j.eurpolymj.2009.06.021
20. [20]
  Dirican M, Yanilmaz M, Fu K, et al. J. Power Sources, 2014, 264:240-247 doi: 10.1016/j.jpowsour.2014.04.102
21. [21]
  Song H C, Wang H X, Lin Z X, et al. Nano Energy, 2016, 19:511-521 doi: 10.1016/j.nanoen.2015.10.031
22. [22]
  Cai M Y, Sun X G, Chen W, et al. J. Mater. Sci., 2018, 53(1):749-758 doi: 10.1007/s10853-017-1524-5
23. [23]
  Koo B R, Oh S T, Ahn H J. Mater. Lett., 2016, 178:288-291 doi: 10.1016/j.matlet.2016.05.016
24. [24]
  Liu D D, Kong Z, Liu X H, et al. ACS Appl. Mater. Interfaces, 2018, 10(3):2515-2525 doi: 10.1021/acsami.7b15916
25. [25]
  Guo H, Mao R, Yang X J, et al. J. Power Sources, 2012, 219:280-284 doi: 10.1016/j.jpowsour.2012.07.063
26. [26]
  Chen J S, Lou X W D. Small, 2013, 9(11):1877-1893 doi: 10.1002/smll.v9.11
27. [27]
  JI Wen-Xu, WU Di, YANG Rong, et al.Chinese J. Inorg. Chem., 2015, 31(4):659-665
28. [28]
  PENG Peng, WEN Zhao-Yin, LIU Yu, et al. Chinese J. Inorg. Chem., 2014, 30(6):1293-1298
29. [29]
  Ni J, Zhang L, Fu S, et al. Carbon, 2015, 92:15-25 doi: 10.1016/j.carbon.2015.02.047
30. [30]
  LI Jian, CUI Yong-Fu, CUI Jin-Long, et al. Chinese J. Inorg. Chem., 2018, 34(1):33-42
