Citation: ZHAO Ya-Chen, LI Ji, HU Jiong-Sheng, LIU Lu, WANG Meng-Meng, SU Zhi, QIAN Yong, Peter J. Sadler, LIU Hong-Ke. Synthesis, Crystal Structure and DNA Interaction of Mononuclear Osmium Complexes[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(10): 1833-1840. doi: 10.11862/CJIC.2018.214 shu

Synthesis, Crystal Structure and DNA Interaction of Mononuclear Osmium Complexes

ZHAO Ya-Chen ¹ ,
LI Ji ¹ ,
HU Jiong-Sheng ¹ ,
LIU Lu ¹ ,
WANG Meng-Meng ¹ ,
SU Zhi ¹ ,
QIAN Yong ^1,, ,
Peter J. Sadler ² ,
LIU Hong-Ke ^1,,

1.
School of Chemistry and Materials Science, Nanjing Normal University, Nanjing 210023, China
2.
Department of Chemistry, University of Warwick, Coventry CV4 7AL, UK

Corresponding author: QIAN Yong, liuhongke@njnu.edu.cn LIU Hong-Ke, yongqian@njnu.edu.cn
Received Date: 25 May 2018
Revised Date: 21 June 2018

Figures(7)

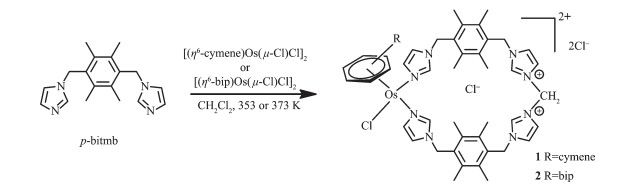

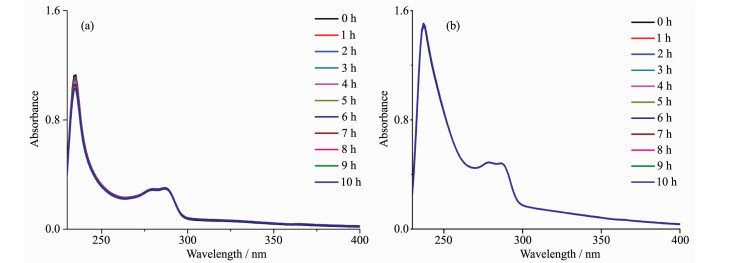

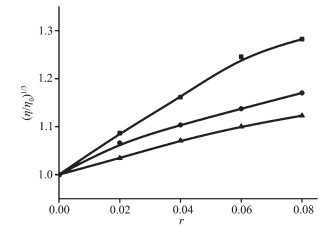

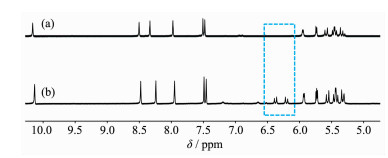

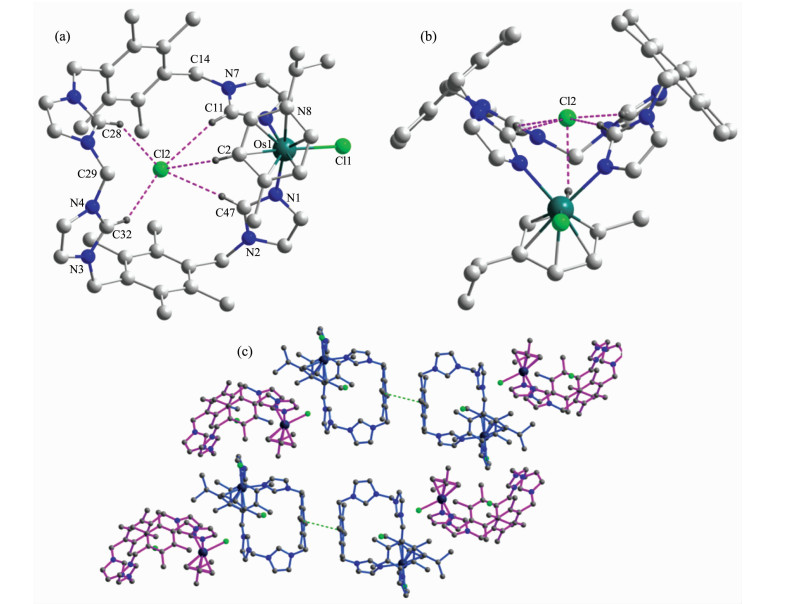

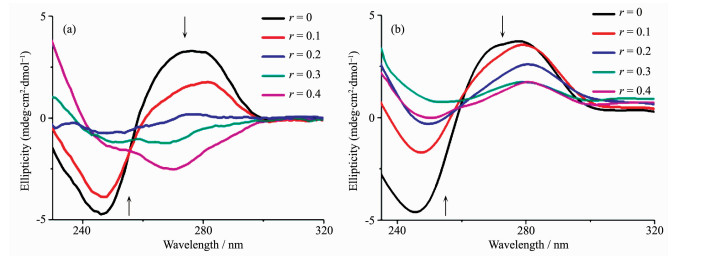

Solvothermal reactions of a p-bitmb ligand (4-bis(1-imidazol-1-ylmethyl)-2, 3, 5, 6-tetramethyl benzene) with[Os(arene)Cl₂]₂ in dichloromethane were used to yield novel mononuclear osmium complexes 1 and 2 (1, arene=p-cym; 2, arene=bip), which were fully characterized by ¹H NMR, ESI-MS, elemental analysis and single-crystal X-ray diffraction analysis. X-ray diffraction revealed that 1 is a mononuclear arene-osmium complex, forming a "bowl-like" structure that belongs to monoclinic system with space P2₁/c. The center osmium atom is coordinated with two nitrogen atom from ligands (p-bitmb) and Cl anion, whereas other imidazole ring of ligand is connected by a-CH₂-group to form a dipositive bis-imidazolium center. Cl^- anion can be trapped inside the cavity of this "bowl-like" structure, forming H-bonds with the backbone. ¹H NMR study showed that the source of the bridging-CH₂-group is the solvent, CH₂Cl₂. These complexes are stable in the buffer solution confirmed by the stability study with UV-Vis spectra. Furthermore, the results of UV-Vis spectra, circular dichroism and viscosity measurements revealed significant interactions between 1, 2 and calf thymus DNA (CT-DNA) via the intercalation, reduction of the base stacking, and induction of the DNA despiralization.
- osmium-arene complex,
- crystal structure,
- interaction with DNA
1. [1]
  Cheff D M, Hall M D. J. Med. Chem., 2017, 60:4517-4532 doi: 10.1021/acs.jmedchem.6b01351
2. [2]
  Ma L, Ma R, Wang Y, et al. Chem. Commun., 2015, 51:6301-6304 doi: 10.1039/C4CC10409A
3. [3]
  Shen D W, Pouliot L M, Hall M D, et al. Pharmacol. Rev., 2012, 64:706-721 doi: 10.1124/pr.111.005637
4. [4]
  Wang X, Guo Z J. Chem. Soc. Rev., 2013, 42:202-224 doi: 10.1039/C2CS35259A
5. [5]
  Markus G, Michael A J, Bernhard K K. Curr. Med. Chem., 2005, 12:2075-2094 doi: 10.2174/0929867054637626
6. [6]
  Wong E, Giandomenico C M. Chem. Rev., 1999, 99:2451-2466 doi: 10.1021/cr980420v
7. [7]
  Gasser G, Ott I, Metzler-Nolte N. J. Med. Chem., 2011, 54:3-25 doi: 10.1021/jm100020w
8. [8]
  KONG Ya-Qiong, LI Ji, HU Xiao-Ying, et al. Scientia Sinica Chimica, 2017, 47:277-283
9. [9]
  Weiss A, Berndsen R H, Dubois M, et al. Chem. Sci., 2014, 5:4742-4748 doi: 10.1039/C4SC01255K
10. [10]
  Egger A, Cebrian-Losantos B, Stepanenko I N, et al. Chem. Biodivers., 2008, 5:1588-1593 doi: 10.1002/cbdv.v5:8
11. [11]
  Kuhn P S, Buchel G E, Jovanovic K K, et al. Inorg. Chem., 2014, 53:11130-11139 doi: 10.1021/ic501710k
12. [12]
  Liu H K, Parkinson J A, Bella J, et al. Chem. Sci., 2010, 1:258-270 doi: 10.1039/c0sc00175a
13. [13]
  Liu H K, Sadler P J. Acc. Chem. Res., 2011, 44:349-359 doi: 10.1021/ar100140e
14. [14]
  Wang H Y, Qian Y, Wang F X, et al. Eur. J. Inorg. Chem., 2017:1792-1799
15. [15]
  Li J, Zhang P, Xu Y, et al. Dalton Trans., 2017, 46:16205-16215 doi: 10.1039/C7DT03374E
16. [16]
  Conerney B, Jensen P, Kruger P E, et al. CrystEngComm, 2003, 5:454-458 doi: 10.1039/B311278K
17. [17]
  Wang X, Liu S, Weng L H, et al. Chem. Eur. J., 2007, 13:188-195 doi: 10.1002/chem.v13:1
18. [18]
  Cohen G, Eisenberg H. Biopolymers, 1969, 8:45-49 doi: 10.1002/(ISSN)1097-0282
19. [19]
  Wu Q, Chen T, Zhang Z, et al. Dalton Trans., 2014, 43:9216-9225 doi: 10.1039/C3DT53635A
20. [20]
  Govender P, Riedel T, Dyson P J, et al. Dalton Trans., 2016, 45:9529-9539 doi: 10.1039/C6DT00849F
21. [21]
  Liu P, Wu B Y, Liu J, et al. Inorg. Chem., 2016, 55:1412-1422 doi: 10.1021/acs.inorgchem.5b01934
22. [22]
  Mukhopadhyay S, Gupta R K, Paitandi R P, et al. Organometal., 2015, 34:4491-4506 doi: 10.1021/acs.organomet.5b00475
23. [23]
  Krishnamoorthy P, Sathyadevi P, Butorac R R, et al. Dalton Trans., 2012, 41:6842-6854 doi: 10.1039/c2dt30121k
24. [24]
  HAO Yuan-Yuan, WU Qi, LI Ji, et al. Chem. J. Chinese Universities, 2018, 4:614-622 doi: 10.7503/cjcu20170634
25. [25]
  Jaroslav K, Iva K, Daniel R, et al. Nucleic Acids Res., 2009, 37:1713-1725 doi: 10.1093/nar/gkp026
26. [26]
  SONG Yu-Min, YANG Pei-Ju, WANG Liu-Fang, et al. Acta Chim. Sinica, 2003, 61:1266-1270
