Citation: GAO Xiang, XU Wei, WU Chang-Li, ZHU Xi-Miao, OU Yong-Cong, WU Jian-Zhong. Syntheses, Crystal Structures and Luminescent Properties of Dinuclear d¹⁰ Complexes Based on a Ligand Formed in Situ by 8-Hydroxyquinoline[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(9): 1768-1774. doi: 10.11862/CJIC.2018.213 shu

Syntheses, Crystal Structures and Luminescent Properties of Dinuclear d¹⁰ Complexes Based on a Ligand Formed in Situ by 8-Hydroxyquinoline

Guangzhou Key Laboratory of Materials for Energy Conversion and Storage, School of Chemistry and Environment, South China Normal University, Guangzhou 510006, China

Corresponding author: ZHU Xi-Miao, zhuximiao@m.scnu.edu.cn OU Yong-Cong, ouyongcong@m.scnu.edu.cn WU Jian-Zhong, wujzh@scnu.edu.cn
Received Date: 25 May 2018
Revised Date: 17 June 2018

Figures(4)

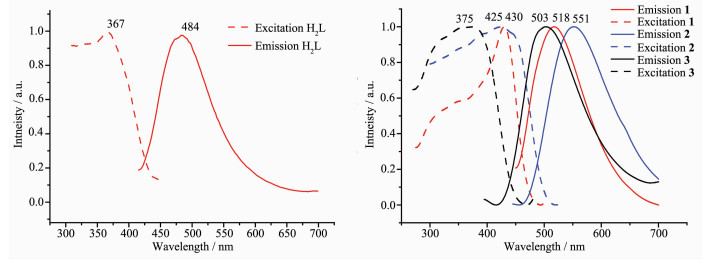

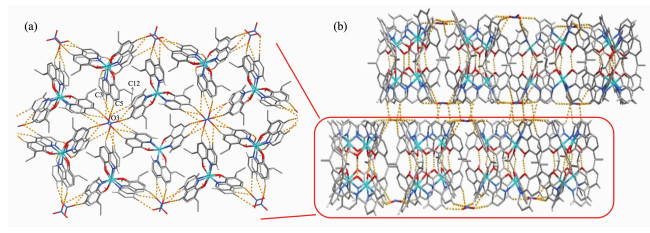

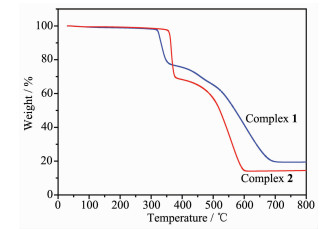

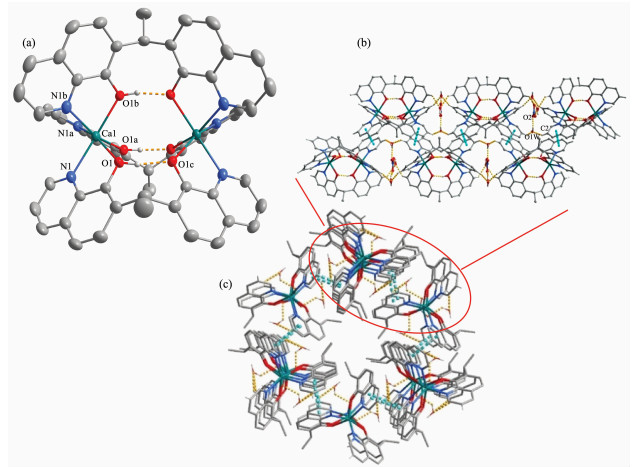

Three novel d¹⁰ complexes[M₂(HL)₃] NO₃·H₂O (M=Cd (1), Zn (2, 3), H₂L=7, 7'-(ethane-1, 1-diyl)diquinolin-8-ol) have been synthesized under solvothermal conditions. Single crystal X-ray diffraction analysis reveals that the complexes have the same coordination positive charged unit, [M₂(HL)₃]⁺, but different lattice structures due to the different places of the guest molecules. Complexes 1 and 3 crystallize in hexagonal system (P6₃/m) and complex 2 crystallizes in trigonal system (R3). The metal ions are six-coordinated with three oxygen atoms and three nitrogen atoms of three HL^- ligands, presenting a slightly distorted octahedron geometry. There are abundant weak interactions between HL^- ligands and guest molecule (NO₃^- and H₂O), which play a vital role in the form of the crystal packing. These complexes show good thermal stabilities and exhibit green fluorescence. Further, the fluorescence of ligand H₂L extracted from the complex 1 has also been studied firstly and blue light emission of it was observed.
- d¹⁰ complexes,
- in situ reaction,
- crystal structures,
- weak interaction,
- luminescent properties
1. [1]
  Cheng M, Ding Y S, Gao E Q, et al. Dalton Trans., 2016, 45:8028-8035 doi: 10.1039/C6DT00927A
2. [2]
  Chen X M, Tong M L. Acc. Chem. Res., 2007, 40:162-170 doi: 10.1021/ar068084p
3. [3]
  Nguyen E T, Zhao X, Ta D, et al. Cryst. Growth Des., 2015, 15:5939-5944 doi: 10.1021/acs.cgd.5b01412
4. [4]
  Zhao H, Qu Z R., Ye H Y, et al. Chem. Soc. Rev., 2008, 37:84-100 doi: 10.1039/B616738C
5. [5]
  Xiong R G, Xue X, Zhao H, et al. Angew. Chem. Int. Ed., 2002, 41:3800-3803 doi: 10.1002/1521-3773(20021018)41:20<3800::AID-ANIE3800>3.0.CO;2-3
6. [6]
  Zhang J, Wu T, Feng P, et al. Chem. Mater., 2008, 20:5457-5459 doi: 10.1021/cm801385m
7. [7]
  Zhang X M. Coord. Chem. Rev., 2005, 249:1201-1219 doi: 10.1016/j.ccr.2005.01.004
8. [8]
  PAN Mei, WEI Zhang-Wen, XU Yao-Wei, et al. Prog. Chem., 2017, 29(1):47-74
9. [9]
  QU Xiang-Long, SONG Shuang, ZHAO Kai, et al. Chinese J. Inorg. Chem., 2016, 32(4):669-676
10. [10]
  Deacon G B, Forsyth C M, Gazukin O, et al. Aust. J. Chem., 2014:8-9
11. [11]
  Zhu Y, Luo F, Song Y M, et al. Cryst. Growth Des., 2012, 12:2158-2161 doi: 10.1021/cg3002509
12. [12]
  Wu M M, Wang J Y, Sun R, et al. Inorg. Chem., 2017, 56:9555-9562 doi: 10.1021/acs.inorgchem.7b00939
13. [13]
  Zhang X M., Li J Q, Liu S J, et al. CrystEngComm, 2014, 16:2570-2573 doi: 10.1039/c3ce42466a
14. [14]
  OU Yong-Cong(区泳聪), GAO Xiang(高翔), WU Jian-Zhong (吴建中). China Patent, 201710610307. 7. 2017-07-25.
15. [15]
  Zhu Y, Luo F, Luo M B, et al. Dalton Trans., 2013, 42:8545-8548 doi: 10.1039/c3dt50737h
16. [16]
  Chen K, Liang L L, Zhang Y Q, et al. Inorg. Chem., 2011, 50:7754-7760 doi: 10.1021/ic200902g
17. [17]
  Albrecht M, Fiege M, Osetska O. Coord. Chem. Rev., 2008, 252:812-824 doi: 10.1016/j.ccr.2007.06.003
18. [18]
  Albrecht M. Synthesis, 1999:1819-1829
19. [19]
  Zheng S L, Chen X M. Aust. J. Chem., 2004, 57:703-712 doi: 10.1071/CH04008
20. [20]
  Yakiyama Y, Murata T, Ise T, et al. Eur. J. Inorg. Chem., 2011:3438-3445
21. [21]
  Harding L P, Jeffery J C, Riis-Johannessen T, et al. Chem. Commun., 2004:654-655
22. [22]
  Sheldrick G M. SADABS 2. 05, A Software for Empirical Absorption Correction, University of Göttingen, Germany, 2002.
23. [23]
  SHELXTL 6. 10, Bruker Analytical Instrumentation, Madison, Wisconsin, USA, 2000.
24. [24]
  Luo J, Xie Z, Lam J W Y, et al. Chem. Commun., 2001:1740-1741
25. [25]
  Chen Z F, Xiong R G, Zhang J, et al. Inorg. Chem., 2001, 40:4075-4077 doi: 10.1021/ic001470x
26. [26]
  Xu B, Chi Z, Zhang J, et al. Chem. Asian J., 2011, 6:1470-1478 doi: 10.1002/asia.v6.6
