Citation: PAN Jin-Bo, LIU Jian-Jun, MA He-Cheng, Usman Ali Khan, ZUO Sheng-Li, YU Ying-Chun, LI Bao-Shan. Preparation of Hierarchical CdS QDs/BiOCl Microsphere with Enhanced Photocatalytic Activity for Organic Pollutant Elimination[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(8): 1421-1429. doi: 10.11862/CJIC.2018.197 shu

Preparation of Hierarchical CdS QDs/BiOCl Microsphere with Enhanced Photocatalytic Activity for Organic Pollutant Elimination

State Key Laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, Beijing 100029, China

Corresponding author: LIU Jian-Jun, jjliu717@126.com
Received Date: 5 February 2018
Revised Date: 25 May 2018

Figures(12)

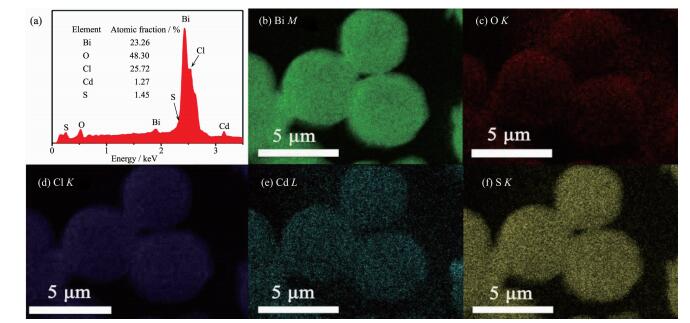

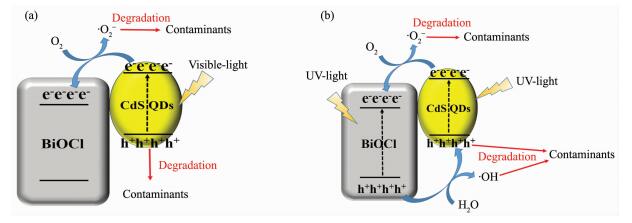

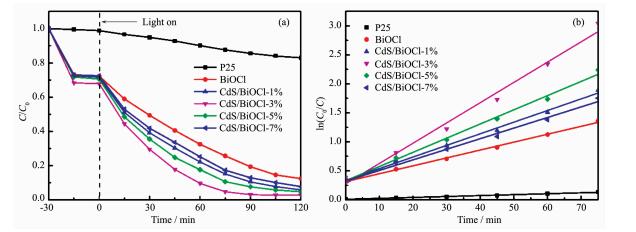

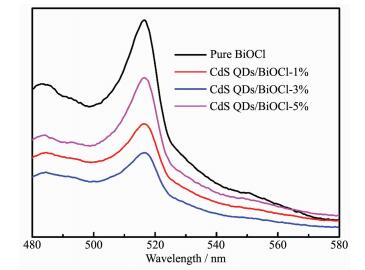

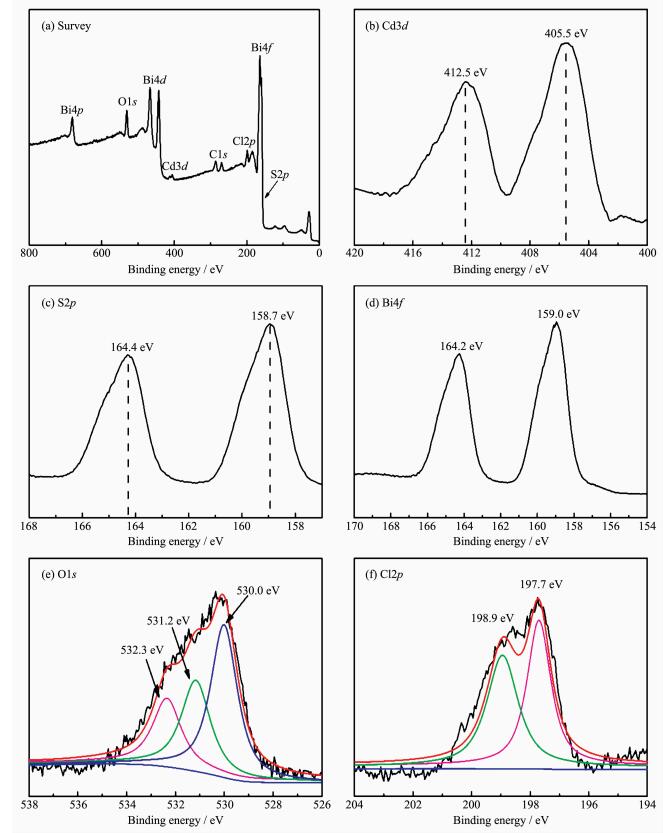

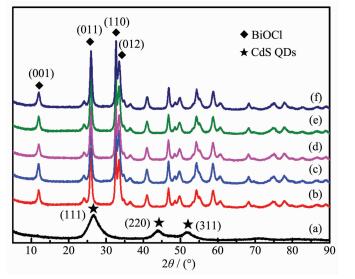

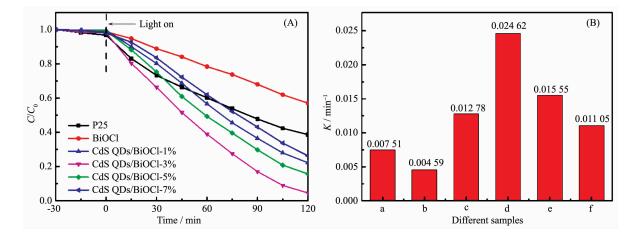

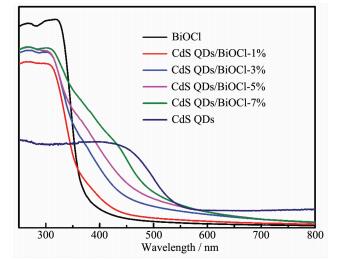

Hierarchical CdS QDs/BiOCl microsphere was prepared via a facile liquid deposition process. XRD, SEM, TEM, HRTEM, XPS, EDS, UV-Vis DRS, PL were used to characterize the phase composition, morphology, composition, light absorption and photoelectric property. Rhodamine (RhB) and phenol were used as the model pollutant to evaluate the photocatalytic performance of CdS QDs/BiOCl under visible and UV light, respectively. The tests indicate that the BiOCl microsphere with size of 5.5 μm is composed of massive nanosheets. Besides, CdS QDs with size of 10~20 nm distributed uniformly on the surface of BiOCl nanosheets. Compared to pure BiOCl and CdS QDs/BiOCl, CdS QDs/BiOCl-3% exhibits the best photocatalytic activity, which is over 2.6 and 5.3 times as high as pure BiOCl for RhB and phenol photodegradation rate. The enhanced photocatalytic performance of the CdS QDs/BiOCl composites should be ascribed to the hierarchical structure of BiOCl which prevented the nanosheets from piling up, enabling CdS QDs to disperse uniformly on the surface of BiOCl nanosheets, moreover, the improved visible light absorption and the high migration efficiency of the photogenerated electron-holes due to the matched band gap and the widespread heterostructure between CdS QDs and BiOCl.
- liquid deposition process,
- BiOCl,
- CdS QDs,
- hierarchical structure,
- photocatalytic activity
1. [1]
  LI Er-Jun, CHEN Lang, ZHANG Qiang, et al. Prog. Chem., 2010, 22(12):2282-2289
2. [2]
  Wang D H, Gao G Q, Zhang Y W, et al. Nanoscale, 2012, 4:7780-7785 doi: 10.1039/c2nr32533k
3. [3]
  Fan D, Sun Y J, Fu M, et al. J. Hazard. Mater., 2012, 219:26-34
4. [4]
  YANG Bing-Ye, LI Hang, SHANG Ning-Zhao, et al. Chinese J. Inorg. Chem., 2017, 33(3):396-404 doi: 10.11862/CJIC.2017.033
5. [5]
  Ding X, Zhao K, Zhang L Z. Environ. Sci. Technol., 2014, 48(10):5823-5831 doi: 10.1021/es405714q
6. [6]
  Jiang J, Zhao K, Xiao X Y, et al. J. Am. Chem. Soc., 2012, 134(10):4473-4476 doi: 10.1021/ja210484t
7. [7]
  Guan M L, Xiao C, Zhang J, et al. J. Am. Chem. Soc., 2013, 135(28):10411-10417 doi: 10.1021/ja402956f
8. [8]
  Zhao S, Zhang Y W, Zhou Y M, et al. ACS Sustain. Chem. Eng., 2017, 5(2):1416-1424 doi: 10.1021/acssuschemeng.6b01987
9. [9]
  Li H, Qin F, Yang Z P, et al. J. Am. Chem. Soc., 2017, 139(9):3513-3521 doi: 10.1021/jacs.6b12850
10. [10]
  Liang Y H, Lin S L, Liu L, et al. Appl. Catal. B, 2015, 164:192-203 doi: 10.1016/j.apcatb.2014.08.048
11. [11]
  Weng S X, Chen B B, Xie L Y, et al. J. Mater. Chem. A, 2013, 1:3068 doi: 10.1039/c2ta01004f
12. [12]
  Dash A, Sarkar S, Adusumalli V N, et al. Langmuir, 2014, 30(5):1401-1409 doi: 10.1021/la403996m
13. [13]
  Han X, Dong S Y, Yu C F, et al. J. Alloys Compd., 2016, 685:997-1007 doi: 10.1016/j.jallcom.2016.06.298
14. [14]
  Yu N, Chen Y, Zhang W H, et al. Mater. Lett., 2016, 179:154-157 doi: 10.1016/j.matlet.2016.05.071
15. [15]
  Fan Q J, Huang Y N, Zhang C, et al. Catal. Today, 2016, 264:250-256 doi: 10.1016/j.cattod.2015.08.006
16. [16]
  Cheng H F, Huang B B, Qin X Y, et al. Chem. Commun., 2012, 48:97-99 doi: 10.1039/C1CC15487G
17. [17]
  Cui W Q, An W J, Liu L, et al. J. Hazard. Mater., 2014, 280:417-427 doi: 10.1016/j.jhazmat.2014.08.032
18. [18]
  Ma X M, Ma Z, Liao T, et al. J. Alloys Compd., 2017, 702:68-74 doi: 10.1016/j.jallcom.2017.01.214
19. [19]
  Ge L, Liu J. Appl. Catal. B, 2011, 105:289-297 doi: 10.1016/j.apcatb.2011.04.016
20. [20]
  Wang B X, An W J, Liu L, et al. RSC Adv., 2015, 5:3224-3231 doi: 10.1039/C4RA12172D
21. [21]
  Kandi D, Martha S, Thirumurugan A, et al. J. Phys. Chem. C, 2017, 121(9):4834-4849 doi: 10.1021/acs.jpcc.6b11938
22. [22]
  Liu B T, Xu W J, Sun T, et al. New J. Chem., 2014, 38:2273-2277 doi: 10.1039/c4nj00257a
23. [23]
  Song J L, Fan Q N, Zhu W H, et al. Mater. Lett., 2016, 165:14-18 doi: 10.1016/j.matlet.2015.11.093
24. [24]
  Li Q Y, Guan Z P, Wu D, et al. ACS Sustain. Chem. Eng., 2017, 5(8):6958-6968 doi: 10.1021/acssuschemeng.7b01157
25. [25]
  Yu L H, Zhang X Y, Li G W, et al. Appl. Catal. B, 2016, 187:301-309 doi: 10.1016/j.apcatb.2016.01.045
26. [26]
  Wang J J, Tang L, Zeng G M, et al. ACS Sustain. Chem. Eng., 2016, 5(1):1062-1072
27. [27]
  Cao J, Li X, Lin H L, et al. Appl. Surf. Sci., 2013, 266:294-299 doi: 10.1016/j.apsusc.2012.11.172
28. [28]
  Zhang X, Wang X B, Wang L W, et al. ACS Appl. Mater. Interfaces, 2014, 6(10):7766-7772 doi: 10.1021/am5010392
